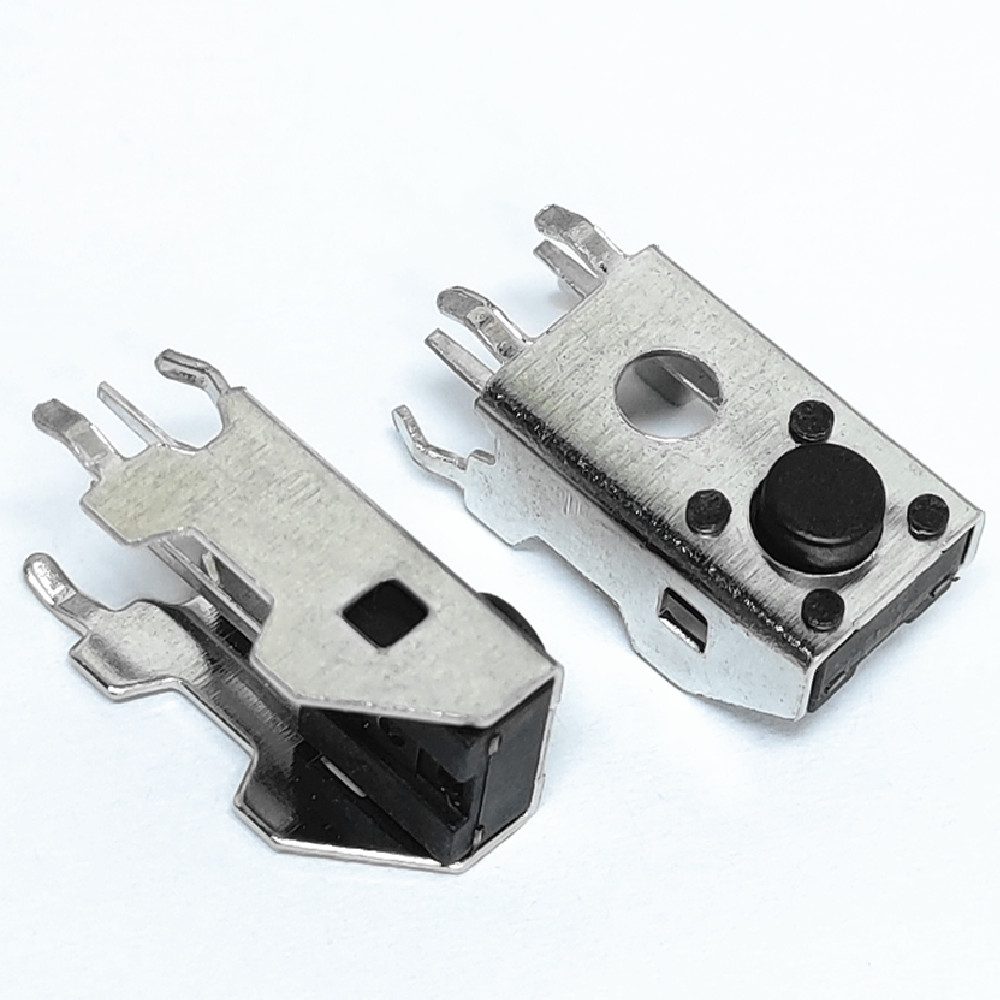

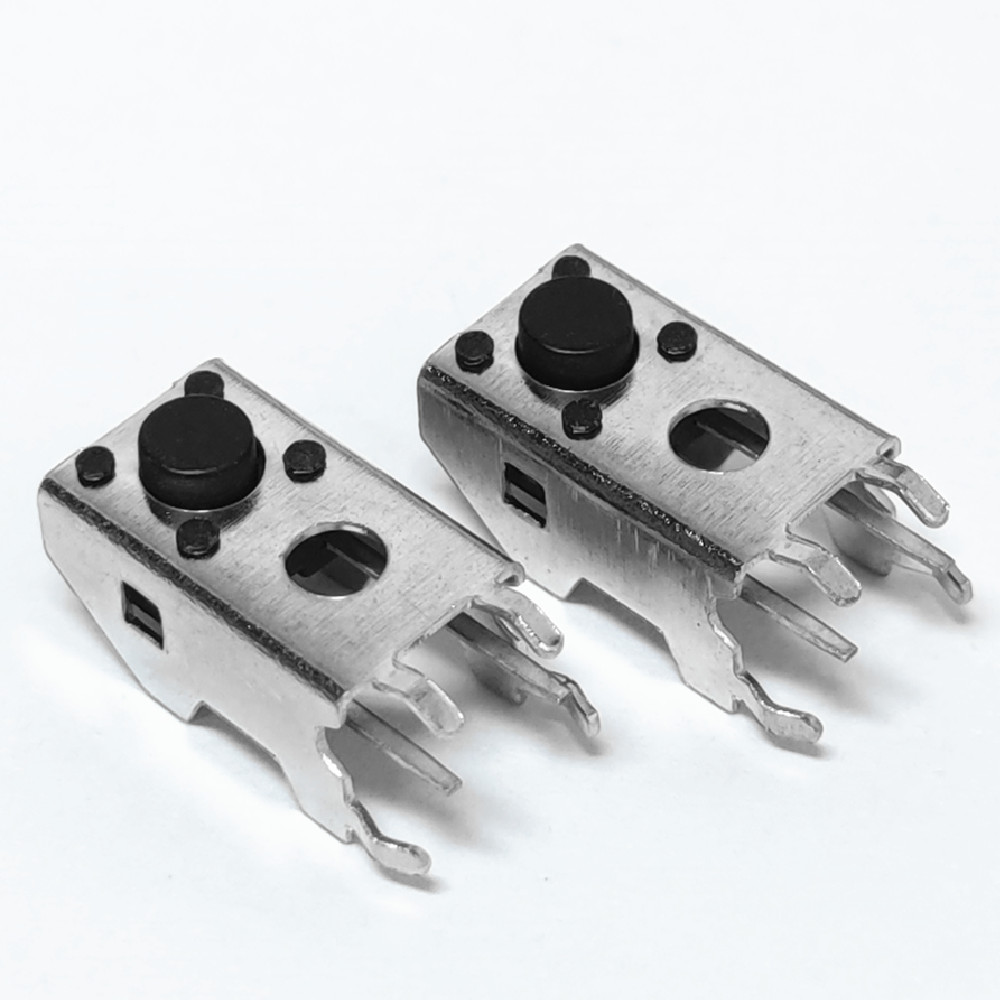

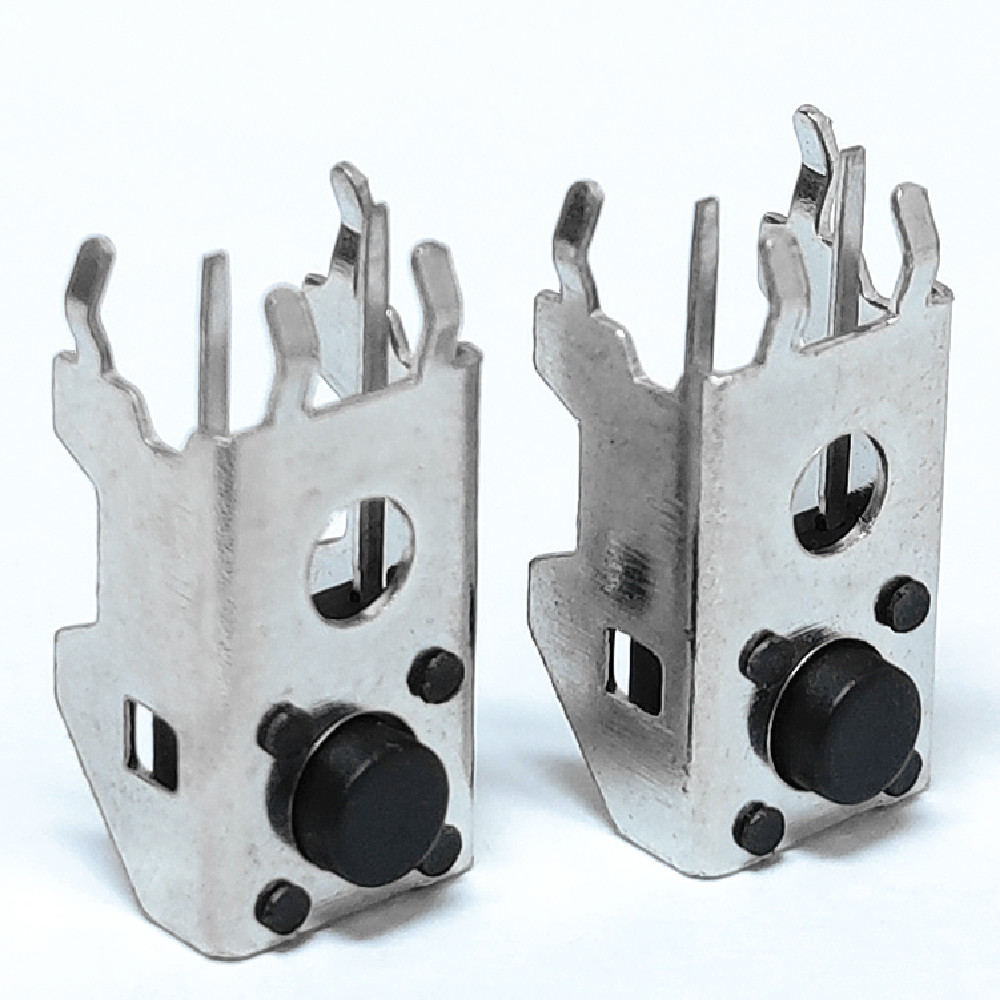

Vertical Type Momentary Bracket Tact Switch
Part Number: KAN6232-0501B
FEATURES
- Variety of actuator lengths
- Choice of actuation force
- Right Angle
- Metal bracket
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC12V 50mA（Max）DC 1V 10μA （Min） |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
160±50 gf |
Full Travel |
0.25±0.1mm |
Return Force |
20gf Min |
Stem Strength |
20N min |
Operation Life |
80,000 cycles |
Mounting Style |
Right Angle |
Length |
6mm |
Width |
6mm |
Height |
5mm |
Packing |
Bag |
ROHS |
Yes |

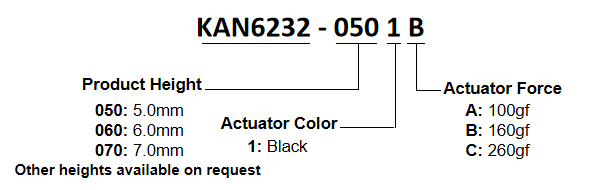

PART NUMBER KEY

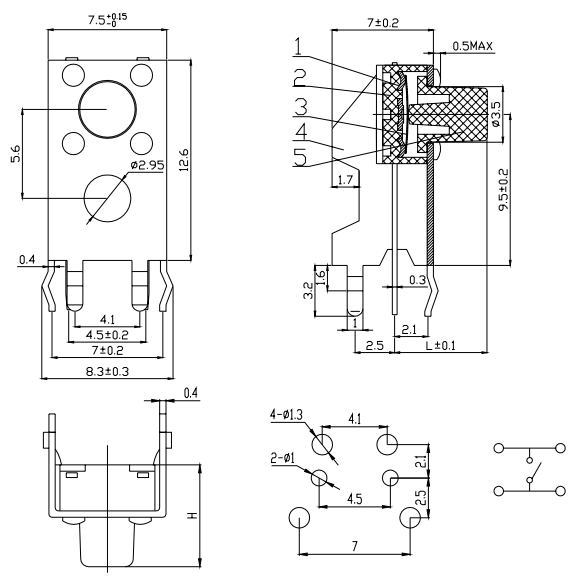

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver Plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
Phosphor bronze |
1 |
Ag Plating |
4 |
Cover |
SPCC |
1 |
CuSn plating |
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
