Tactile Push Buttons Tact Switch with Waterproof
Part Number: KSS7W-0437A1

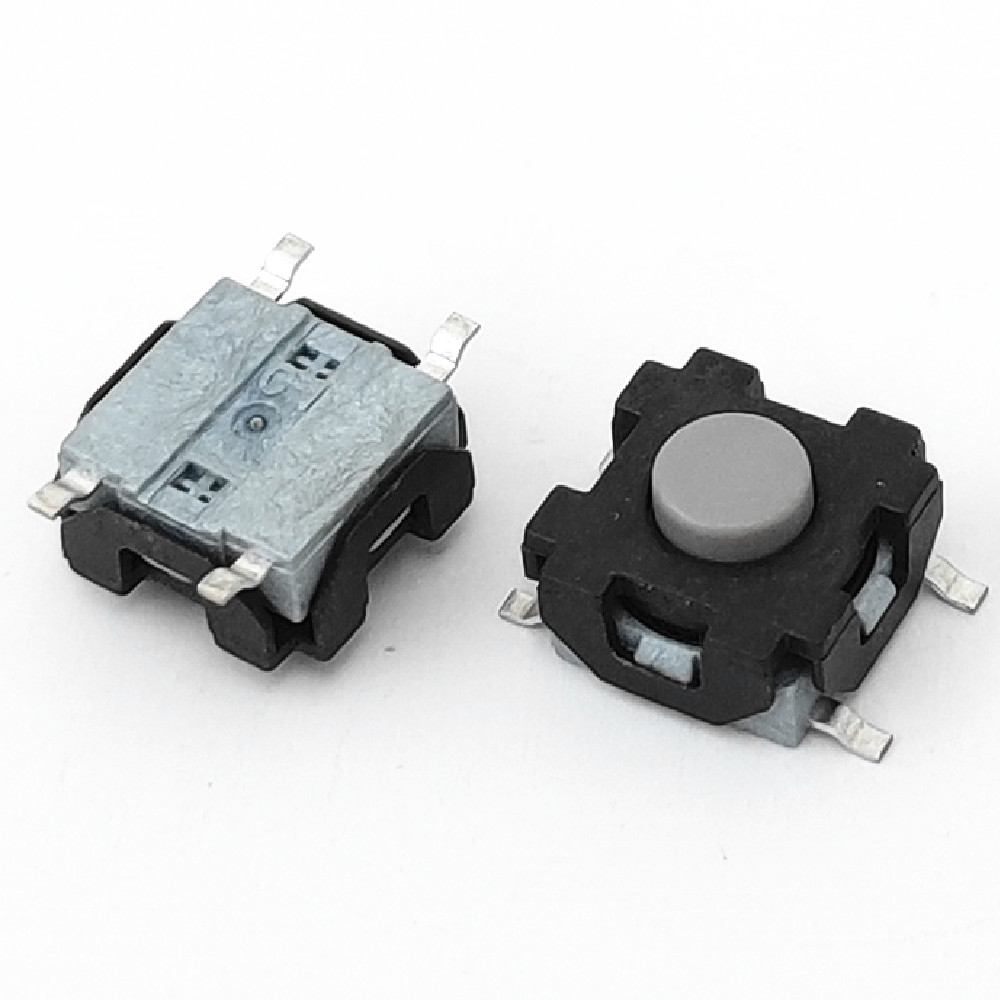

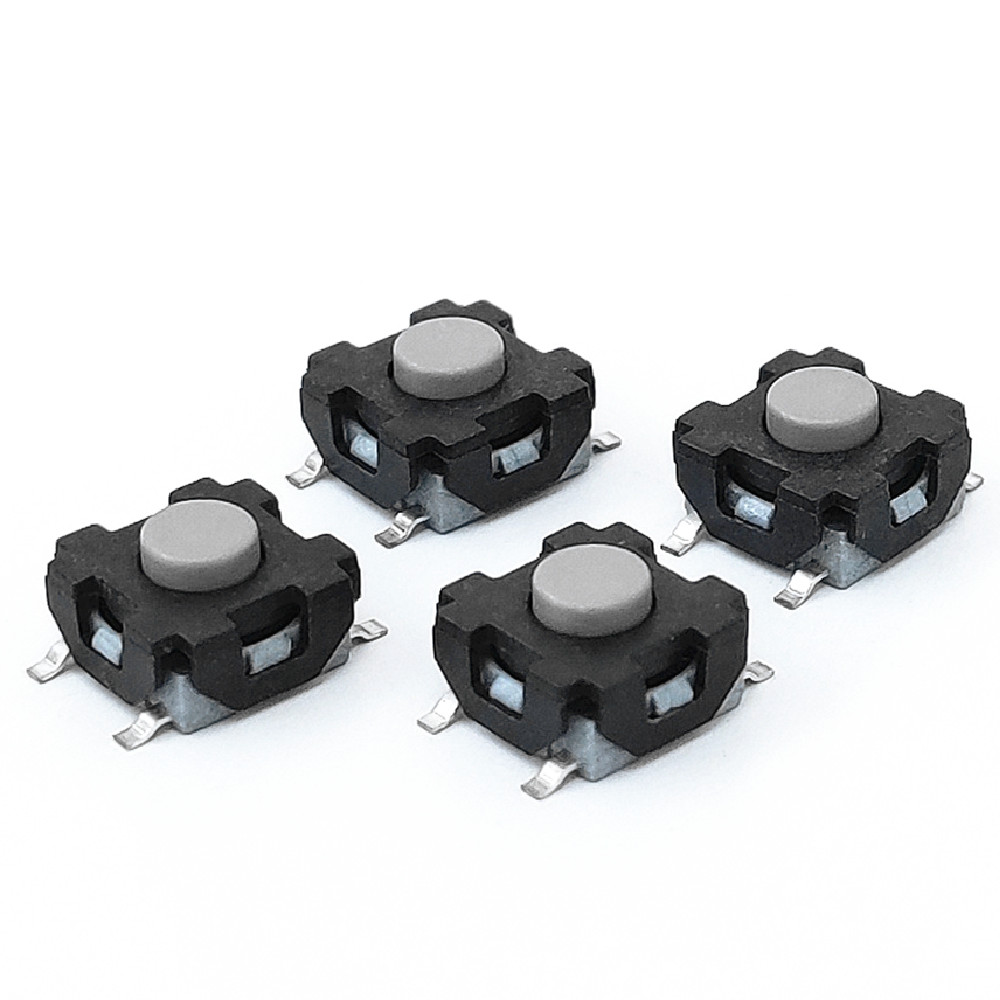

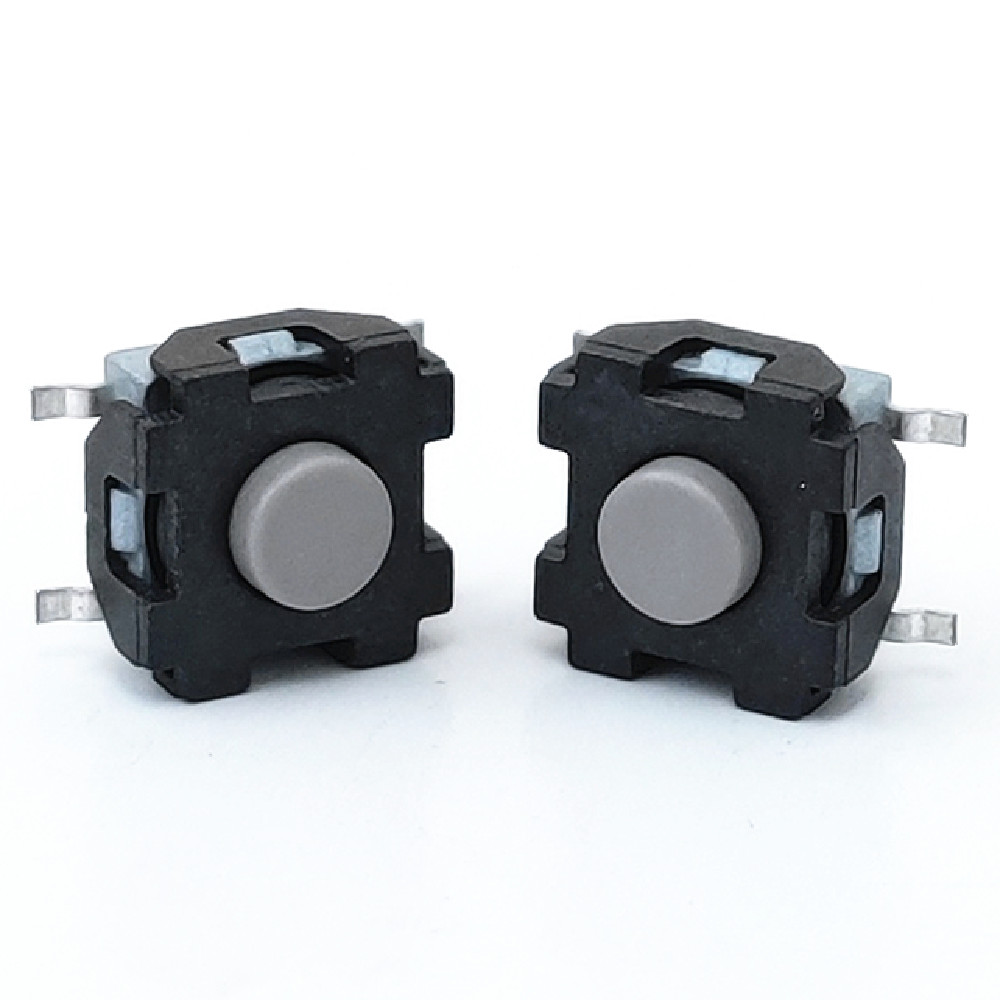

The KSS7W-0437A1 is a 7.2 × 7.2 × 4.3 mm surface-mount push-button tact switch with a light 100 gf touch and an IP67 dust- and water-resistant seal. It surface-mounts to a PCB, delivers a soft tactile click, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP67-rated seal verified by 1 m, 30 min immersion testing
- Light 100 ± 35 gf touch with a short 0.25 mm travel
- 7.2 × 7.2 mm body, 4.3 mm height, top-actuated surface-mount
- Silicone rubber gasket sealing, SPST-NO momentary action
- 100,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KSS7W-0437A1 |
|---|---|
| Switch Type | Tactile switch (momentary push-button) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD) |
| IP Rating | IP67 (1 m immersion, 30 min) |
| Body Size | 7.2 × 7.2 × 4.3 mm |
| Operating Force | 100 ± 35 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ON ≤3 ms, OFF ≤8 ms |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel (1,000 pcs/reel) |
Typical Applications
This light-touch surface-mount push-button with IP67 protection suits compact, sealed devices: consumer electronics, wearables, medical devices, and outdoor equipment. The silicone gasket keeps moisture and dust off the contacts while the 100 gf touch gives a soft, low-effort press.

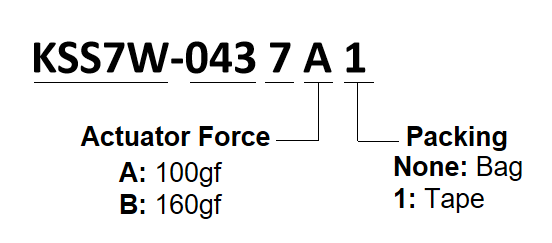

PART NUMBER KEY

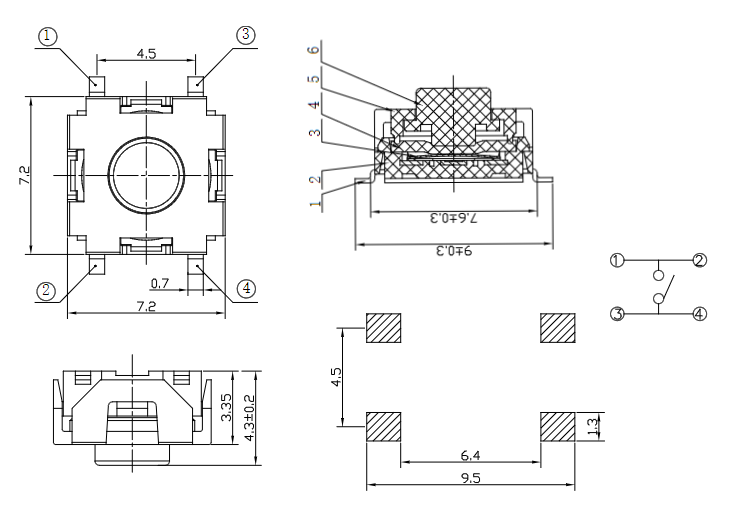

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
LCP |
1 |
Gray |
3 |
Contact |
Phosphor bronze |
1 |
Contact side silver plating |
4 |
Rubber gasket |
Silicone rubber |
1 |
Black |
5 |
Cover |
PA9T |
1 |
Black |
6 |
Stem |
PA9T |
1 |
Gray |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
4.3 |
| Length (mm) |
7.2 |
| Width (mm) |
7.2 |
