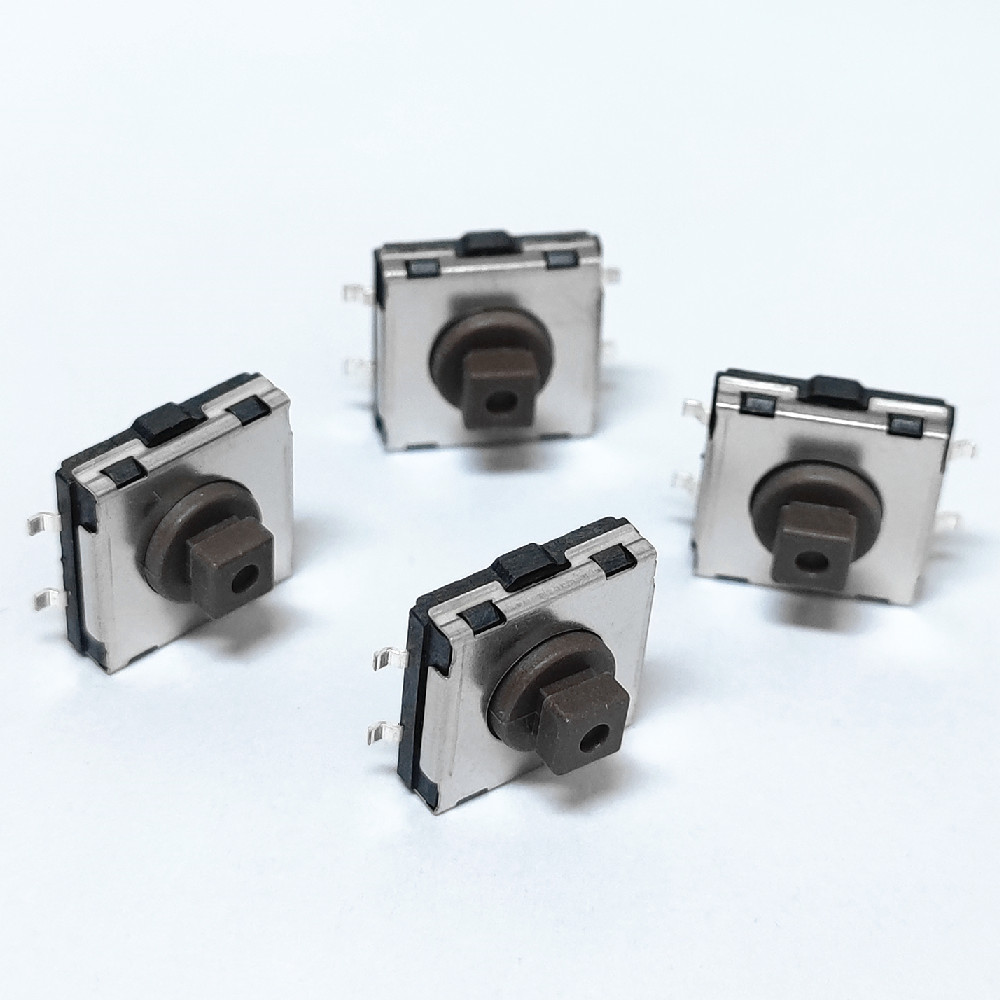

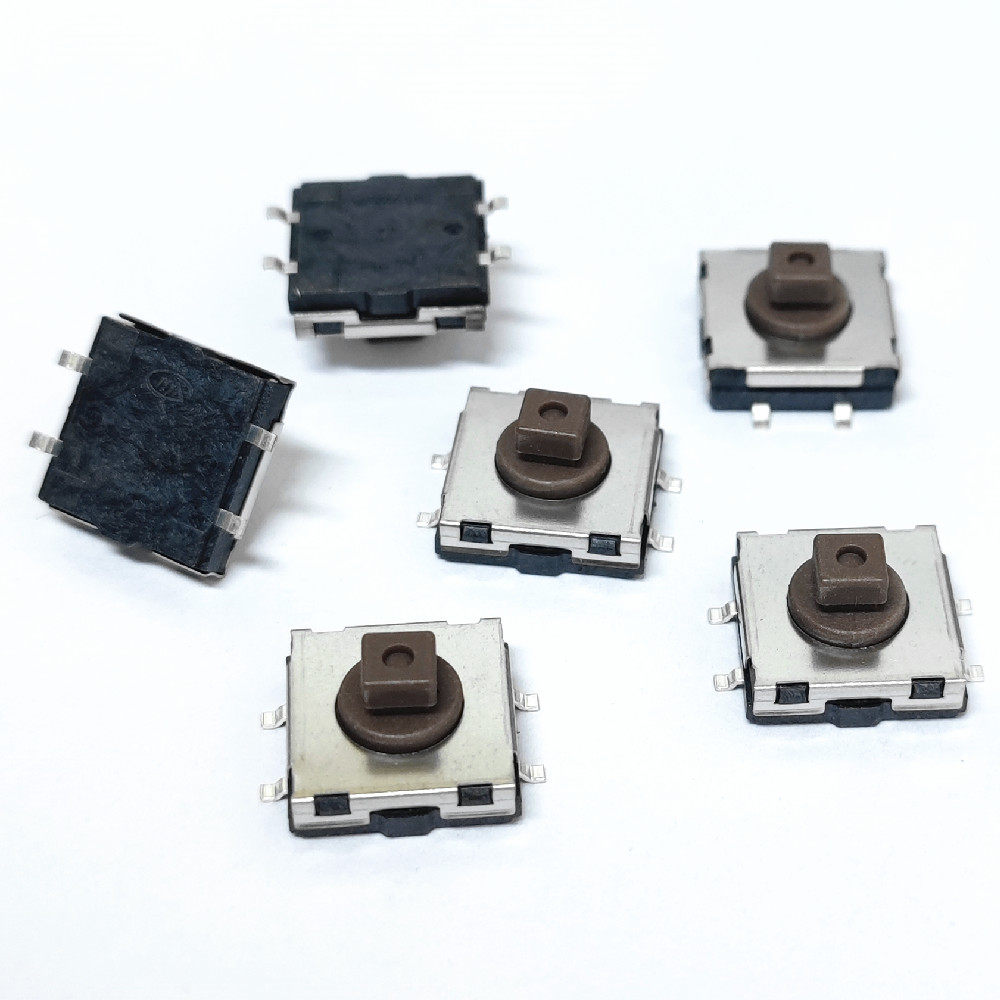

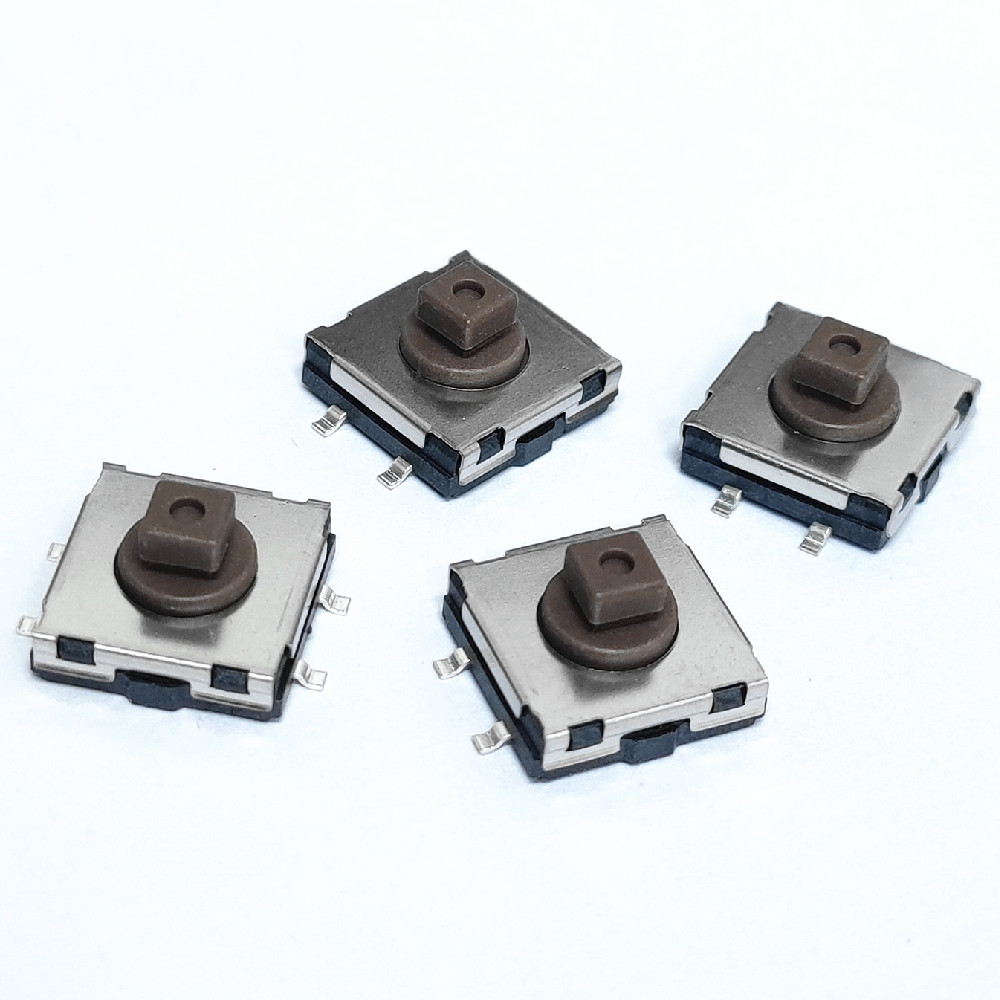

Waterproof SMT Touch 12×12 tact switch
Part Number: KAN1241F-0739B1001-B2242
The KAN1241F-0739B1001-B2242 is a 12 × 12 × 7.3 mm surface-mount tact switch with a silicone-sealed IP67 construction and a 1,000,000-cycle rated life. It surface-mounts to a PCB, delivers crisp tactile feedback at 160 gf, and is built for high-cycle sealed applications. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP67-rated silicone-sealed construction
- High 1,000,000-cycle rated life
- 12 × 12 mm body, 7.3 mm height, surface-mount (SMD)
- 160 ± 50 gf operating force, 0.40 mm travel for a defined tactile click
- SPST-NO momentary action, –40 °C to +85 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN1241F-0739B1001-B2242 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD) |
| IP Rating | IP67 (1 m immersion, 30 min) |
| Body Size | 12.0 × 12.0 × 7.3 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.40 ± 0.2 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 1,000,000 cycles |
| Operating Temperature | –40 °C to +85 °C |
| Housing Material | Plastic |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | 500 pcs/reel (tape & reel) |
Typical Applications
This 12 mm surface-mount sealed tact switch with IP67 protection and a 1,000,000-cycle life suits high-use sealed boards: industrial control, outdoor equipment, automotive interfaces, and instrumentation. The SMD format supports automated assembly while the internal silicone seal protects the contacts from moisture and dust.

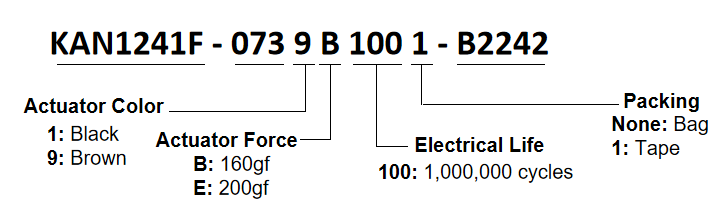

PART NUMBER KEY

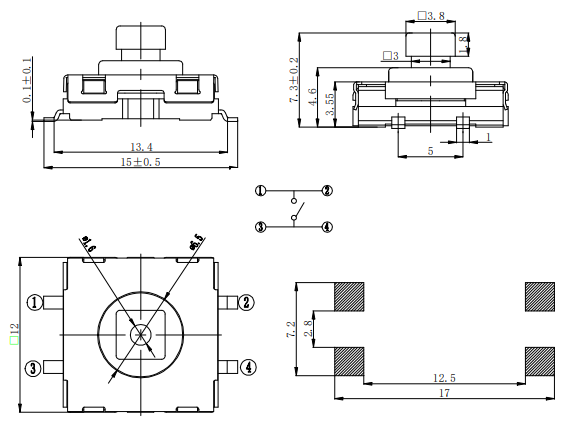

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
Plastic |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Seal |
Silicone |
1 |
Black |
5 |
Pressplate |
Plastic |
1 |
Black |
6 |
Cover |
SUS |
1 |
|
7 |
Stem |
Plastic |
1 |
Brown |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
7.3 |
| Length (mm) |
12 |
| Width (mm) |
12 |
