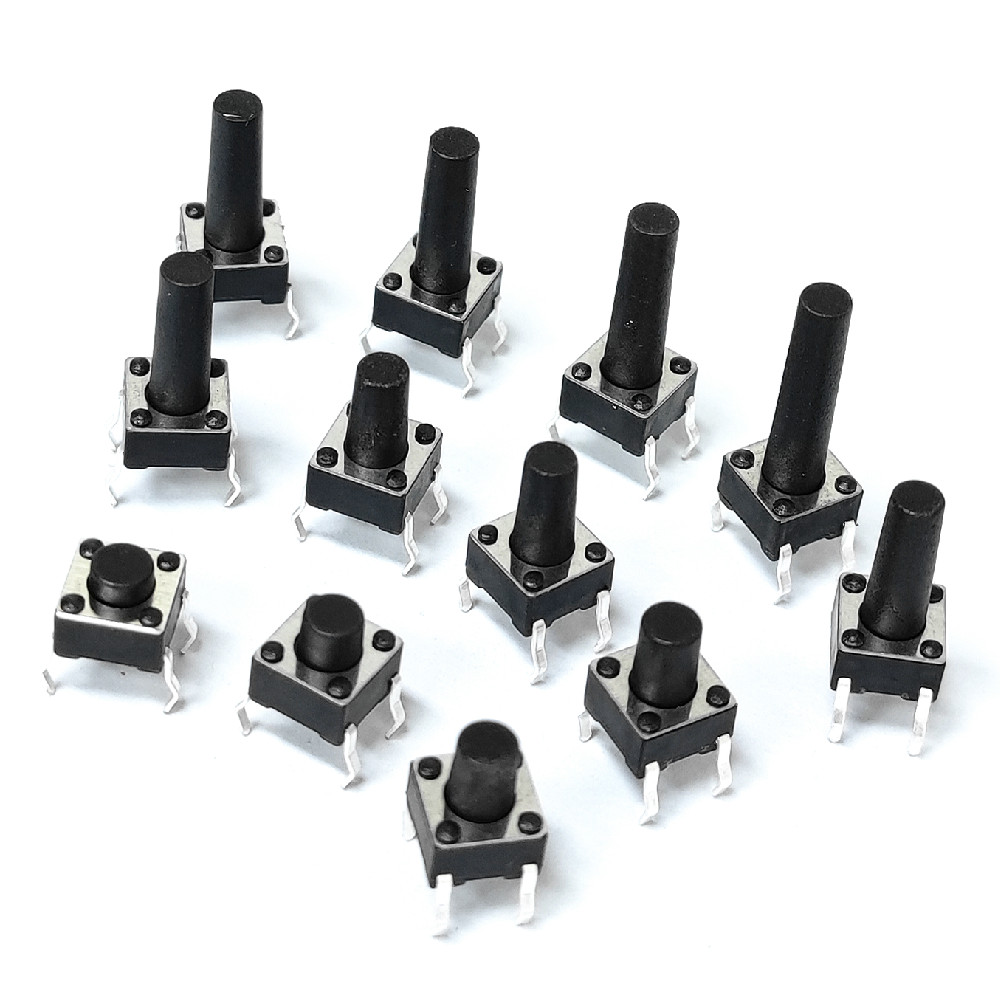

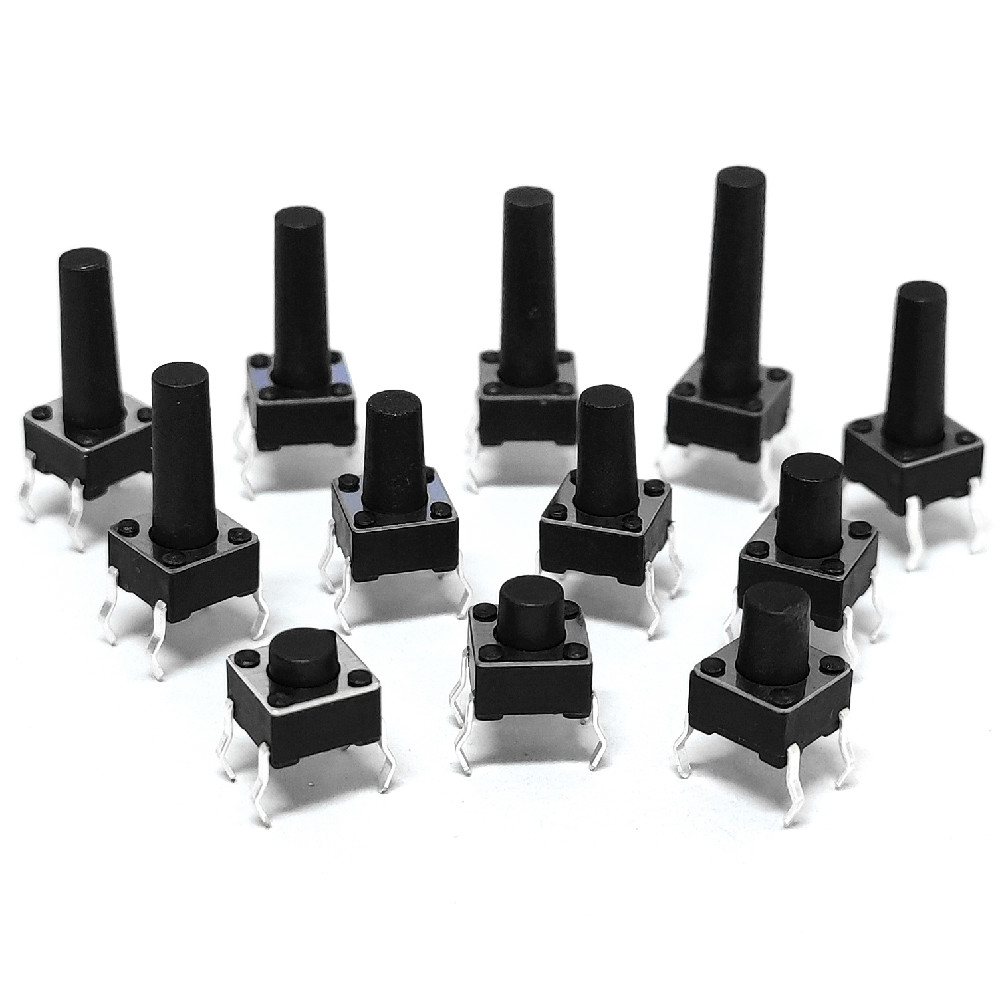

6x6mm 4 Pin Micro Tact Switch
Part Number: KAN0611-0431B010-B42
The KAN0611-0431B010-B42 is a 6.0 × 6.0 mm through-hole micro tact switch with a top-actuated 4-pin layout. It mounts through-hole on a PCB, delivers crisp tactile feedback at 160 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 6.0 × 6.0 mm compact footprint, 4.3 mm low profile, top-actuated
- 4-pin through-hole mounting, SPST-NO momentary action
- 160 ± 50 gf operating force, 0.25 mm travel for a defined tactile click
- 100,000-cycle rated life, –30 °C to +80 °C operating range
- SUS silver-plated contacts, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | KAN0611-0431B010-B42 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting | Through-hole, 4 pin, top-actuated |
| Body Size | 6.0 × 6.0 × 4.3 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Compliance | RoHS; ISO 9001 & IATF 16949 certified facility |
| Packaging | 1,000 pcs/bag, 60,000 pcs/carton |
Typical Applications
This 6 mm through-hole micro tact switch is a general-purpose board-mounted button for compact device interfaces: consumer electronics, office equipment, home appliances, remote controls, and instrumentation front panels. The light 160 gf actuation and 4.3 mm low profile suit handheld and space-constrained designs that need a reliable momentary press.

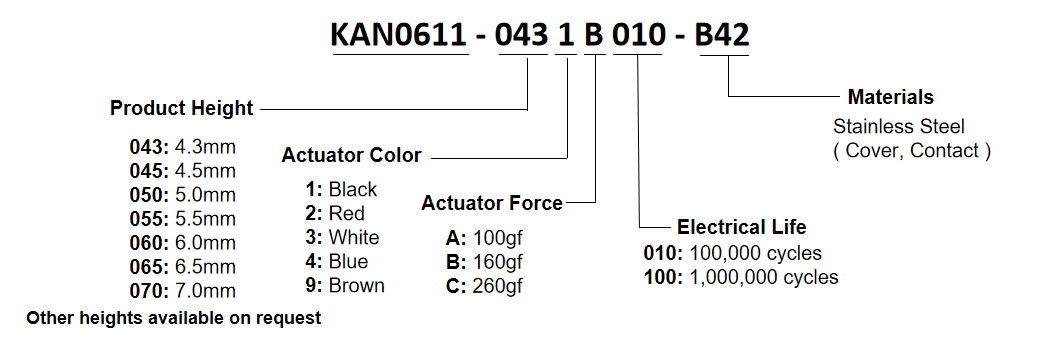

PART NUMBER KEY

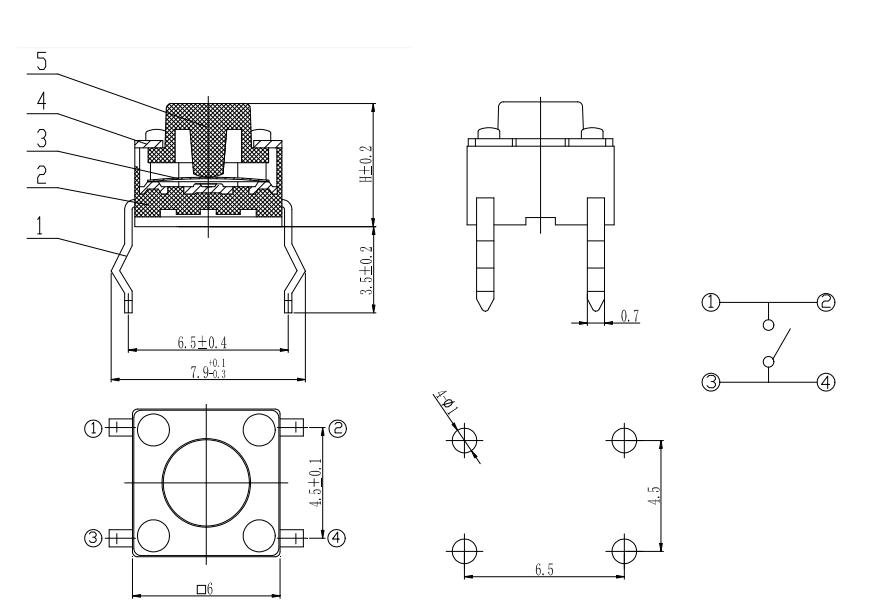

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver Plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag Plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
4.3 |
| Length (mm) |
6 |
| Width (mm) |
6 |
