Horizontal Bracket Direct Press Angle Dip Tact Switch
Part Number: KAN6234-0501B

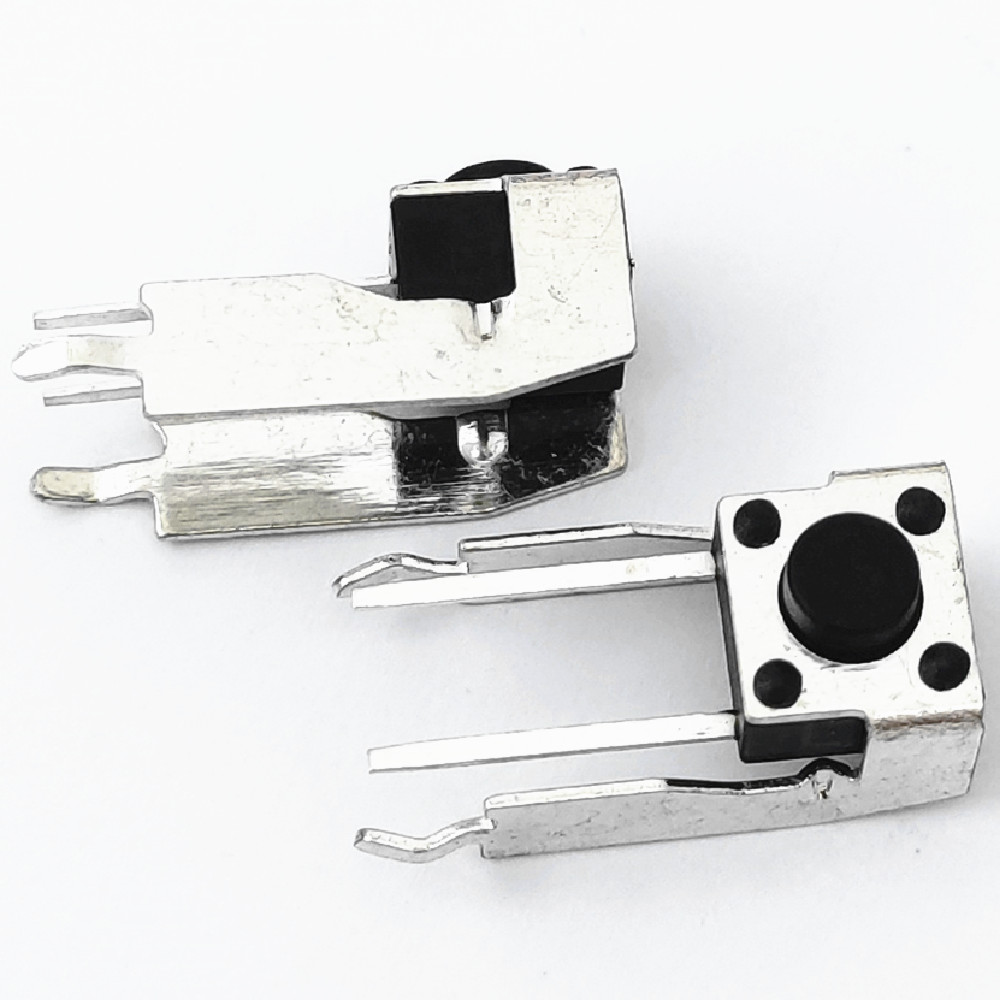

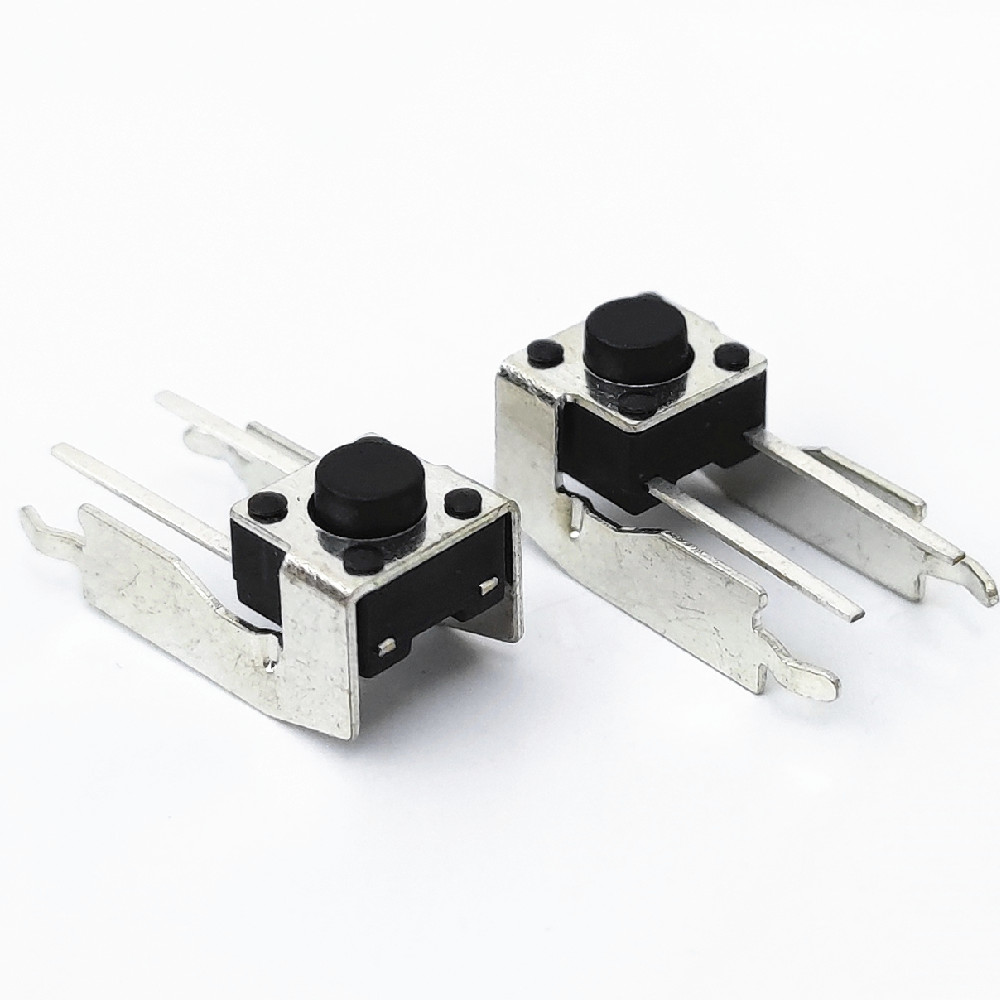

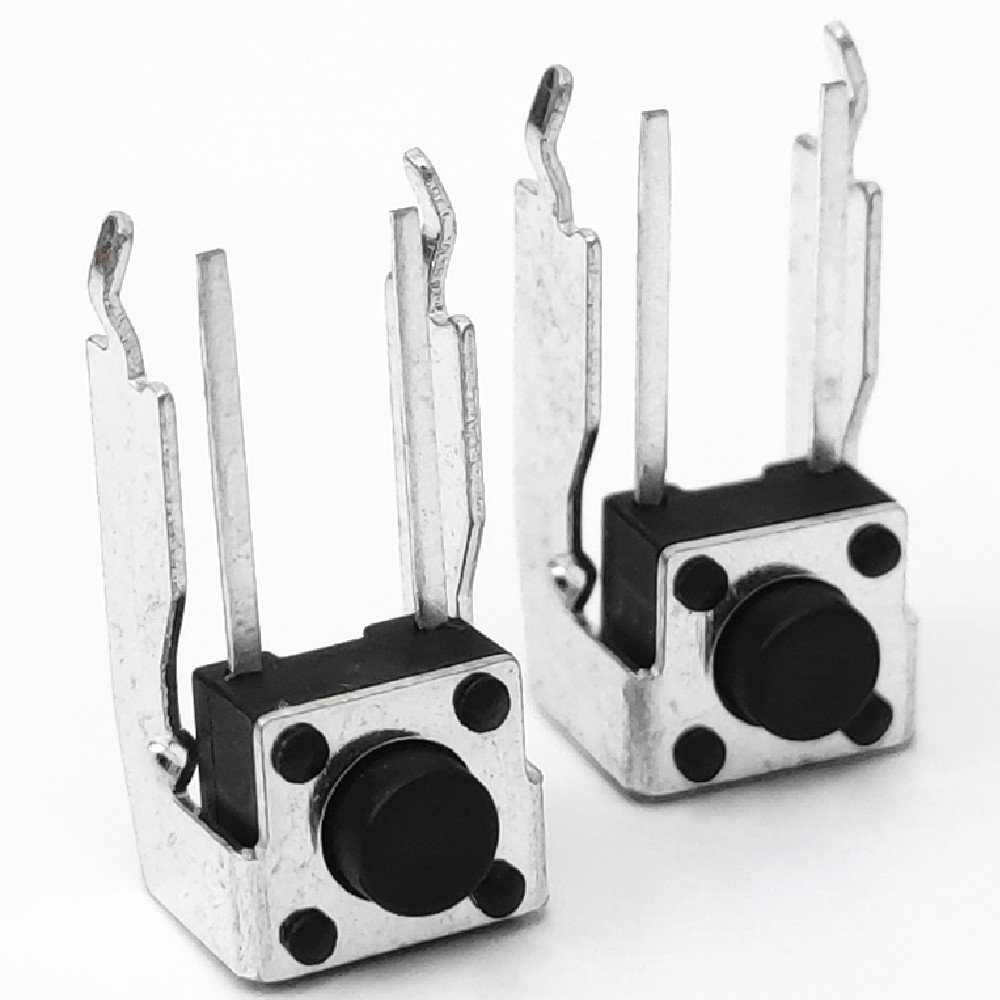

The KAN6234-0501B is a right-angle 6 × 6 × 5 mm DIP tactile switch with long terminals and a horizontal steel bracket, rated for 80,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Right-angle 6 × 6 × 5 mm DIP body with a horizontal steel bracket
- Long terminals for through-hole mounting
- 160 ±50 gf actuation with 0.25 mm travel
- 80,000-cycle rated electrical life
- Phosphor-bronze contacts, silver-plated, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | KAN6234-0501B |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Right-angle (THT/DIP), horizontal bracket, long terminal |
| Body Size | 6.0 × 6.0 × 5.0 mm |
| Operating Force | 160 ±50 gf |
| Travel | 0.25 ±0.1 mm |
| Return Force | 20 gf (min) |
| Stop Strength | 30 N |
| Stem Strength | 20 N (min) |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms, on and off |
| Electrical Life | 80,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Brass, silver-plated |
| Bracket | SPCC steel, tin-plated |
| Stem | PA66 |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The KAN6234 uses a horizontal bracket and long terminals for board-edge buttons in consumer electronics and home appliances. The right-angle format also suits industrial control and communications equipment.

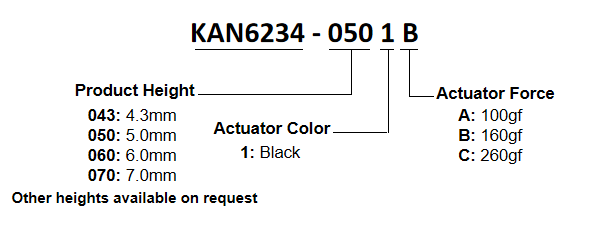

PART NUMBER KEY

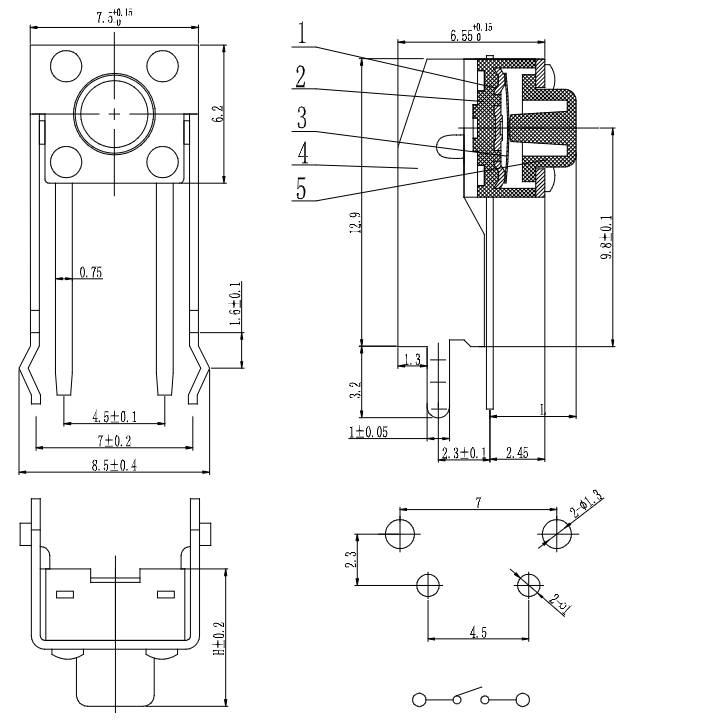

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver Plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
Phosphor bronze |
1 |
Ag Plating |
4 |
Cover |
SPCC |
1 |
CuSn plating |
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
