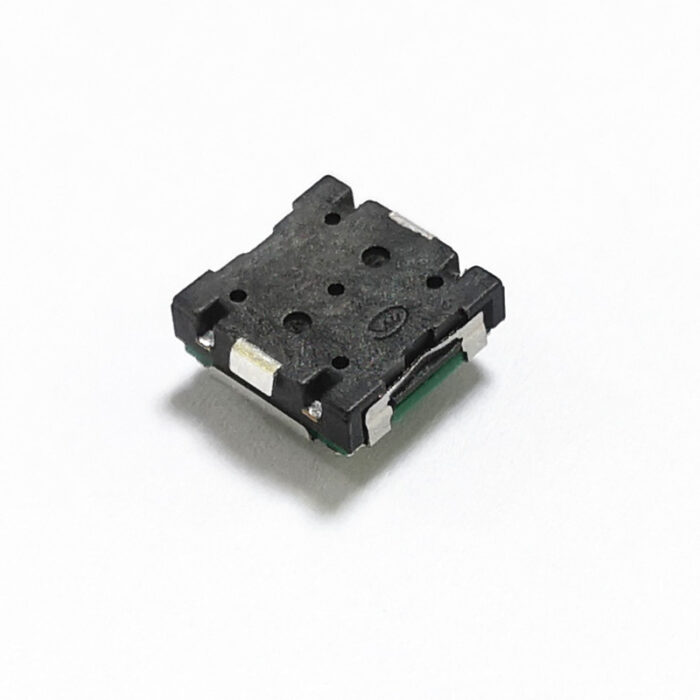

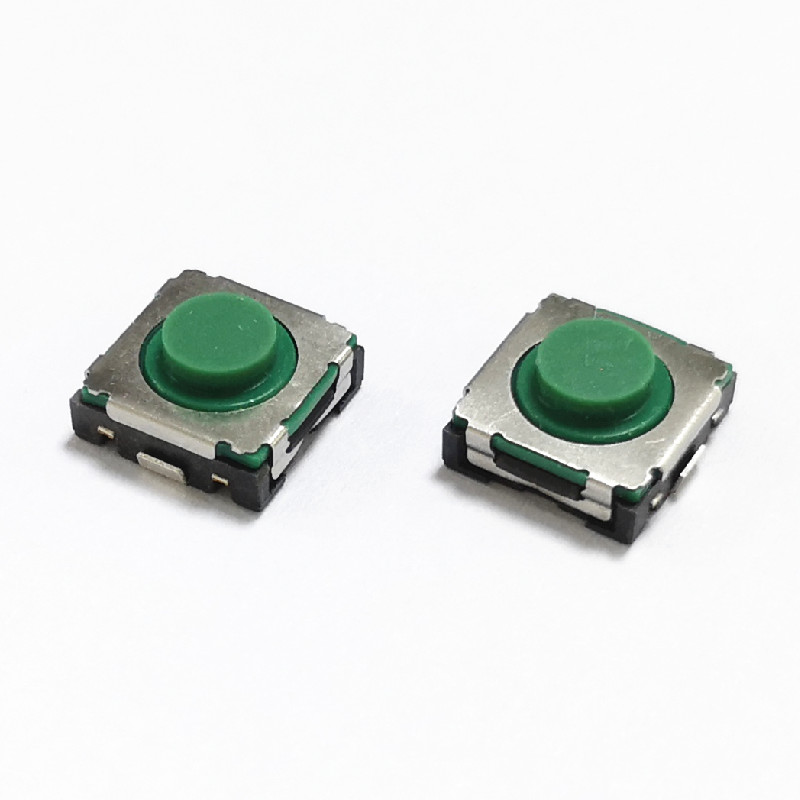

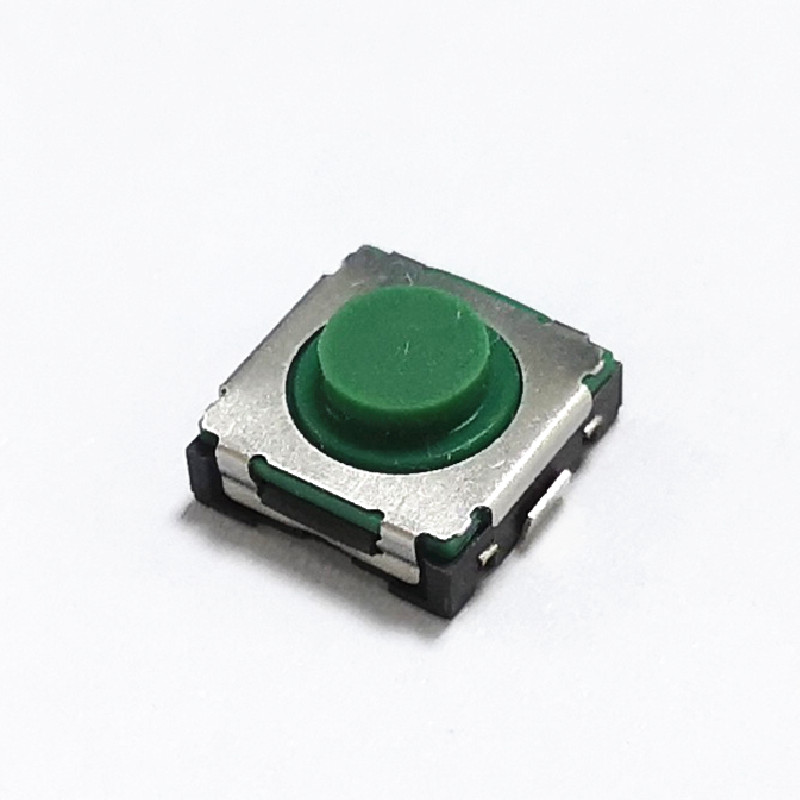

4 Pin Surface Mount Sealed Mini Tact Switch
Part Number: KAN8540-04006M0501
The KAN8540-04006M0501 is an 8.3 × 8.3 × 4.05 mm surface-mount sealed tact switch with a soft silicone actuator and a 4-pin footprint. It surface-mounts to a PCB, delivers a firm 400 gf press over a long 0.9 mm travel, and is rated for 500,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Soft silicone actuator over a sealed switch body
- 8.3 × 8.3 mm footprint, 4.05 mm height, 4-pin surface-mount
- Firm 400 ± 80 gf press with a long 0.9 mm travel
- 500,000-cycle rated life for high-duty interfaces
- DC 16 V rated, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN8540-04006M0501 |
|---|---|
| Switch Type | Tactile switch (sealed, momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), 4-pin |
| IP Rating | IP67 |
| Body Size | 8.3 × 8.3 × 4.05 mm |
| Actuator | Silicone rubber (soft actuator) |
| Operating Force | 400 ± 80 gf |
| Travel | 0.9 ± 0.3 mm |
| Return Force | 60 gf min |
| Stop Strength | 30 N |
| Stem Strength | 5 N min |
| Electrical Rating | DC 16 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 500,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | FR52 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This sealed, soft-actuated tact switch suits interfaces that need a firm, high-cycle press: consumer electronics, industrial control panels, automotive controls, and outdoor equipment. The silicone actuator gives a defined 400 gf press over a long travel, and the 500,000-cycle life supports high-duty use.

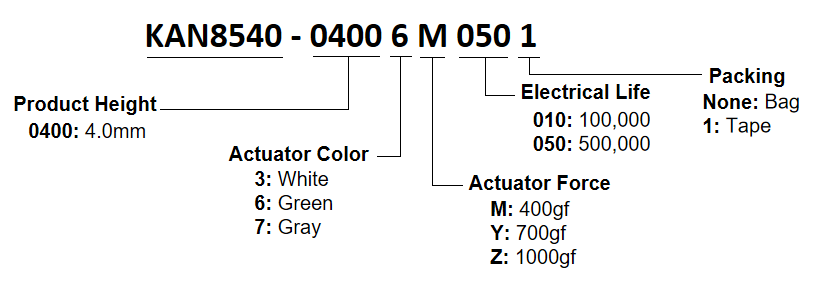

PART NUMBER KEY

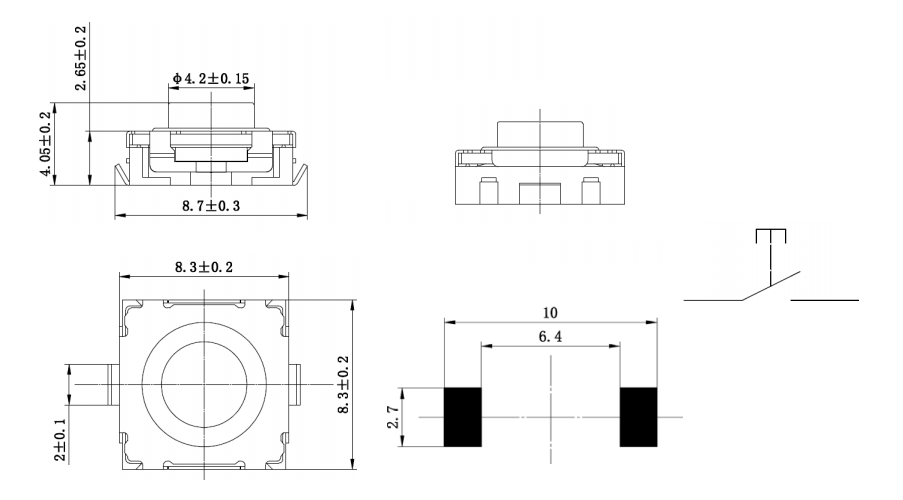

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
Silica Gel |
1 |
White |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
4.05 |
| Length (mm) |
8.3 |
| Width (mm) |
8.3 |
