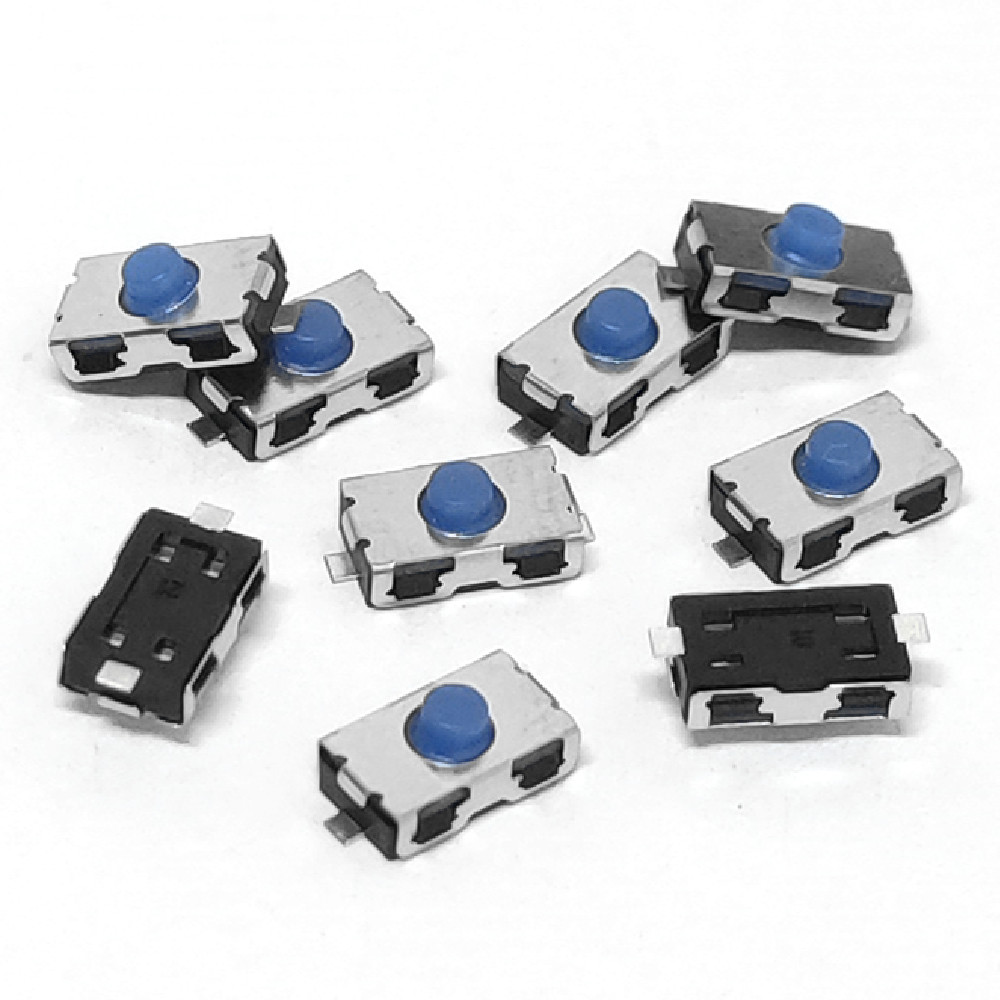

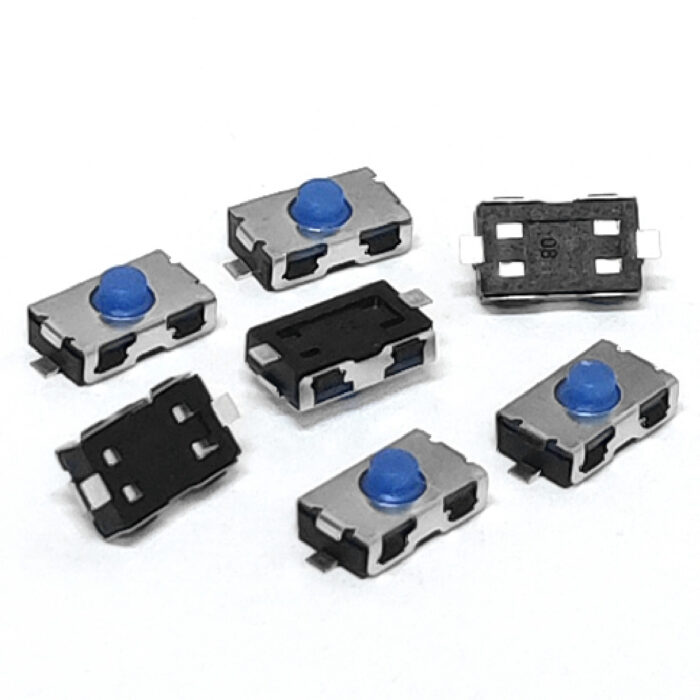

3*6mm 2 Pin Normally Closed Tact Switch
Part Number: KAN0441P-0264B1

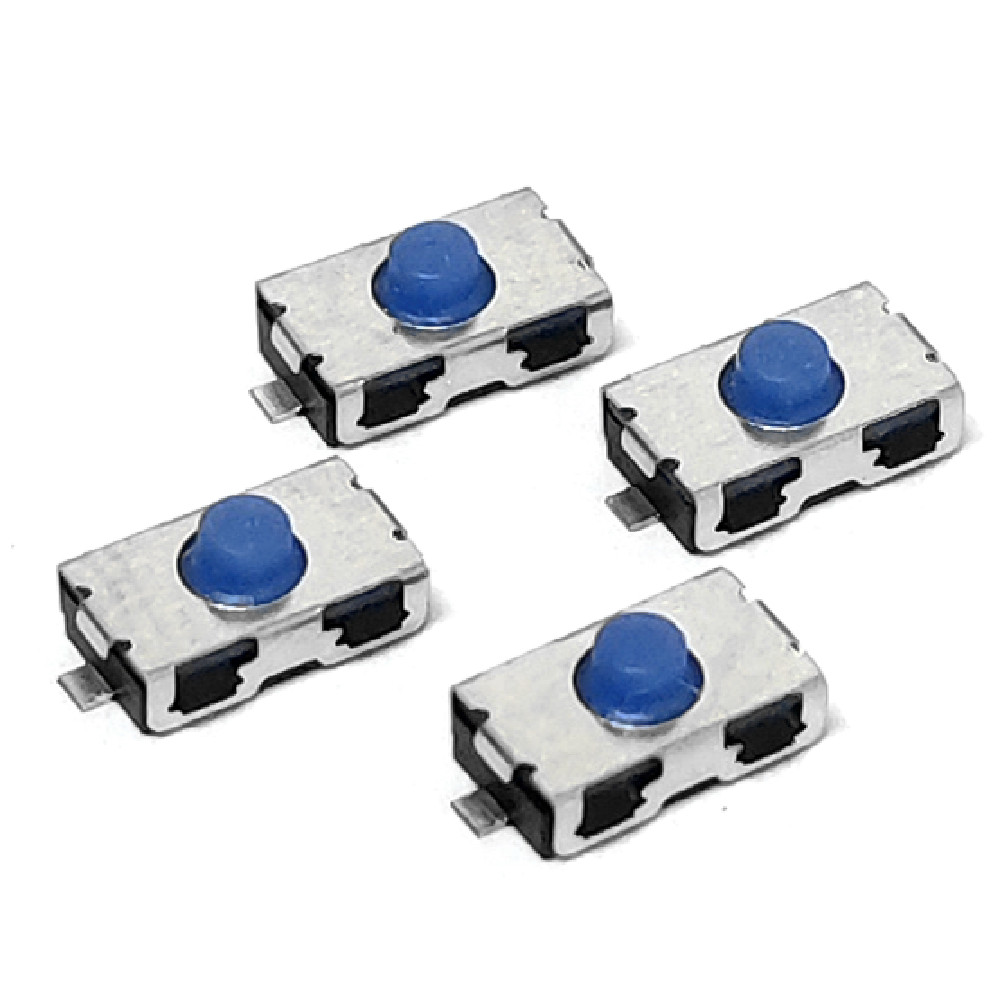

The KAN0441P-0264B1 is a miniature 6.0 × 4.0 × 2.6 mm surface-mount tact switch with a normally-closed (SPST-NC) circuit and a soft silicone rubber actuator. It surface-mounts to a PCB, delivers tactile feedback at 180 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Normally-closed (SPST-NC) contact for default-closed signaling
- Soft silicone rubber actuator, ultra-miniature 6.0 × 4.0 × 2.6 mm body
- Surface-mount (SMD), IP67 dust- and water-resistant sealing
- 180 ± 50 gf operating force, 0.40 mm travel for a defined tactile click
- 100,000-cycle rated life, –40 °C to +85 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0441P-0264B1 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NC, normally closed) |
| Mounting Style | Surface-mount (SMD) |
| IP Rating | IP67 |
| Body Size | 6.0 × 4.0 × 2.6 mm |
| Operating Force | 180 ± 50 gf |
| Travel | 0.40 ± 0.2 mm |
| Return Force | 40 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –40 °C to +85 °C |
| Storage Temperature | –40 °C to +85 °C |
| Actuator | Silicone rubber |
| Housing Material | PA6T |
| Contact Material | Stainless steel, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This miniature normally-closed tact switch with a sealed silicone actuator suits default-closed detection in compact, exposed devices: outdoor equipment, wearables, security hardware, and portable consumer electronics. The normally-closed contact opens on press, useful for presence or lid detection, while the silicone cover resists dust and moisture.

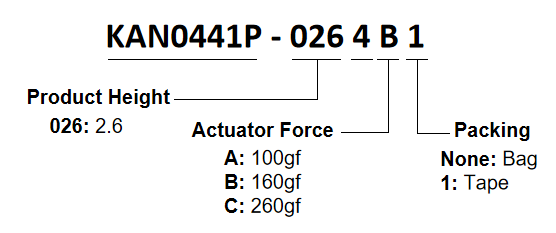

PART NUMBER KEY

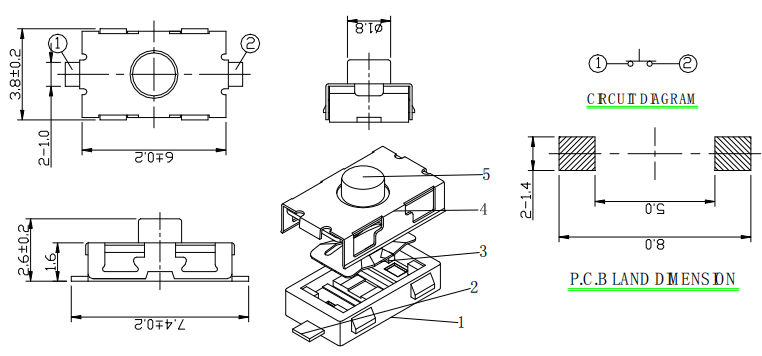

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Ag plating |
2 |
Base |
PA6T |
1 |
Black |
3 |
Contact |
Stainless steel |
1 |
Ag plating |
4 |
Cover |
Stainless steel |
1 |
|
5 |
Stem |
Silica gel |
1 |
Blue |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
2.6 |
| Length (mm) |
6 |
| Width (mm) |
4 |
