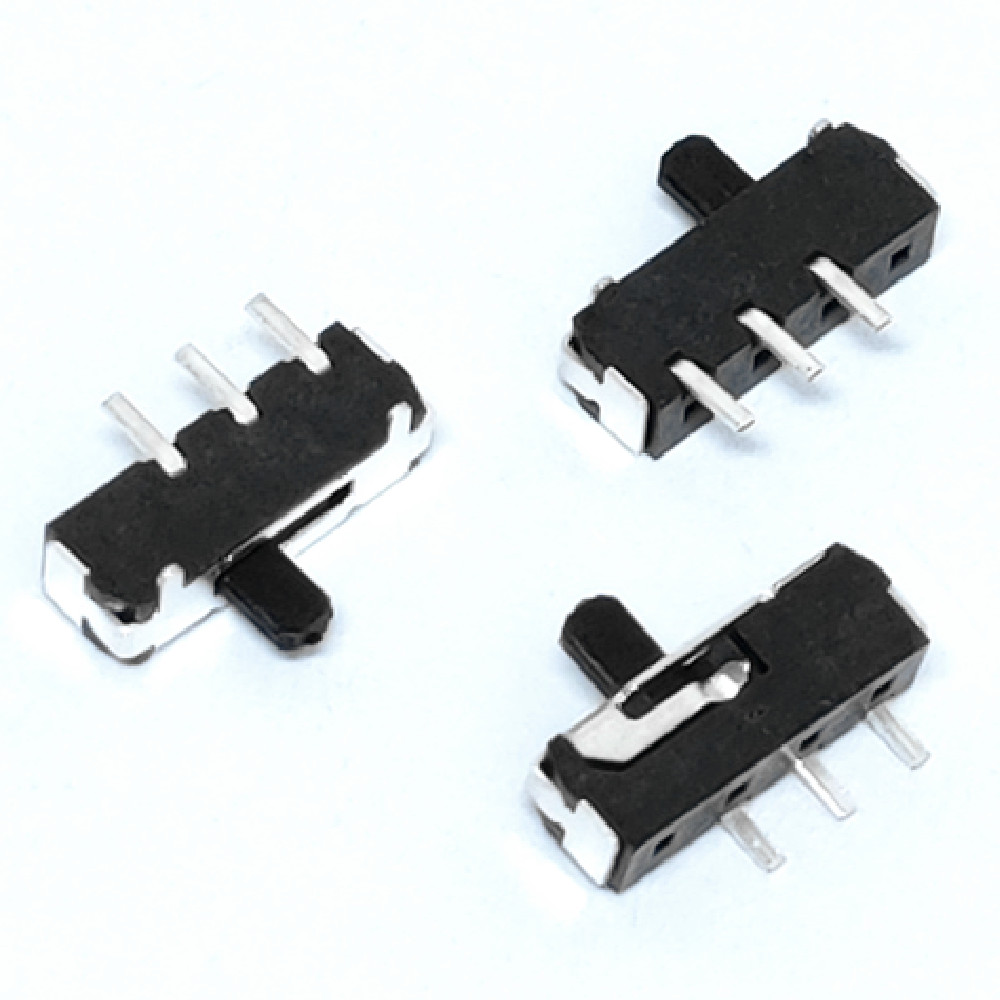

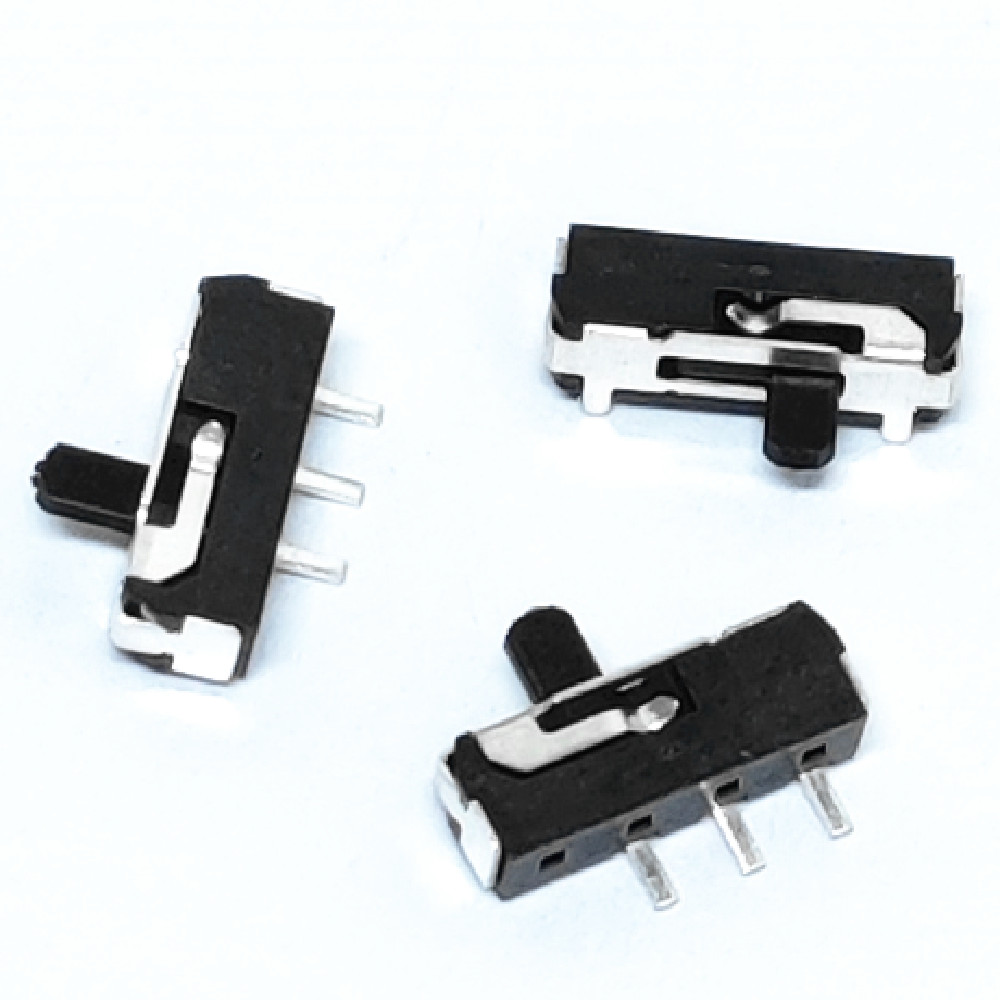

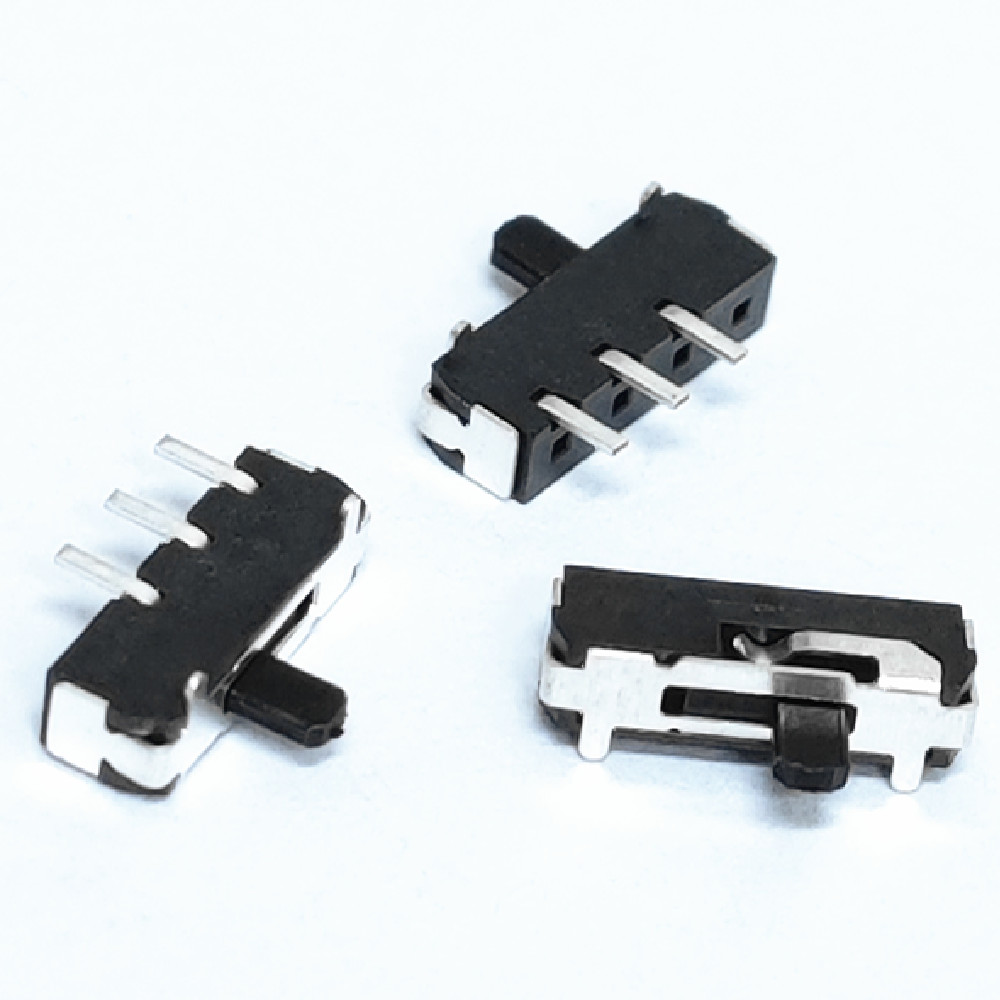

SPDT Mini 3 Pin Slide Switches for Toys
Part Number: MSK12D03-TG2-NS-01
FEATURES
- SPDT
- Surface mount
- Low profile
- Different handle height options
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC12V 100mA（Max） |
Function |
1P2T |
Contact resistance |
≤100Ω |
Insulation resistance |
≥50MΩ |
Operating force |
140±50gf |
Life Time |
10,000 Cycles |
Operating Temperature Range |
-30℃~+70℃ |
Actuator Type |
Standard |
Mounting Type |
Surface mount |
Length |
8.8mm |
Width |
2mm |
Height |
4.9mm |
Packing |
Tape |
ROHS |
Yes |

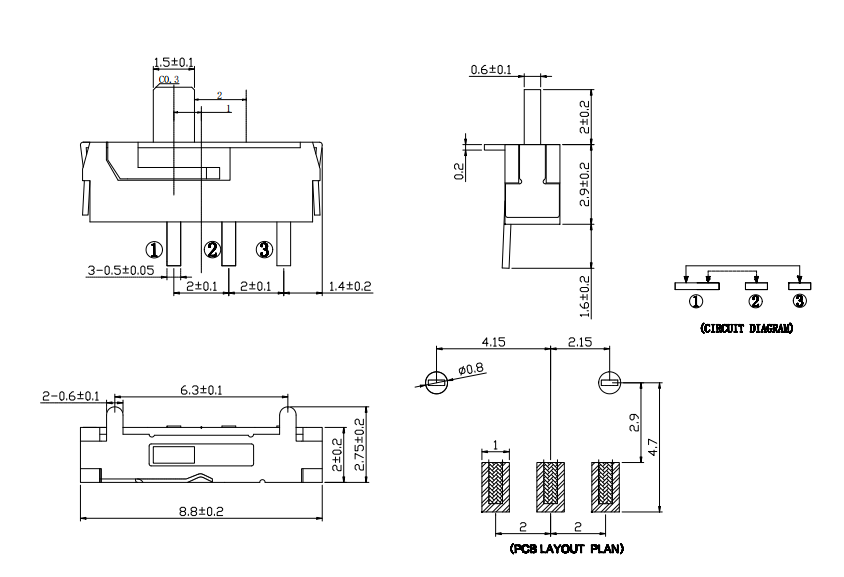

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Frame |
SUS |
1 |
Ag plated |
2 |
Knob |
PA46 |
1 |
Black |
3 |
Base |
PA6T |
1 |
Black |
4 |
Terminal |
Phosphorous copper |
3 |
Ag plated |
5 |
Contact |
Beryllium bronze |
1 |
Ag plated |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
