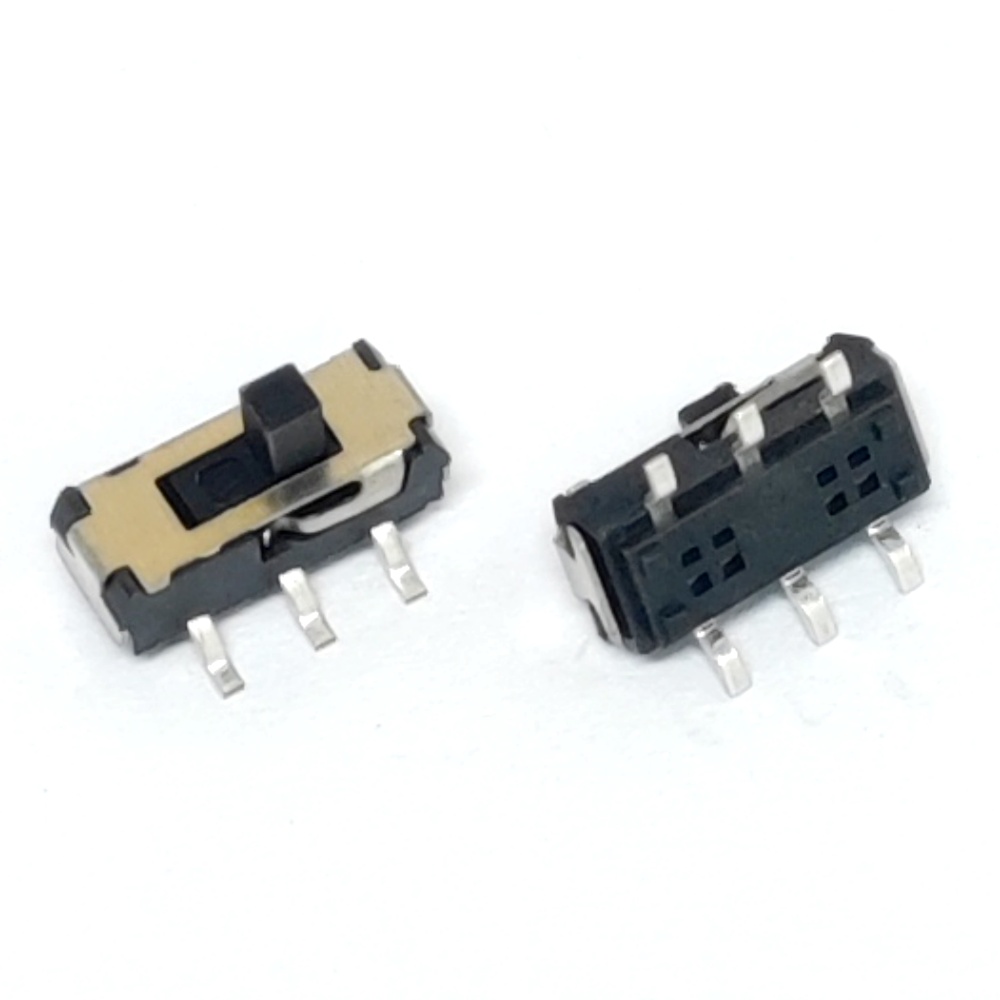

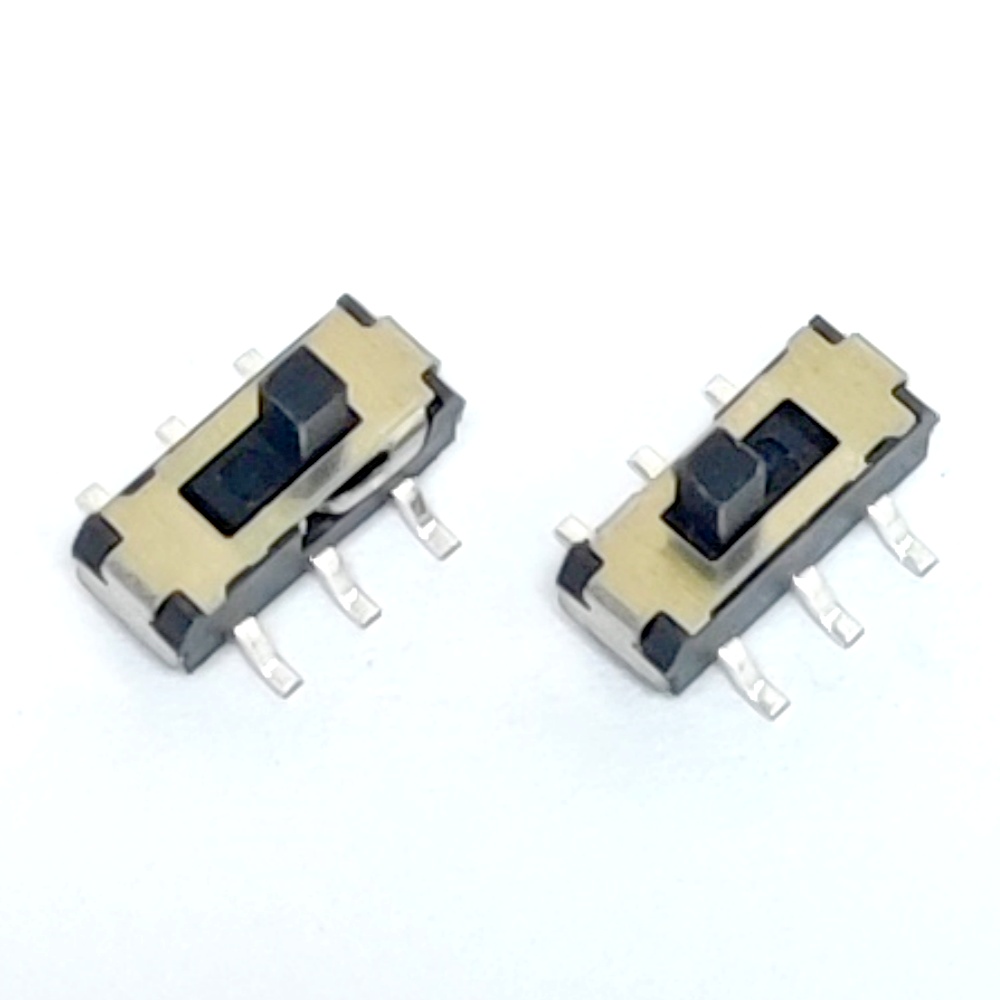

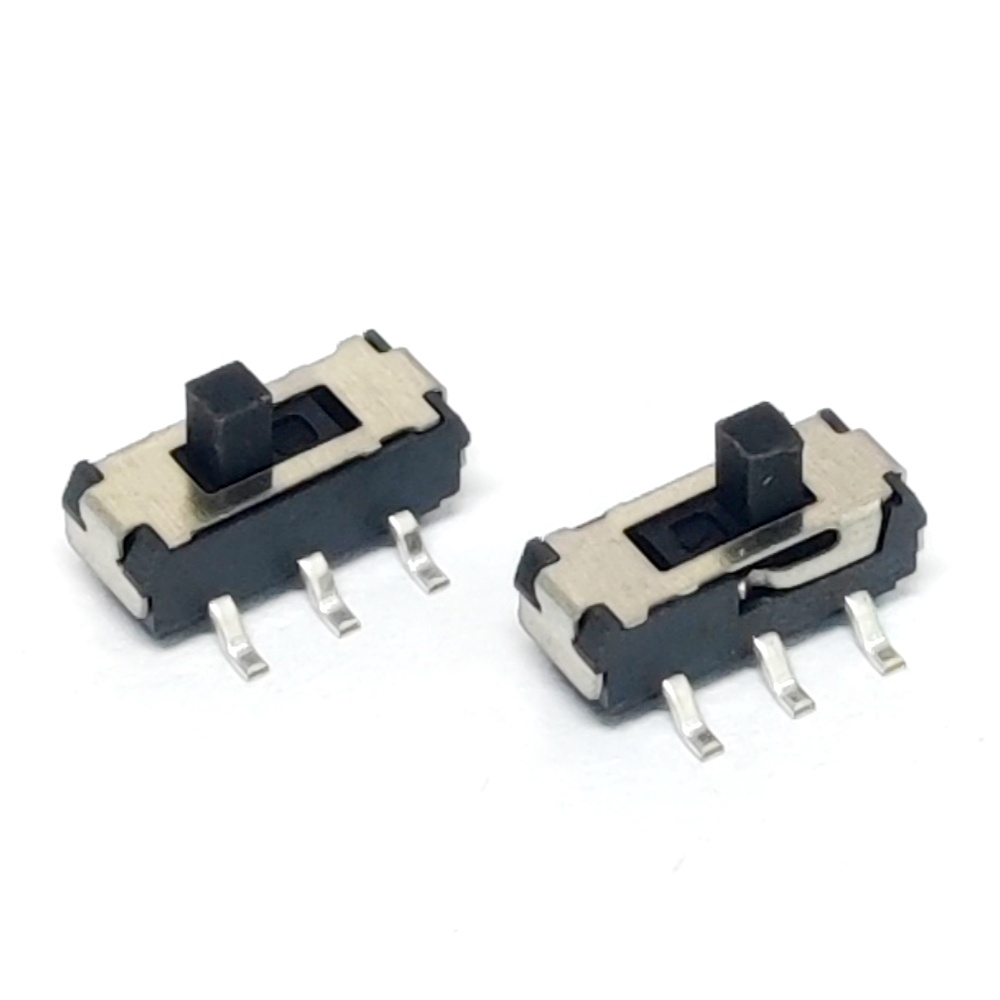

SMT Miniature 6 Pin DPDT Slide Switch
Part Number: MSS22D05-TG2-MB1
The MSS22D05-TG2-MB1 is a 6-pin DPDT (2P2T) SMD slide switch with non-shorting (break-before-make) contacts, rated 12 V DC / 100 mA. It offers a compact SMD body, a wide –40 °C to +85 °C range, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- DPDT (2P2T) 2-position switching with non-shorting (break-before-make) action
- Six SMD terminals, rated 12 V DC / 100 mA
- Wide –40 °C to +85 °C operating range in a compact 9.1 × 3.5 × 5.5 mm body
- 150 ± 50 gf side-slide force
- 10,000-cycle life, silver-plated contacts, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | MSS22D05-TG2-MB1 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | DPDT (2P2T, 2 pole 2 throw) |
| Positions | 2-position |
| Timing | Non-shorting (break-before-make) |
| Mounting / Terminal | Surface mount (SMD), 6 terminals |
| Body Size | 9.1 × 3.5 × 5.5 mm |
| Rated Current / Voltage | 12 V DC, 100 mA (max) |
| Operating Force | 150 ± 50 gf (side push) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –40 °C to +85 °C |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Phosphor bronze, silver-plated |
| Housing Material | PA6T case, PA46 stem, stainless-steel cover |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Tape and reel |
Typical Applications
This non-shorting DPDT slide switch handles mode and on/off selection where a brief open between positions matters: compact gadgets, automation boards, audio equipment, and consumer electronics. The wide –40 °C to +85 °C range suits demanding environments.

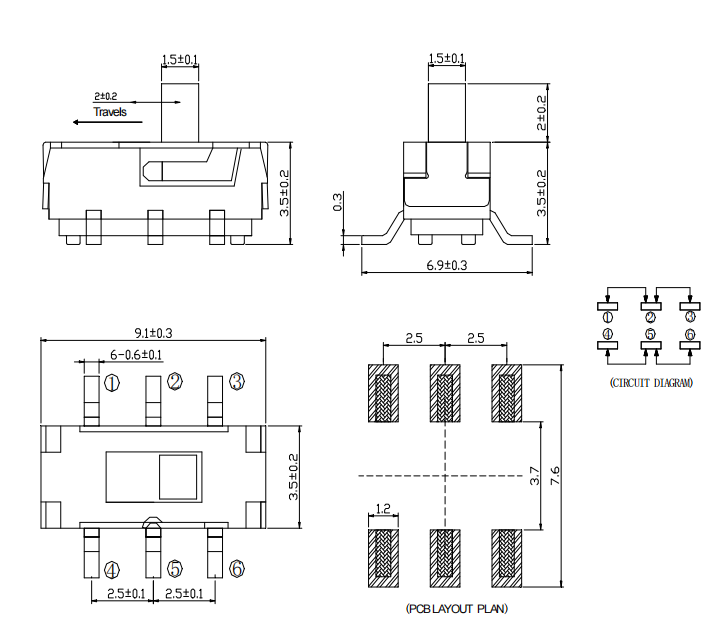

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Case |
PA6T |
1 |
|
2 |
Terminal |
Phosphorus copper |
6 |
Ag plating |
3 |
Contact |
Phosphorus copper |
2 |
Ag plating |
4 |
Stem |
PA6T |
1 |
Black |
5 |
Cover |
SUS |
1 |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
