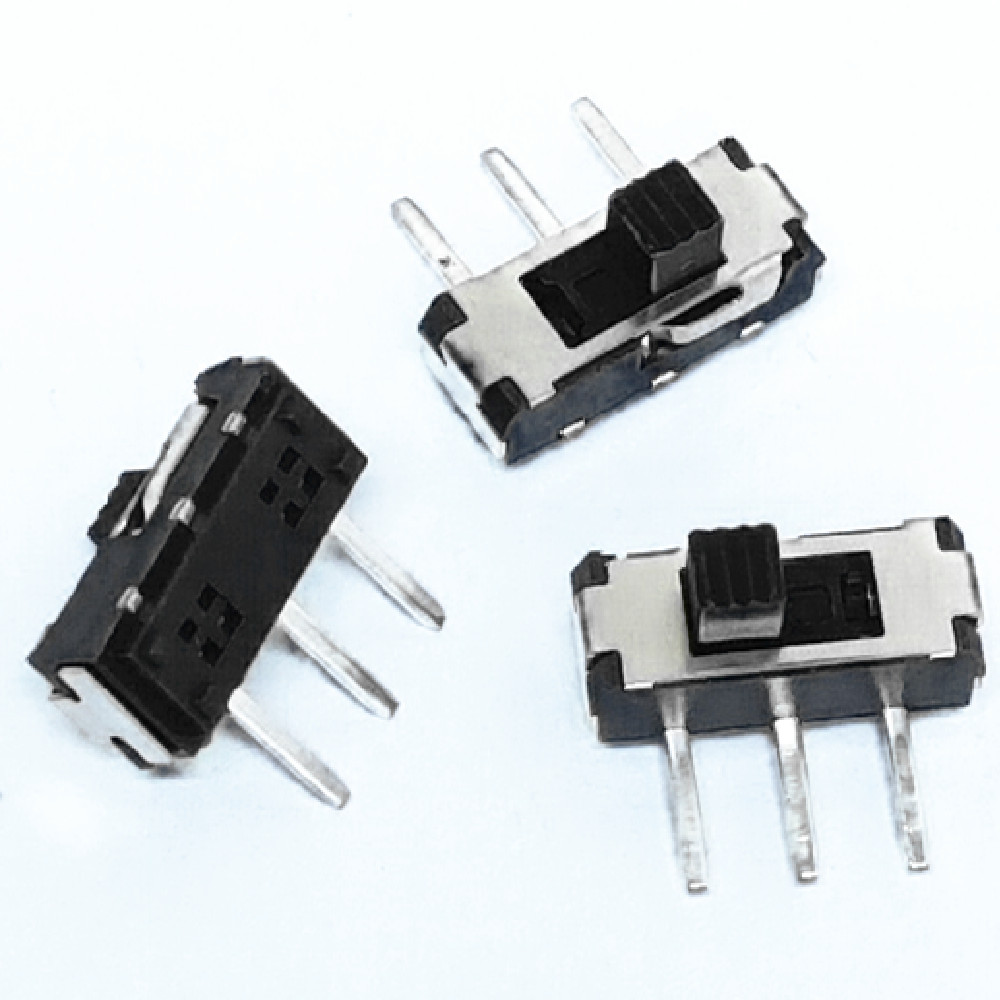

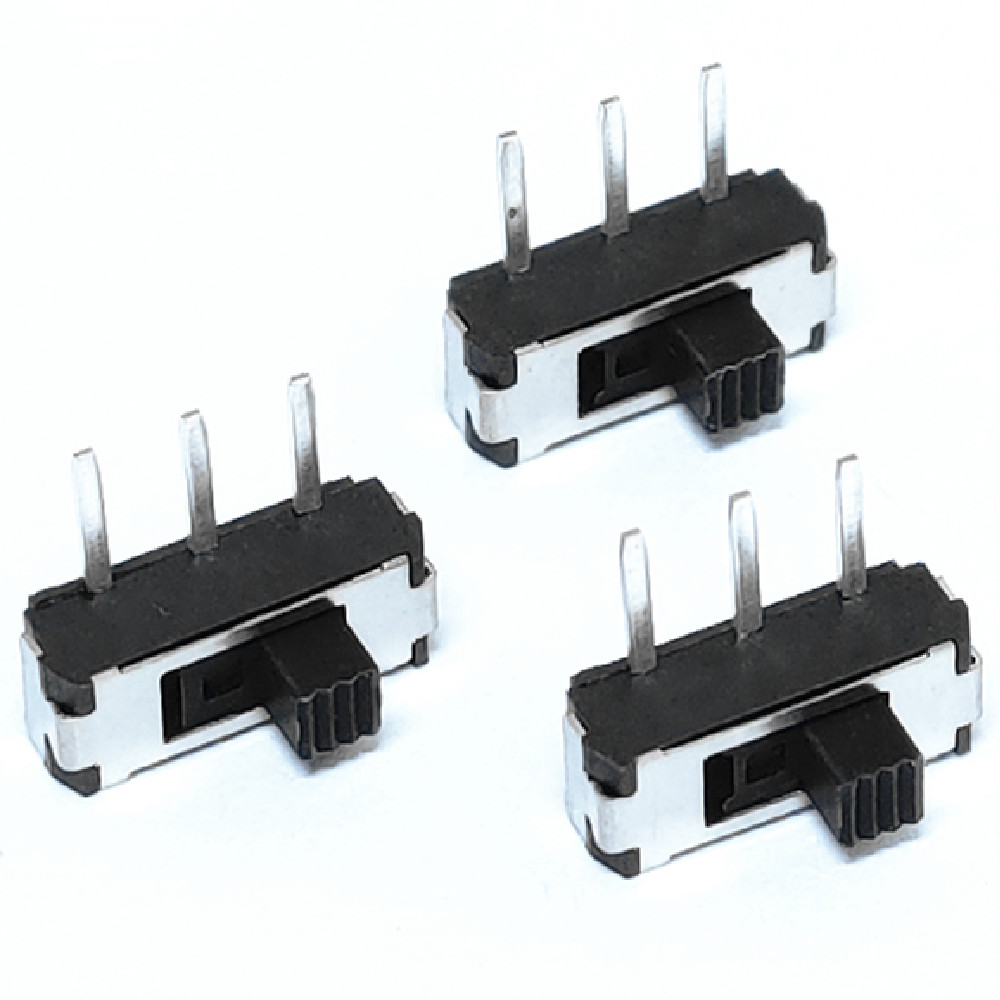

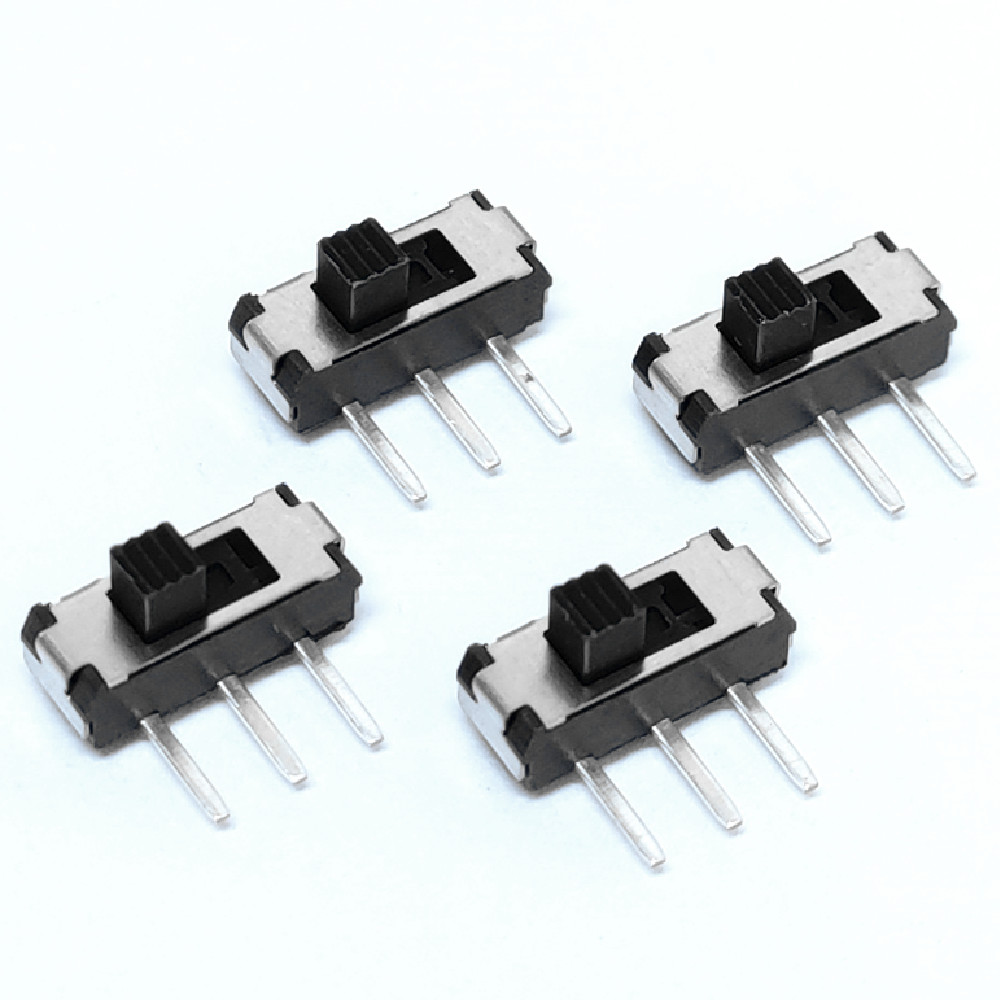

Miniature 2 Way Right Angle Slide Switch

Part Number: MSS12D04A-EG2-LC1

The MSS12D04A-EG2-LC1 is a miniature 2-way right-angle SPDT (1P2T) slide switch, rated 6 V DC / 0.3 A. It offers a right-angle side-slide action, surface-mount terminals, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.

Key Features

  • SPDT (1P2T) 2-position switching, rated 6 V DC / 0.3 A
  • Right-angle (side-actuated) slide with surface-mount terminals
  • Compact 9.1 × 3.5 × 5.5 mm body with a low profile
  • 200 ± 100 gf side-slide force, 2 ± 0.2 mm travel
  • 10,000-cycle life, silver-plated contacts, –20 °C to +85 °C range

Applications

✓Consumer Electronics
✓Portable Devices
✓Audio Equipment
✓IoT Devices
Category:
Description

SPECIFICATIONS

Part NumberMSS12D04A-EG2-LC1
Switch TypeSlide switch (mechanical)
Contact FormSPDT (1P2T, 1 pole 2 throw)
Positions2-position
Mounting / TerminalSurface mount (SMD), right-angle side slide, 3 terminals
Body Size9.1 × 3.5 × 5.5 mm
Rated Current / Voltage6 V DC, 0.3 A
Operating Force200 ± 100 gf (side push)
Travel2 ± 0.2 mm
Contact Resistance≤100 mΩ
Insulation Resistance≥100 MΩ
Dielectric Strength250 VAC, 1 min
Operation Life10,000 cycles
Operating Temperature–20 °C to +85 °C
Storage Temperature–40 °C to +90 °C
Contact MaterialBeryllium bronze, silver-plated
Terminal MaterialPhosphor bronze, silver-plated
Housing MaterialPA6T case, PA46 knob, stainless-steel frame
RoHSCompliant
ComplianceISO 9001 & ISO 14001 certified facility
PackagingBag

Typical Applications

This right-angle SPDT slide switch handles on/off and mode selection where the actuator faces the board edge: compact electronics, portable devices, audio equipment, and IoT modules. Surface-mount terminals suit automated assembly.

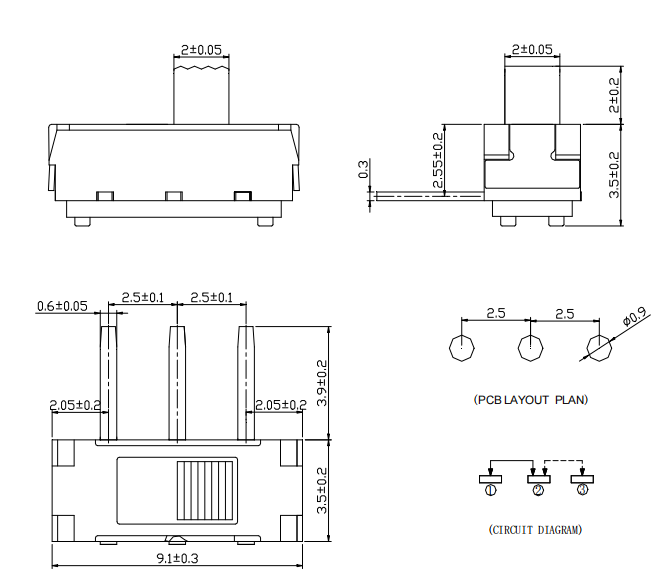

MECHANICAL DRAWING

Units: mm

General tolerance: ±0.2mm

Unless otherwise specified

NO.

NAME

MATERIAL

QTY.

FINISHING

1

Knob

PA46

1

Black

2

Frame

SUS

1

Natural

3

Case

PA6T

1

Black

4

Terminal

Phosphorus copper

3

Ag plating

5

Contact

Beryllium bronze

2

Ag plating
