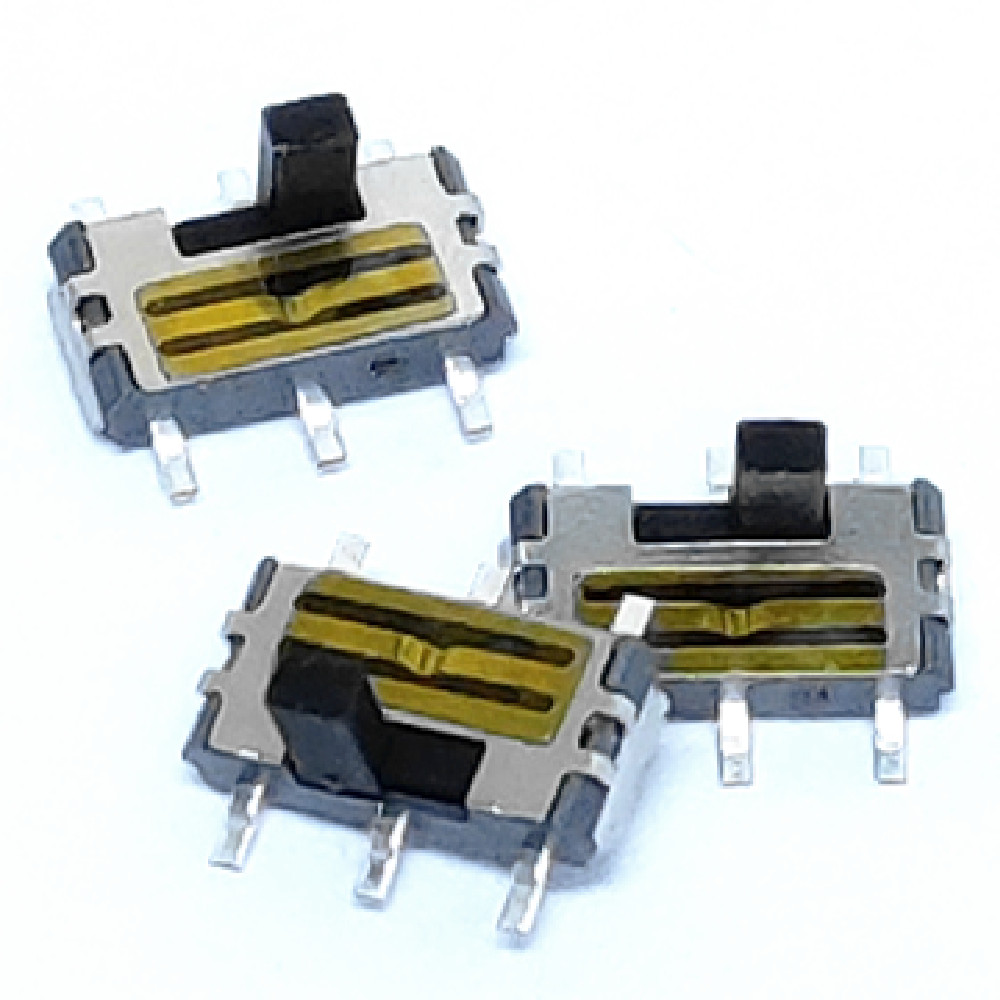

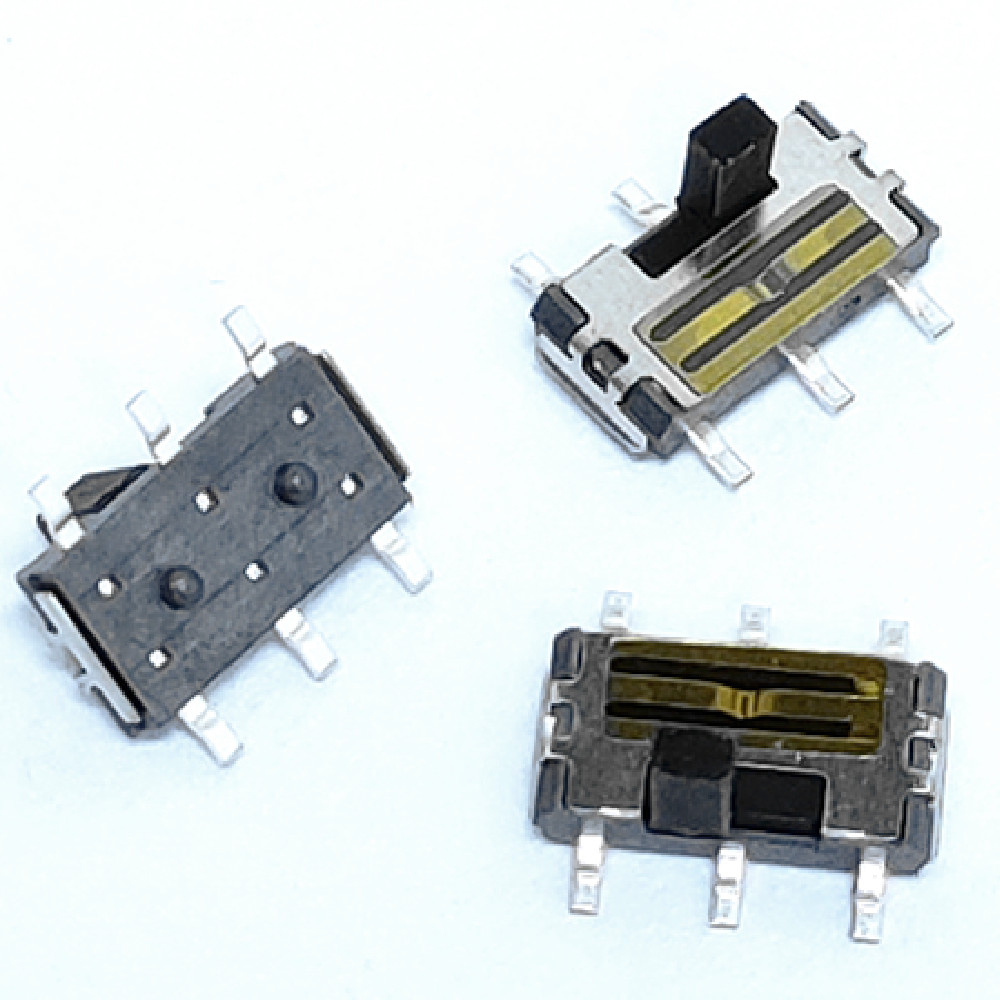

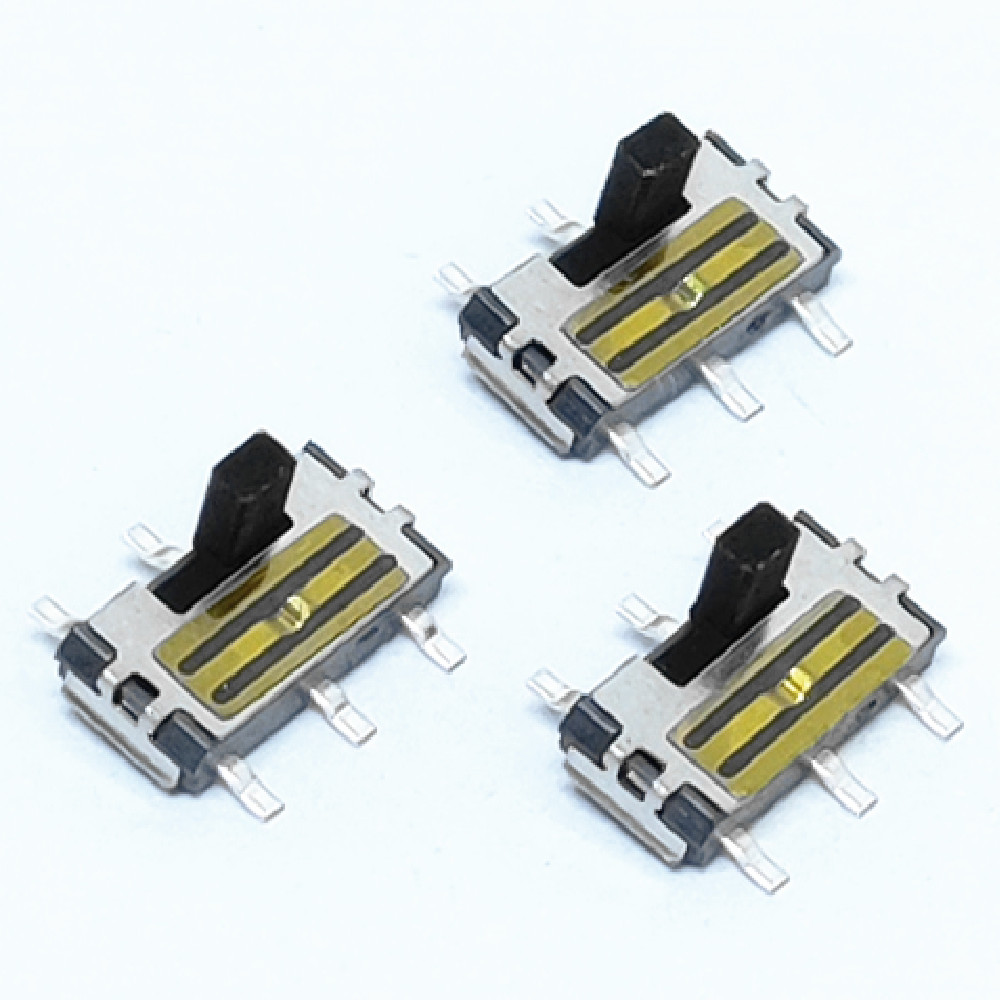

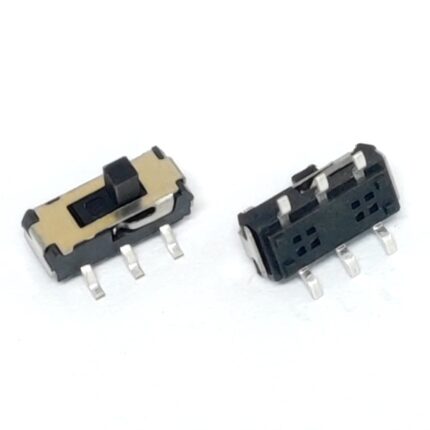

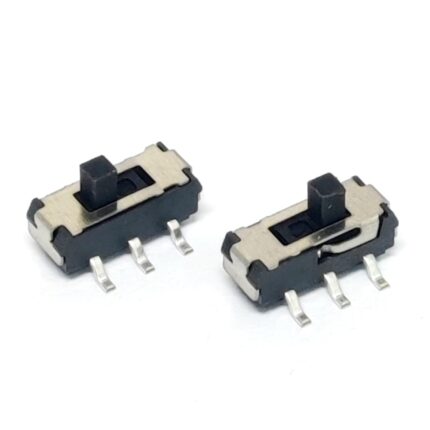

2 Position SMD Mini Slide Switch
Part Number: MSS22C07-TG2-MB1
The MSS22C07-TG2-MB1 is a 2-position SMD mini slide switch with DPDT (2P2T) contacts and a low 3.5 mm profile, rated 12 V DC / 100 mA. It slides at a 200 gf force, seals under a PI film for pick-and-place assembly, and is rated for 10,000 operation cycles. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- DPDT (2P2T) 2-position switching, rated 12 V DC / 100 mA
- Surface-mount (SMD) terminals sealed under a PI film for tape-and-reel pick-and-place
- Low 3.5 mm profile in a 7.1 × 3.5 × 3.5 mm body
- 200 ± 70 gf slide force, 1.5 ± 0.2 mm travel
- 10,000-cycle life, silver-plated contacts, –20 °C to +70 °C range
Applications
SPECIFICATIONS
| Part Number | MSS22C07-TG2-MB1 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | DPDT (2P2T, 2 pole 2 throw) |
| Positions | 2-position |
| Mounting / Terminal | Surface mount (SMD), 6 terminals |
| Body Size | 7.1 × 3.5 × 3.5 mm |
| Rated Current / Voltage | 12 V DC, 100 mA |
| Operating Force | 200 ± 70 gf (side push) |
| Travel | 1.5 ± 0.2 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +90 °C |
| Contact Material | Beryllium bronze, silver-plated |
| Terminal Material | Phosphor bronze, silver-plated |
| Housing Material | LCP case, PA46 knob, stainless-steel cover |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Tape and reel (1,000 per reel) |
Typical Applications
This SMD DPDT slide switch suits mode and on/off selection in compact, surface-mount assemblies: wearables, medical electronics, portable gadgets, and consumer electronics. The low 3.5 mm profile and PI-film seal fit automated pick-and-place lines.

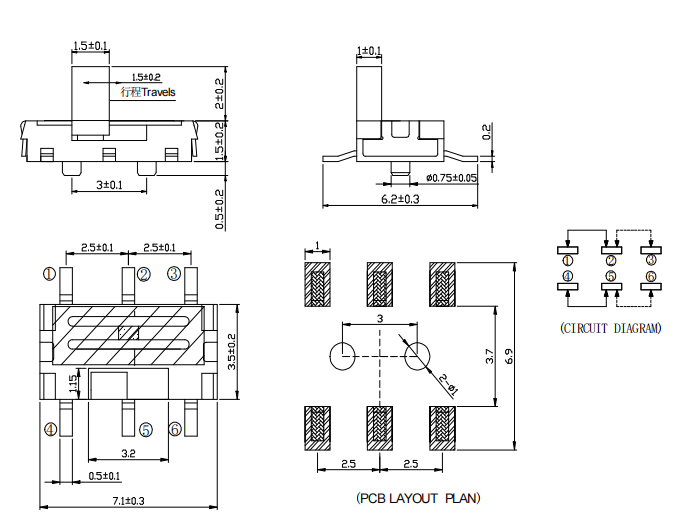

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Knob |
PA6T |
1 |
Black |
2 |
Cover |
SUS |
1 |
Natural |
3 |
Case |
LCP |
1 |
Black |
4 |
Terminal |
Phoshorus copper |
6 |
Ag plating |
5 |
Contact |
Beryllium bronze |
2 |
Ag plating |
6 |
Film |
PI |
1 |
