DPDT 2 Pole 2 Position Slide Switch
Part Number: MSS22D02-TG2-D20001

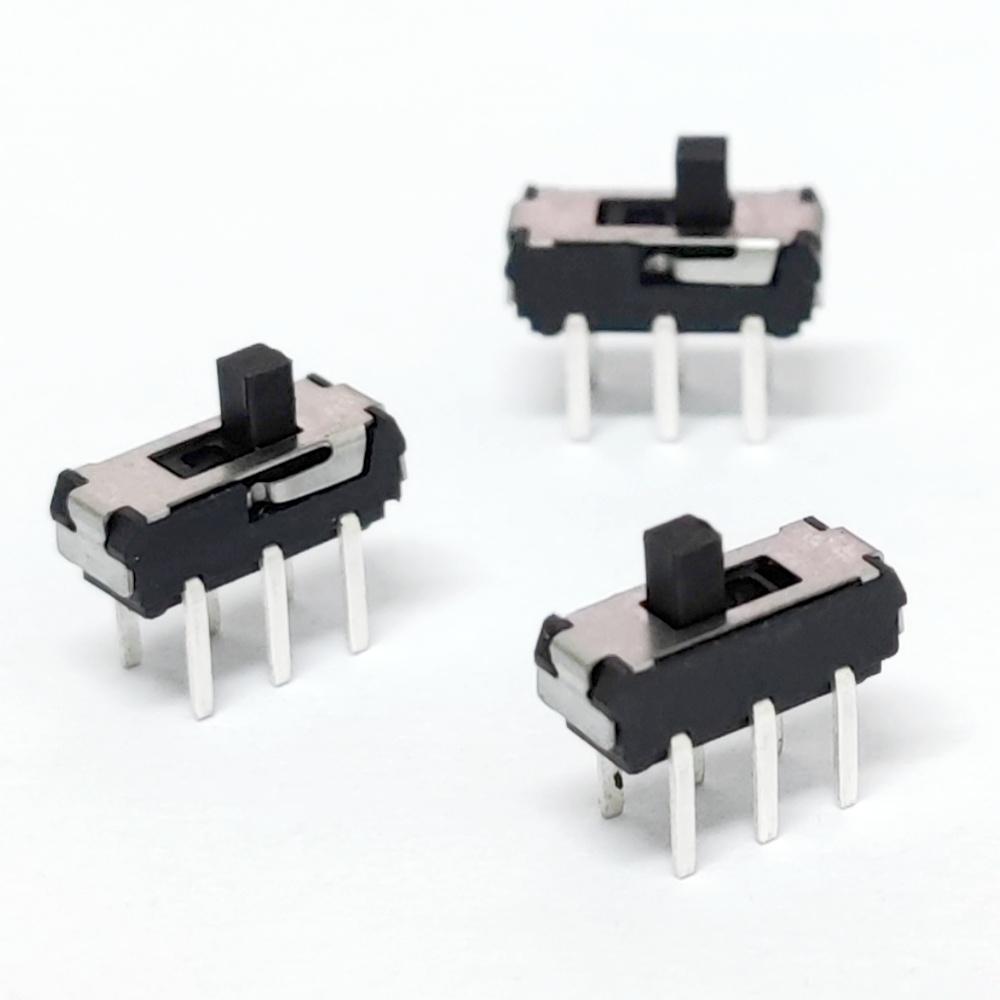

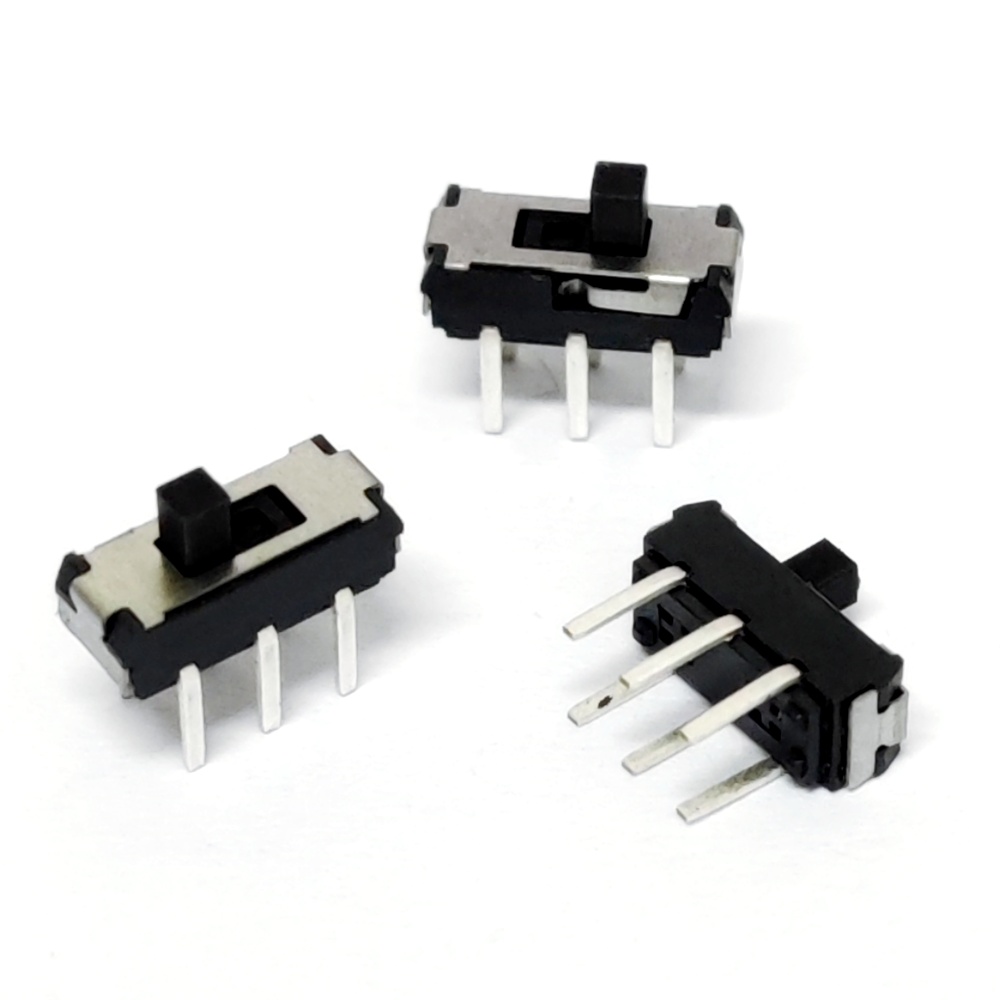

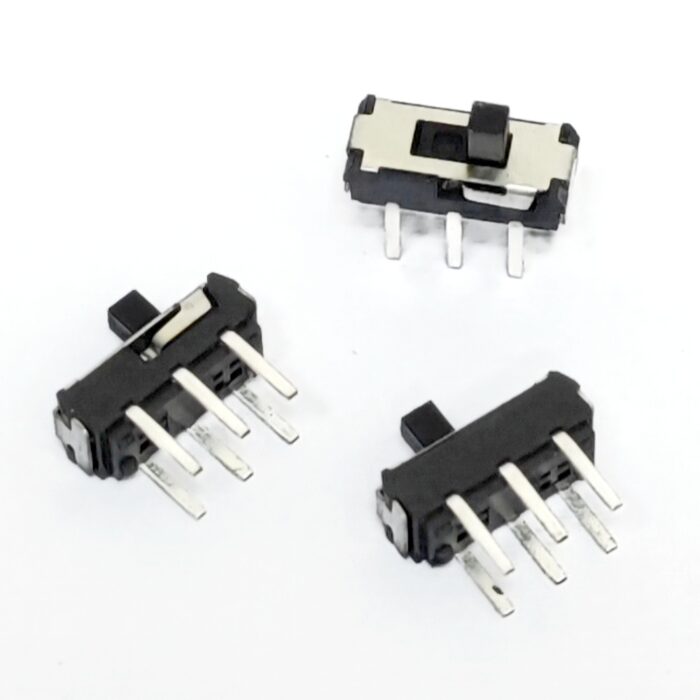

The MSS22D02-TG2-D20001 is a DPDT (2P2T) 2-position slide switch with through-hole PCB terminals, rated 12 V DC / 100 mA. It provides a firm slide action, a 500 V AC dielectric strength, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- DPDT (2P2T) 2-position switching, rated 12 V DC / 100 mA
- Through-hole PCB terminals with a firm slide action
- 500 V AC dielectric strength and ≥100 MΩ insulation resistance
- 200 ± 70 gf slide force, 2.0 ± 0.4 mm travel
- 10,000-cycle life, silver-plated contacts, –10 °C to +60 °C range
Applications
SPECIFICATIONS
| Part Number | MSS22D02-TG2-D20001 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | DPDT (2P2T, 2 pole 2 throw) |
| Positions | 2-position |
| Mounting / Terminal | Through-hole PCB, 6 terminals |
| Body Size | 9.1 × 3.5 × 5.5 mm |
| Rated Current / Voltage | 12 V DC, 100 mA (max) |
| Operating Force | 200 ± 70 gf |
| Travel | 2.0 ± 0.4 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 500 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –10 °C to +60 °C |
| Contact Material | Beryllium bronze, silver-plated |
| Terminal Material | Phosphor bronze, silver-plated |
| Housing Material | PA6T case and knob, stainless-steel cover |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Bag |
Typical Applications
This DPDT slide switch handles mode and on/off selection on PCBs: power-control boards, toys, electronic test instruments, and consumer electronics. The 500 V AC dielectric rating suits designs that need extra isolation margin.

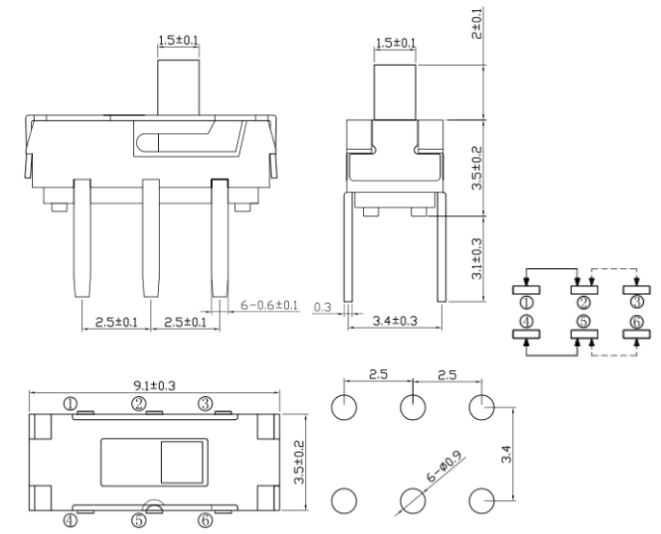

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Case |
PA6T |
1 |
Black |
2 |
Terminal |
Phosphorus copper |
6 |
Ag plating |
3 |
Contact |
Berylliun bronze |
2 |
Ag plating |
4 |
Knob |
PA6T |
1 |
Black |
5 |
Cover |
SUS |
1 |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
