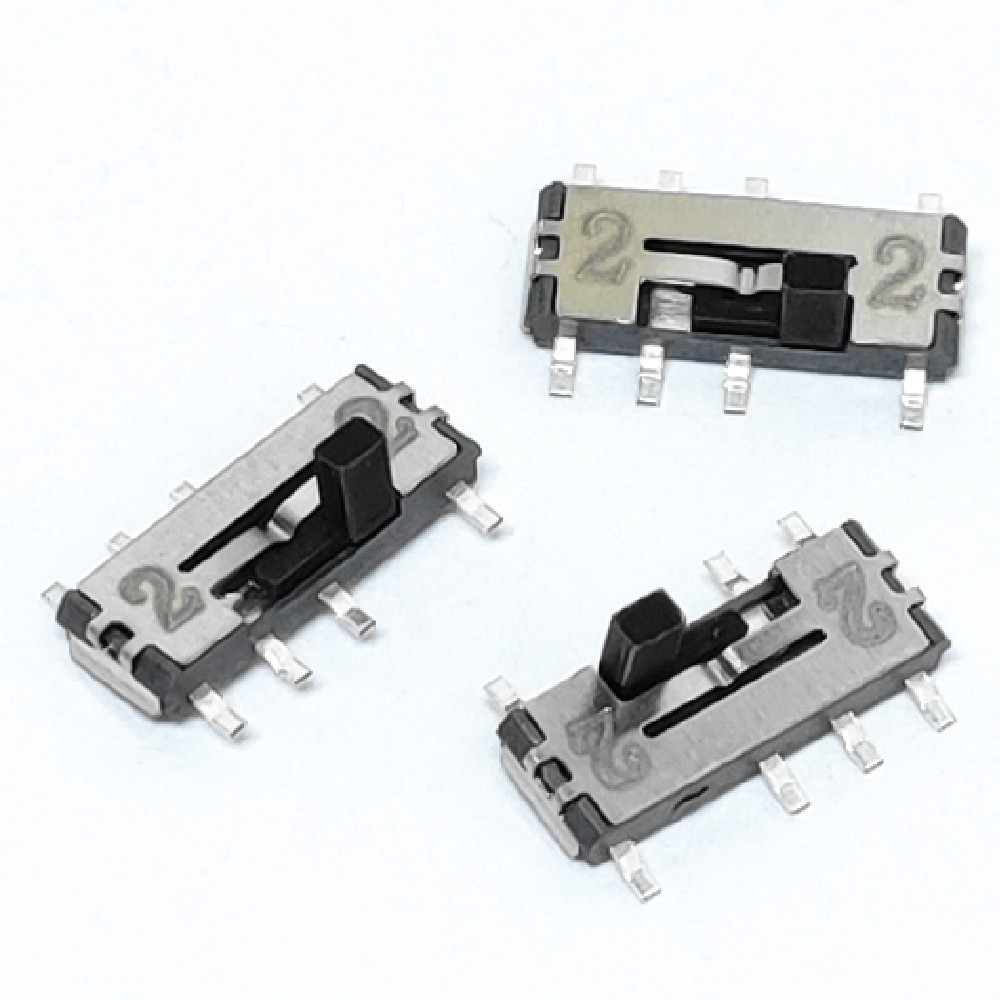

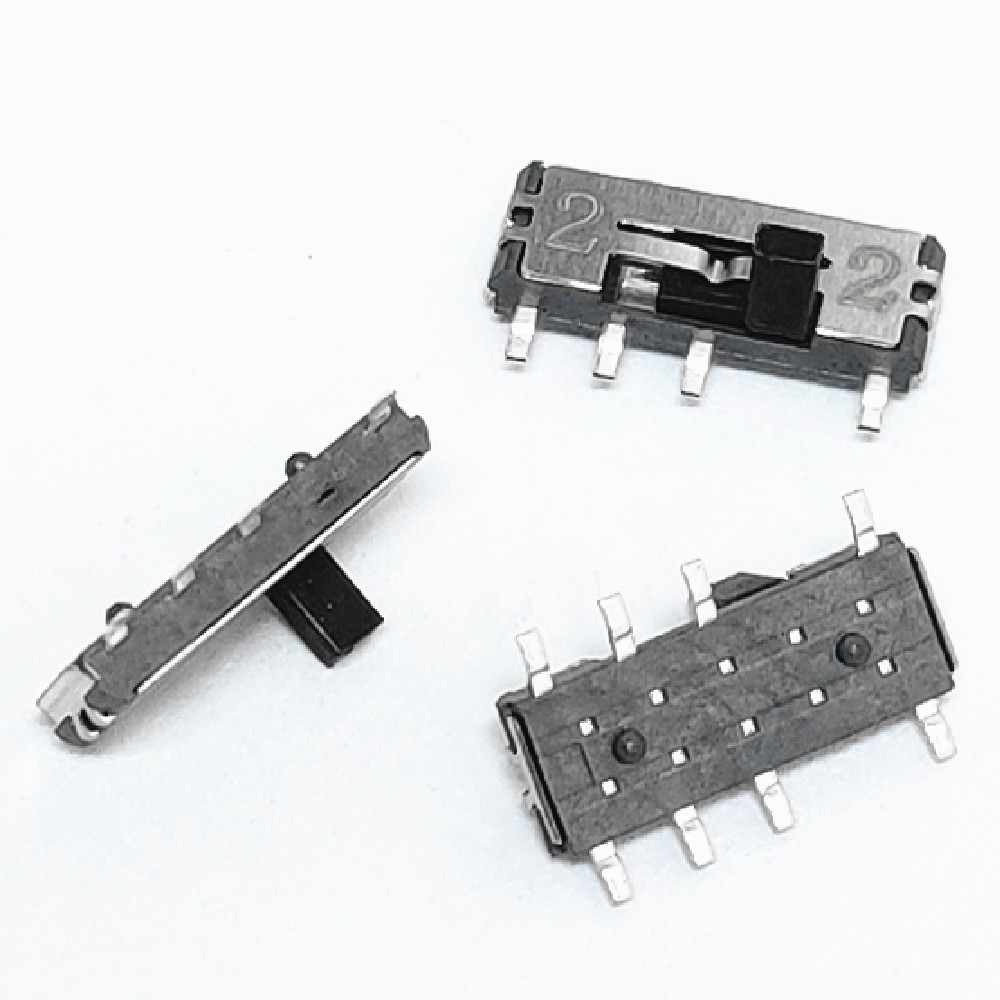

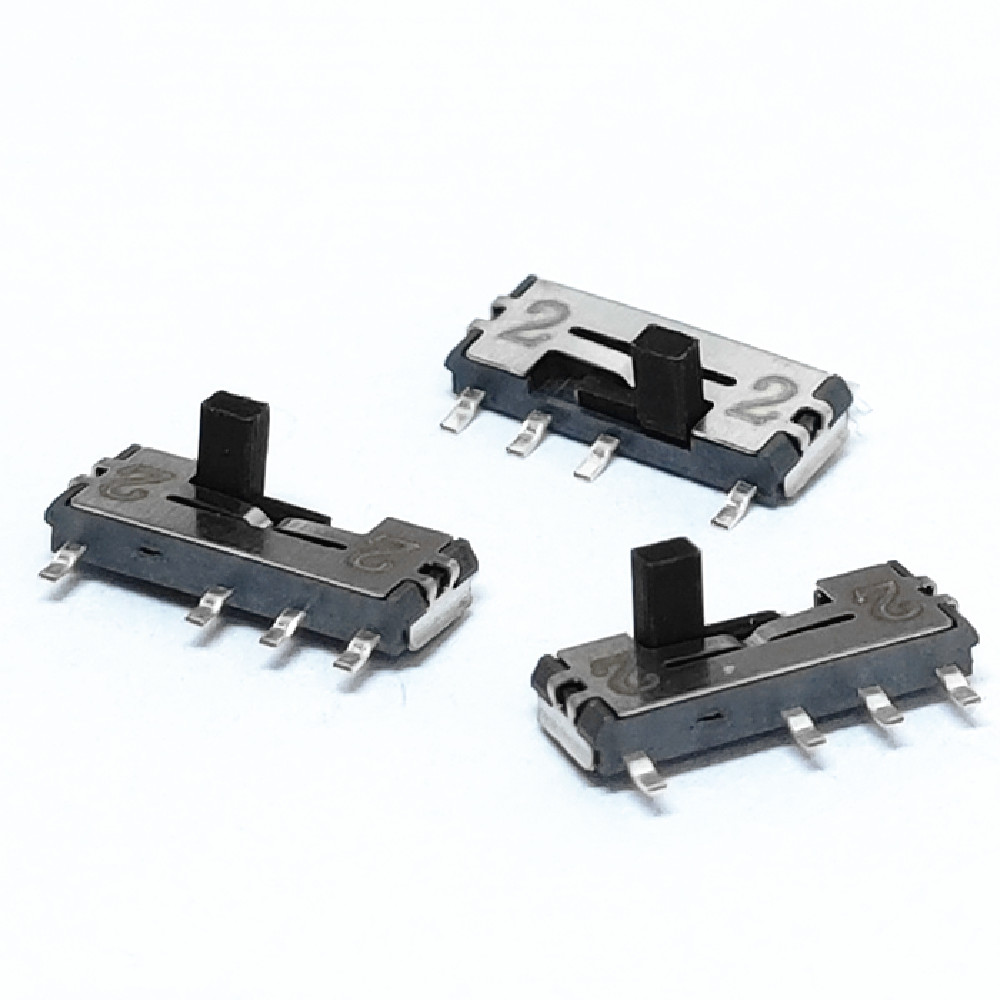

3 Position DP3T Miniature Slide Switches
Part Number: MSS23F10-TG2
The MSS23F10-TG2 is a 3-position DP3T (2P3T) miniature SMD slide switch, rated 12 V DC / 100 mA. It offers double-pole triple-throw switching, a low 3.5 mm profile, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- DP3T (2P3T) 3-position switching, rated 12 V DC / 100 mA
- Double-pole triple-throw contacts with eight SMD terminals
- Low 3.5 mm profile in a 9.9 × 3.5 × 3.5 mm body
- 160 ± 50 gf side-slide force, 3 ± 0.3 mm travel
- 10,000-cycle life, silver-plated contacts, –10 °C to +50 °C range
Applications
SPECIFICATIONS
| Part Number | MSS23F10-TG2 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | DP3T (2P3T, 2 pole 3 throw) |
| Positions | 3-position |
| Mounting / Terminal | Surface mount (SMD), 8 terminals |
| Body Size | 9.9 × 3.5 × 3.5 mm |
| Rated Current / Voltage | 12 V DC, 100 mA |
| Operating Force | 160 ± 50 gf (side push) |
| Travel | 3 ± 0.3 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Phosphor bronze, silver-plated |
| Housing Material | LCP case, PA46 knob, stainless-steel cover |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Tape and reel (1,000 per reel) |
Typical Applications
This 3-position DP3T slide switch handles three-way mode selection on PCBs: communication devices, automation modules, precision instruments, and consumer electronics. Eight terminals wire two independent poles across three positions.

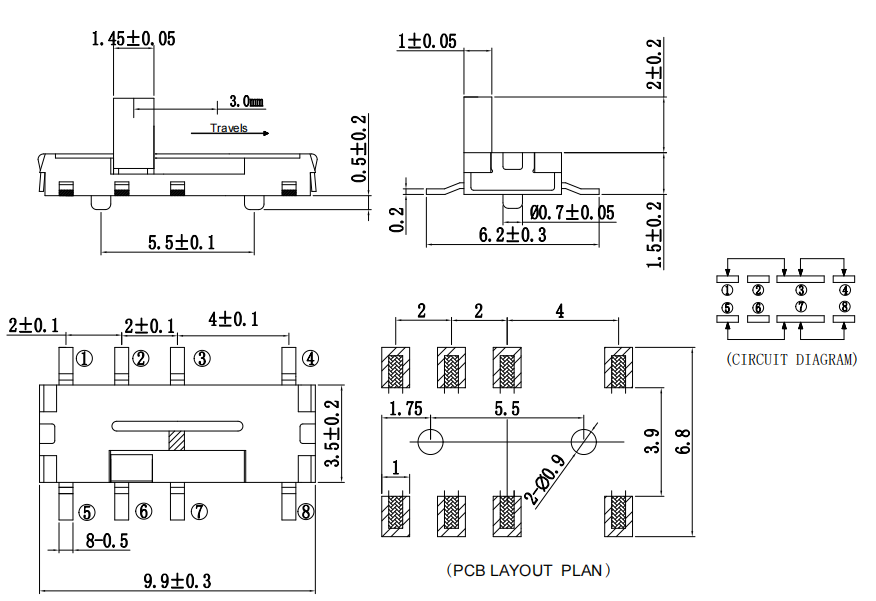

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Knob |
PA46 |
1 |
Black |
2 |
Cover |
SUS |
1 |
|
3 |
Case |
LCP |
1 |
Black |
4 |
Terminal |
Phosphorus copper |
8 |
Ag plating |
5 |
Contact |
Phosphorus copper |
2 |
