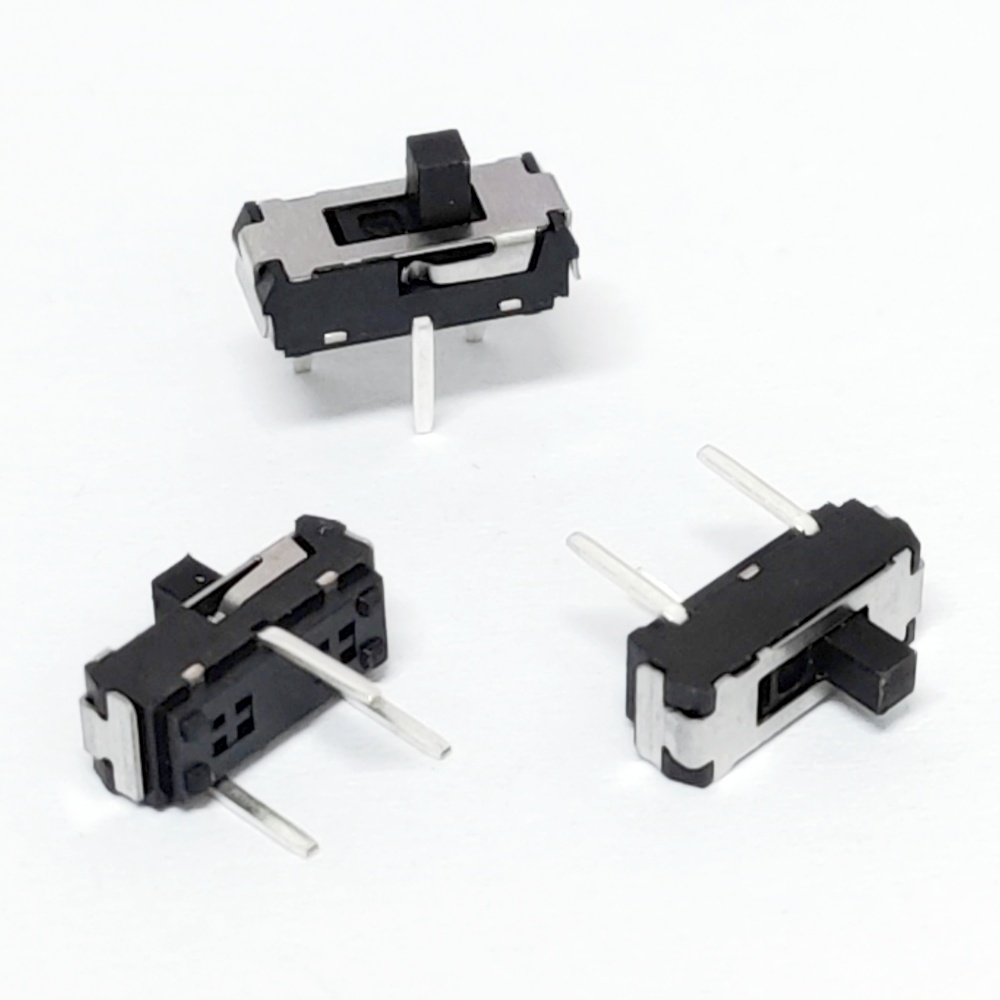

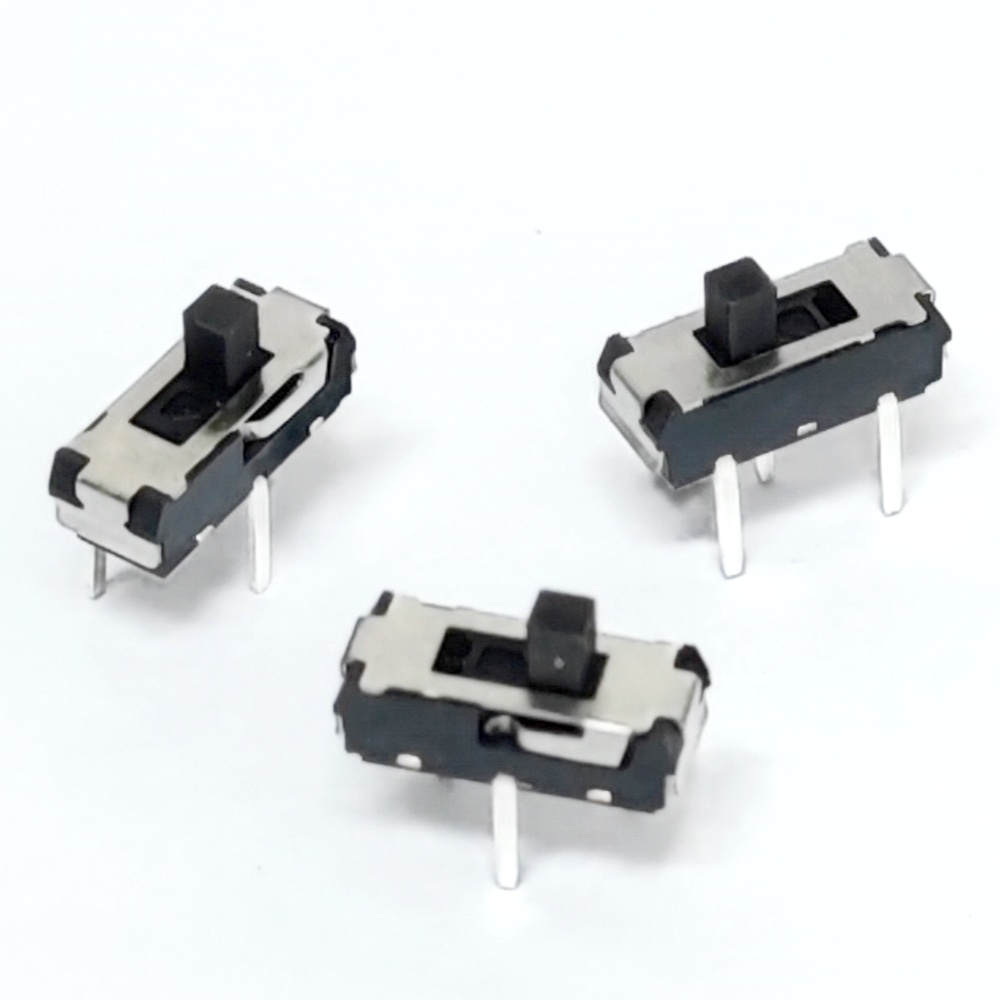

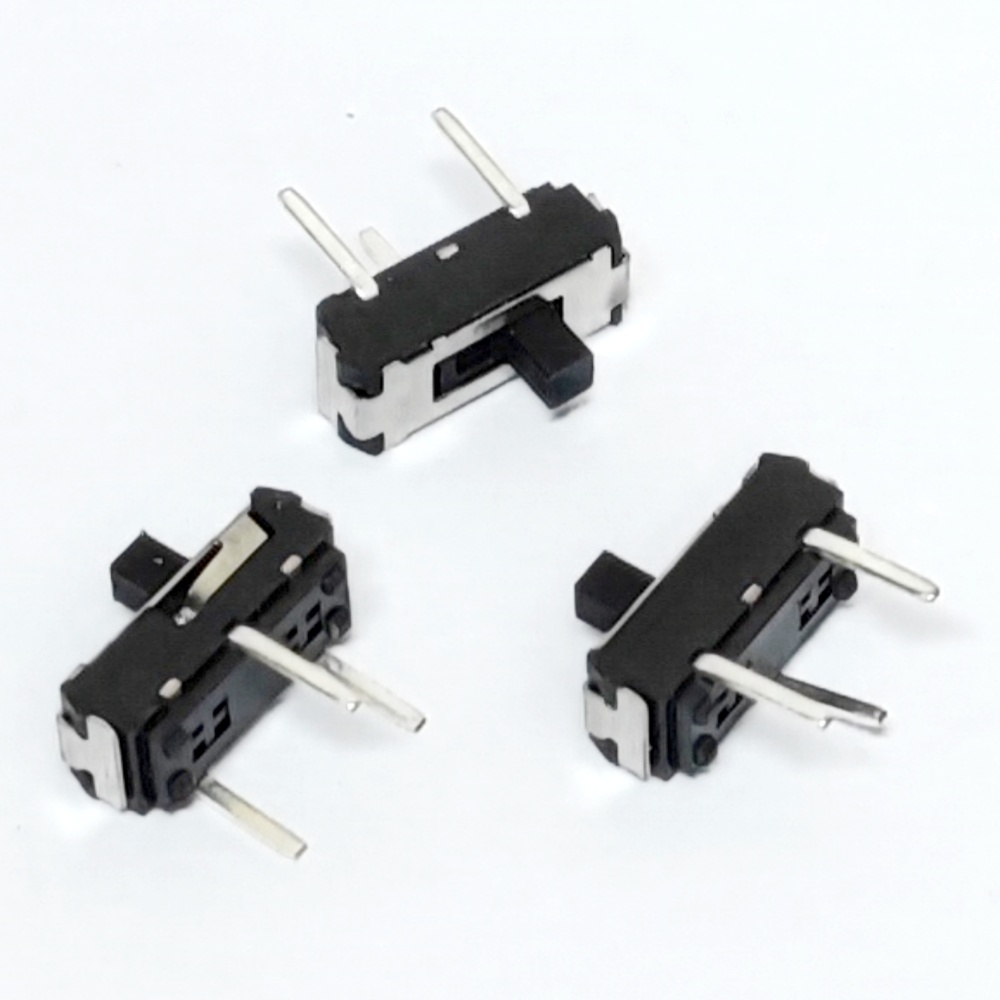

Horizontal SPDT DC12V 50mA Slide Switch 3 pin
Part Number: MSS12DH3-TG2
The MSS12DH3-TG2 is a horizontal SPDT (1P2T) slide switch with three through-hole PCB terminals, rated 12 V DC / 50 mA. It offers a side-actuated slide, a low 5.5 mm profile, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- SPDT (1P2T) 2-position switching, rated 12 V DC / 50 mA
- Horizontal (side-actuated) slide with three through-hole PCB terminals
- Low 5.5 mm profile in a 9.1 × 3.5 × 5.5 mm body
- 230 ± 100 gf slide force, 2 ± 0.2 mm travel
- 10,000-cycle life, silver-plated contacts, –15 °C to +60 °C range
Applications
SPECIFICATIONS
| Part Number | MSS12DH3-TG2 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | SPDT (1P2T, 1 pole 2 throw) |
| Positions | 2-position |
| Mounting / Terminal | Through-hole PCB, horizontal side slide, 3 terminals |
| Body Size | 9.1 × 3.5 × 5.5 mm |
| Rated Current / Voltage | 12 V DC, 50 mA |
| Operating Force | 230 ± 100 gf (side push) |
| Travel | 2 ± 0.2 mm |
| Contact Resistance | ≤200 mΩ |
| Insulation Resistance | ≥50 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –15 °C to +60 °C |
| Storage Temperature | –25 °C to +70 °C |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Phosphor bronze, silver-plated |
| Housing Material | PA6T base, PA46 knob, stainless-steel frame |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Bag |
Typical Applications
This horizontal SPDT slide switch handles on/off and mode selection where the actuator slides parallel to the board: portable devices, audio equipment, IoT modules, and consumer electronics. The low 5.5 mm profile fits slim enclosures.

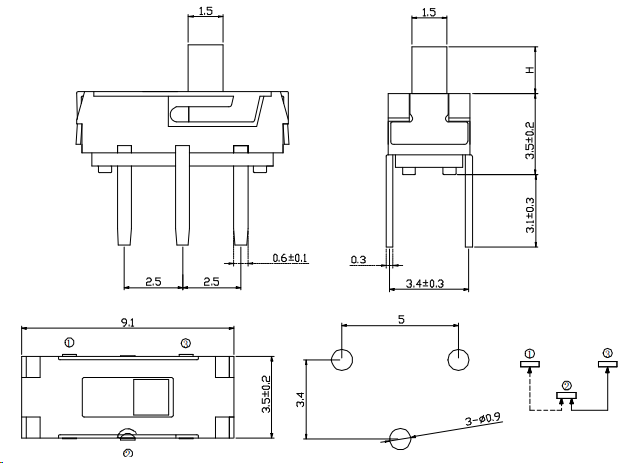

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Knob |
PA46 |
1 |
Black |
2 |
Frame |
SUS |
1 |
|
3 |
Base |
PA6T |
1 |
Black |
4 |
Terminal |
Phosphorous copper |
3 |
Ag plated |
5 |
Contact |
Phosphorous copper |
2 |
Ag plated |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
