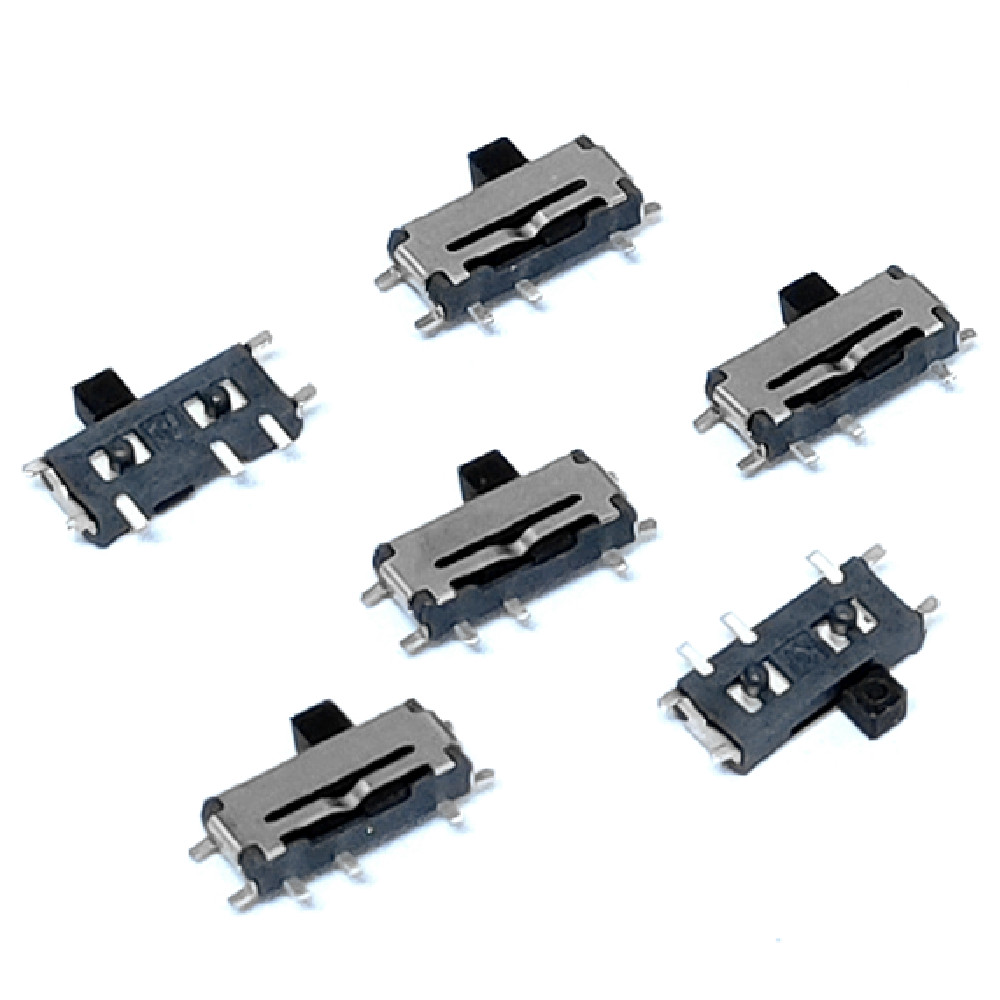

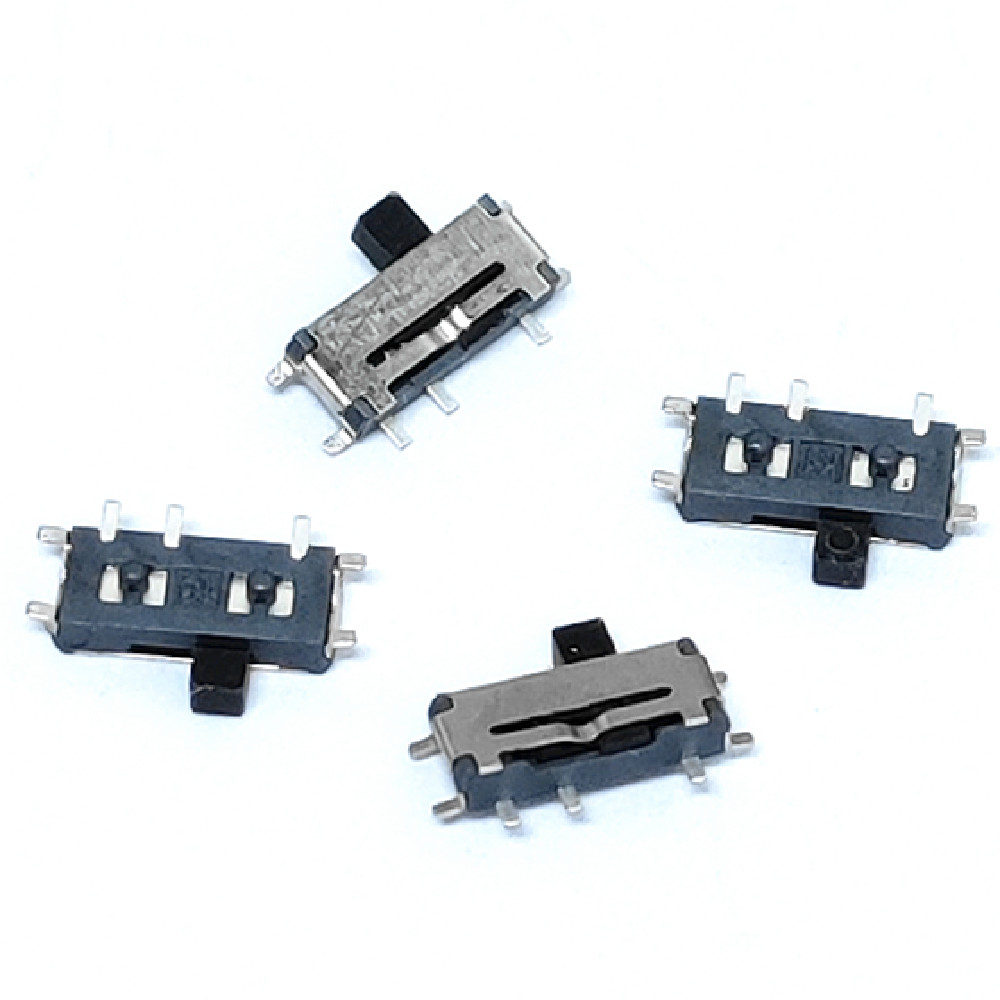

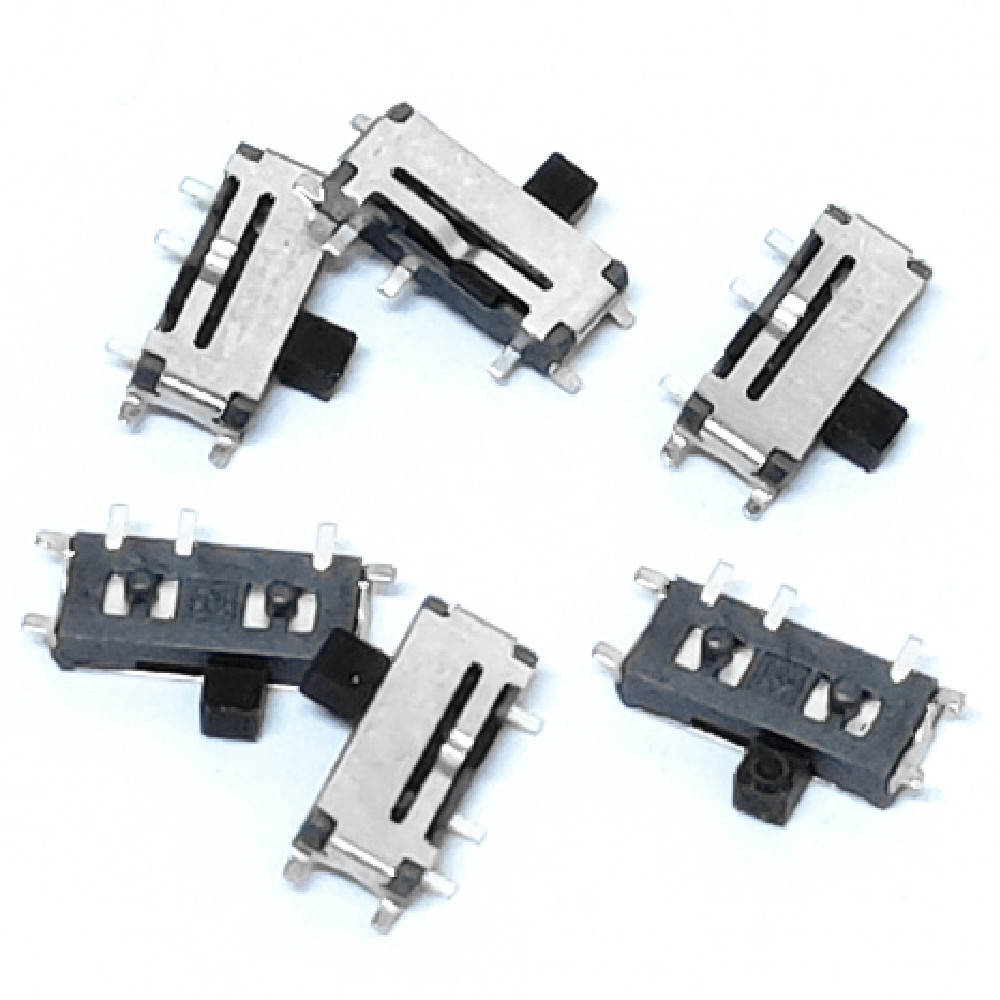

Side Slide 7 Pin SPDT Slide Switches SMD
Part Number: MSK12C01-TG15-LB1-R
FEATURES
- SPDT
- Surface mount
- Low profile
- Compact design
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC12V 50mA |
Function |
1P2T |
Contact resistance |
≤100Ω |
Insulation resistance |
≥100MΩ |
Operating force |
170±80gf |
Full travel |
1.5±0.2mm |
Life Time |
10,000 Cycles |
Operating Temperature Range |
-20℃~+70℃ |
Actuator Type |
Standard |
Mounting Type |
Surface mount |
Length |
6.65mm |
Width |
2.75mm |
Height |
4.25mm |
Packing |
Tape |
ROHS |
Yes |

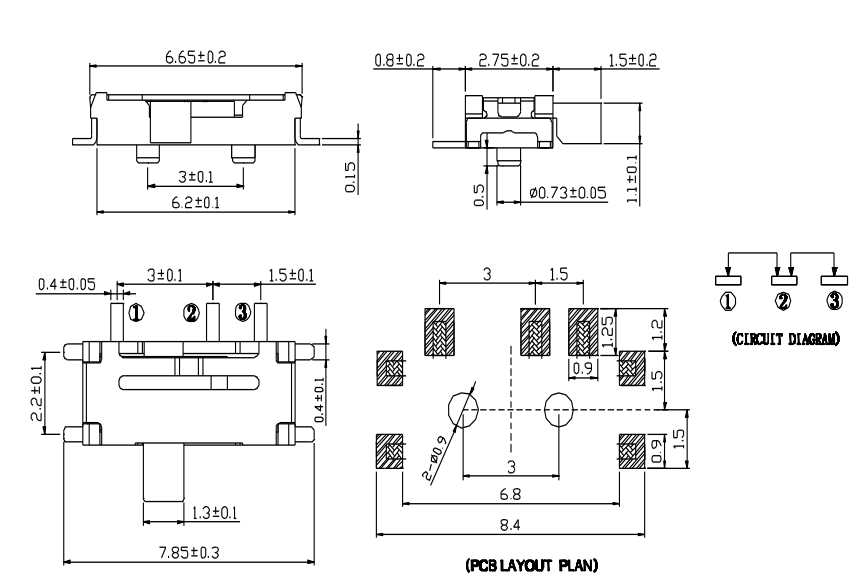

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Base |
LCP |
1 |
Black |
2 |
Terminal |
Phosphorus bronze |
3 |
Ag plated |
3 |
Contact |
Beryllium bronze |
1 |
Ag plated |
4 |
Knob |
PA46 |
1 |
Black |
5 |
Cover |
SUS |
1 |
Ni plated |
