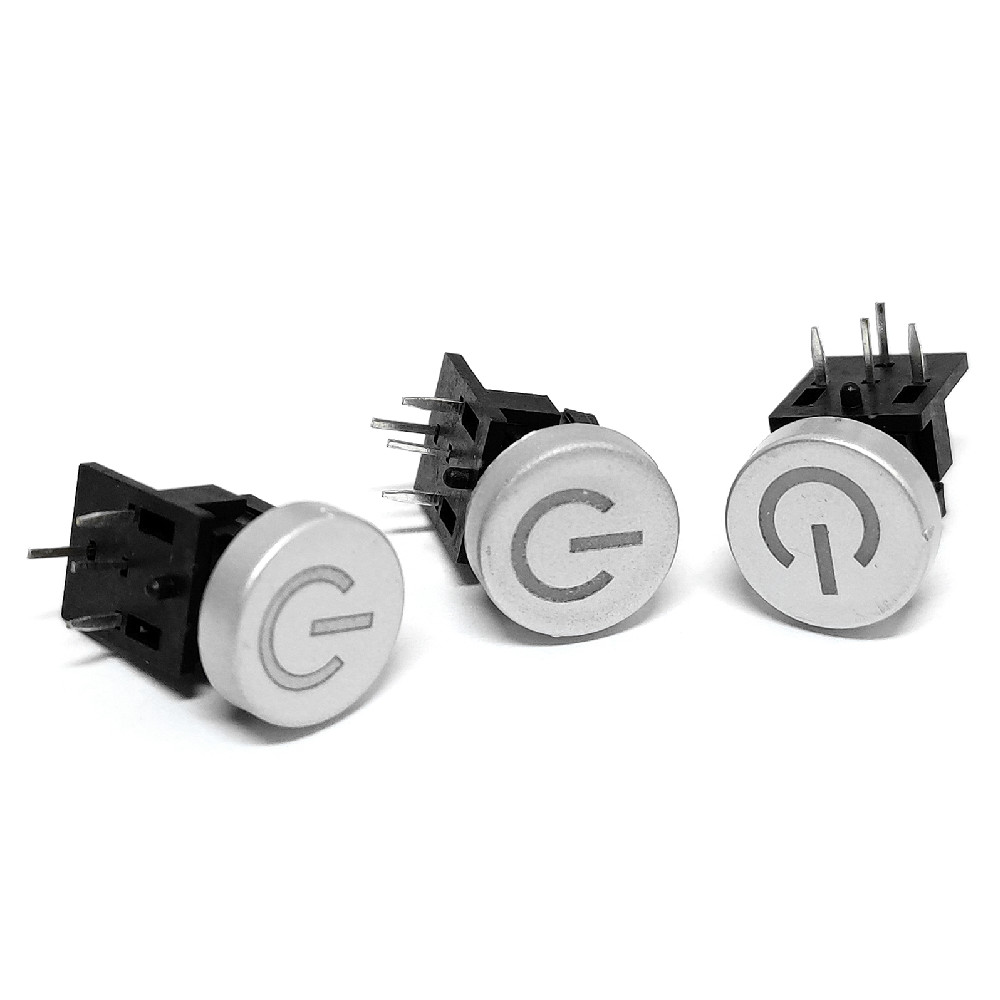

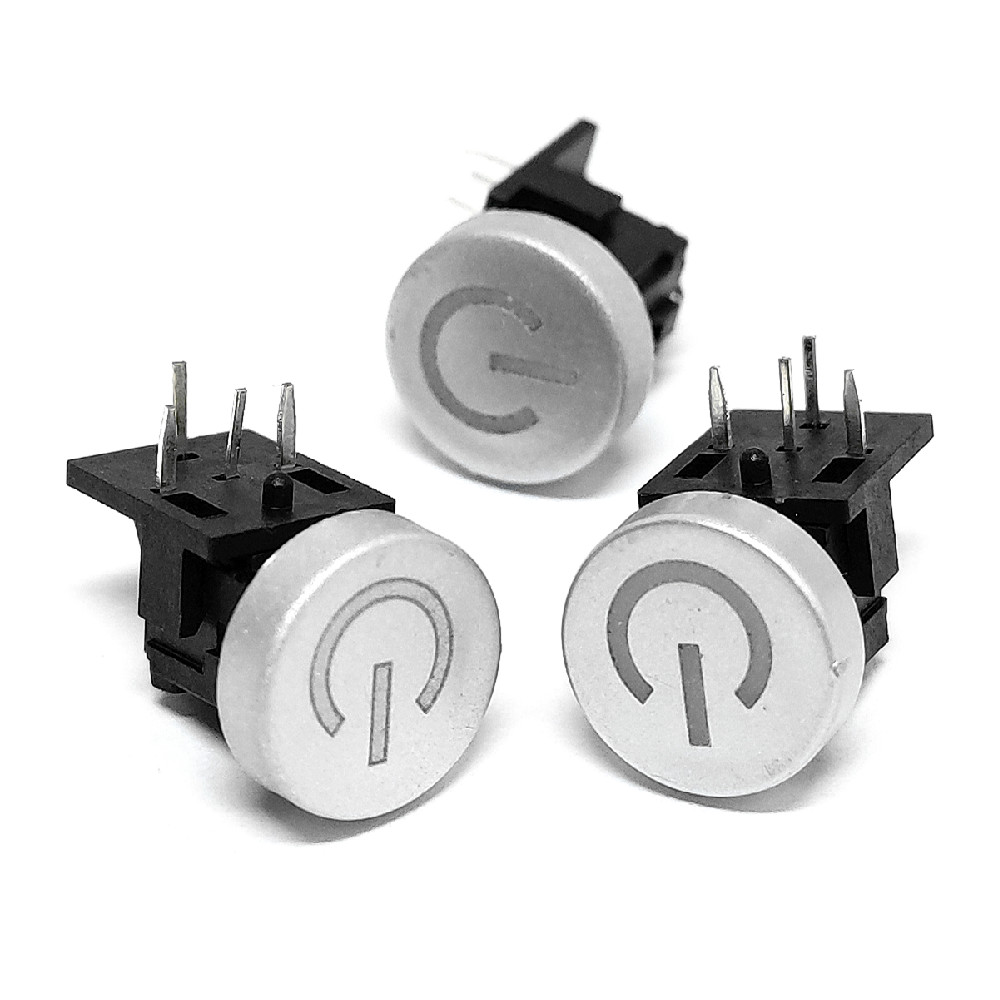

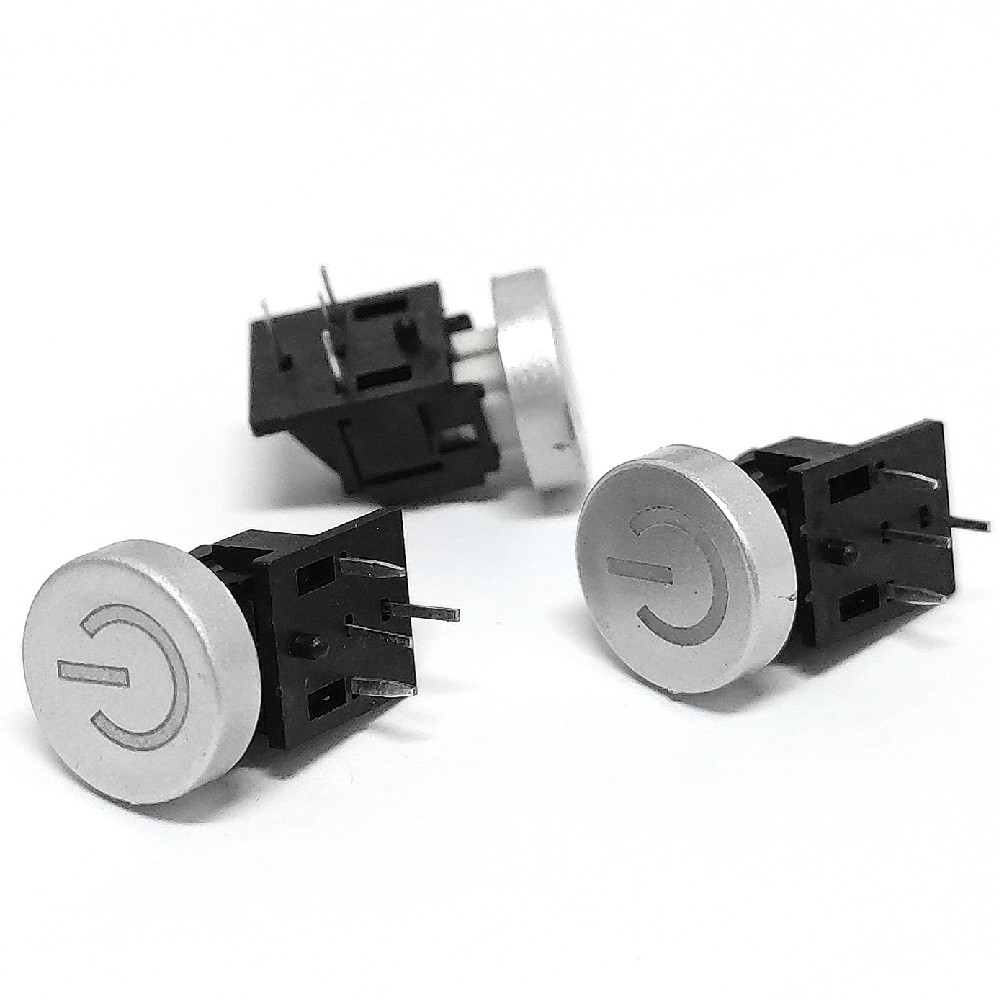

Right Angle Round Cap Illuminate Led Tact Switch
Part Number: KAN9761-1304C010-83-Ag ∅10
FEATURES
- Several LED colors
- Multiple cap options
- Right angle thru-hole
- Compact Size
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC12V 50mA (Max) DC1V10μA (Min) |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
260±50 gf |
Full Travel |
0.25±0.1mm |
Return Force |
＞50gf |
Stem Strength |
20N min |
Operation Life |
100,000 cycles |
Mounting Style |
Through Hole, Right Angle |
Length |
7.6mm |
Width |
7.6mm |
Height |
13.2mm |
LED Color |
Blue |
ROHS |
Yes |

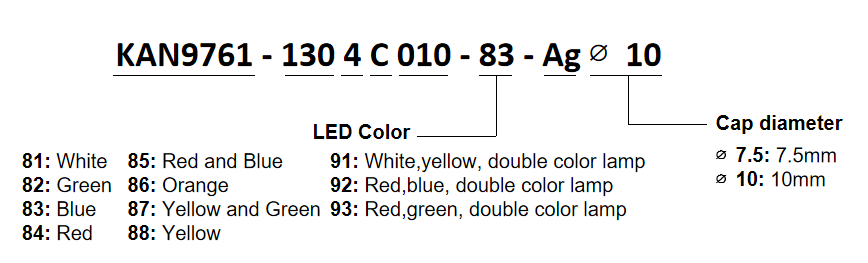

PART NUMBER KEY

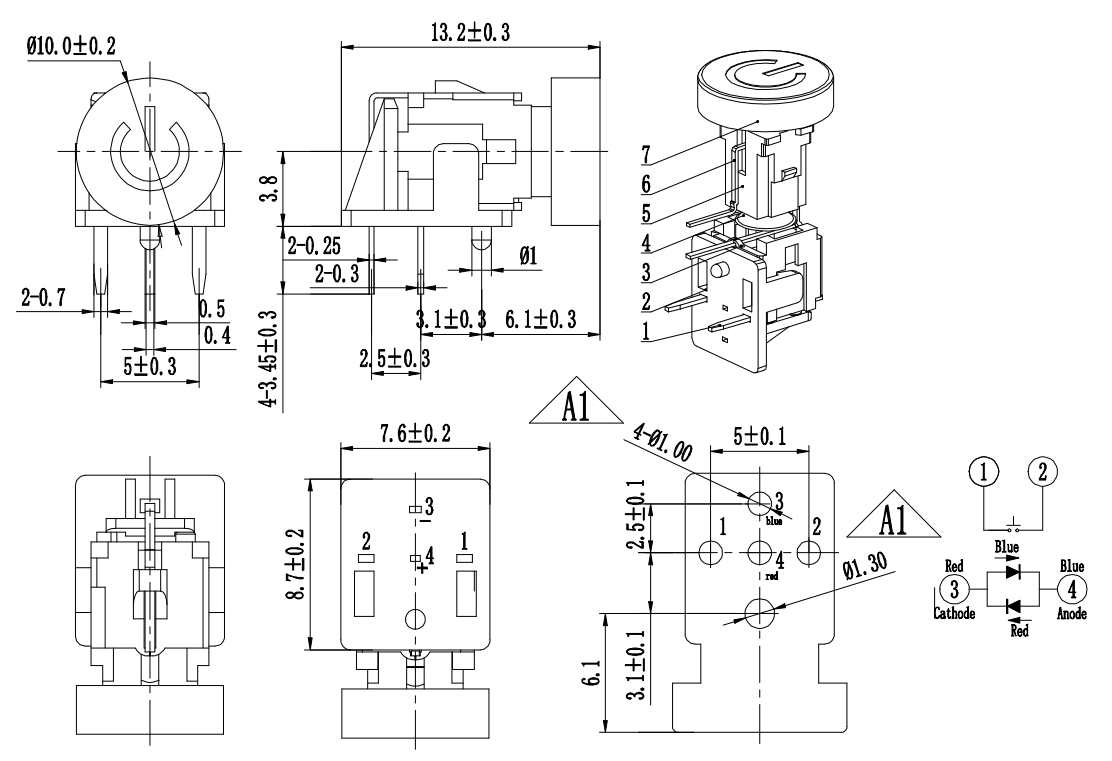

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cards |
H62 |
1 |
Ag plating ≥ 0.3μm |
2 |
Positioning plate |
PA66 |
1 |
Black |
3 |
Plastic seat |
PA66 |
1 |
Black |
4 |
Contact |
SUS |
1 |
Ag plating ≥ 0.3μm |
5 |
Beveled edge button |
PPA |
1 |
Porcelain White |
6 |
LED |
1 |
Blue |
|
7 |
Round Cap |
PC |
1 |
Silver |
| Mounting Style |
Through Hole |
|---|---|
| ILLumination |
Yes |
| IP Rating |
No IP Rating |
| Height (mm) |
13 |
| Length (mm) |
7 |
| Width (mm) |
7 |
