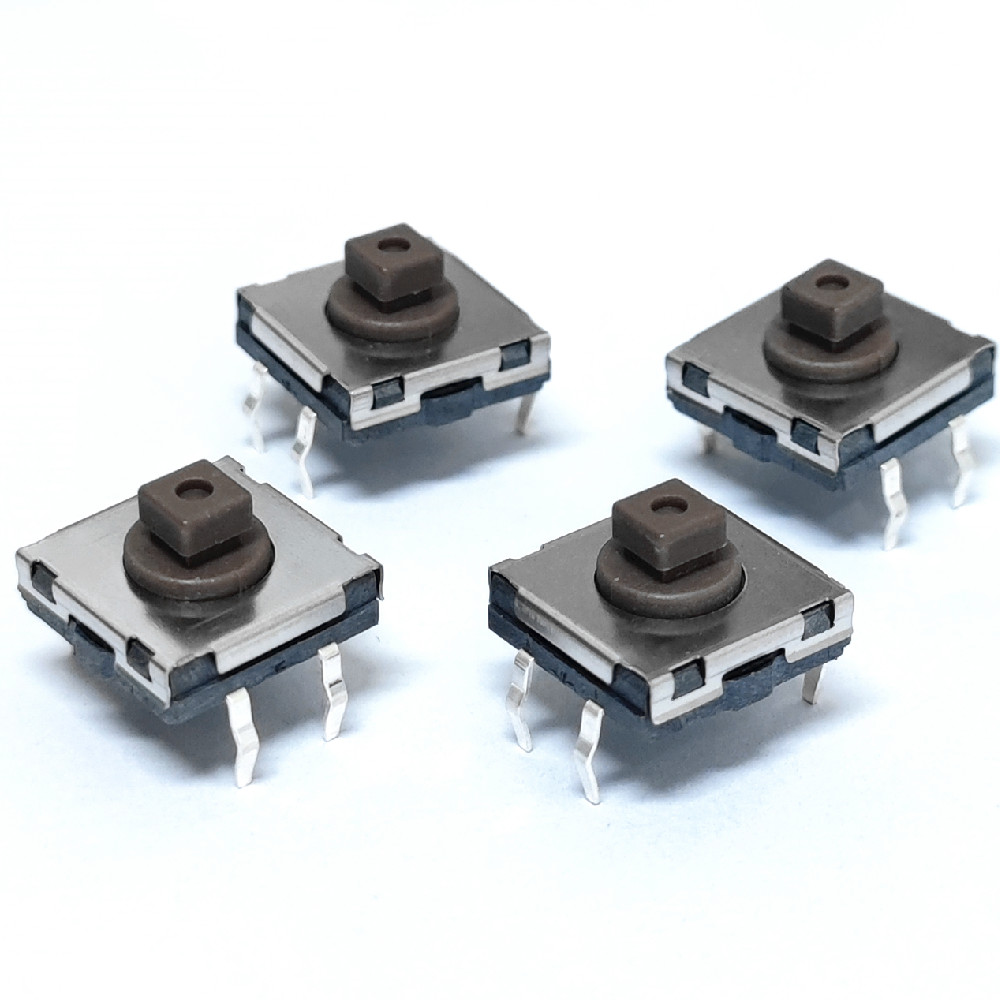

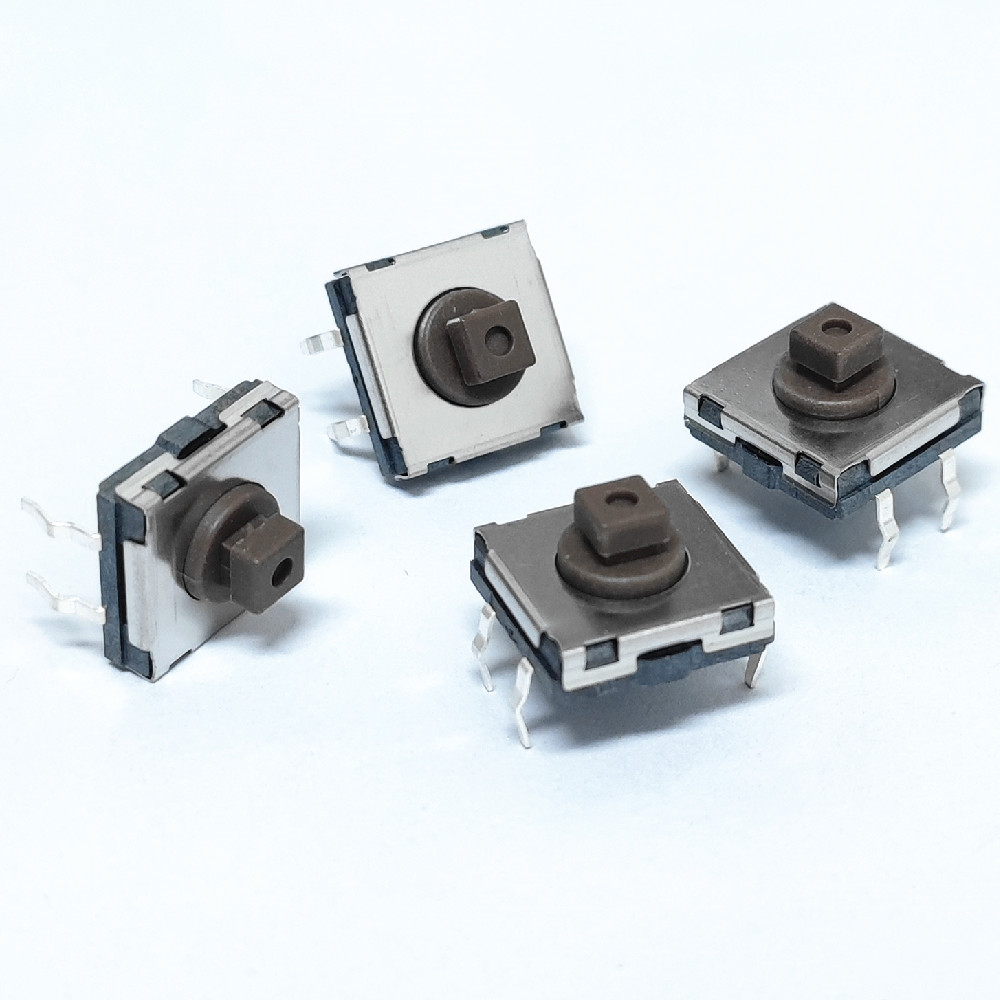

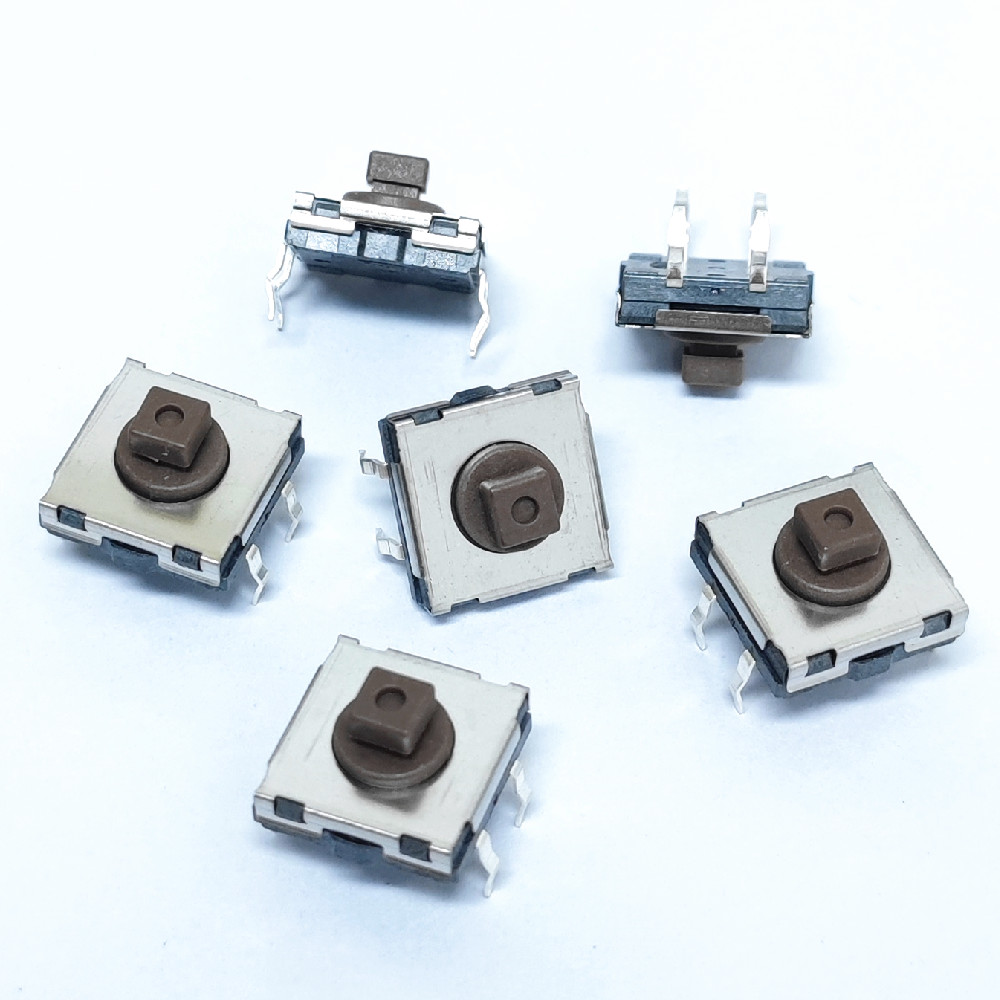

Touch Dip Sealed 12mm Tact Switch
Part Number: KAN1210F-0739B100-B2242
The KAN1210F-0739B100-B2242 is a 12 × 12 × 7.3 mm through-hole tact switch with a silicone-sealed IP67 construction and a 1,000,000-cycle rated life. It mounts through-hole on a PCB, delivers crisp tactile feedback at 160 gf, and is built for high-cycle sealed applications. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP67-rated silicone-sealed construction
- High 1,000,000-cycle rated life
- 12 × 12 mm body, 7.3 mm height, through-hole (DIP) mounting
- 160 ± 50 gf operating force, 0.40 mm travel for a defined tactile click
- SPST-NO momentary action, –40 °C to +85 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN1210F-0739B100-B2242 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (DIP) |
| IP Rating | IP67 (1 m immersion, 30 min) |
| Body Size | 12.0 × 12.0 × 7.3 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.40 ± 0.2 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 1,000,000 cycles |
| Operating Temperature | –40 °C to +85 °C |
| Housing Material | Plastic |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | 100 pcs/bag |
Typical Applications
This 12 mm sealed tact switch with IP67 protection and a 1,000,000-cycle life suits high-use sealed panels: industrial control, outdoor equipment, automotive interfaces, and instrumentation. The internal silicone seal keeps moisture and dust away from the contacts during repeated actuation.

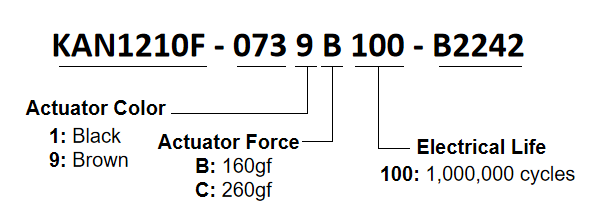

PART NUMBER KEY

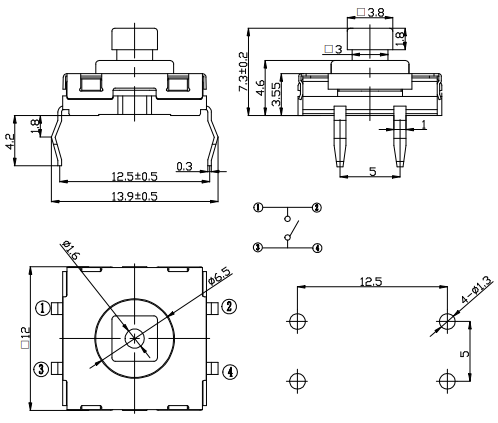

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
Plastic |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Seal |
Silicone |
1 |
Black |
5 |
Pressplate |
Plastic |
1 |
Black |
6 |
Cover |
SUS |
1 |
|
7 |
Stem |
Plastic |
1 |
Brown |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
7.3 |
| Length (mm) |
12 |
| Width (mm) |
12 |
