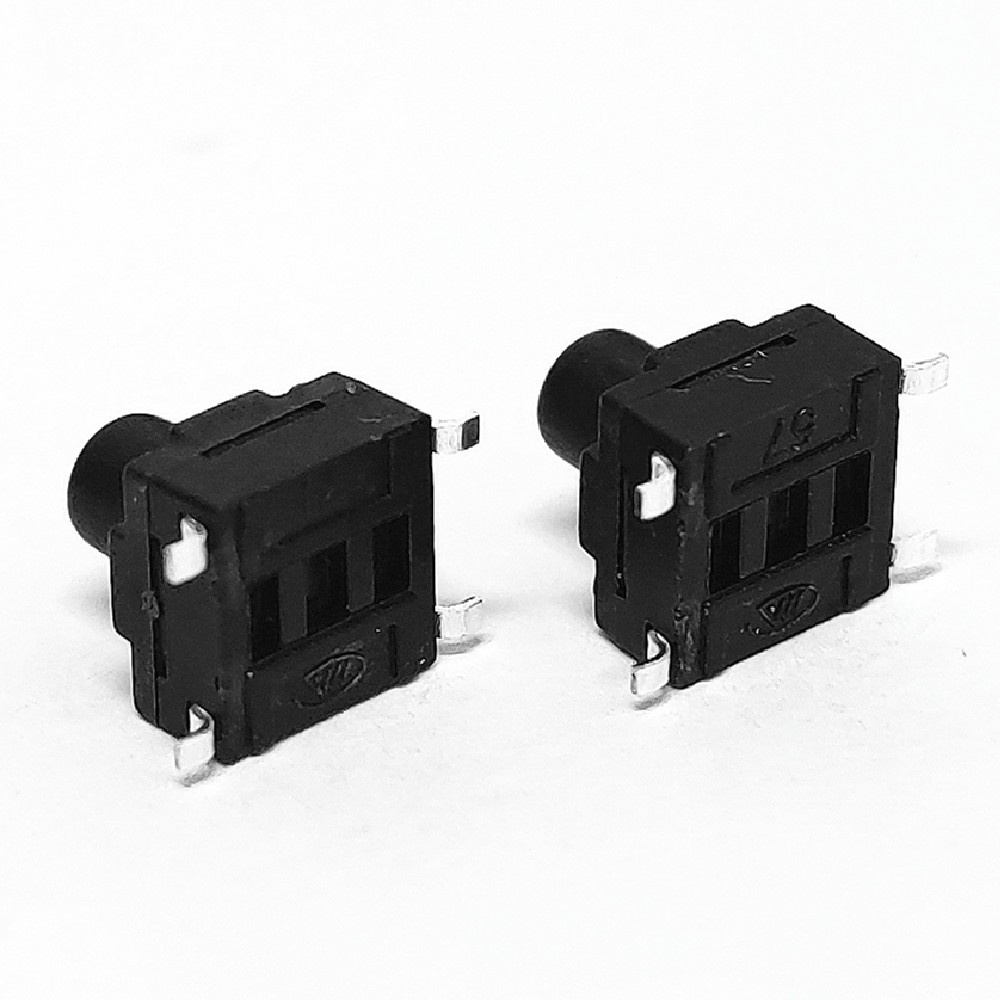

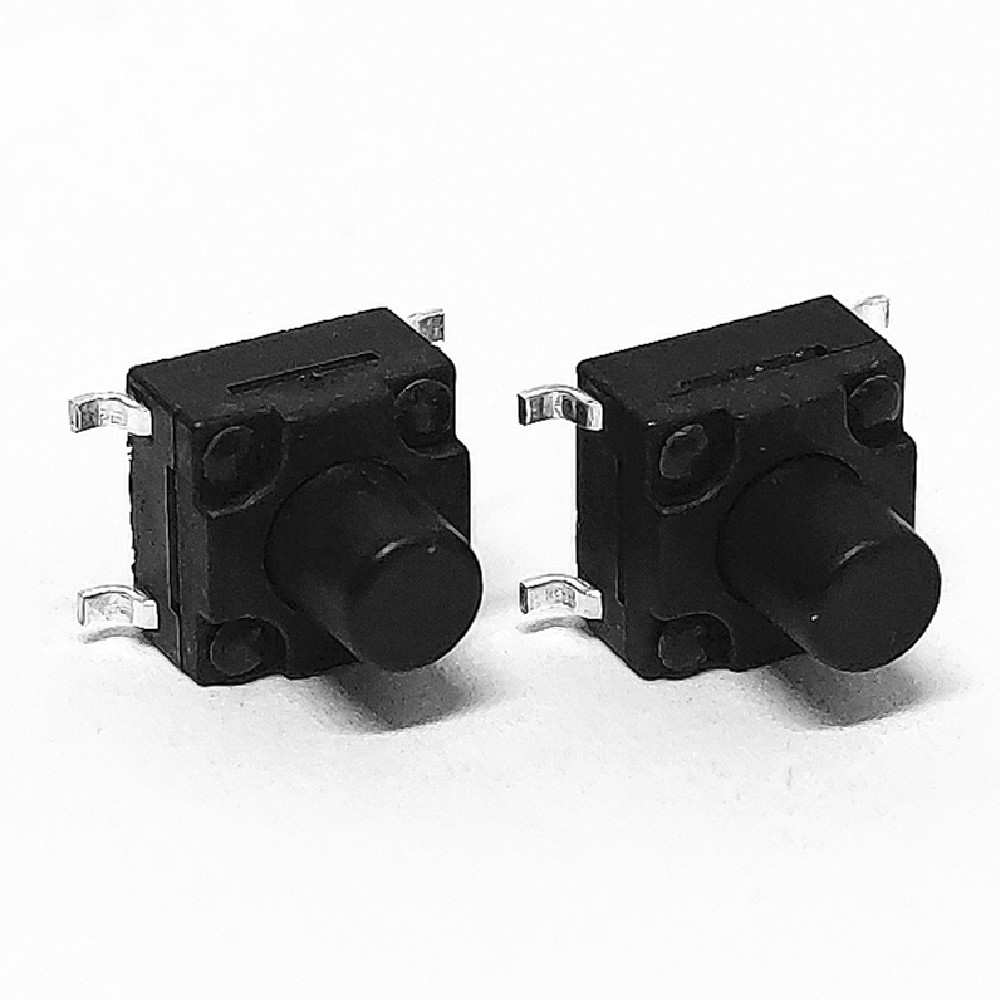

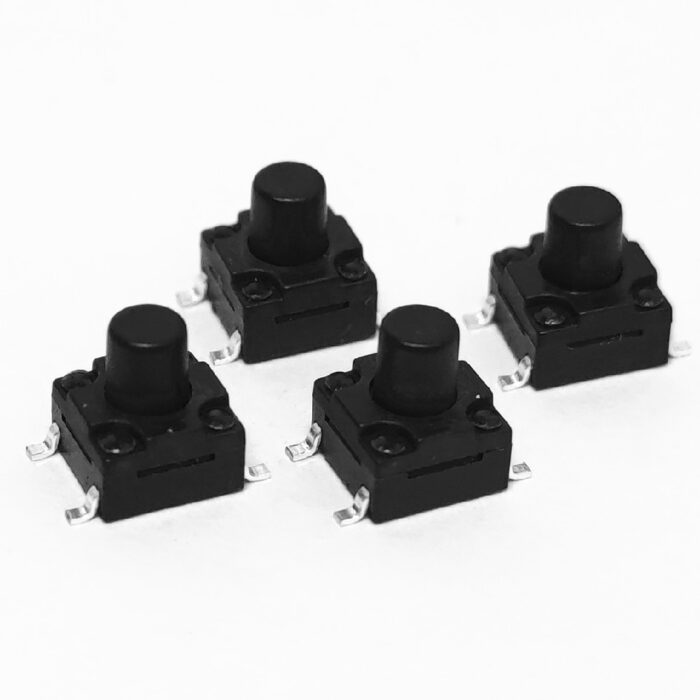

Waterproof IP67 6X6 Momentary Tact Switch
Part Number: KAN0642-0701C1-C15
The KAN0642-0701C1-C15 is a 6.0 × 6.0 × 7.0 mm surface-mount momentary tact switch with an IP66 dust- and jet-resistant seal. It surface-mounts to a PCB, delivers crisp tactile feedback at 260 gf, and is rated for 60,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP66-rated sealing against dust and powerful water jets
- 6 × 6 mm body, 7 mm height, surface-mount (THT option available)
- SPST-NO momentary action with silicone waterproof sealing
- 260 ± 50 gf operating force, 0.30 mm travel for a defined tactile click
- 60,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0642-0701C1-C15 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD); through-hole option available |
| IP Rating | IP66 (dust-tight; protected against powerful water jets) |
| Body Size | 6.0 × 6.0 × 7.0 mm |
| Operating Force | 260 ± 50 gf |
| Travel | 0.30 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ON ≤3 ms, OFF ≤8 ms |
| Electrical Life | 60,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This sealed 6 × 6 mm momentary tact switch with IP66 protection suits exposed panels and rugged controls: marine equipment, outdoor devices, industrial control, and automotive interfaces. The silicone seal keeps water and dust off the contacts while the compact footprint fits dense boards.

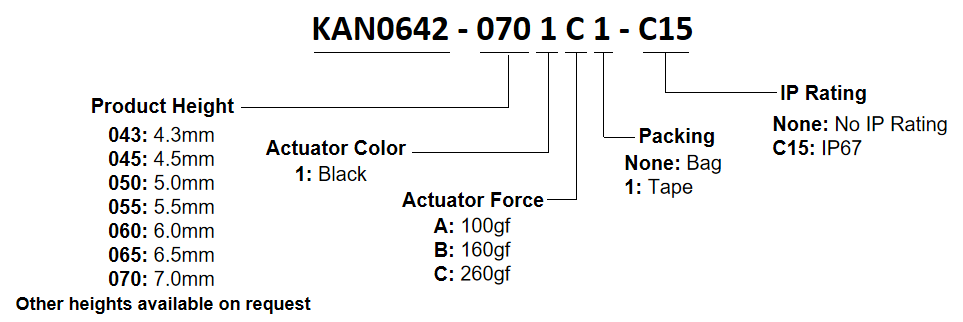

PART NUMBER KEY

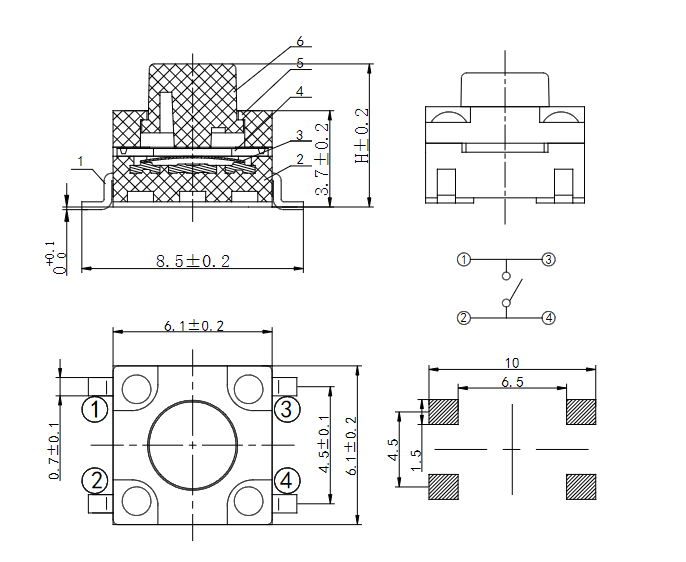

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
PPA |
1 |
Black |
3 |
Contact |
SUS |
1 |
Contact side silver plating |
4 |
Waterproof silicone |
Silicone |
1 |
Black |
5 |
Cover |
PPA |
1 |
Black |
6 |
Stem |
PPA |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
7 |
| Length (mm) |
6 |
| Width (mm) |
6 |
