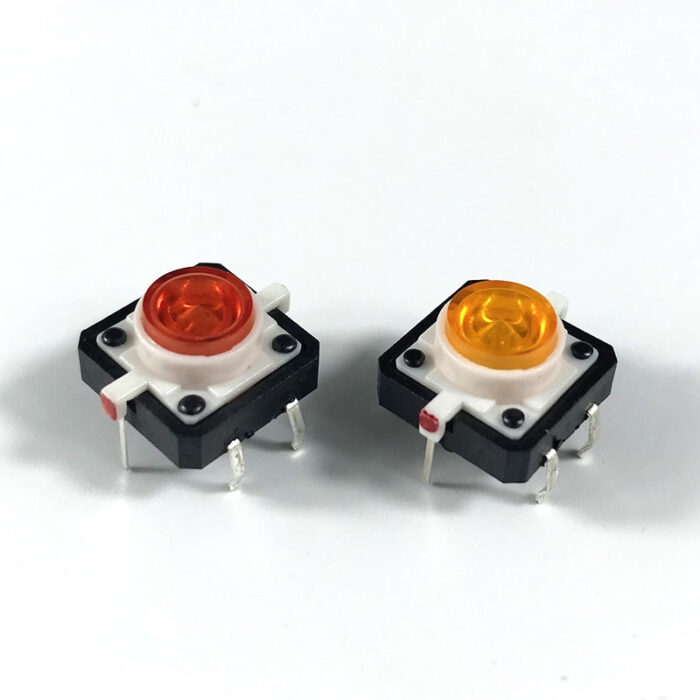

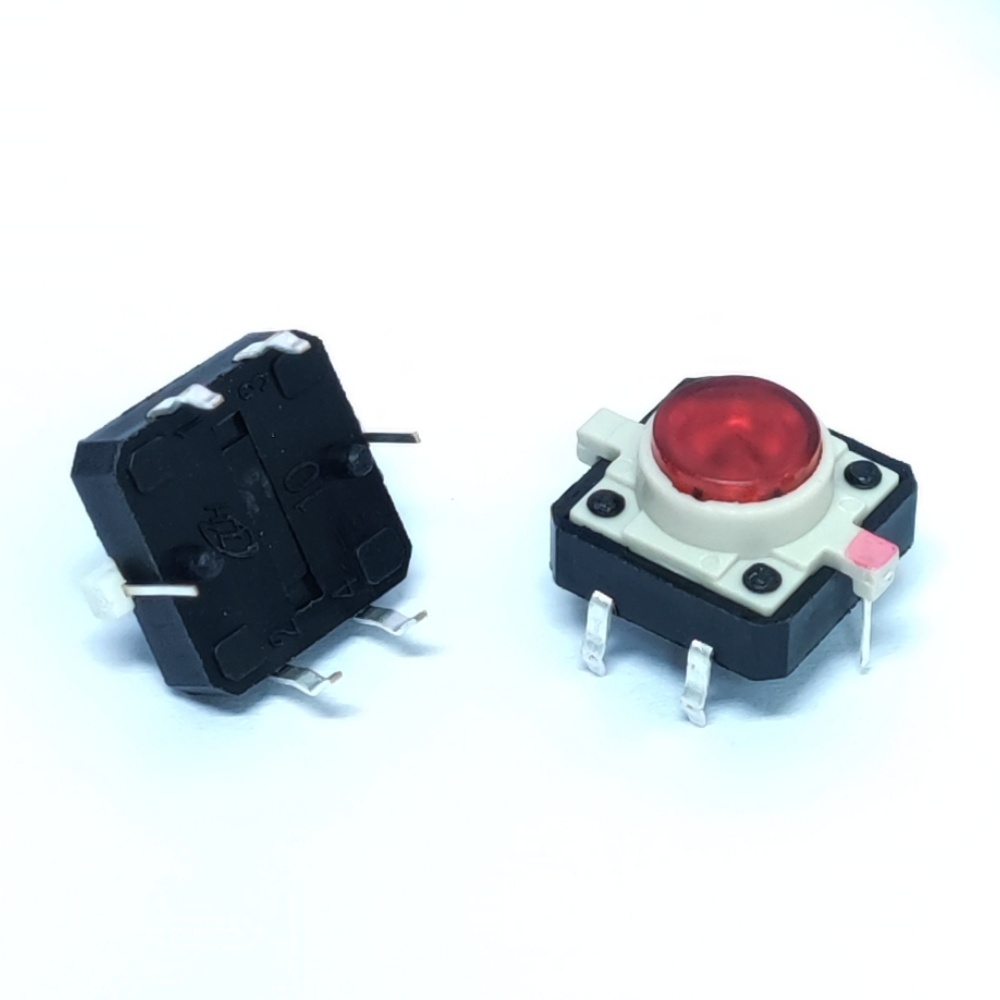

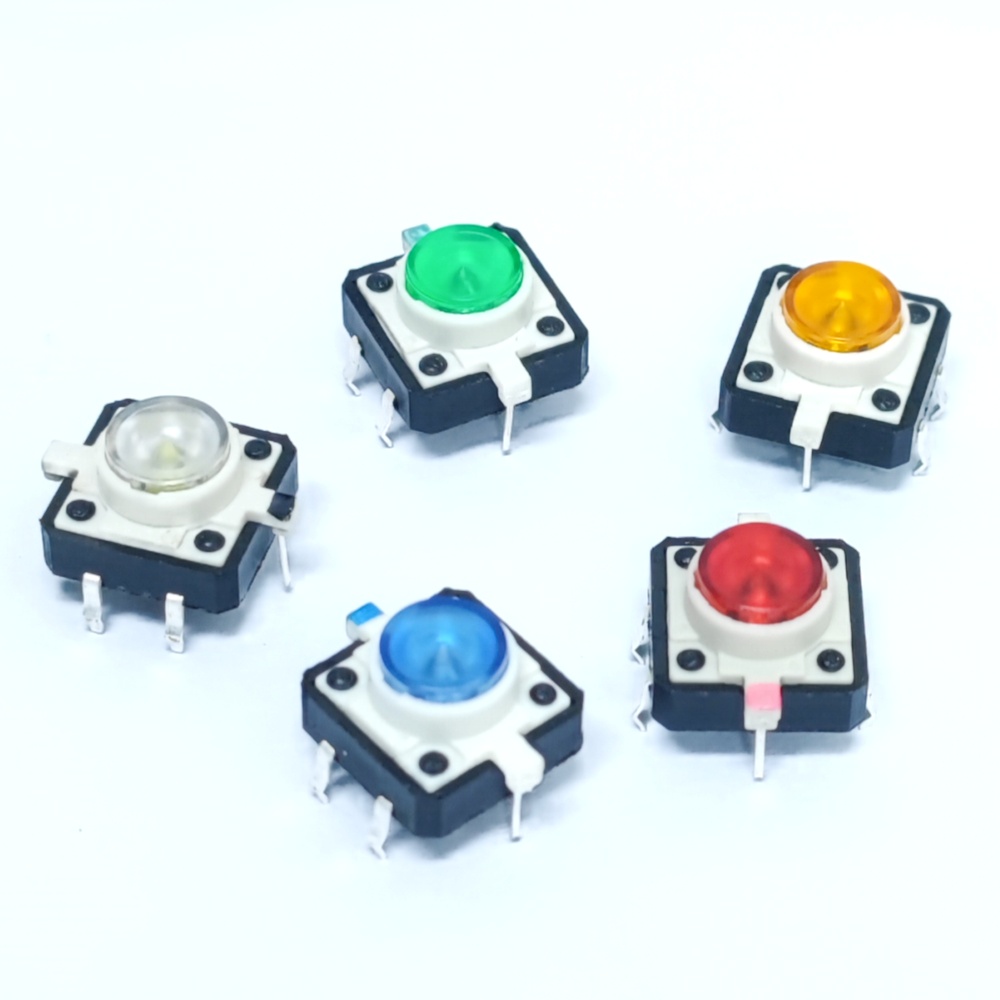

12x12mm Illuminated 4 pin LED Light Tact Switch
Part Number: KAN1214-0732J-29-84
The KAN1214-0732J-29-84 is a 12.0 × 12.0 mm through-hole illuminated tactile switch with a built-in red LED and a 4-pin layout. It mounts through-hole on a PCB, delivers crisp tactile feedback at 300 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Built-in red LED (620–625 nm, 2600–3000 mcd) for clear visual feedback
- 12.0 × 12.0 mm through-hole mounting, 7.3 mm height, 4-pin
- 300 ± 100 gf operating force, 0.35 mm travel for a defined tactile click
- 100,000-cycle rated life, –30 °C to +80 °C operating range
- SUS silver-plated contacts, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | KAN1214-0732J-29-84 |
|---|---|
| Switch Type | Illuminated tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting | Through-hole, 4 pin |
| Body Size | 12.0 × 12.0 × 7.3 mm |
| Operating Force | 300 ± 100 gf |
| Travel | 0.35 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| LED Color | Red, 620–625 nm |
| LED Forward Voltage | 2.0–2.6 V at 20 mA |
| LED Luminous Intensity | 2600–3000 mcd |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | SUS, silver-plated |
| Terminal Material | H62 brass, silver-plated |
| Compliance | RoHS; ISO 9001 & IATF 16949 certified facility |
| Packaging | 100 pcs/bag, 7,500 pcs/carton |
Typical Applications
This 12 mm illuminated tact switch gives a large, clearly lit press for equipment front panels and control interfaces: automotive dashboards, LCD and keypad backlighting, status indication on consumer electronics, and panel-mounted control buttons. The 12 × 12 mm footprint and red LED make it easy to find and read on a busy control surface.

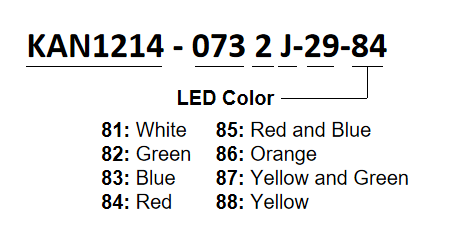

PART NUMBER KEY

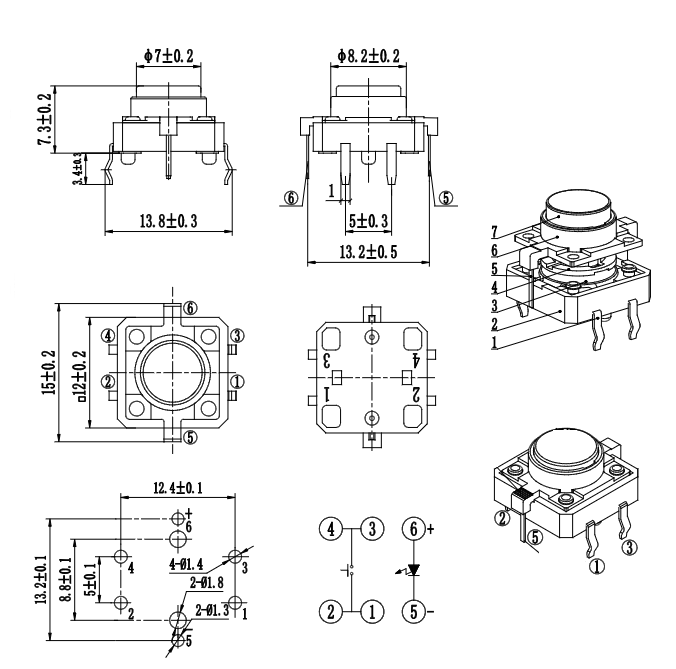

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.4mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
H62 |
1 |
Ag plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Burron pad |
PA66 |
1 |
Black |
5 |
LED |
1 |
Red |
|
6 |
Cover |
PA66 |
1 |
White |
7 |
Stem |
PC |
1 |
Red |
All Switches Categories
| Mounting Style |
Through Hole |
|---|---|
| ILLumination |
Yes |
| IP Rating |
No IP Rating |
| Height (mm) |
7.3 |
| Length (mm) |
12 |
| Width (mm) |
12 |
