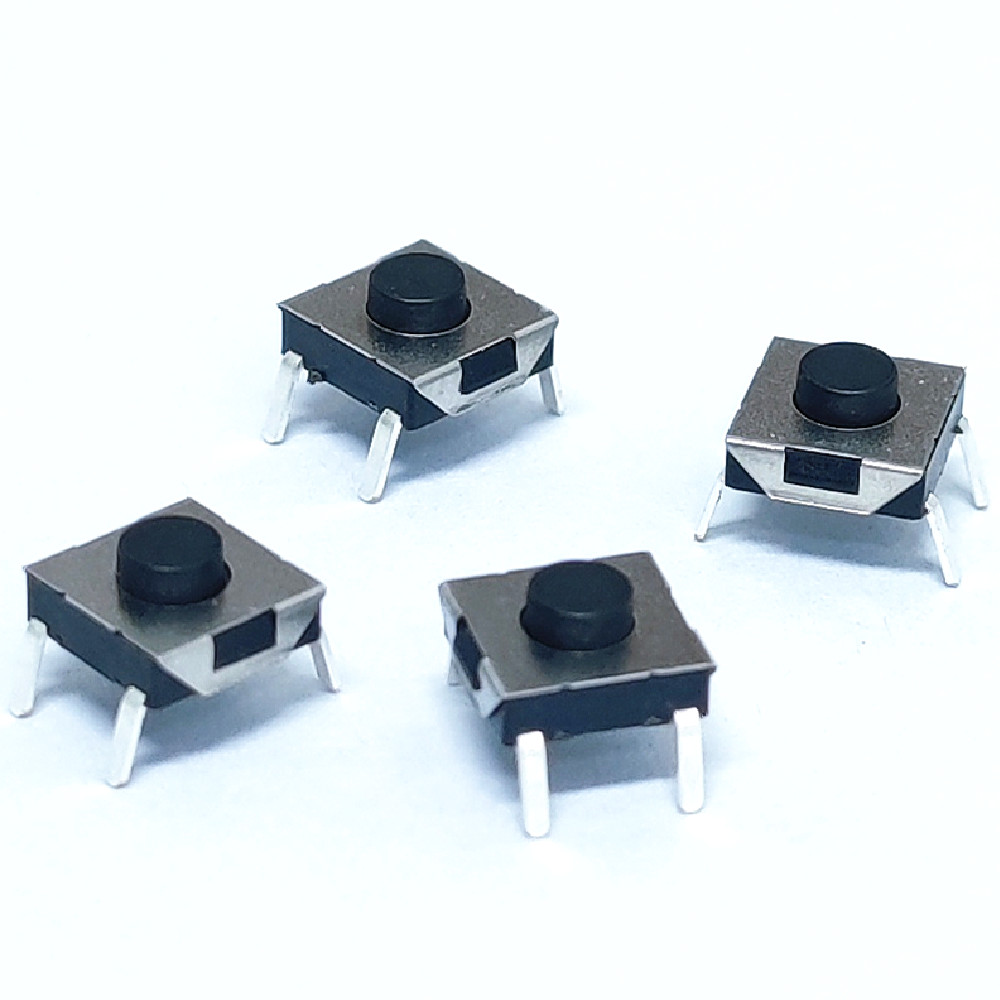

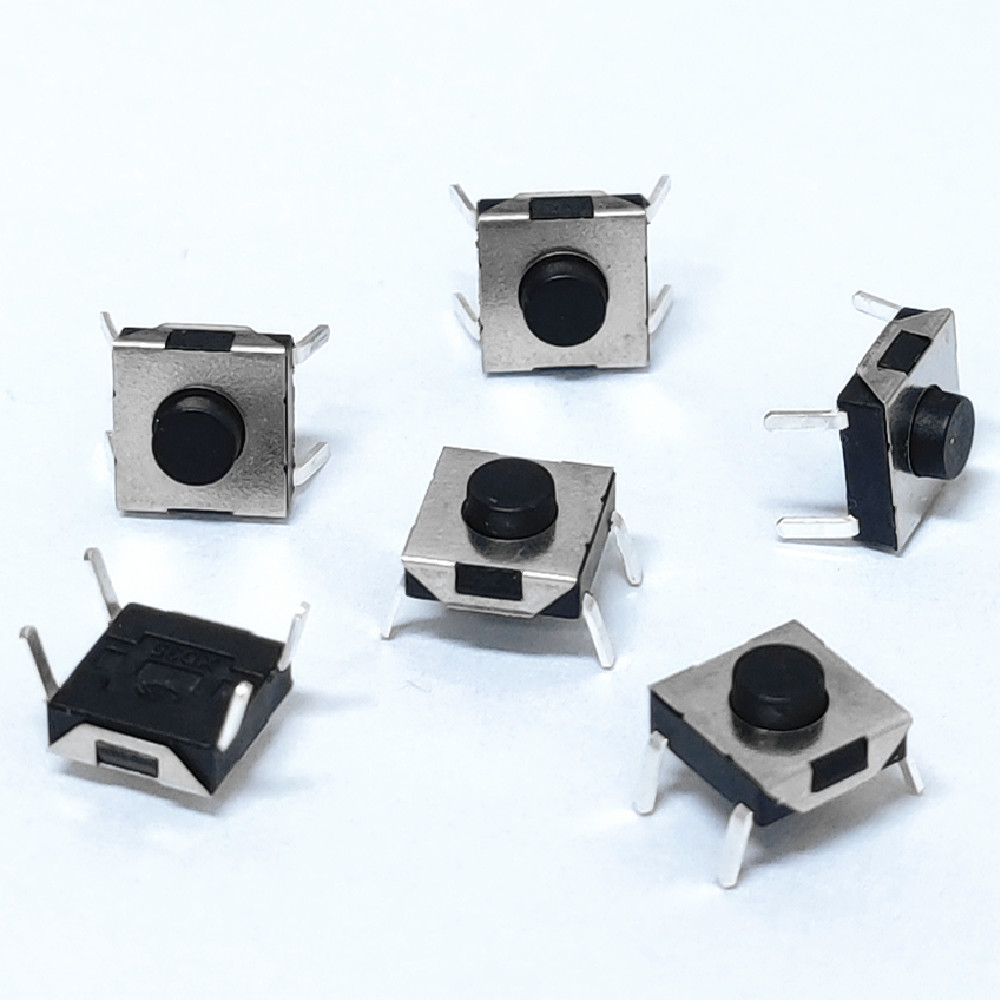

Pcb Mount Long Life Tact Switch 6X6
Part Number: KAN0648A-0311A100-B42
FEATURES
- Multiple height options
- Choice of actuation force
- Through hole
- Top Actuated
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC 12V 50mA（Max） DC 1V 10μA （Min） |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
100±30 gf |
Full Travel |
0.25±0.15mm |
Return Force |
20gf Min |
Stem Strength |
20N min |
Operation Life |
1,000,000 cycles |
Mounting Style |
Through hole |
Length |
6mm |
Width |
6mm |
Height |
3.1mm |
Packing |
Bag |
ROHS |
Yes |

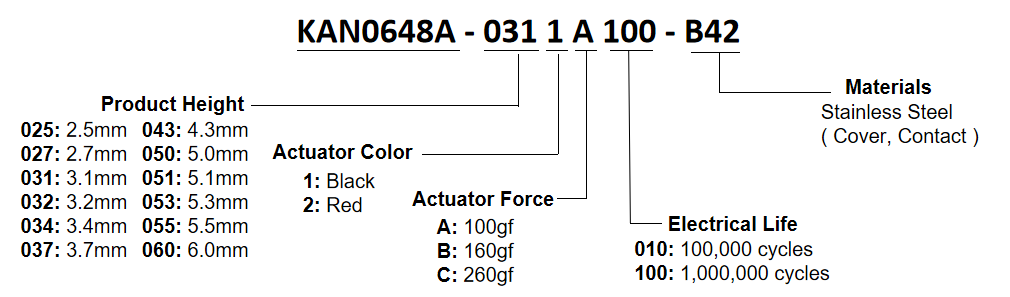

PART NUMBER KEY

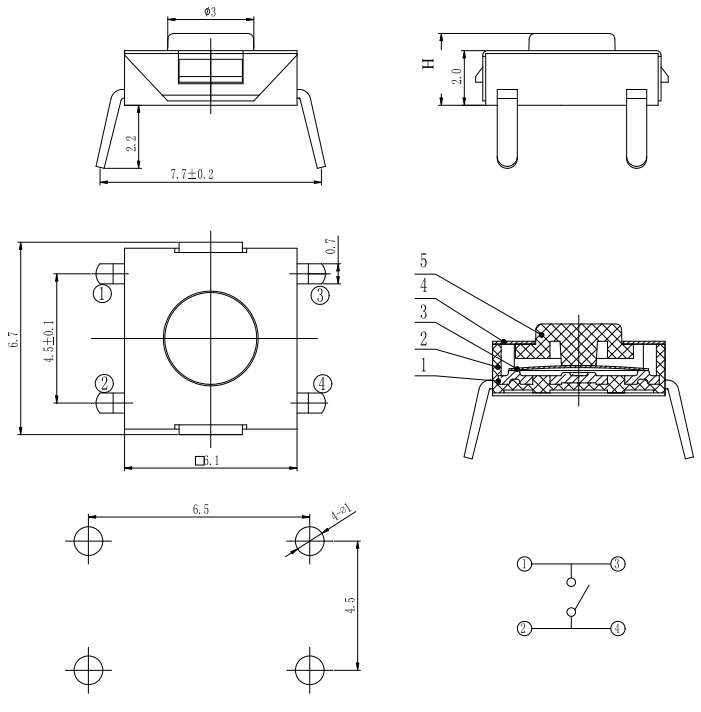

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Contact side silver plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
FR52 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
3.1 |
| Length (mm) |
6 |
| Width (mm) |
6 |
