Micro Switch 6.2mm Sealed Tact Switch for SMT
Part Number: KAN6248A-0524M1

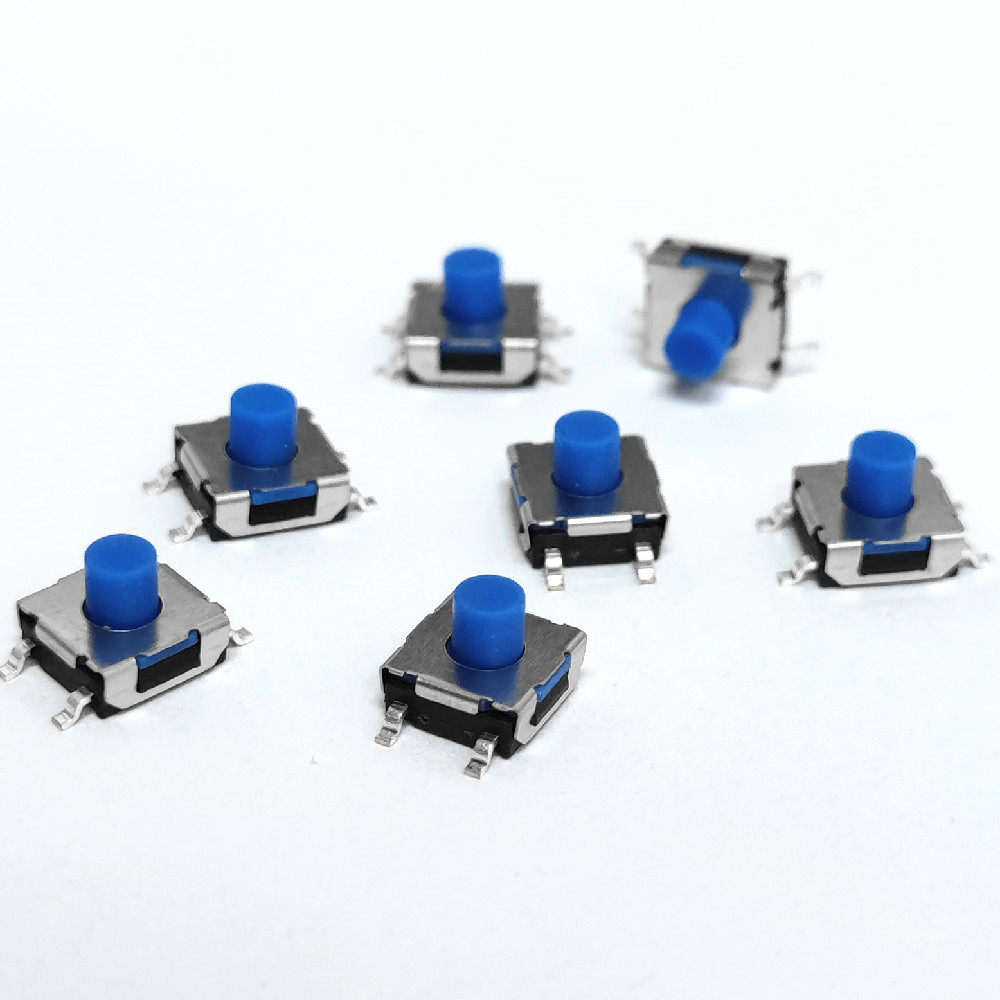

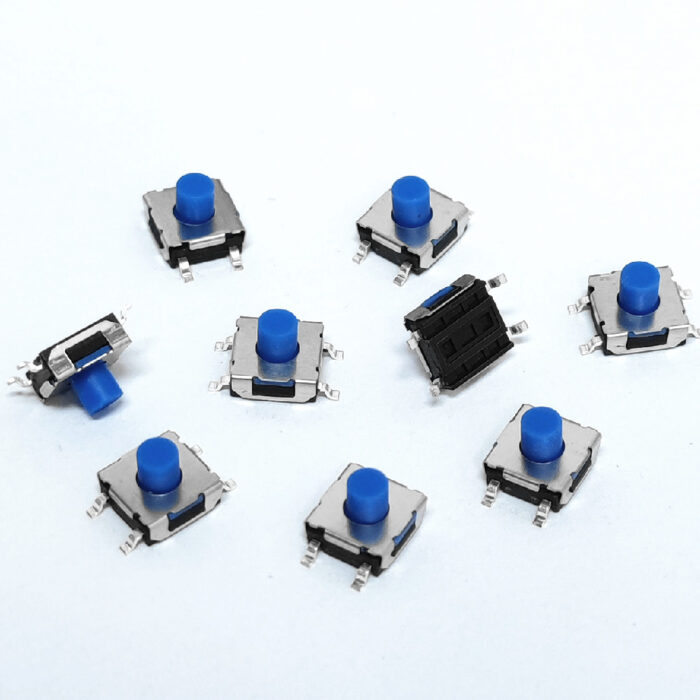

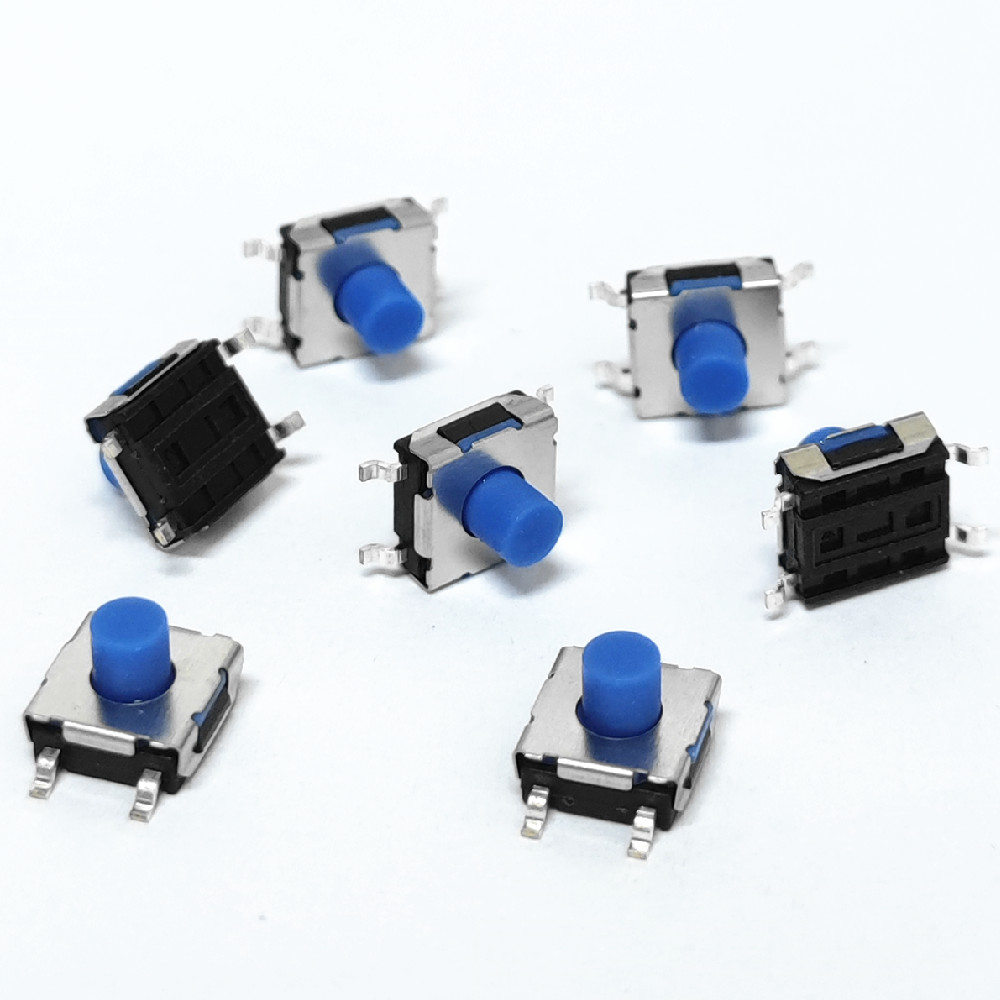

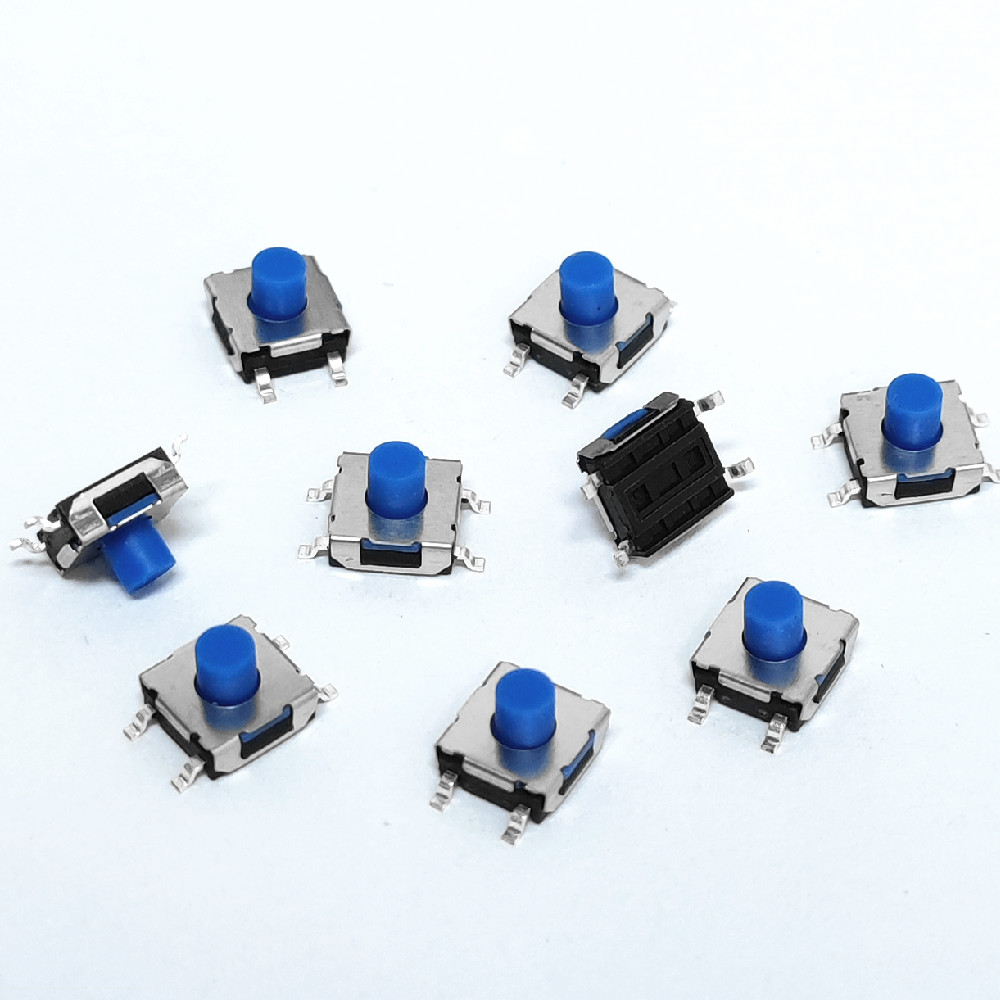

The KAN6248A-0524M1 is a 6.2 × 6.2 × 5.2 mm surface-mount sealed tact switch with a soft silicone rubber actuator. It surface-mounts to a PCB, delivers firm tactile feedback at 350 gf, and is rated for 60,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Soft silicone rubber actuator with IP67 sealing
- 6.2 × 6.2 mm body, 5.2 mm height, surface-mount (SMD)
- SPST-NO momentary action, 350 ± 100 gf operating force
- 0.4 mm travel for a defined tactile click
- 60,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN6248A-0524M1 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD) |
| IP Rating | IP67 |
| Body Size | 6.2 × 6.2 × 5.2 mm |
| Operating Force | 350 ± 100 gf |
| Travel | 0.4 ± 0.2 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 60,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Actuator | Silicone rubber |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This 6.2 mm surface-mount sealed tact switch with a soft silicone actuator suits compact devices that face dust or moisture: consumer electronics, wearables, outdoor equipment, and handheld instruments. The silicone cover gives a soft press while protecting the contacts behind it.

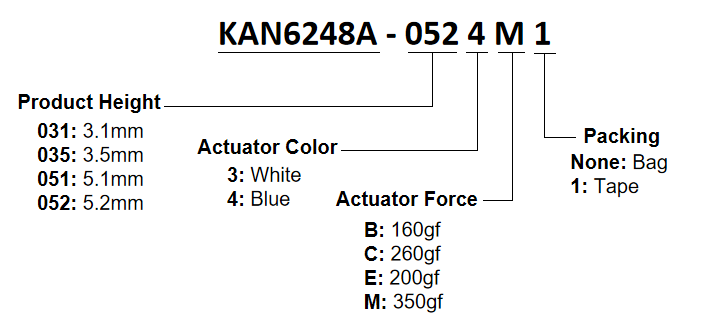

PART NUMBER KEY

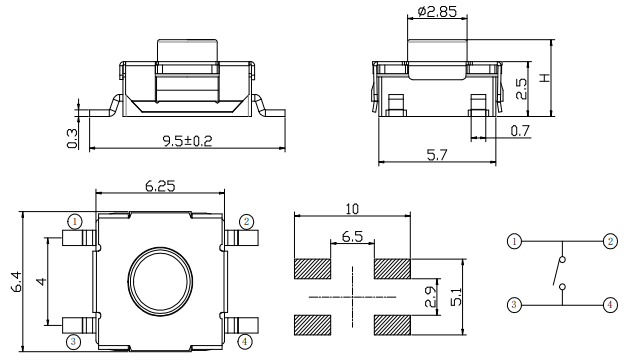

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
PPA |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
SPCC |
1 |
|
5 |
Stem |
Silica gel |
1 |
Blue |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
5 |
| Length (mm) |
6.2 |
| Width (mm) |
6.2 |
