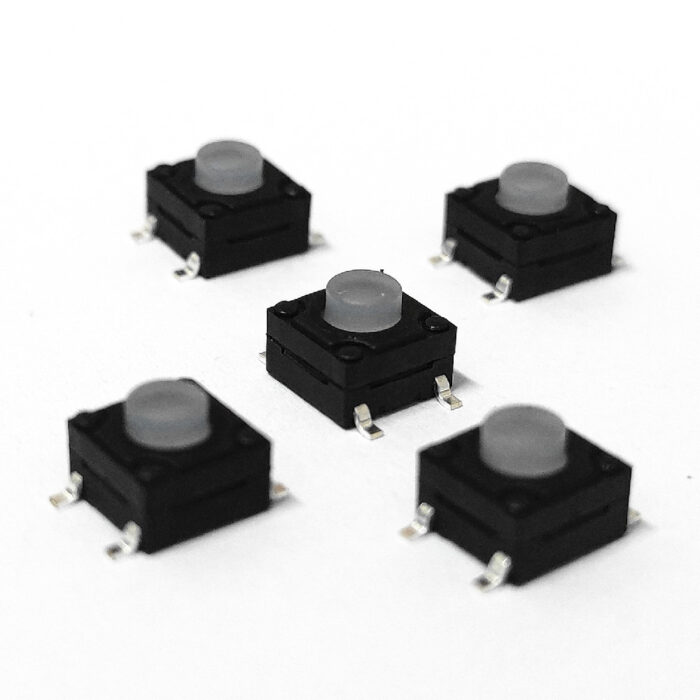

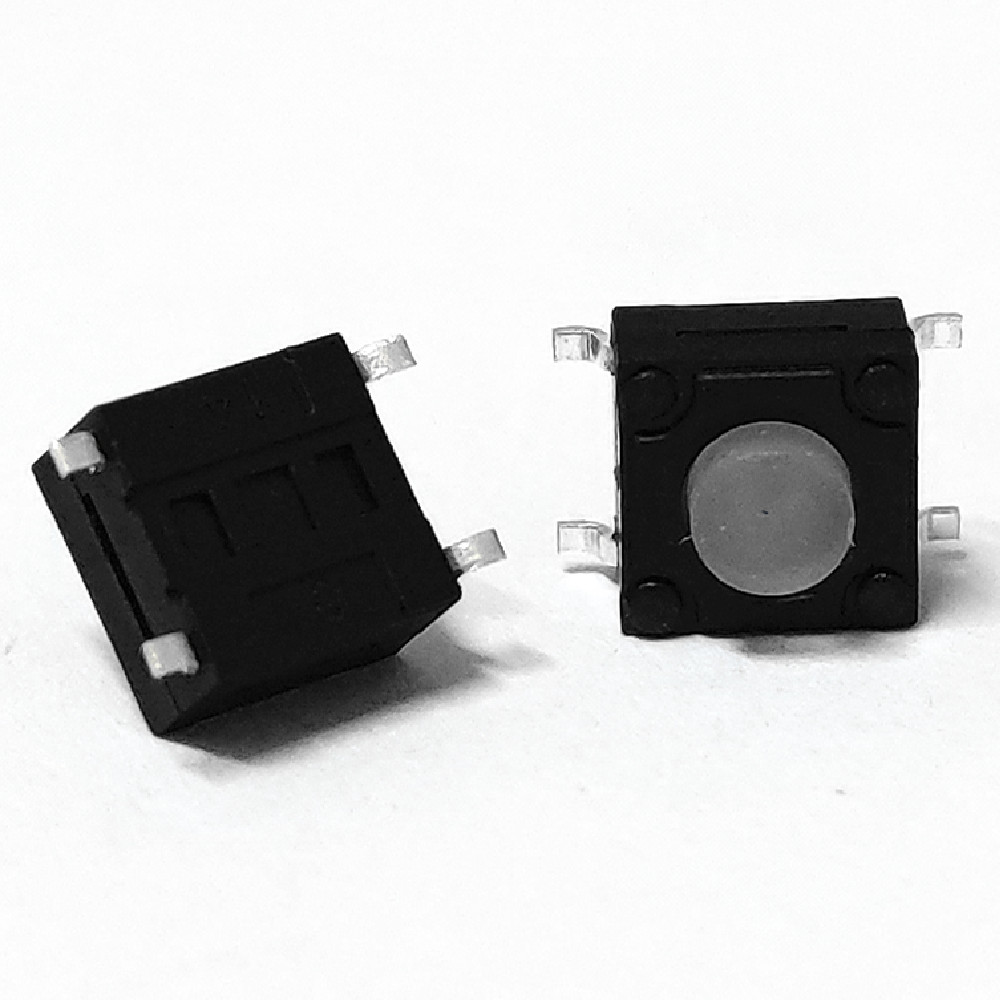

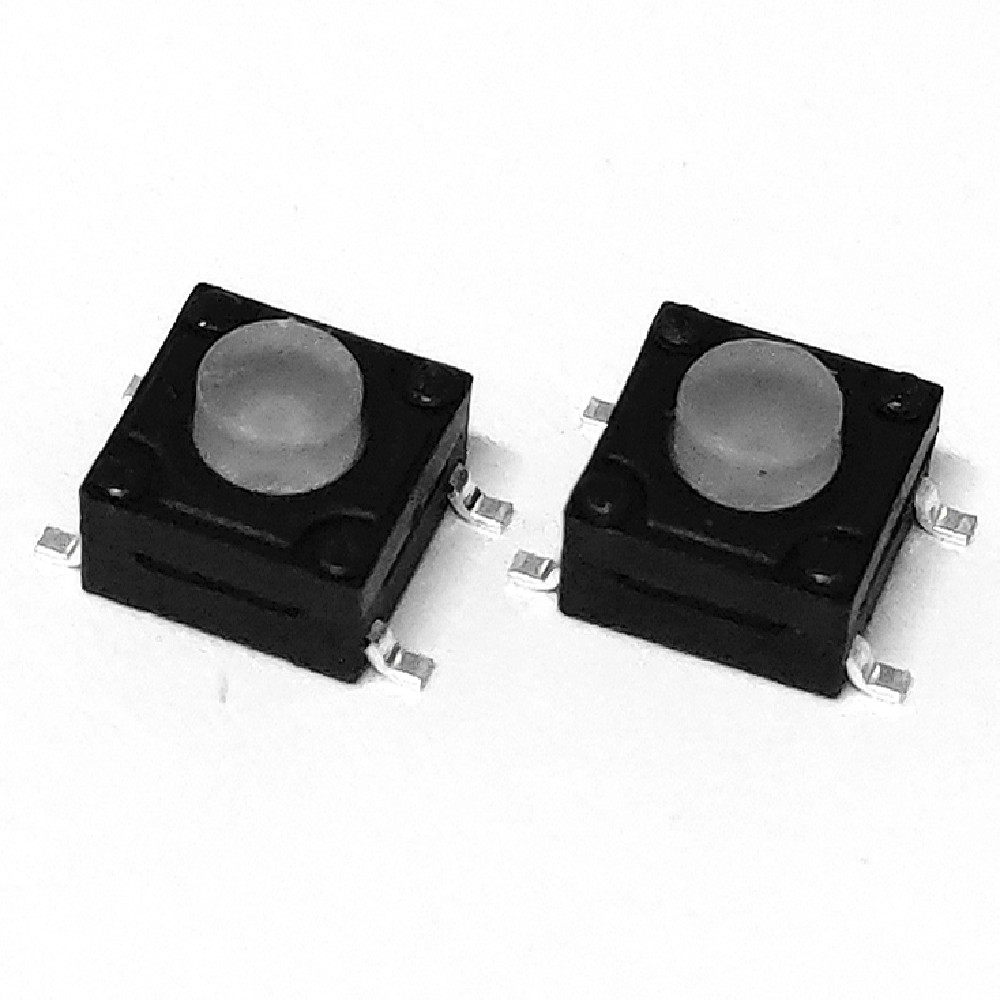

Micro IP67 Soft Actuator 6mm Silicone Tact Switch
Part Number: KAN0642S-050E1
The KAN0642S-050E1 is a 6.2 × 6.2 × 5 mm surface-mount micro tact switch with a soft silicone actuator and an IP67 dust- and water-resistant seal. It surface-mounts to a PCB, delivers a soft tactile press at 200 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP67-rated seal verified by 30 min immersion testing
- Soft silicone actuator for a compliant, low-effort press
- 6.2 × 6.2 mm body, 5 mm height, surface-mount
- 200 ± 70 gf operating force, 0.50 mm travel
- 100,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0642S-050E1 |
|---|---|
| Switch Type | Tactile switch (sealed, momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD) |
| IP Rating | IP67 (30 min immersion) |
| Body Size | 6.2 × 6.2 × 5.0 mm |
| Actuator | Silicone rubber (soft actuator) |
| Operating Force | 200 ± 70 gf |
| Travel | 0.50 ± 0.15 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This micro tact switch pairs a soft silicone actuator with IP67 sealing, suiting compact devices that need a low-effort, sealed press: outdoor equipment, consumer electronics, wearables, and medical devices. The silicone actuator adds compliance to the press while the sealed body keeps moisture and dust off the contacts.

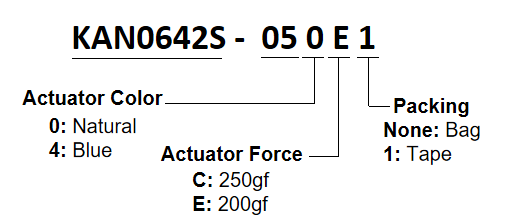

PART NUMBER KEY

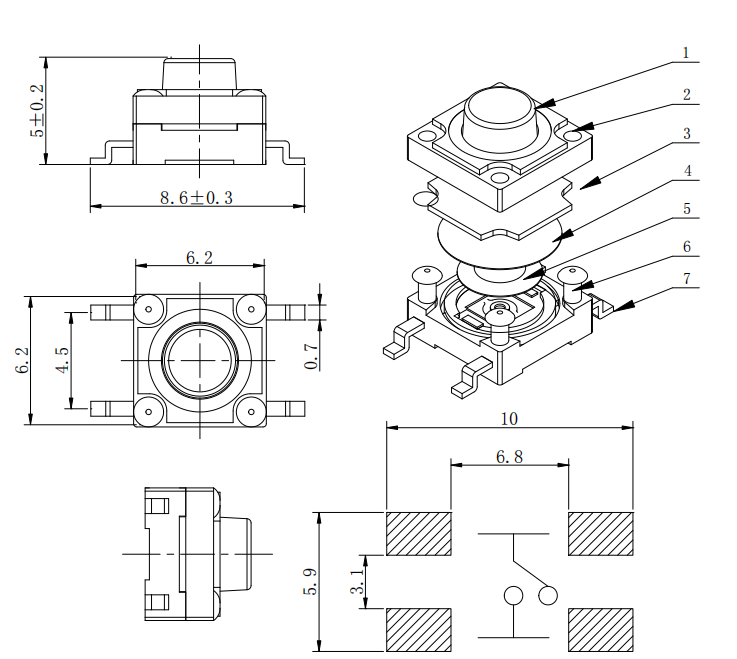

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Stem |
Silica gel |
1 |
|
2 |
Cover |
PPA |
1 |
Black |
3 |
Waterproof gasket |
Silica gel |
1 |
Black |
4 |
Waterproof membrane |
PI |
1 |
Yellow |
5 |
Contact |
SUS |
1 |
Contact side silver plating |
6 |
Case |
PPA |
1 |
Black |
7 |
Terminal |
Brass |
Silver plating |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
5 |
| Length (mm) |
6.2 |
| Width (mm) |
6.2 |
