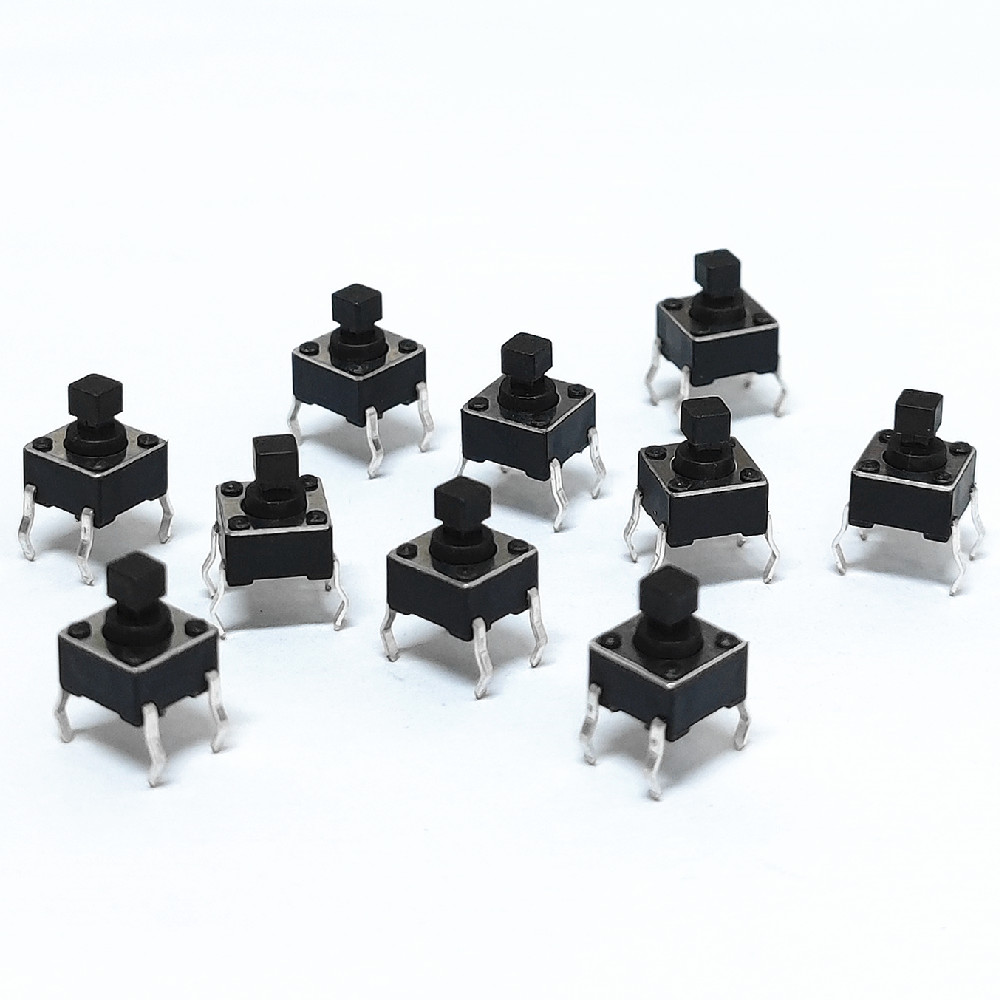

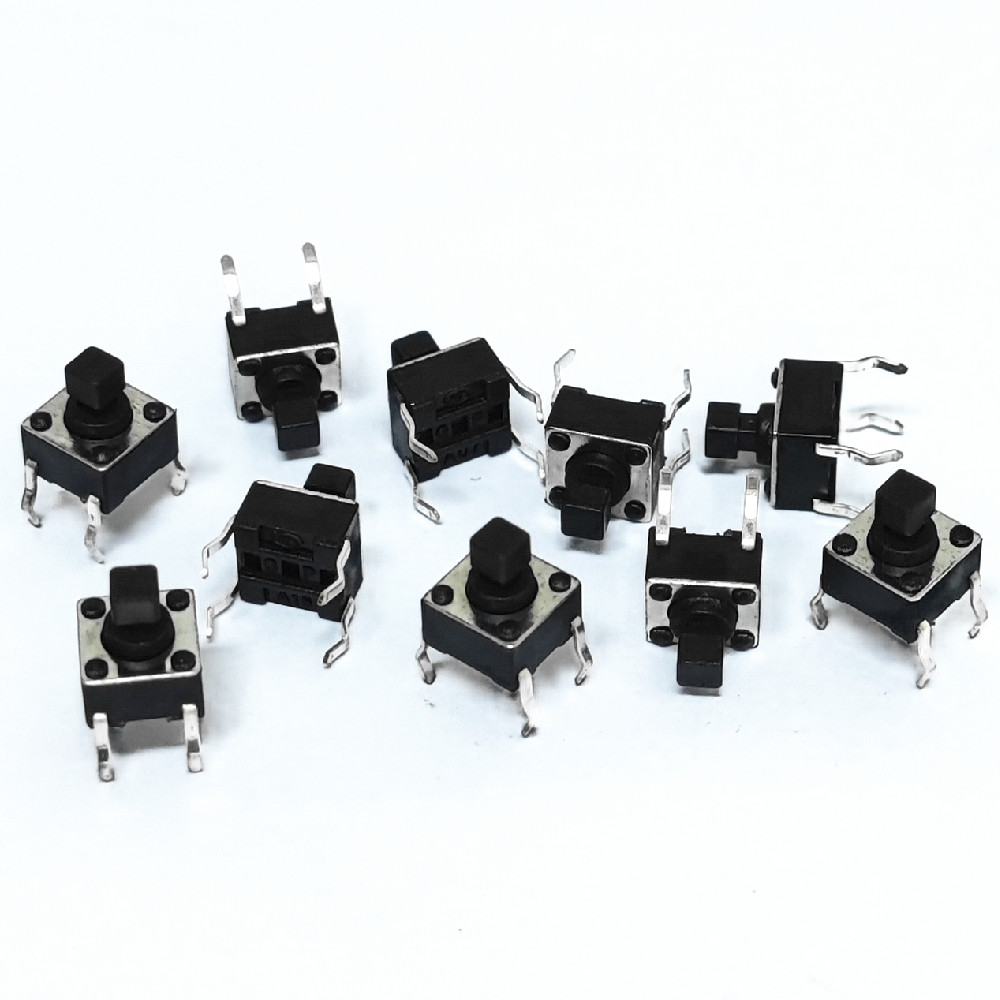

Thru hole 6×6 Square head Tact Switch
Part Number: KAN0610-0731C020-B2242
The KAN0610-0731C020-B2242 is a 6 × 6 × 7.3 mm through-hole tact switch with a square-head plunger for direct-press keys. It solders into a PCB, gives a defined press at 260 gf, and is rated for 200,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Square-head plunger for direct-press keys and caps
- Standard 6 × 6 mm footprint, through-hole mounting
- Defined 260 ± 50 gf press with a 0.25 mm travel
- PA66 body and stem for a durable build
- 200,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0610-0731C020-B2242 |
|---|---|
| Switch Type | Tactile switch (momentary, square head) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (THT) |
| Body Size | 6.0 × 6.0 × 7.3 mm |
| Operating Force | 260 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 200,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Cover | SUS |
| Stem | PA66 |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The square-head plunger suits direct-press keys and cap mounting in panel interfaces: consumer electronics, industrial control, home appliances, and office equipment. The defined 260 gf press gives a firm, positive click for front-panel buttons.

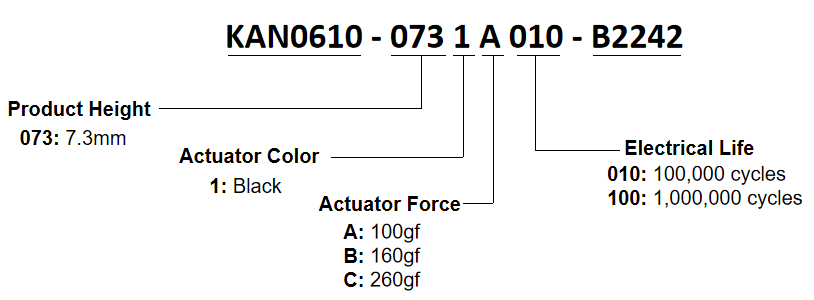

PART NUMBER KEY

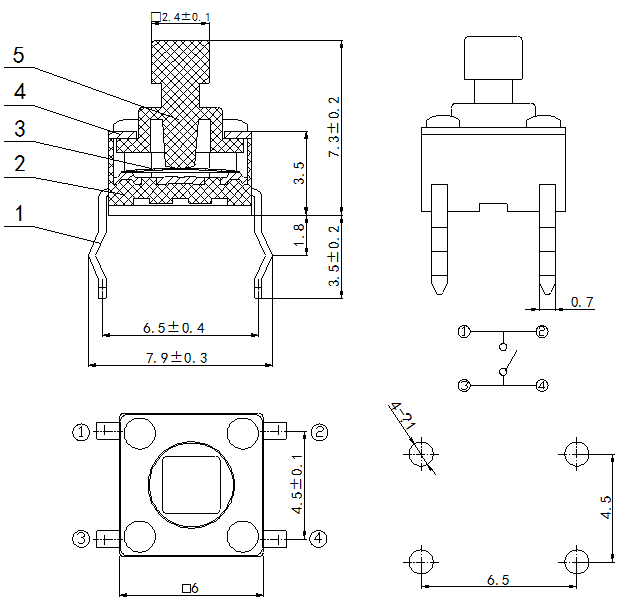

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
7.3 |
| Length (mm) |
6 |
| Width (mm) |
6 |
