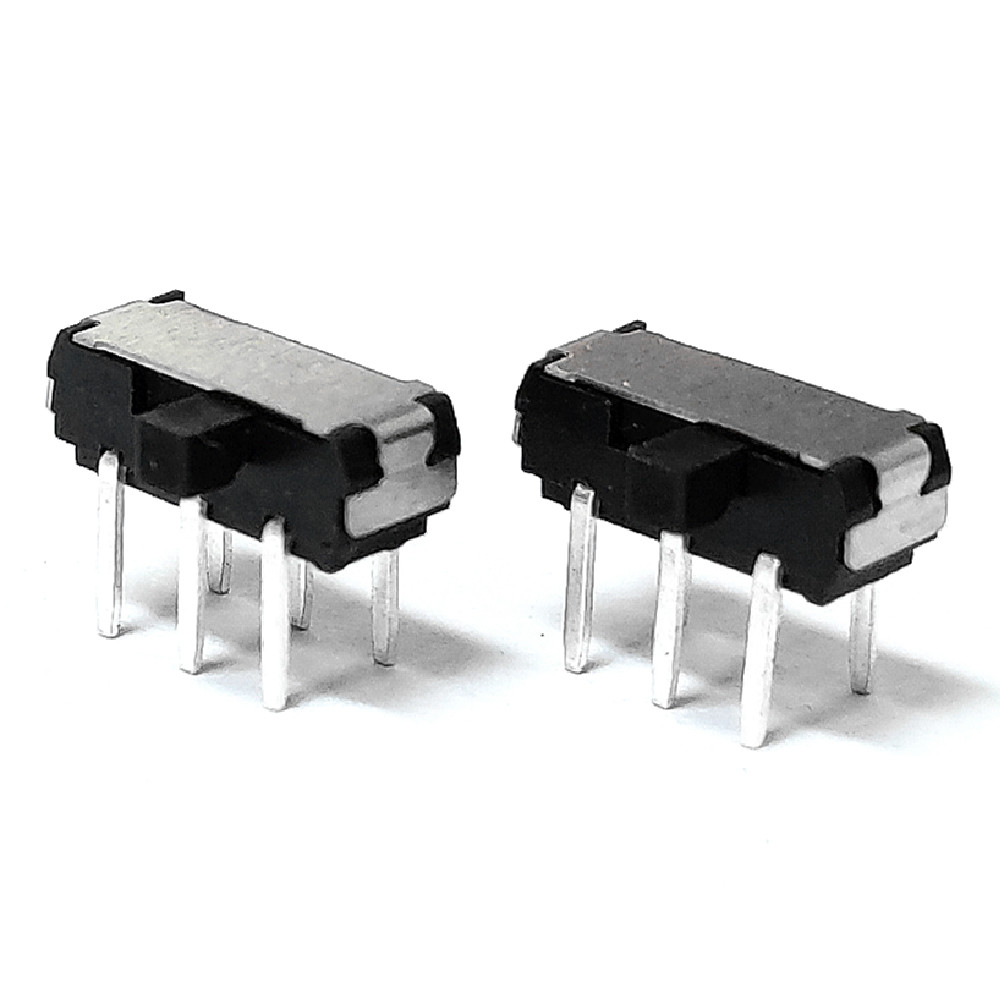

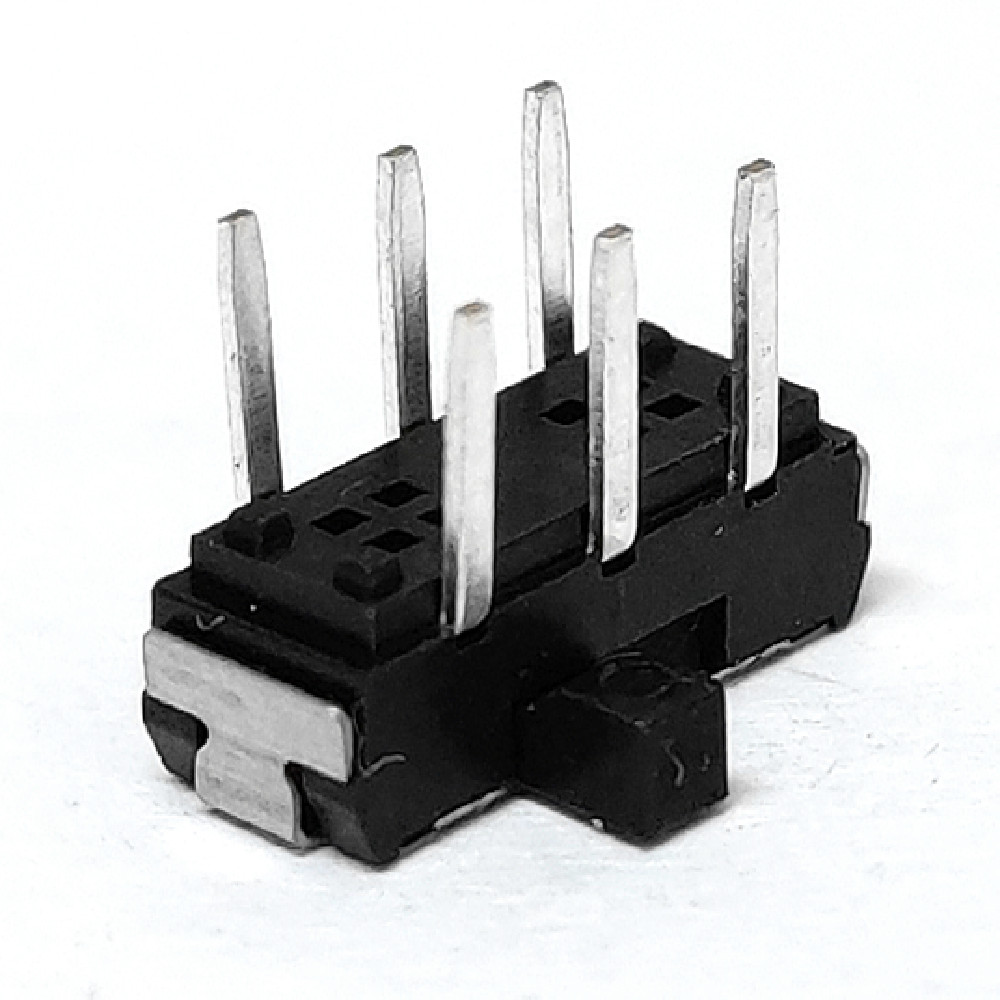

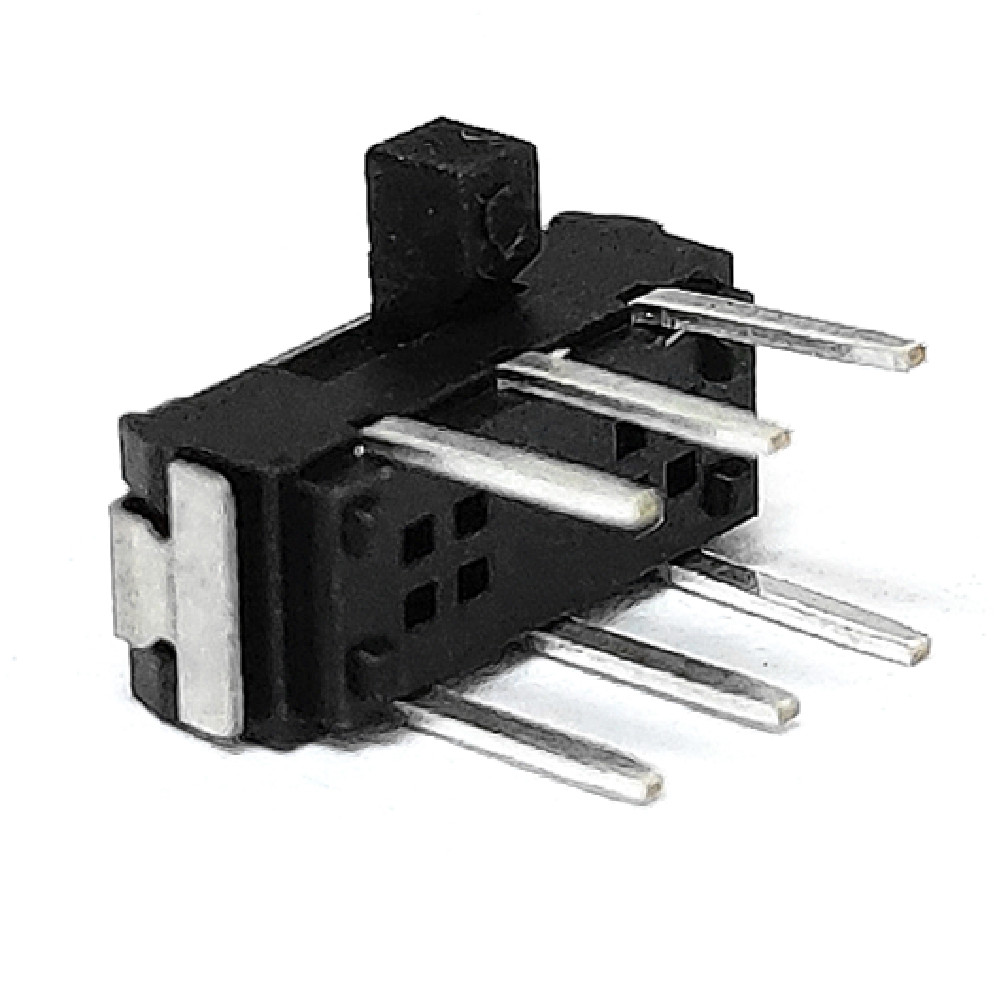

PCB Mount DP2T Side Slide Push Micro Switch
Part Number: MSK22D03-TG2-D20001
FEATURES
- DPDT
- Side slide
- Low profile
- Different handle height options
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC12V 100mA |
Function |
2P2T |
Contact resistance |
≤100Ω |
Insulation resistance |
≥100MΩ |
Operating force |
200±100gf |
Full travel |
2±0.4mm |
Life Time |
10,000 Cycles |
Operating Temperature Range |
-20℃~+70℃ |
Actuator Type |
Standard |
Mounting Type |
Through hole, right angle |
Length |
9.1mm |
Width |
3.5mm |
Height |
5.5mm |
Packing |
Bag |
ROHS |
Yes |

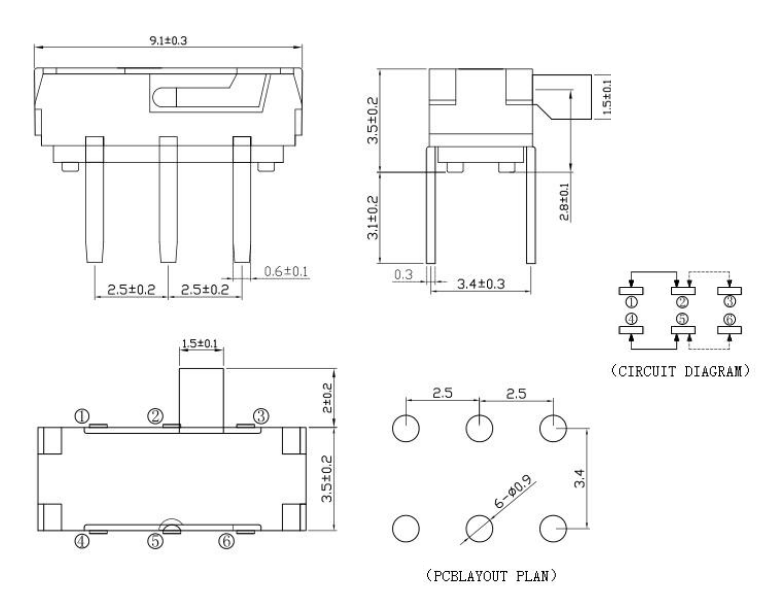

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Case |
PA6T |
1 |
Black |
2 |
Terminal |
Phosphor Bronze |
6 |
Ag plating |
3 |
Contact |
Beryllium Copper |
2 |
Ag plating |
4 |
Knob |
PA6T |
1 |
Black |
5 |
Cover |
SUS |
1 |
