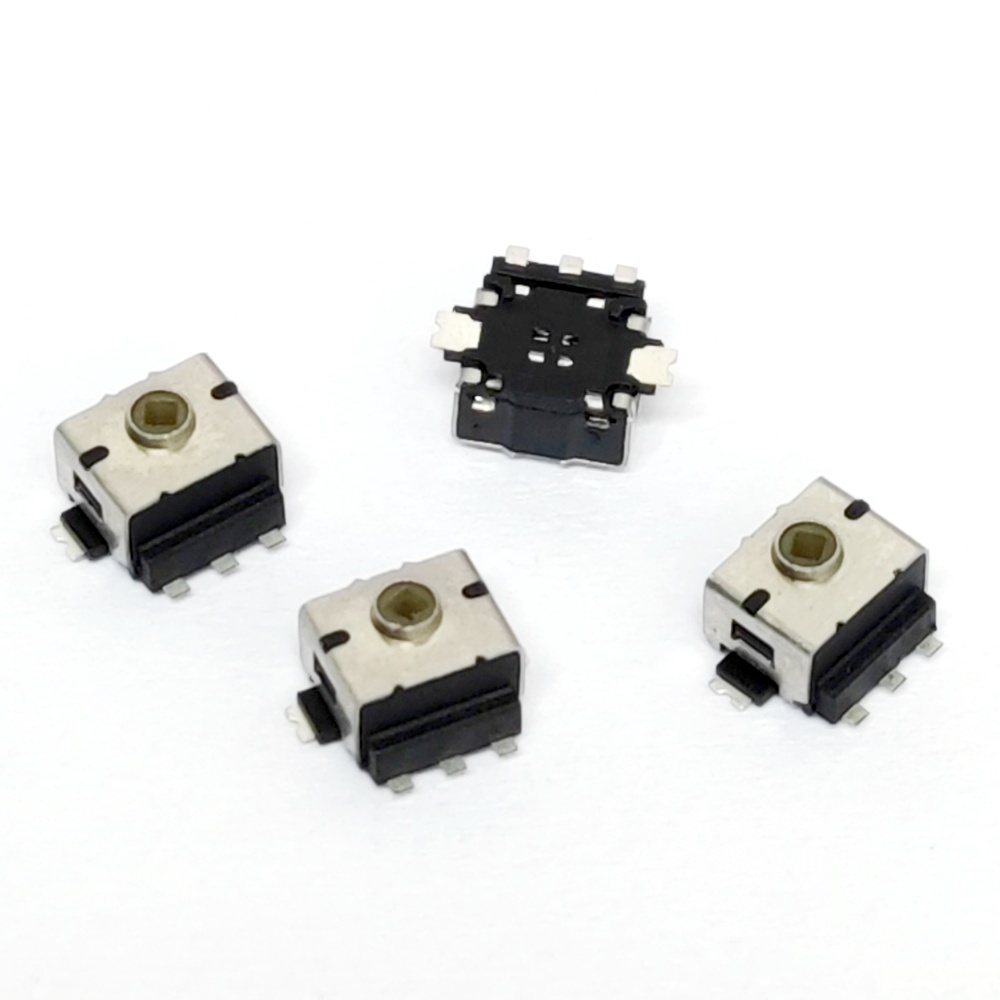

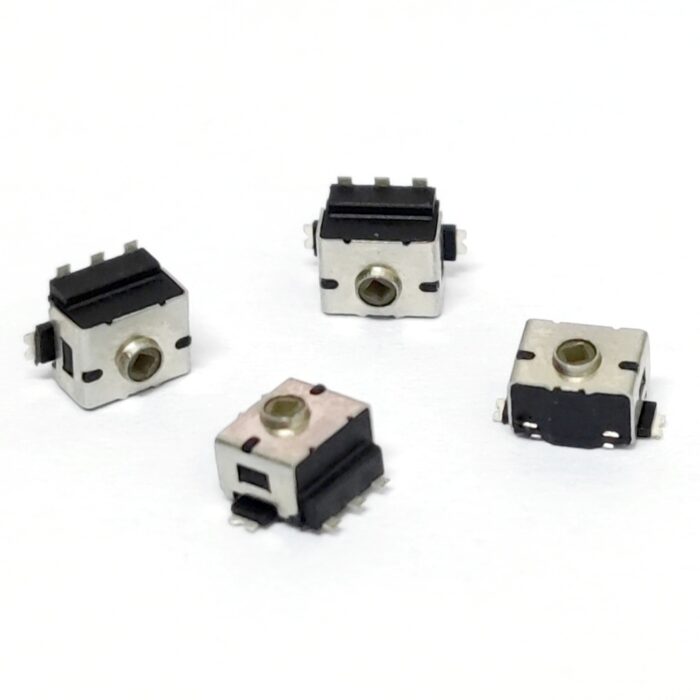

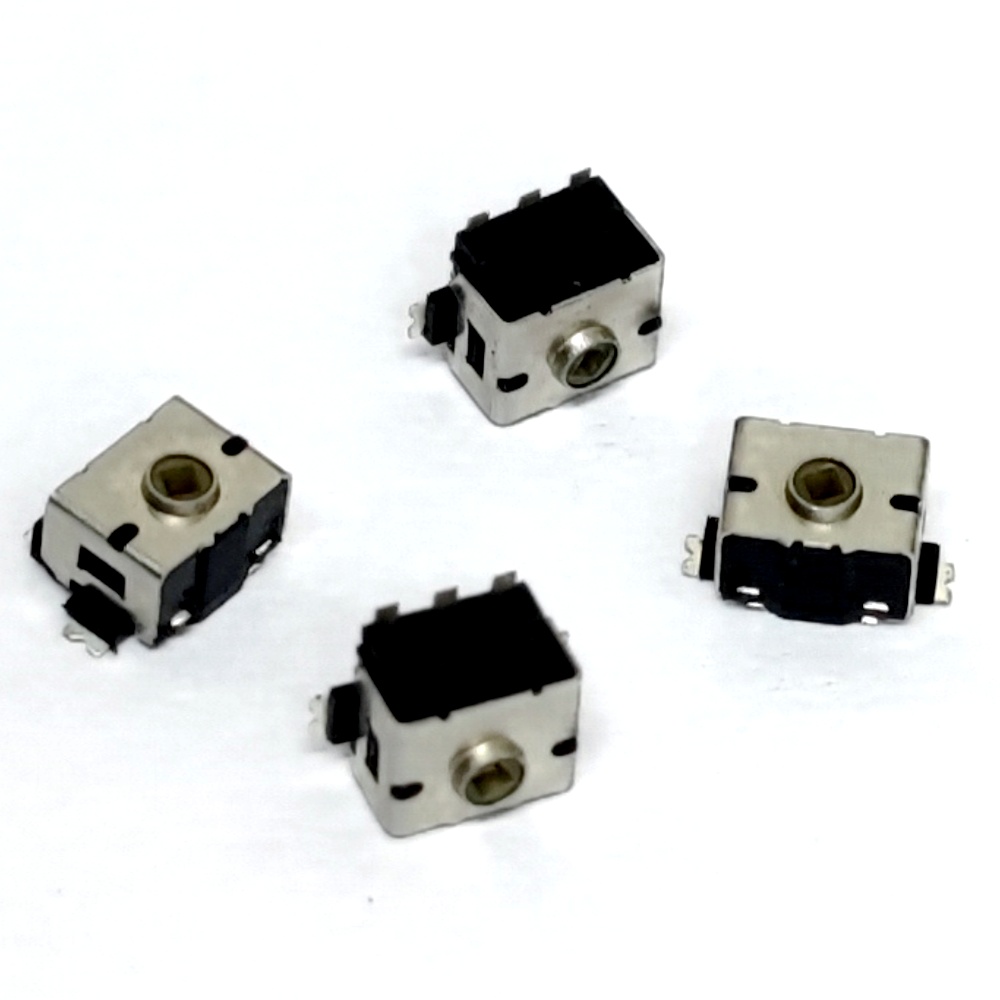

SMD Miniature Rotary Encoder Switch
Part Number: GE041X1-SW-2V1-00
FEATURES
- Small size
Description
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC5V |
Resolution |
12 pulses/360° |
Number and position of detent |
12 detents（ step angle: 30°±2°） |
Total ratational angle |
360°（Endless） |
Rotational life |
100,000 Cycles |
With push button switch |
Yes |
Operating Temperature Range |
-40℃~+85℃ |
Actuator Type |
Rotary |
Mounting Type |
Surface mount |
Length |
4.8mm |
Width |
3.65mm |
Height |
3.3mm |
Packing |
Tape |
ROHS |
Yes |

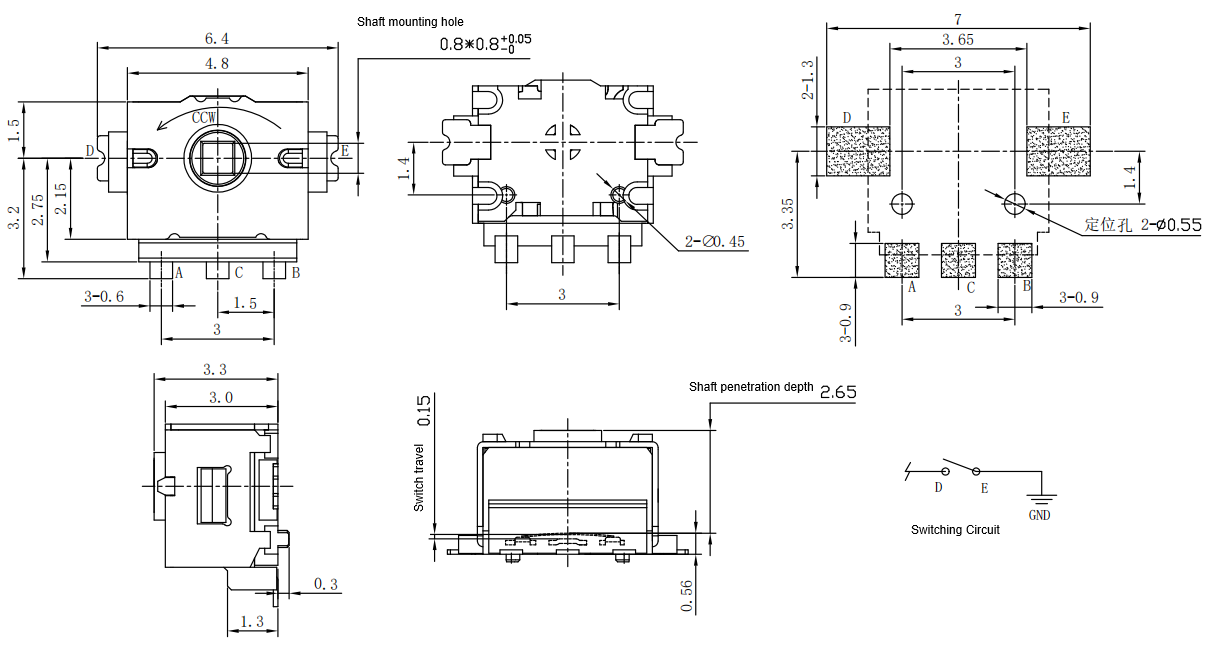

MECHANICAL DRAWING
All Switches Categories
Additional information
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
