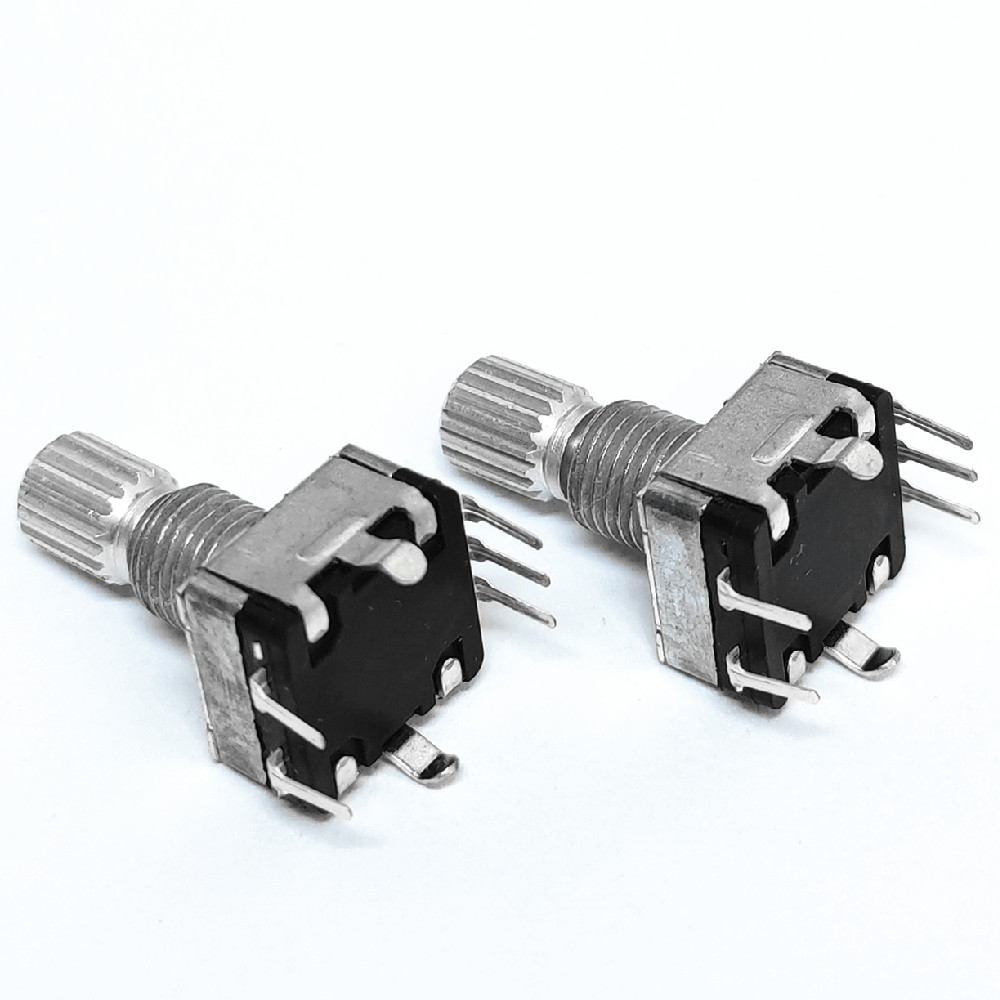

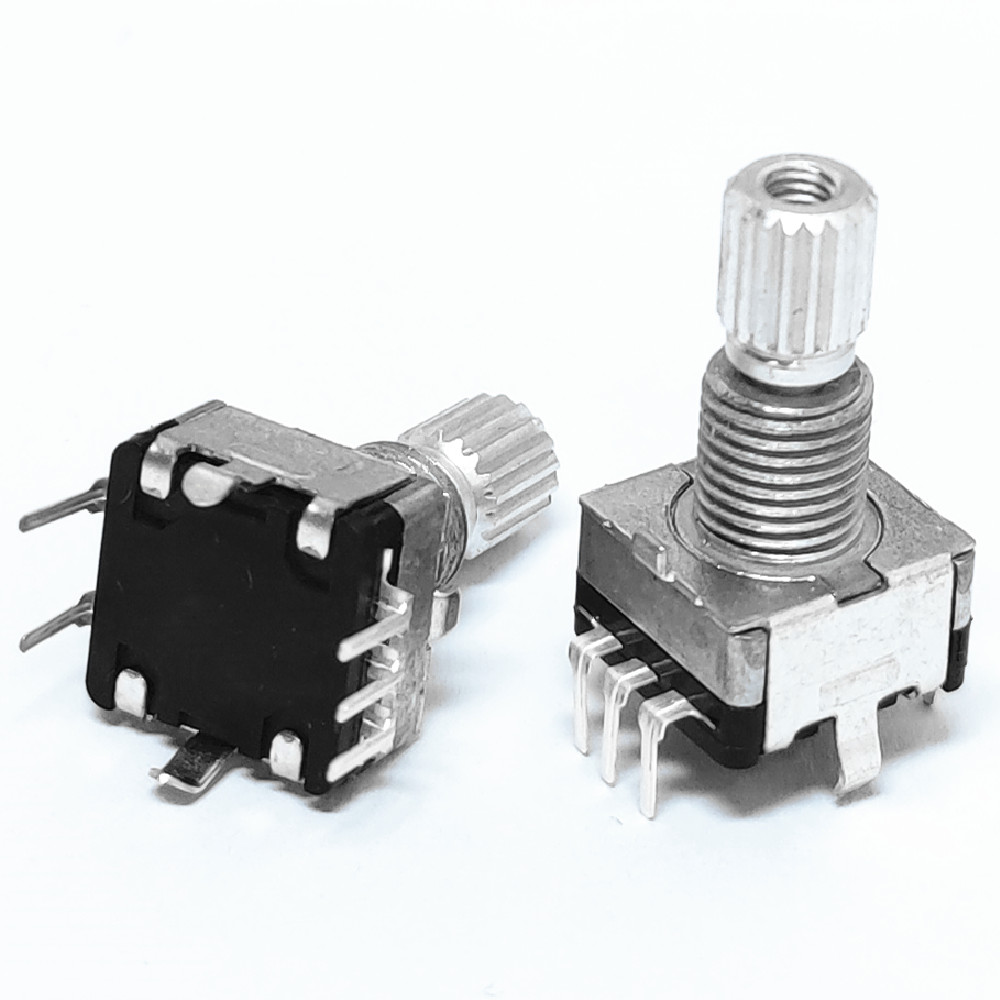

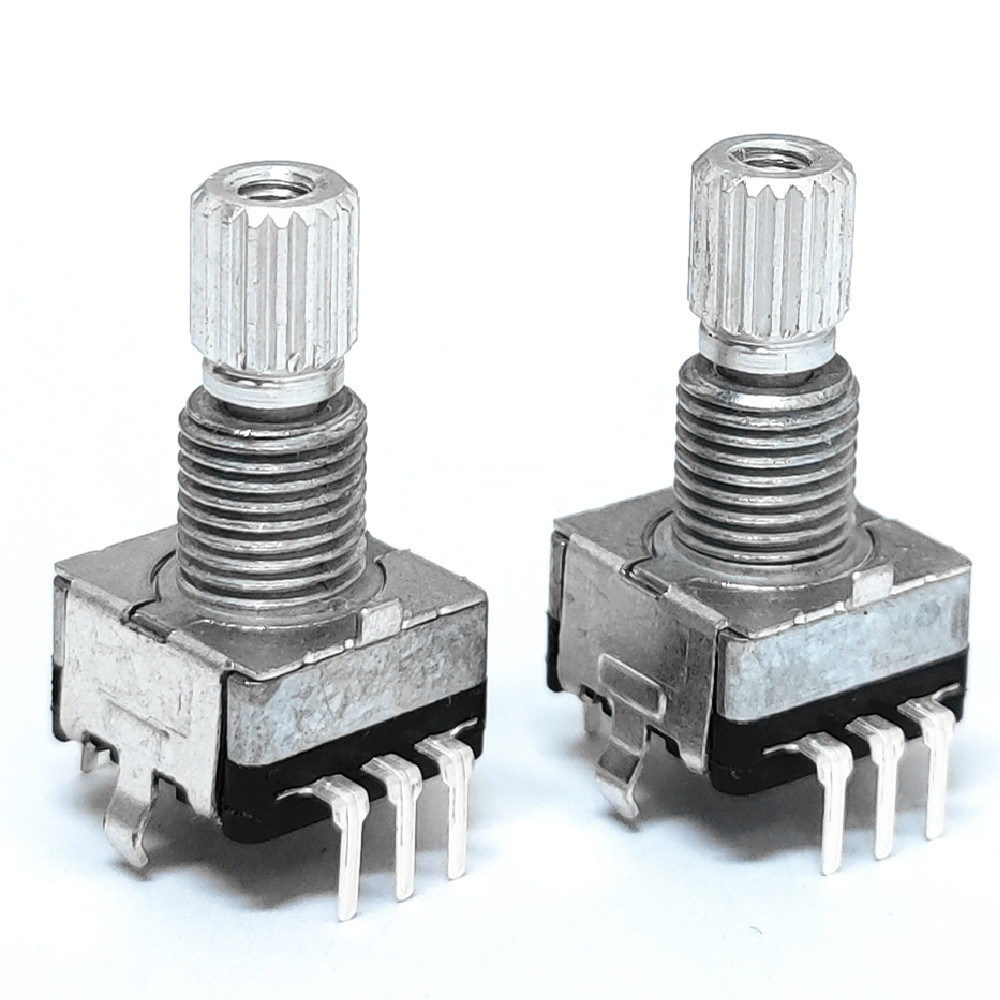

Metal Knurled Handle Rotary Incremental Encoder Switch
Part Number: GE1103H5KS4H1-000
A rotary incremental encoder switch with the metal knurled handle is the one that makes sure the user has a firm grip. The features of the tactile feel, the accurate incremental signals, and the rugged design are impressive. It is quite common on the control knobs, mixers, and instrumentation panels.
FEATURES
- Multiple shaft options
- Momentary push button switch option
- Different resolution and detent options
- Compact design
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC5V |
Resolution |
20 pulses/360° |
Number and position of detent |
20 detents（ step angle: 18°±2°） |
Total ratational angle |
360°（Endless） |
With push button switch |
Yes |
Life Time |
8,000 Cycles |
Operating Temperature Range |
-40℃~+85℃ |
Actuator Type |
Knurled |
Mounting Type |
PCB, Through hole |
Length |
11.7mm |
Width |
12mm |
Height |
21.5mm |
Packing |
Blister Box |
ROHS |
Yes |

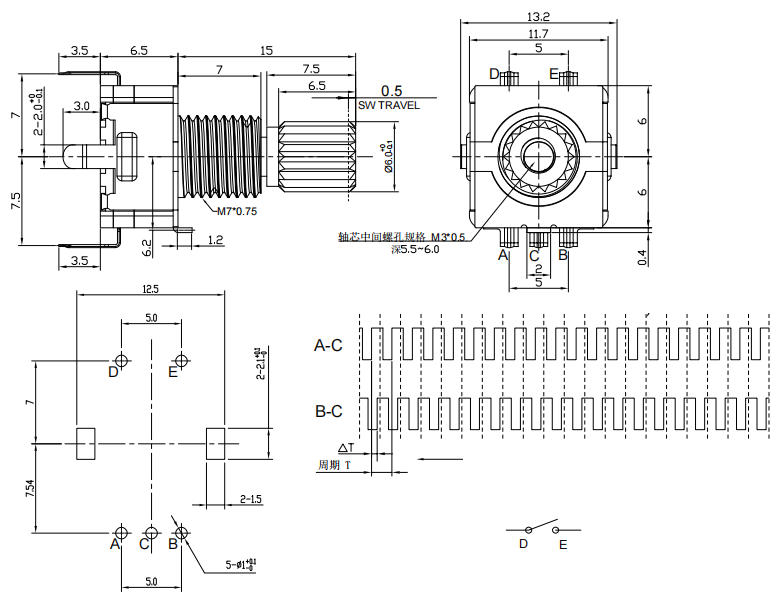

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
