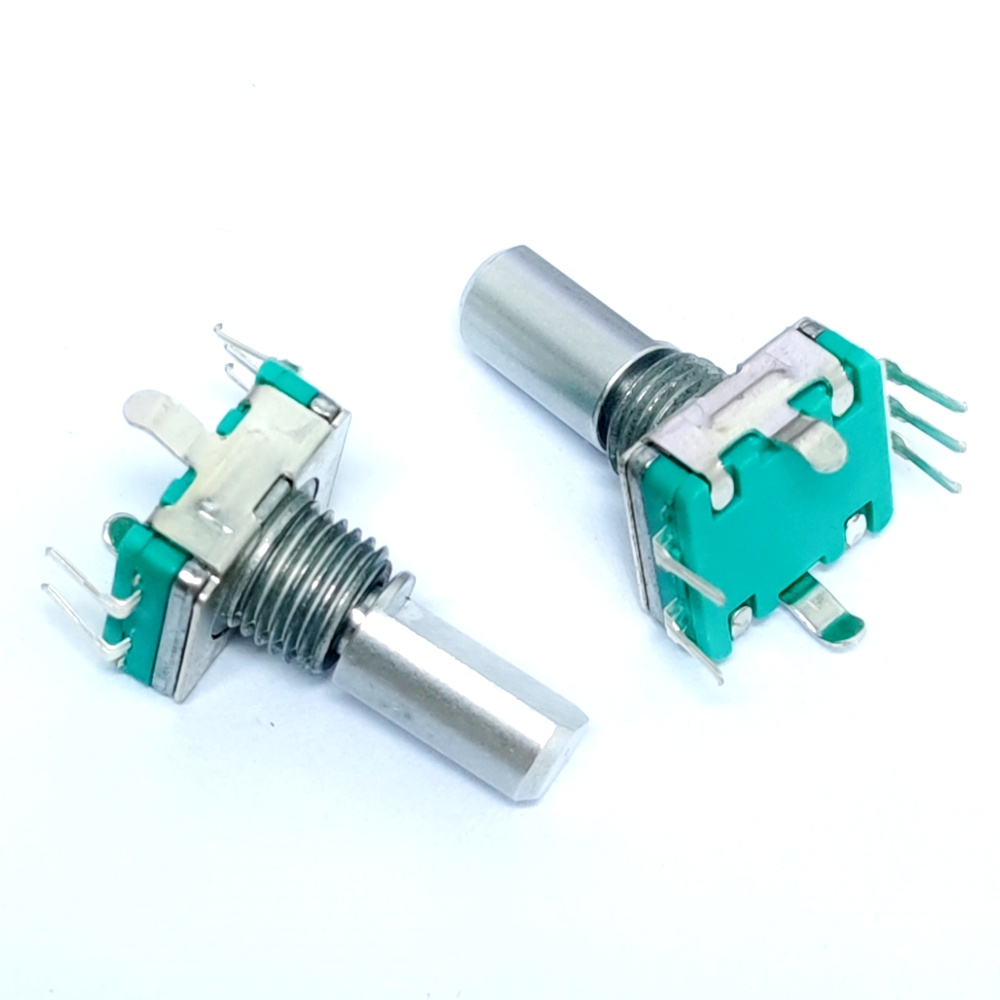

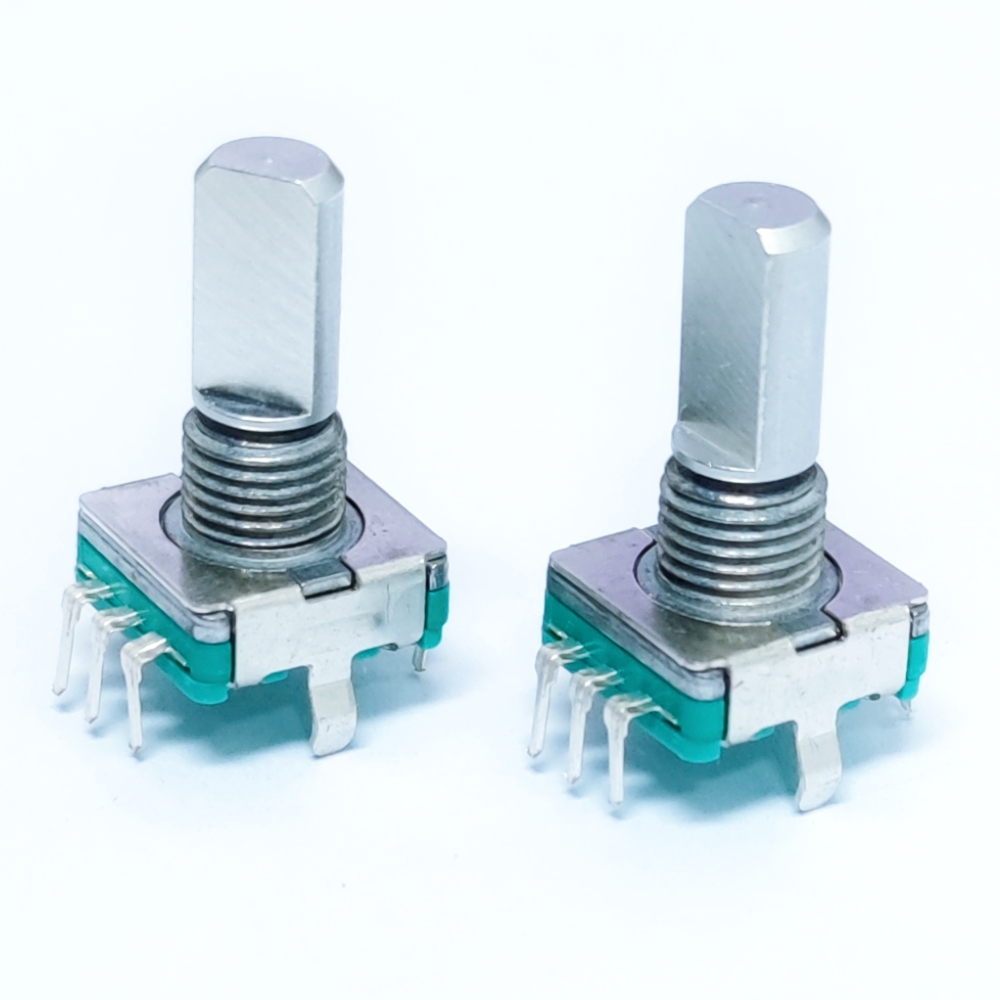

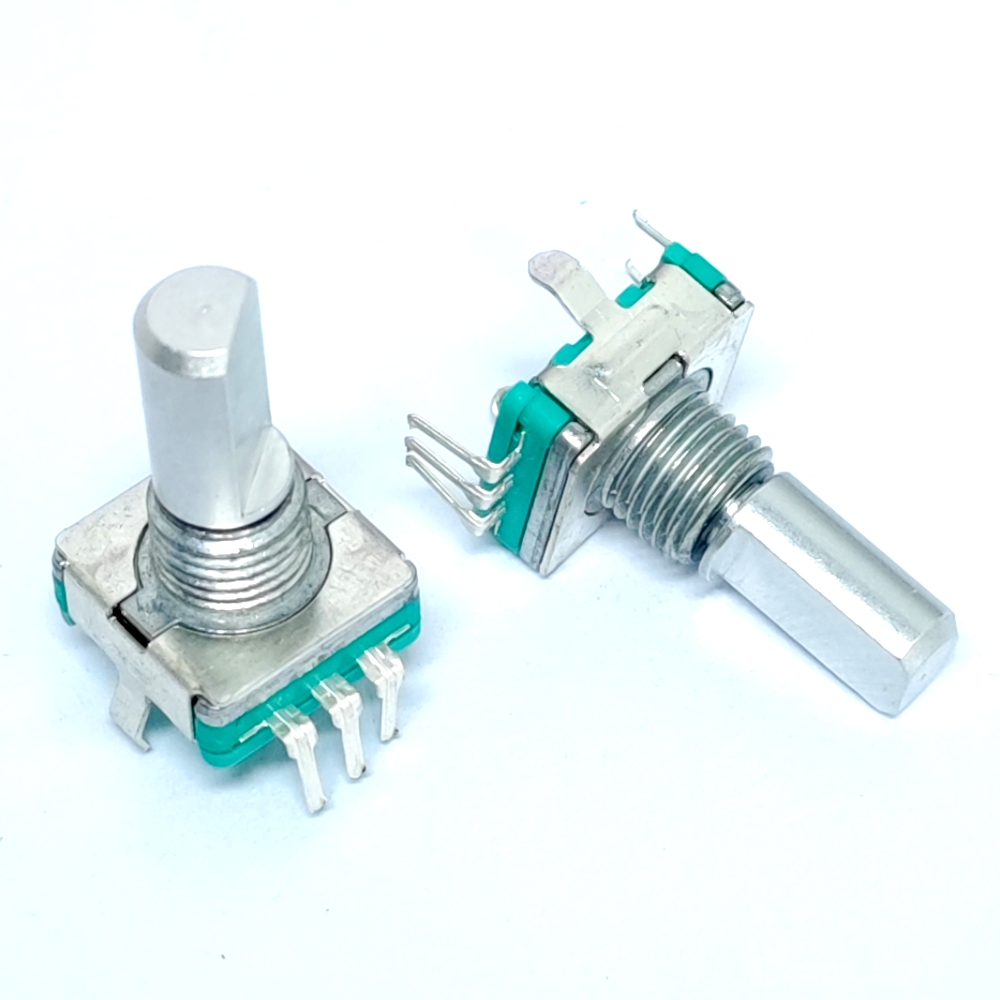

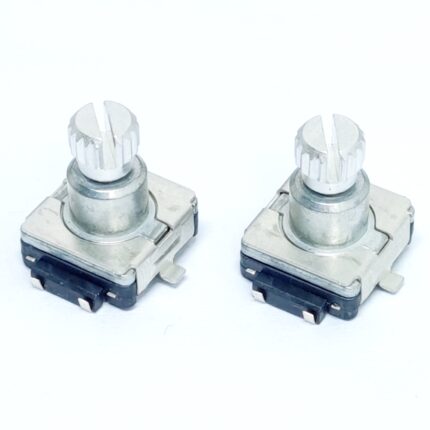

11mm 360 Degree Incremental Encoder Switch
Part Number: GE1103A5F20.5-10-4H100
An 11 mm 360-degree incremental encoder switch is a unit that can precisely detect rotational input for digital control. It offers a smooth rotation, pinpoint incremental signals, and a space-saving design. It is used in the fields of robotics, automation, and consumer electronics.
FEATURES
- Multiple shaft options
- Momentary push button switch option
- Different resolution and detent options
- Compact design
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC5V |
Resolution |
20 pulses/360° |
Number and position of detent |
20 detents（ step angle: 18°±2°） |
Total ratational angle |
360°（Endless） |
With push button switch |
Yes |
Life Time |
100,000 Cycles |
Operating Temperature Range |
-40℃~+85℃ |
Actuator Type |
Flat shaft |
Mounting Type |
PCB, Through hole |
Length |
11.7mm |
Width |
12mm |
Height |
20.5mm |
Packing |
Blister Box |
ROHS |
Yes |

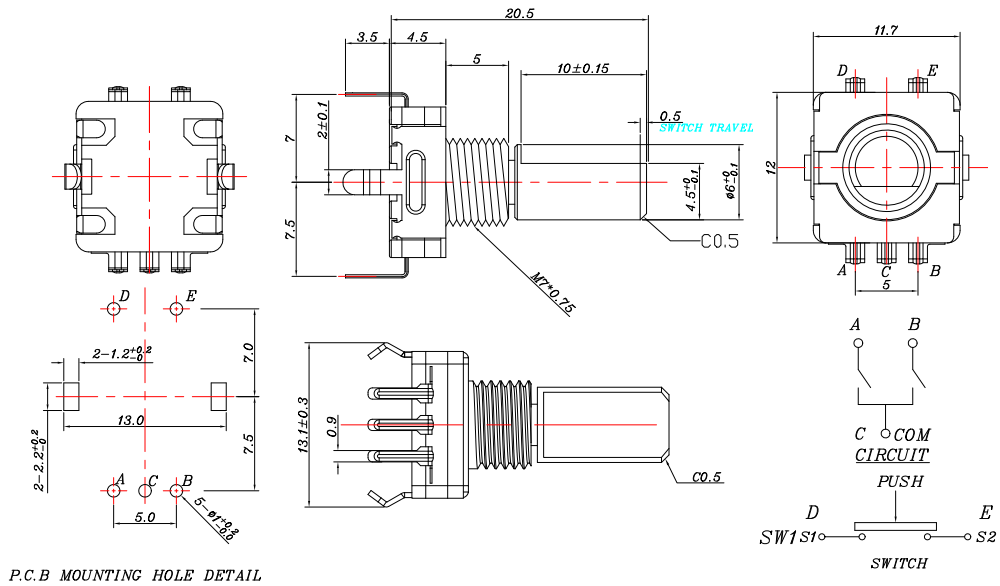

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Bracket |
SPCC |
1 |
|
2 |
Body |
PBT |
1 |
|
3 |
Brush |
Copper |
1 |
Silver |
4 |
Grease |
Grease |
||
5 |
Code disc hardware |
Copper |
1 |
Silver |
6 |
Code disc |
LCP |
1 |
|
7 |
Shaft core |
Aluminum/zinc alloy |
1 |
|
8 |
Back cover |
PBT |
1 |
|
9 |
Bushing |
Zinc alloy |
1 |
|
10 |
Buckle |
Piano wire |
1 |
|
11 |
Shrapnel |
SUS/Phosphor bronze |
1 |
|
12 |
Push button |
LCP |
1 |
|
13 |
Metal dome |
SUS |
1 |
