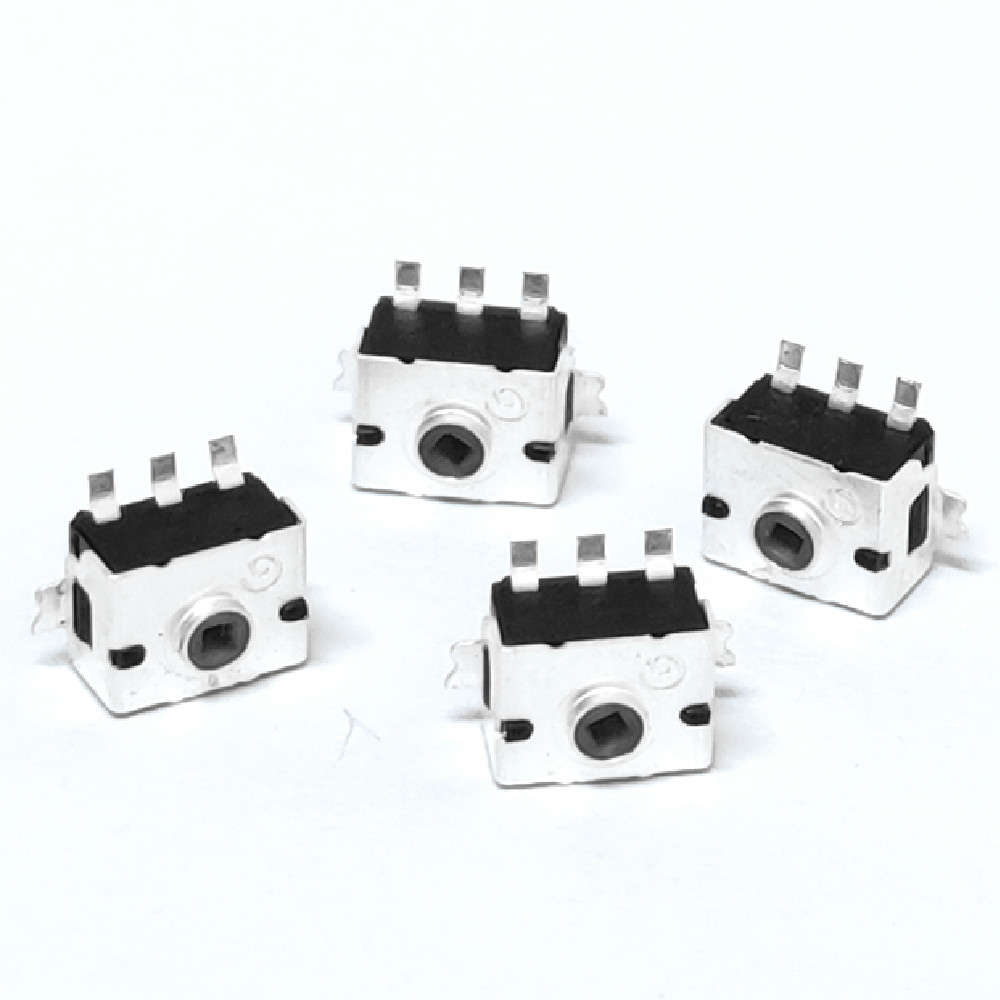

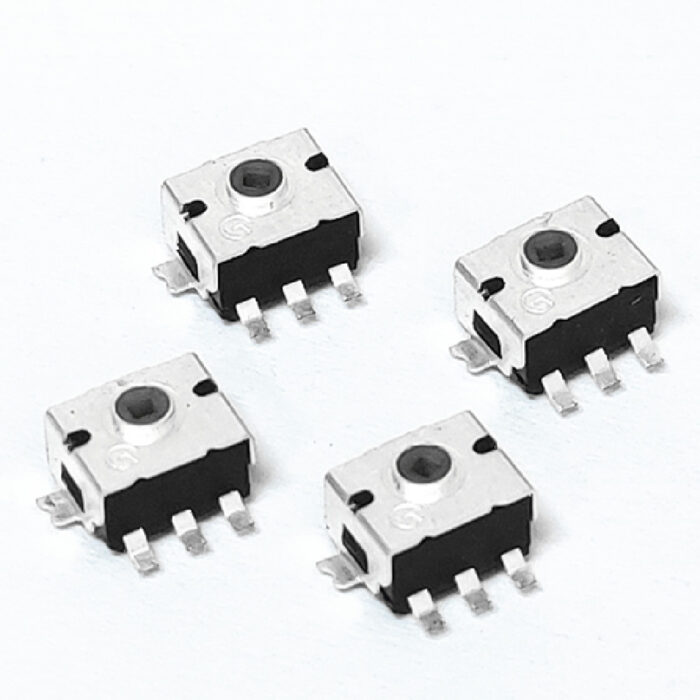

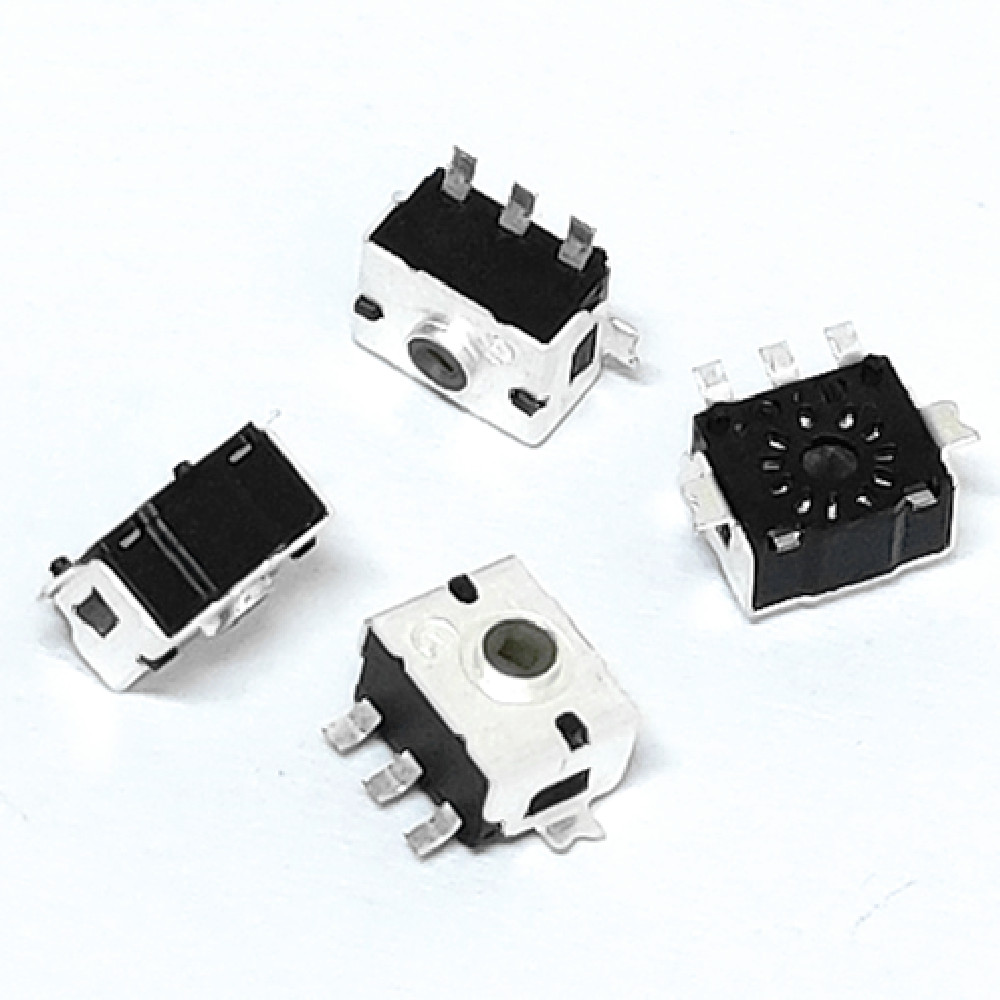

5 Pin SMD Mini Rotary Encoder Switch
Part Number: GE041X2-2.9-1.65-2V1-10
A 5-pin SMD mini rotary encoder switch is a device that enables sensing the rotation in the most space-saving way possible. It is characterized by a surface-mount design, precise incremental feedback, and a lightweight design. It is used in portable tools.
FEATURES
- Small size – 4.9*3.9*2.8mm
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC5V |
Resolution |
12 pulses/360° |
Number and position of detent |
12 detents（ step angle: 30°±2°） |
Total ratational angle |
360°（Endless） |
Rotational life |
30,000 Cycles Min |
Operating Temperature Range |
-40℃~+85℃ |
Actuator Type |
Rotary |
Mounting Type |
Surface mount |
Length |
4.8mm |
Width |
3.8mm |
Height |
2.85mm |
Packing |
Tape |
ROHS |
Yes |

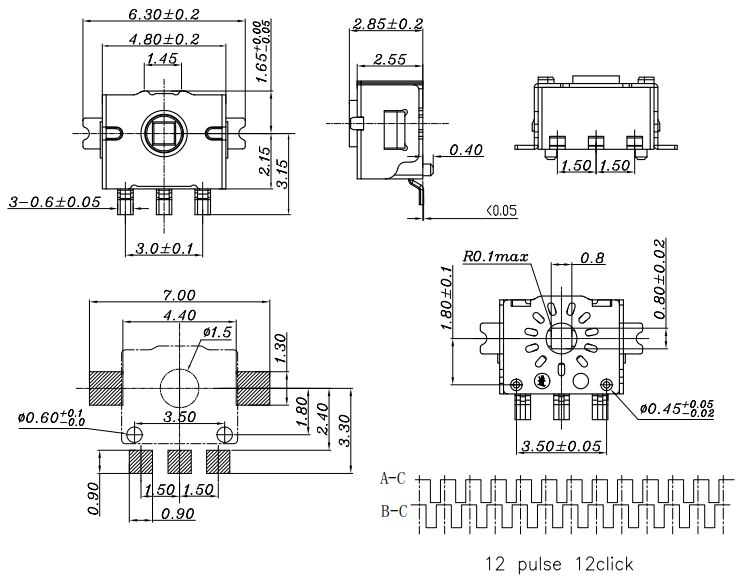

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Shell |
Copper Alloy |
1 |
Silver |
2 |
Terminal |
Copper Alloy |
1 |
Silver |
3 |
Base |
Nylon |
1 |
|
4 |
Rotor |
Nylon |
1 |
|
5 |
Position |
SUS |
1 |
|
6 |
Blade |
Copper Alloy |
1 |
