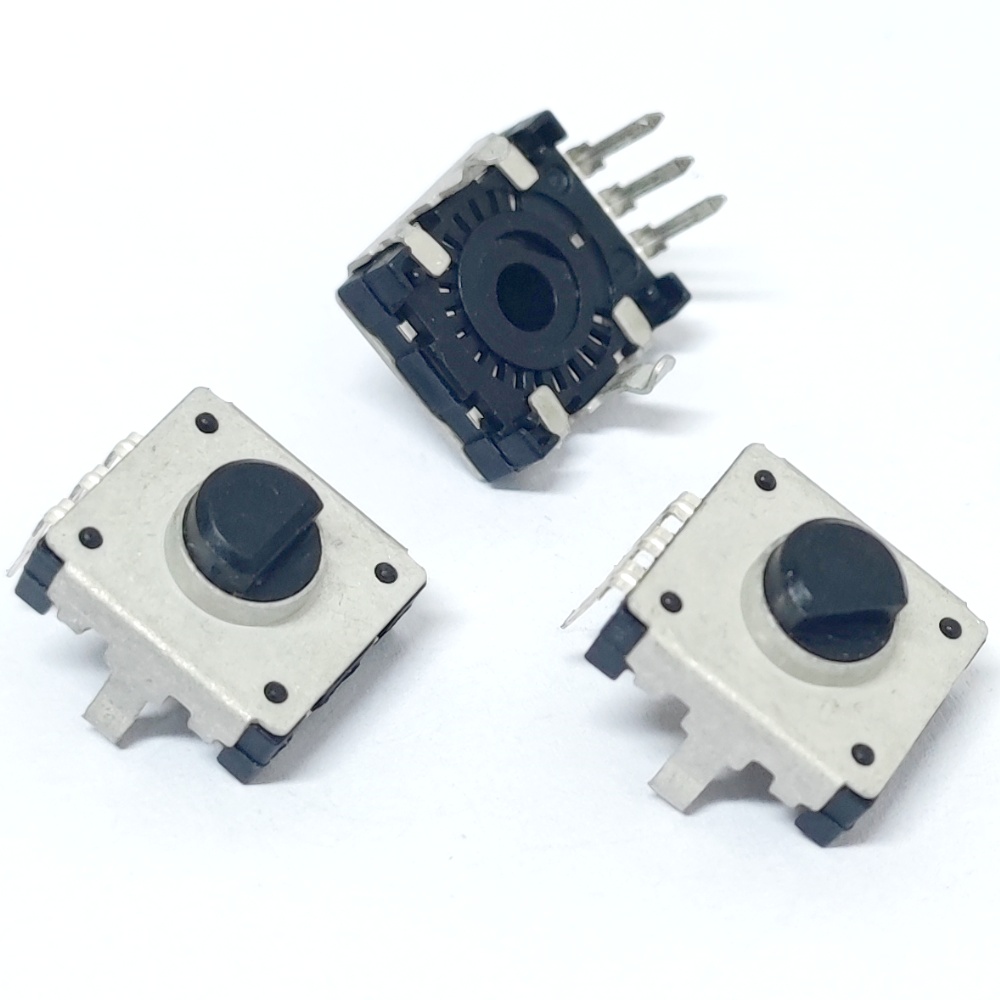

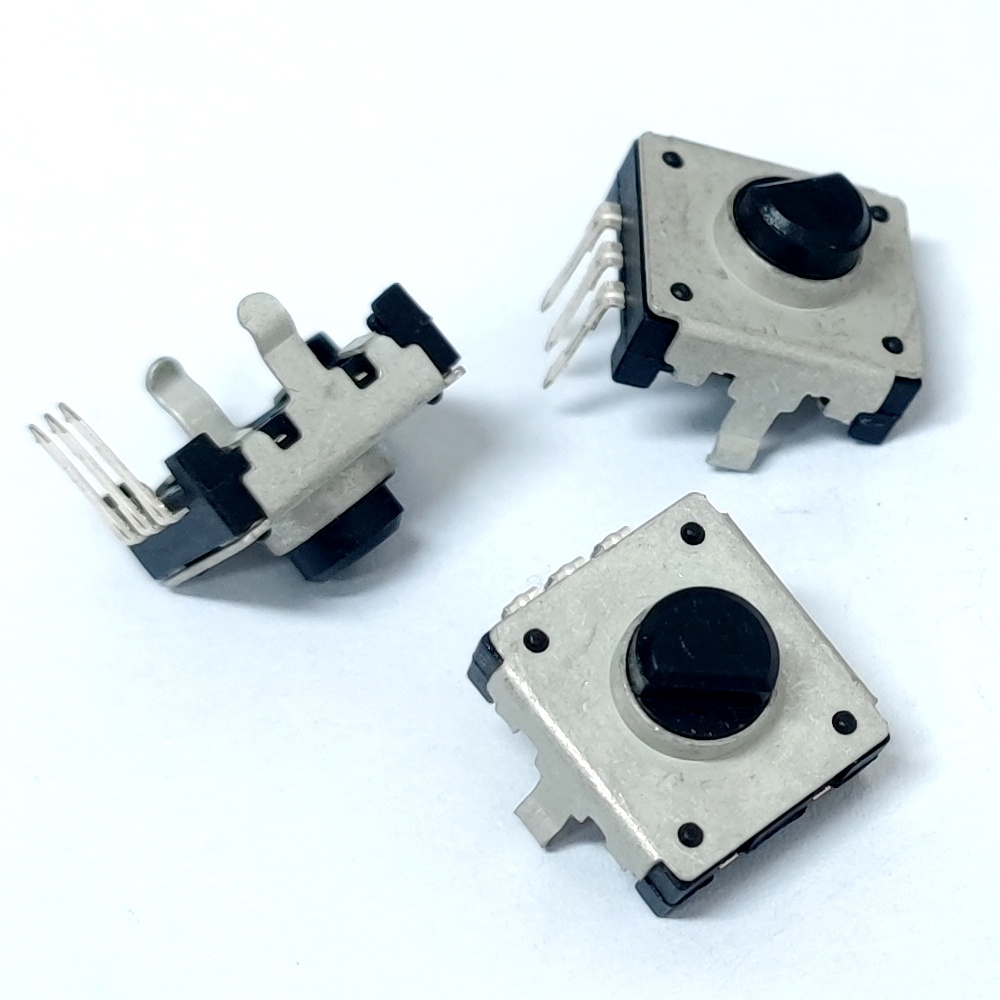

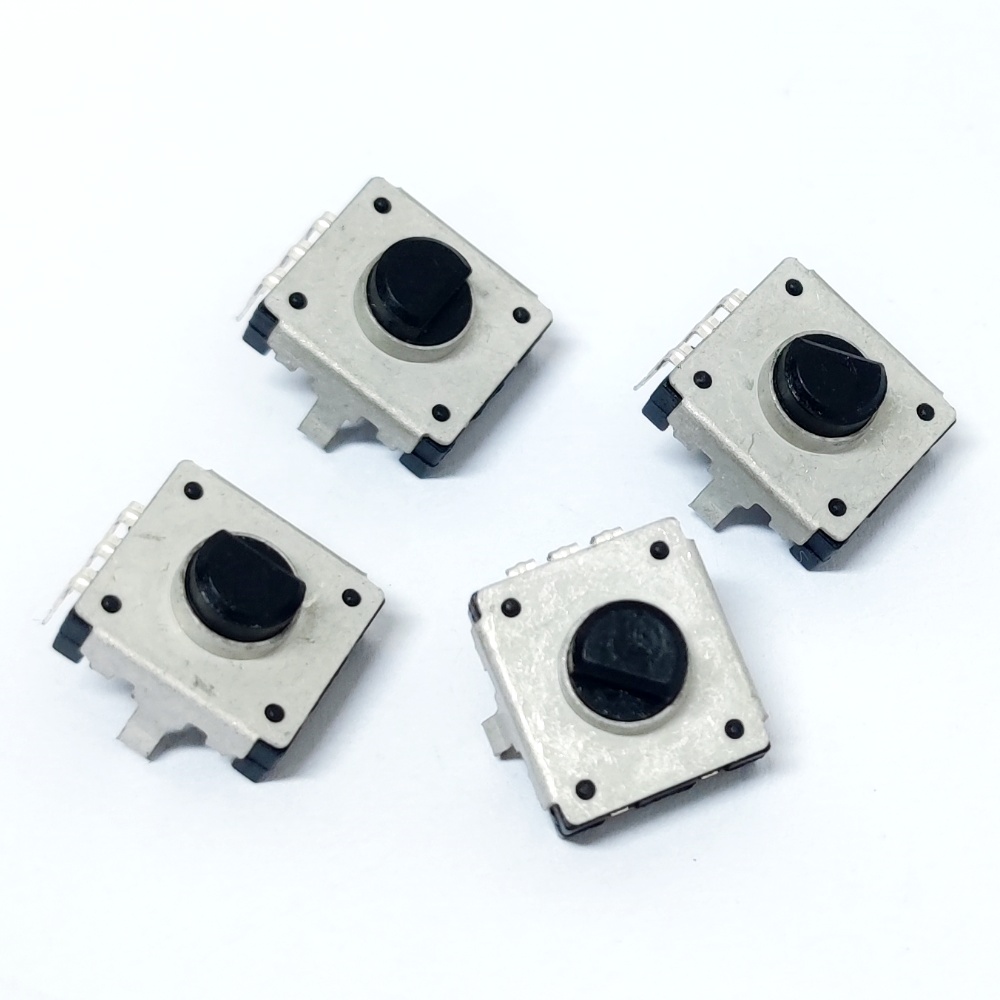

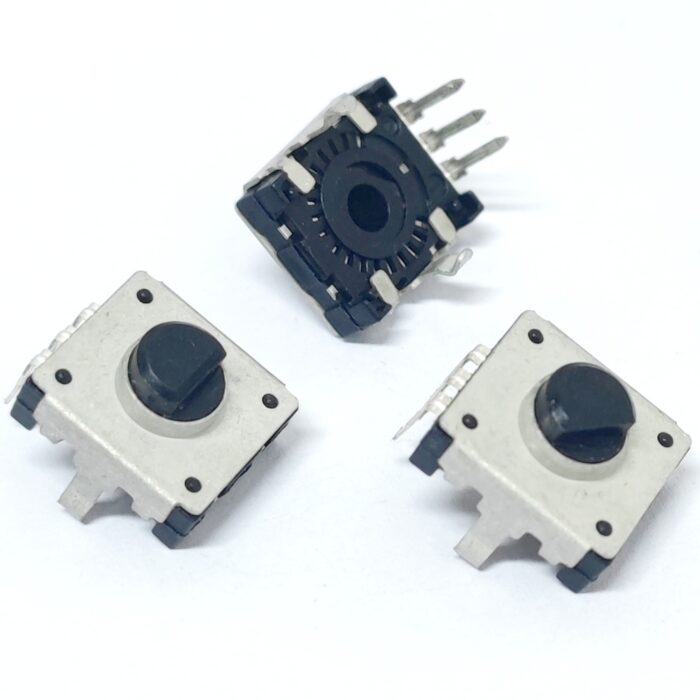

12mm Mechanical Incremental Encoder Switch
Part Number: GE1202-D1-F8.8/2-24P24C/603
A 12 mm mechanical incremental encoder switch is a device that produces pulses to indicate the rotation of the object. The product is available in a durable mechanical design, with stable output, and compact dimensions. It is used not only in audio mixers and instrumentation but also in consumer electronics.
FEATURES
- Multiple shaft options
- Momentary push button switch option
- Different resolution and detent options
- Compact design
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC5V |
Resolution |
24 pulses/360° |
Number and position of detent |
24 detents（ step angle: 15°±2°） |
Total ratational angle |
360°（Endless） |
With push button switch |
No |
Life Time |
30,000 Cycles |
Operating Temperature Range |
-40℃~+85℃ |
Actuator Type |
Flat shaft |
Mounting Type |
PCB, Through hole |
Length |
12.5mm |
Width |
13.2mm |
Height |
8.8mm |
Packing |
Blister Box |
ROHS |
Yes |

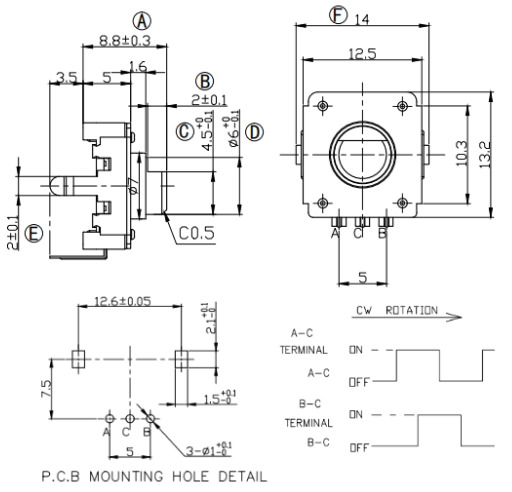

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
