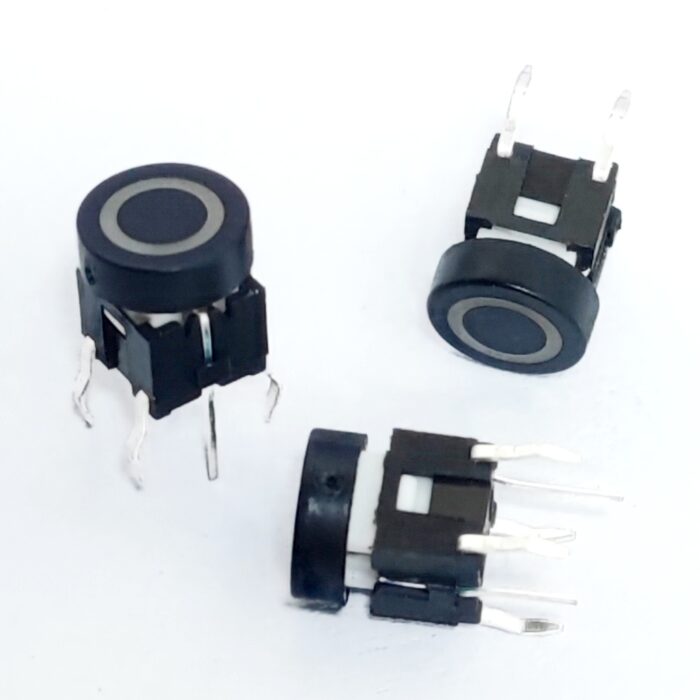

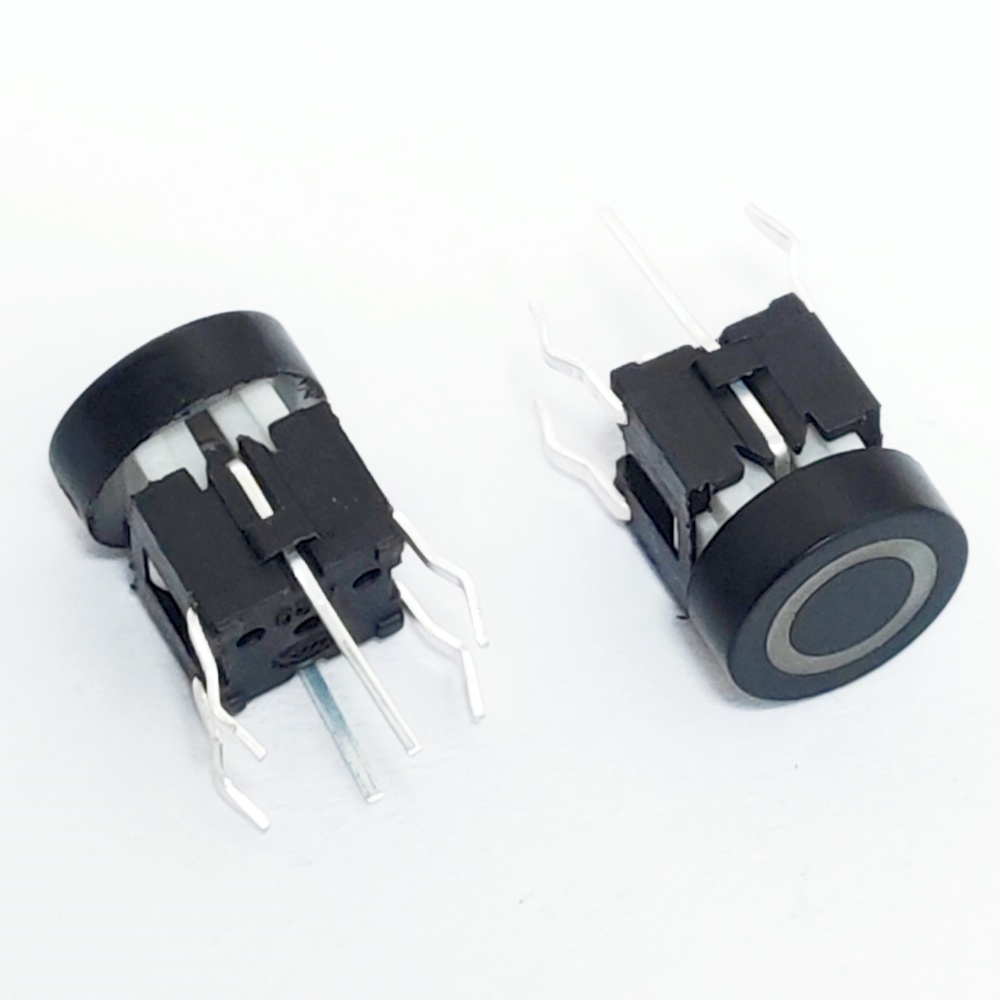

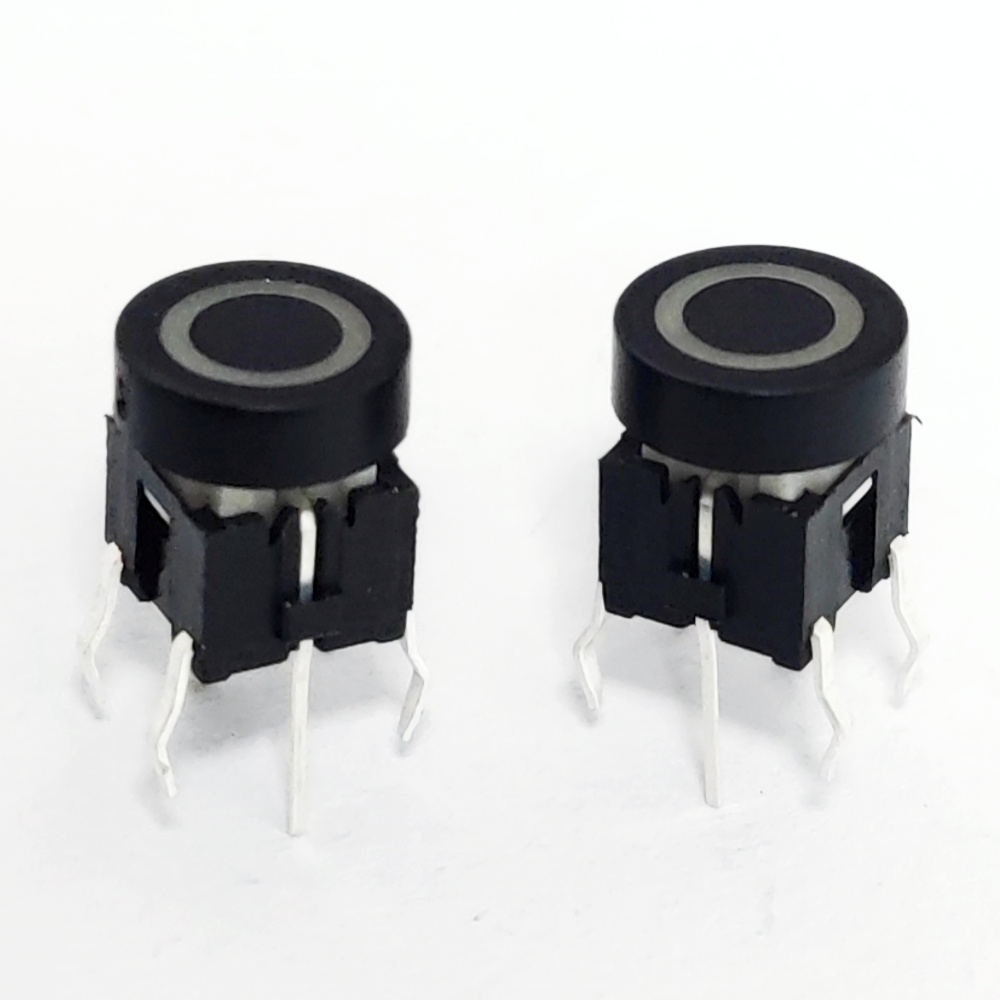

Through Hole Black Cap Tact Switch With LED
Part Number: KAN0713-0723C100-83M
FEATURES
- Several LED colors
- Long life
- THT versions
- Compact Size
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC 12V 50mA（Max） DC 1V 10μA （Min） |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
260±50 gf |
Full Travel |
0.25±0.15mm |
Return Force |
20gf Min |
Stem Strength |
20N min |
Operation Life |
1,000,000 cycles |
Mounting Style |
Through Hole |
Length |
6.0mm |
Width |
6.0mm |
Height |
7.2mm |
LED Color |
Blue |
ROHS |
Yes |

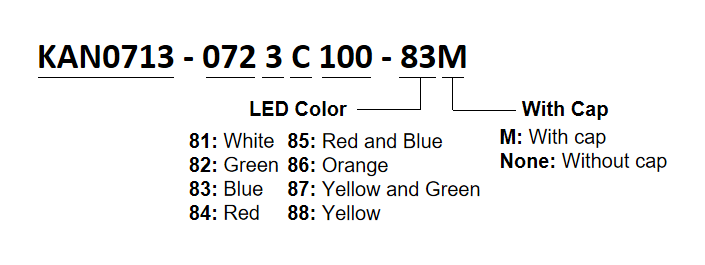

PART NUMBER KEY

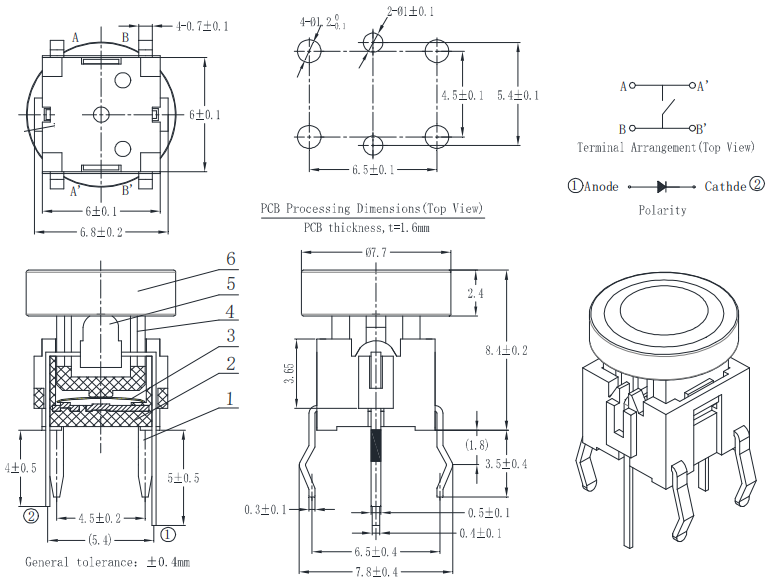

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.4mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Ag plating |
2 |
Base |
PA66 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag Plating |
4 |
Stem |
PA66 |
1 |
White |
5 |
LED |
1 |
Blue |
| Mounting Style |
Through Hole |
|---|---|
| ILLumination |
Yes |
| IP Rating |
No IP Rating |
| Height (mm) |
7.3 ,8.5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
