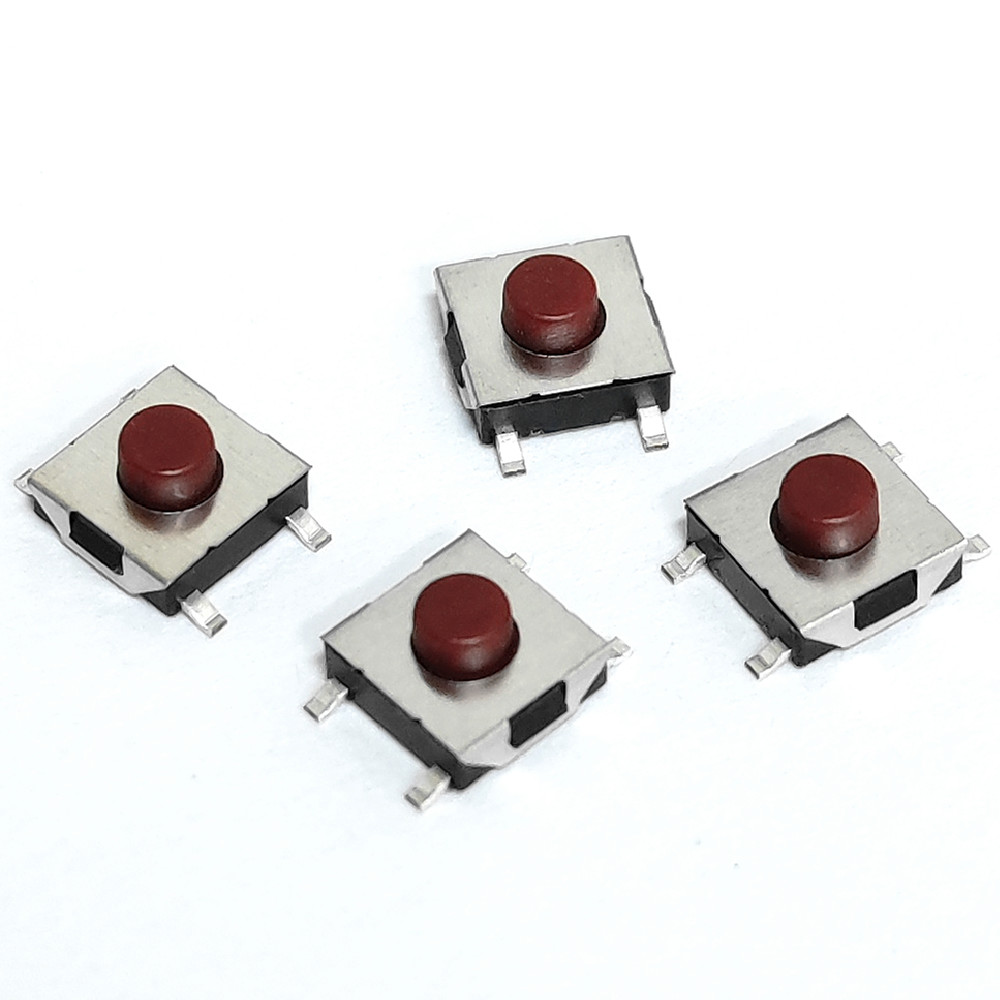

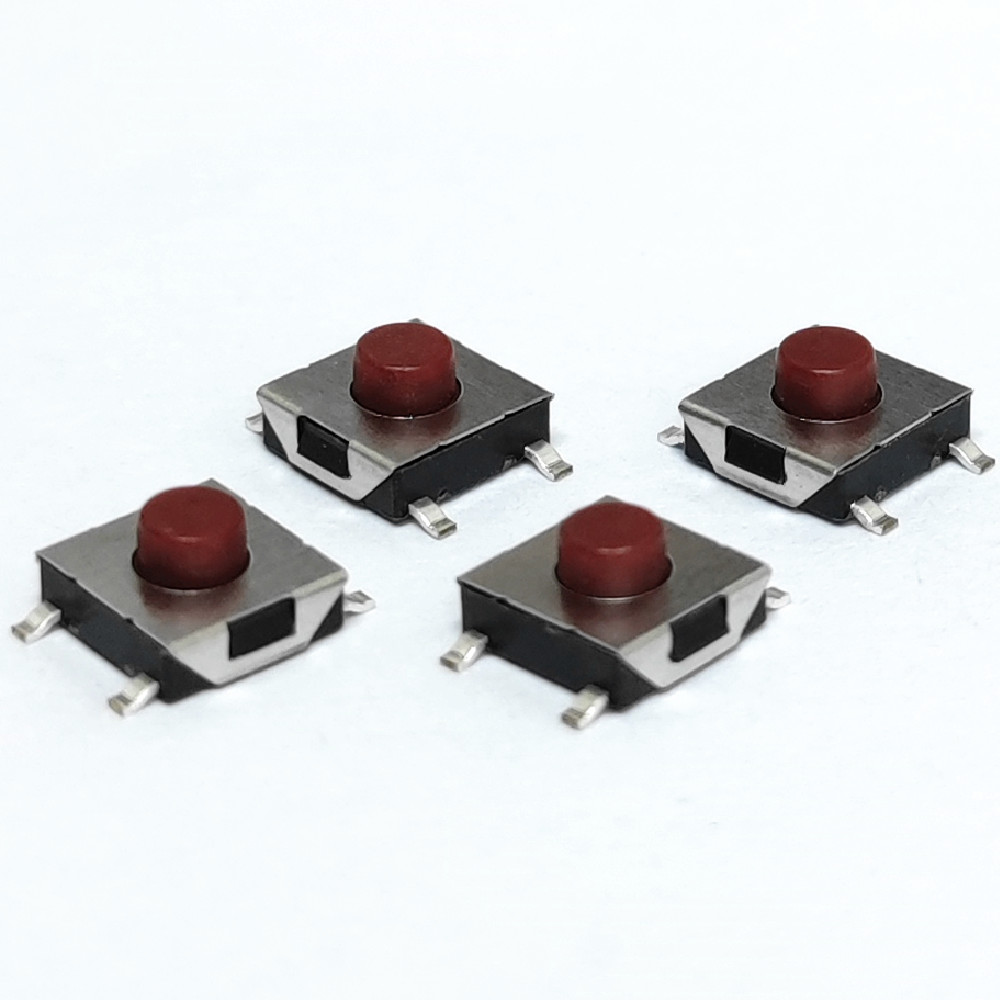

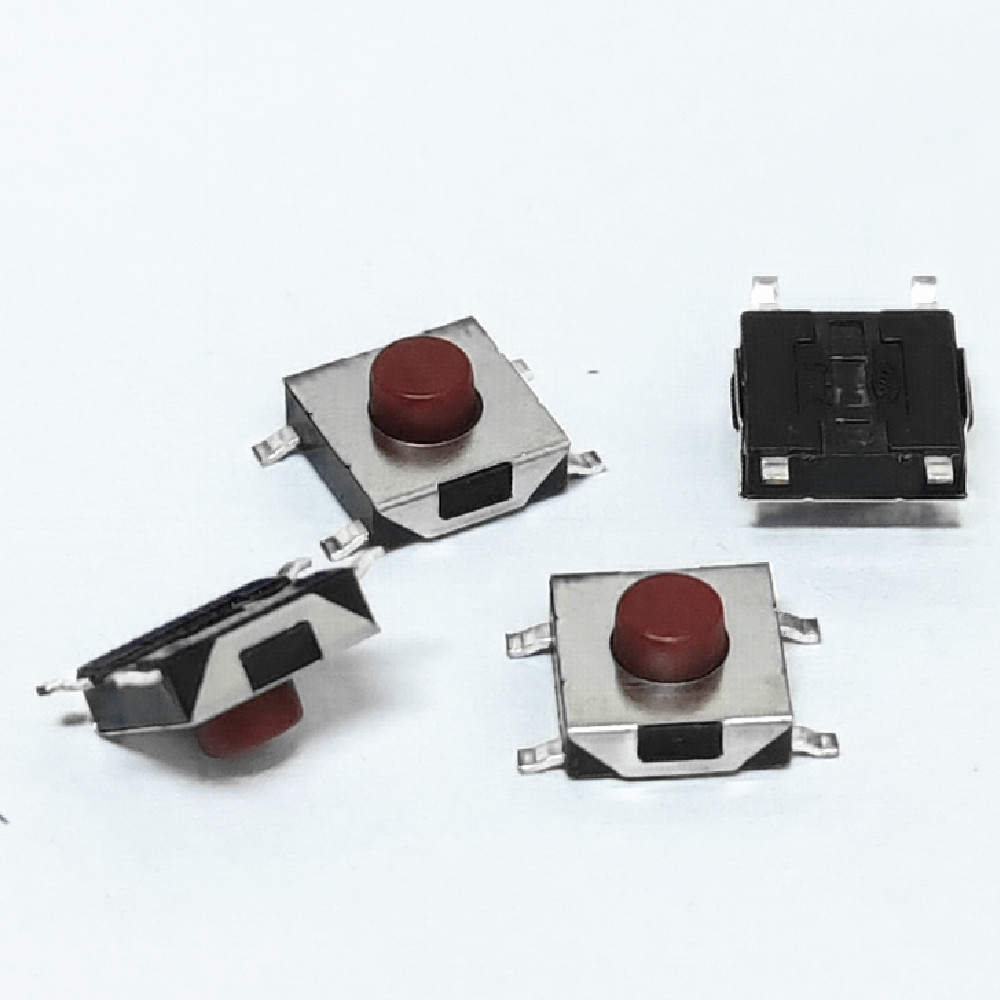

Low Profile 6×6 Smd Tact Switch
Part Number: KAN0647-0342B0101-B42
The KAN0647-0342B0101-B42 is a low-profile 6.0 × 6.0 mm surface-mount tact switch with a 3.4 mm height and top-actuated design. It surface-mounts to a PCB, delivers crisp tactile feedback at 160 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Low-profile 3.4 mm height, 6.0 × 6.0 mm footprint, top-actuated
- Surface-mount (SMD) design, SPST-NO momentary action
- 160 ± 50 gf operating force, 0.25 mm travel for a defined tactile click
- 100,000-cycle rated life, –30 °C to +80 °C operating range
- SUS silver-plated contacts, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | KAN0647-0342B0101-B42 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), top-actuated |
| Body Size | 6.0 × 6.0 × 3.4 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | FR52 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | 1,500 pcs/reel (tape & reel) |
Typical Applications
This low-profile surface-mount tact switch suits thin, space-constrained device interfaces: consumer electronics, wearables, remote controls, handheld devices, and compact instrumentation. The 3.4 mm height and SMD format support automated assembly on densely packed boards where vertical clearance is limited.

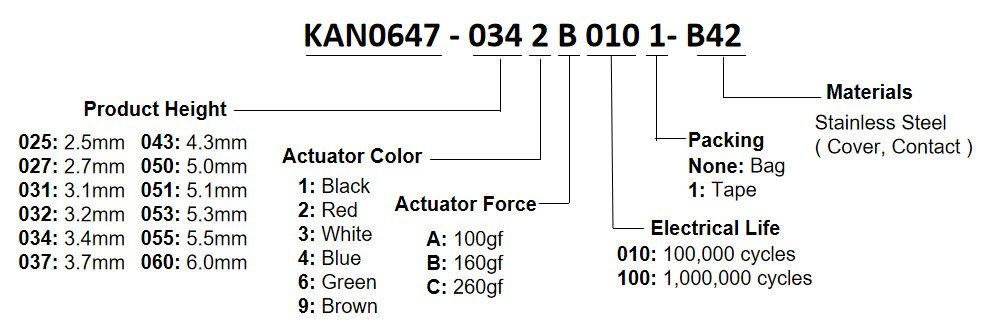

PART NUMBER KEY

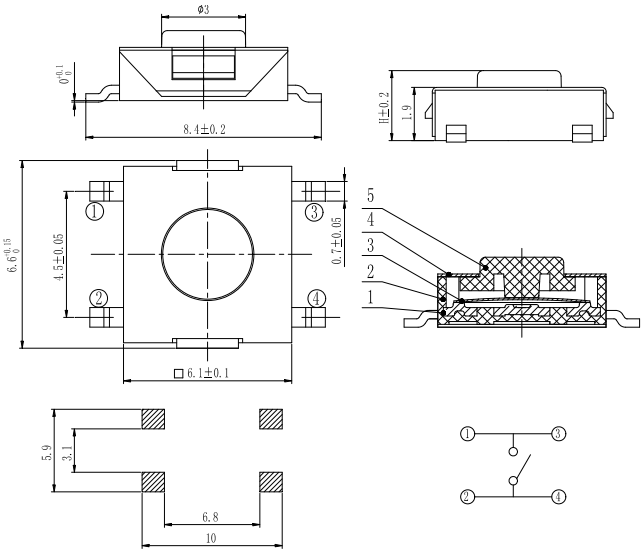

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
FR52 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
3.4 |
| Length (mm) |
6 |
| Width (mm) |
6 |
