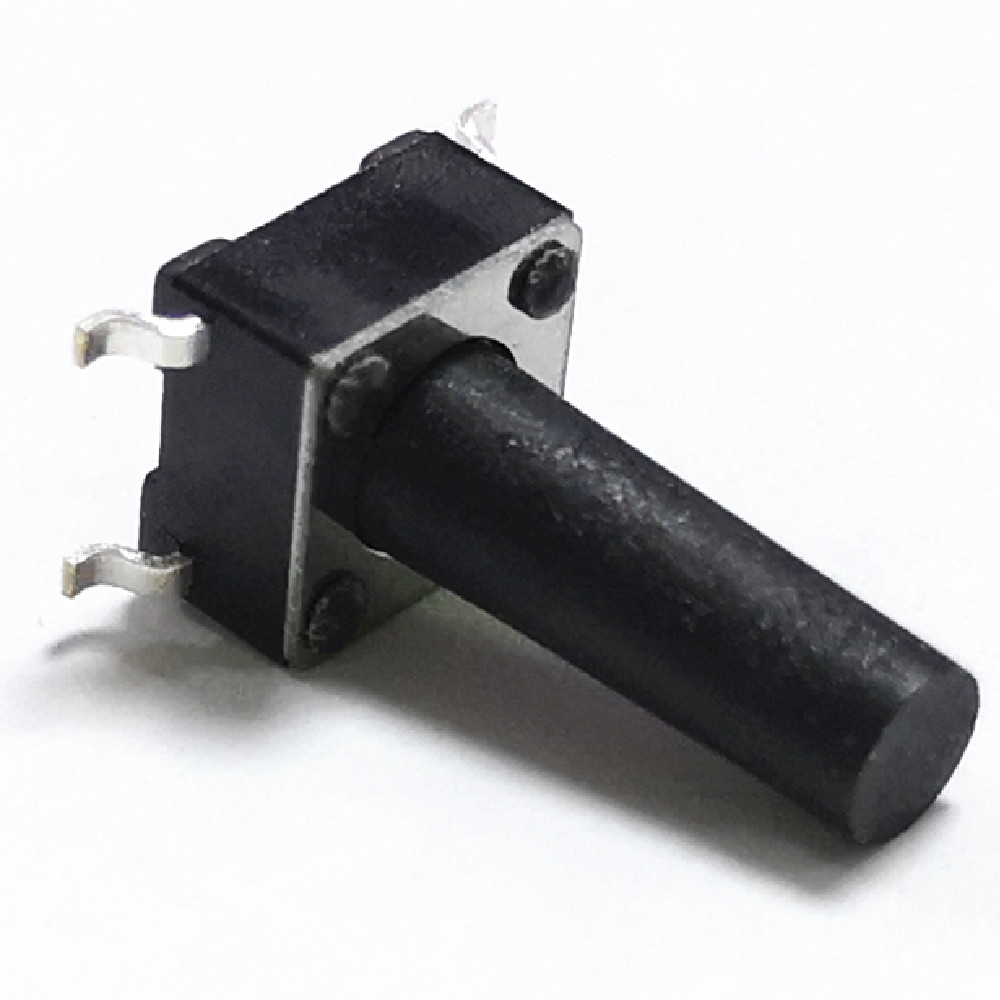

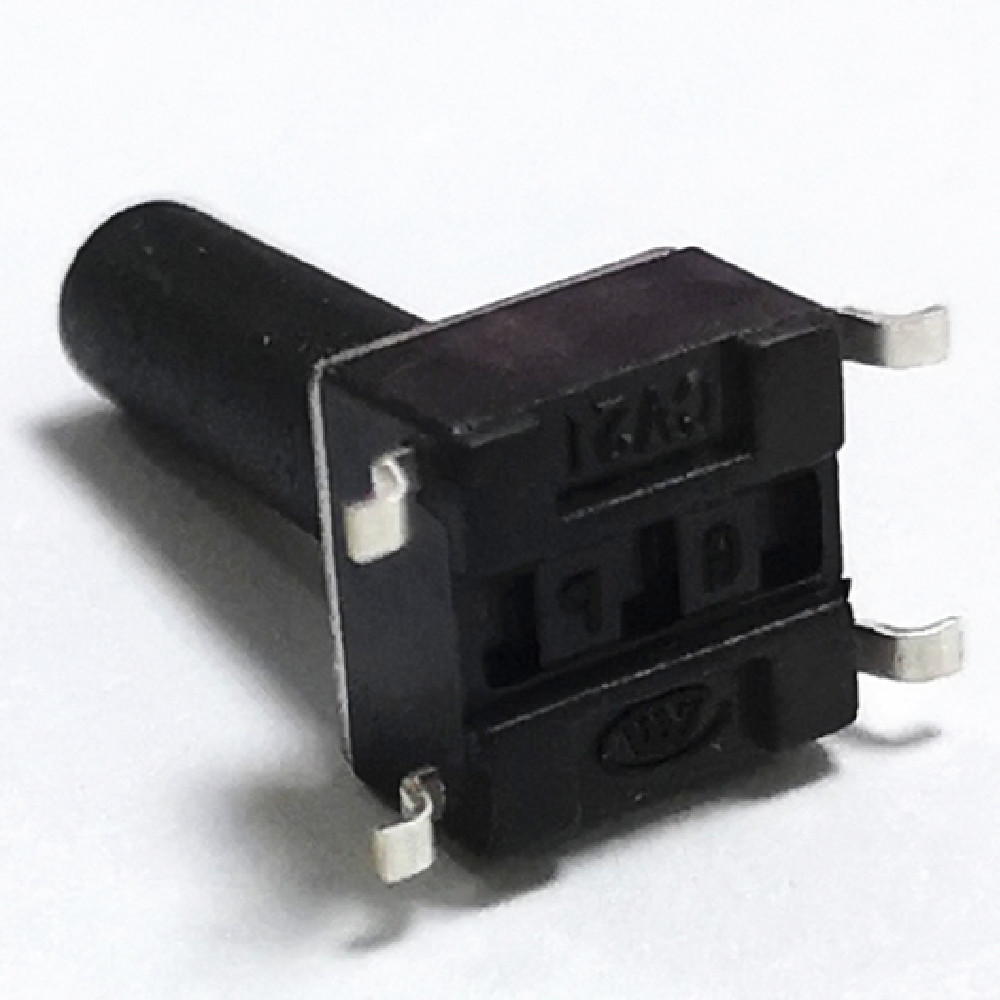

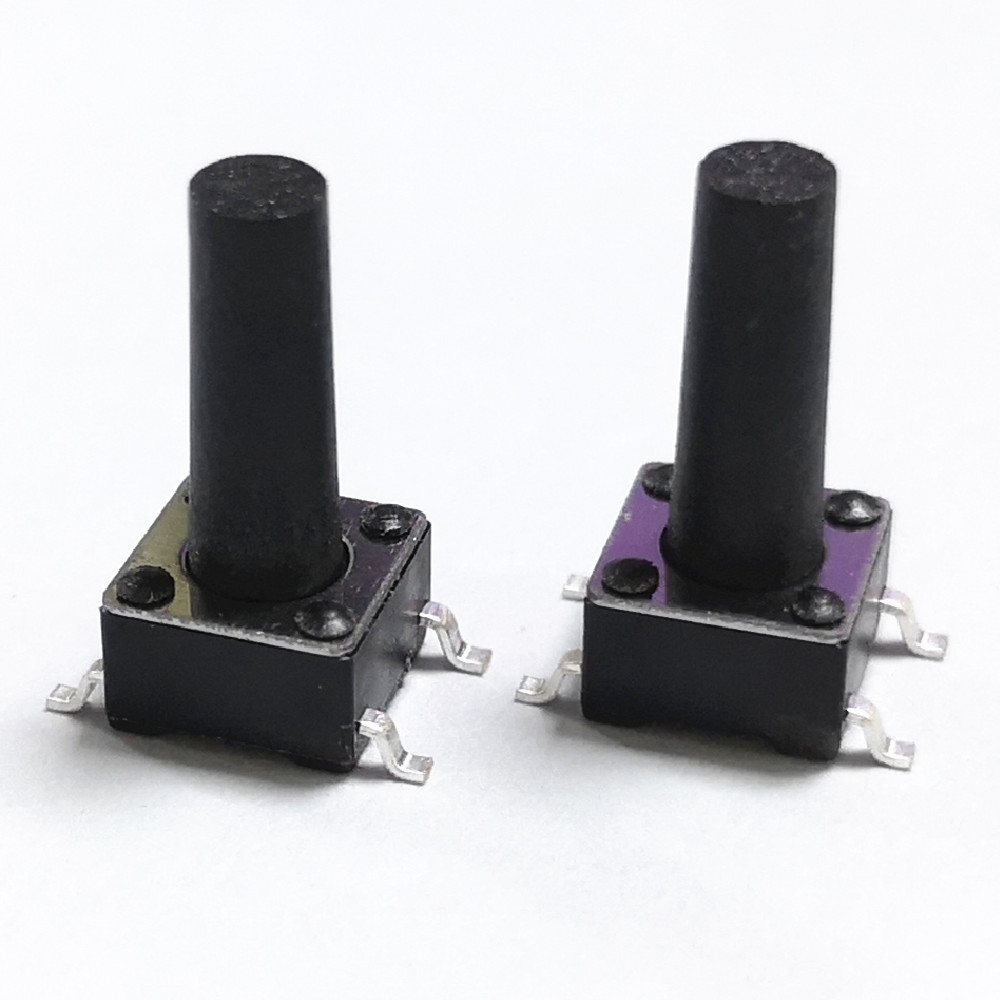

6×6 Micro Push Button Tactile Switch
Part Number: KAN0649-1301C0101-BJ42
The KAN0649-1301C0101-BJ42 is a 6.0 × 6.0 mm surface-mount tact switch with a tall 13 mm push-button actuator. It surface-mounts to a PCB, delivers crisp tactile feedback at 260 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Tall 13 mm push-button actuator, 6.0 × 6.0 mm footprint
- Surface-mount (SMD) design, SPST-NO momentary action
- 260 ± 50 gf operating force, 0.25 mm travel for a defined tactile click
- 100,000-cycle rated life, –30 °C to +80 °C operating range
- SUS silver-plated contacts, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | KAN0649-1301C0101-BJ42 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), top-actuated |
| Body Size | 6.0 × 6.0 × 13.0 mm |
| Operating Force | 260 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | FR52 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | 300 pcs/reel (tape & reel) |
Typical Applications
This 6 mm tact switch with a tall push-button actuator suits panels where the button must reach through a thicker front face: audio panels, LED control modules, remote controls, and consumer electronics. The extended 13 mm actuator gives a clear press point on equipment with raised or recessed control surfaces.

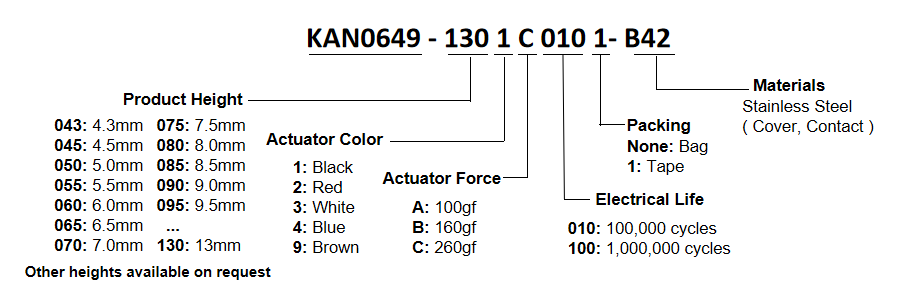

PART NUMBER KEY

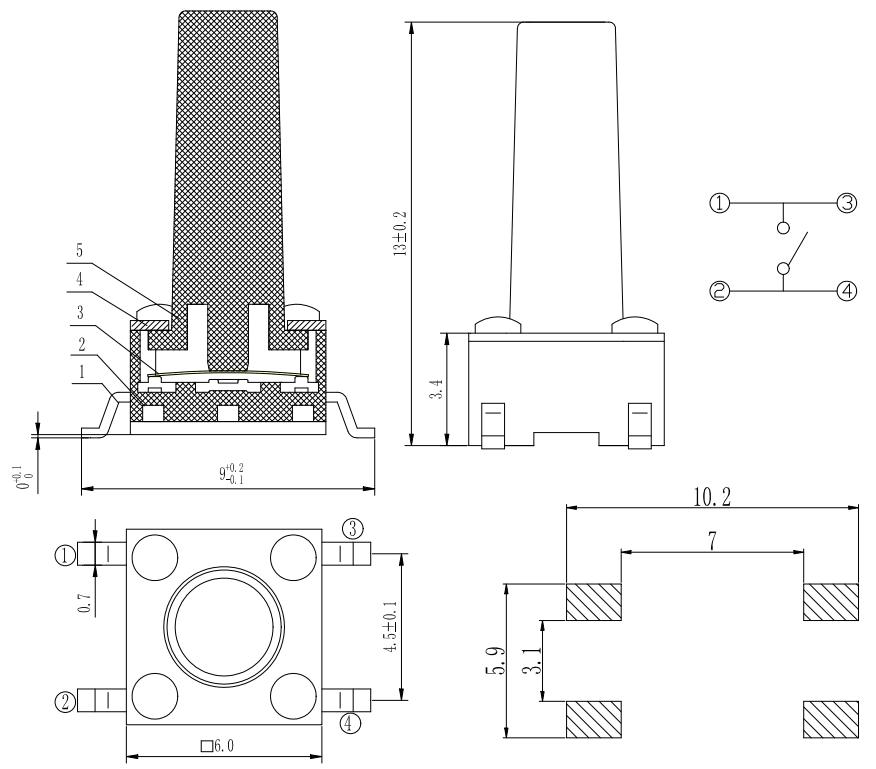

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Contact side silver plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
PPA |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
13 |
| Length (mm) |
6 |
| Width (mm) |
6 |
