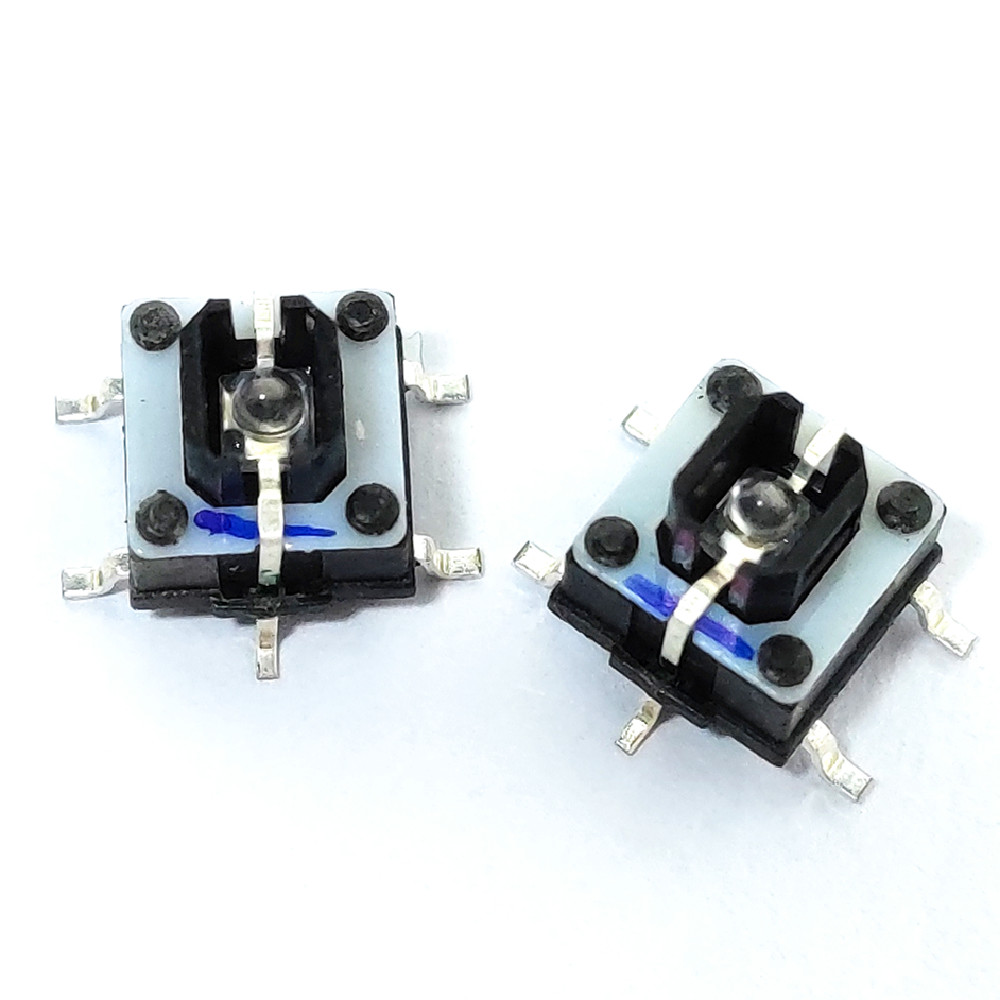

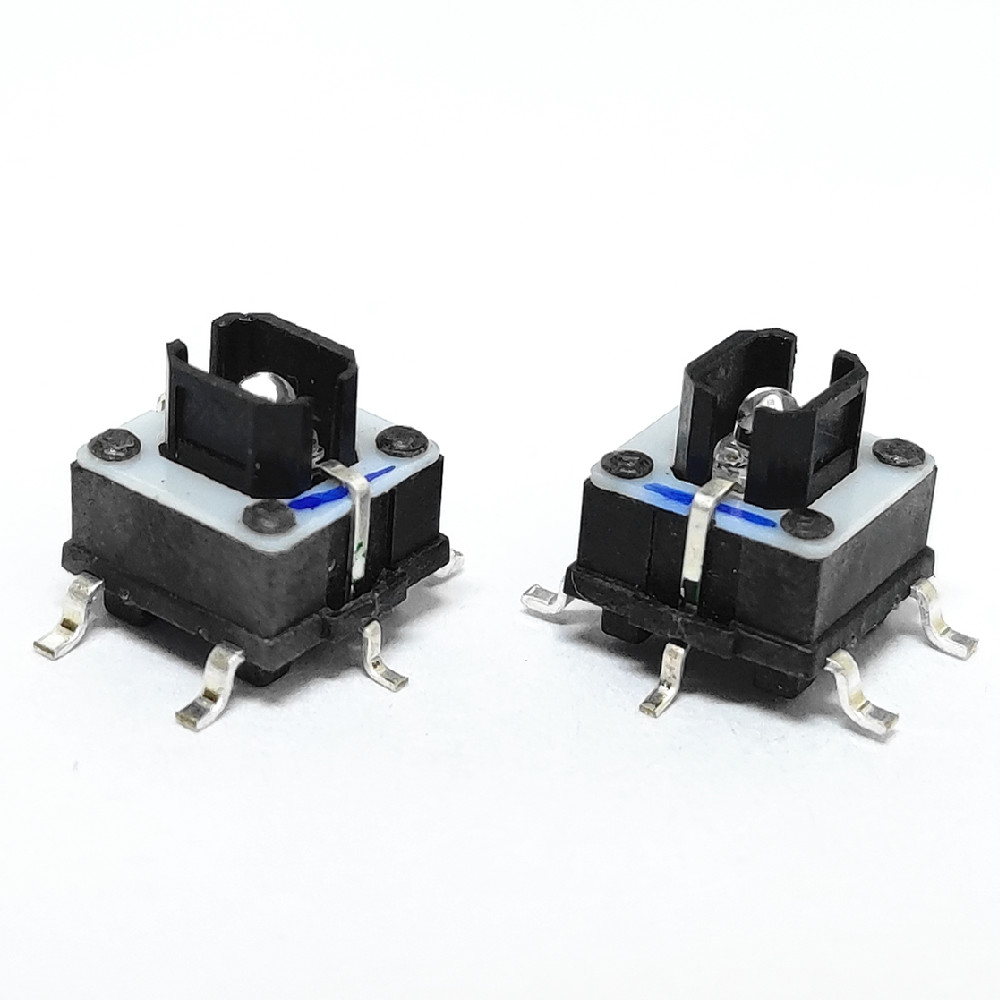

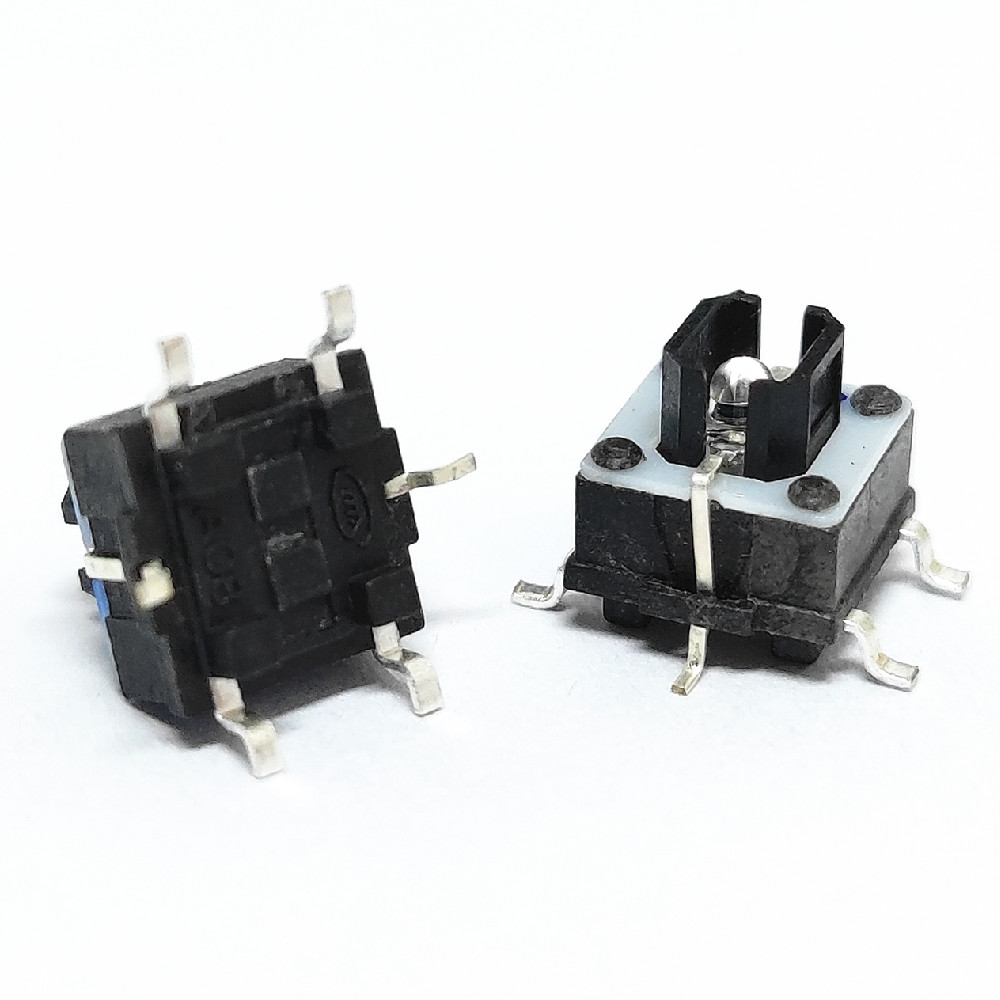

SMD Tactile Push Button Illuminiated Tact Switch
Part Number: KAN6841-0581C0101-O-82
FEATURES
- Several LED colors
- Surface mount design
- High life cycles
- Compact Size
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC 12V 50mA（Max） DC 1V 10μA （Min） |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
260±50 gf |
Full Travel |
0.25±0.1mm |
Return Force |
20gf Min |
Stem Strength |
20N min |
Operation Life |
100,000 cycles |
Mounting Style |
Surface Mount |
Length |
6.8mm |
Width |
6.8mm |
Height |
7mm |
LED Color |
Green |
ROHS |
Yes |

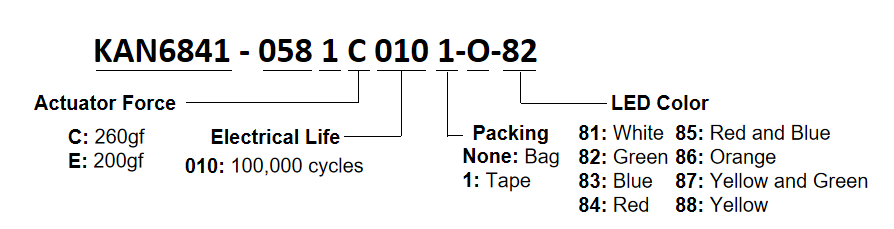

PART NUMBER KEY

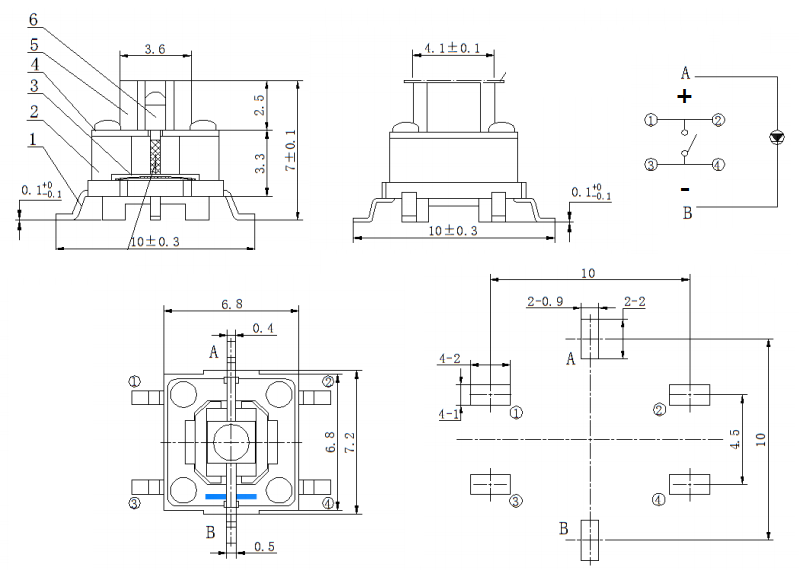

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.4mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver Plating |
2 |
Base |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Contact side silver plating |
4 |
Cover |
PET |
1 |
White |
5 |
Stem |
PPA |
1 |
Black |
| Mounting Style |
Surface Mount |
|---|---|
| ILLumination |
Yes |
| IP Rating |
No IP Rating |
| Height (mm) |
7 |
| Length (mm) |
6.8 |
| Width (mm) |
6.8 |
