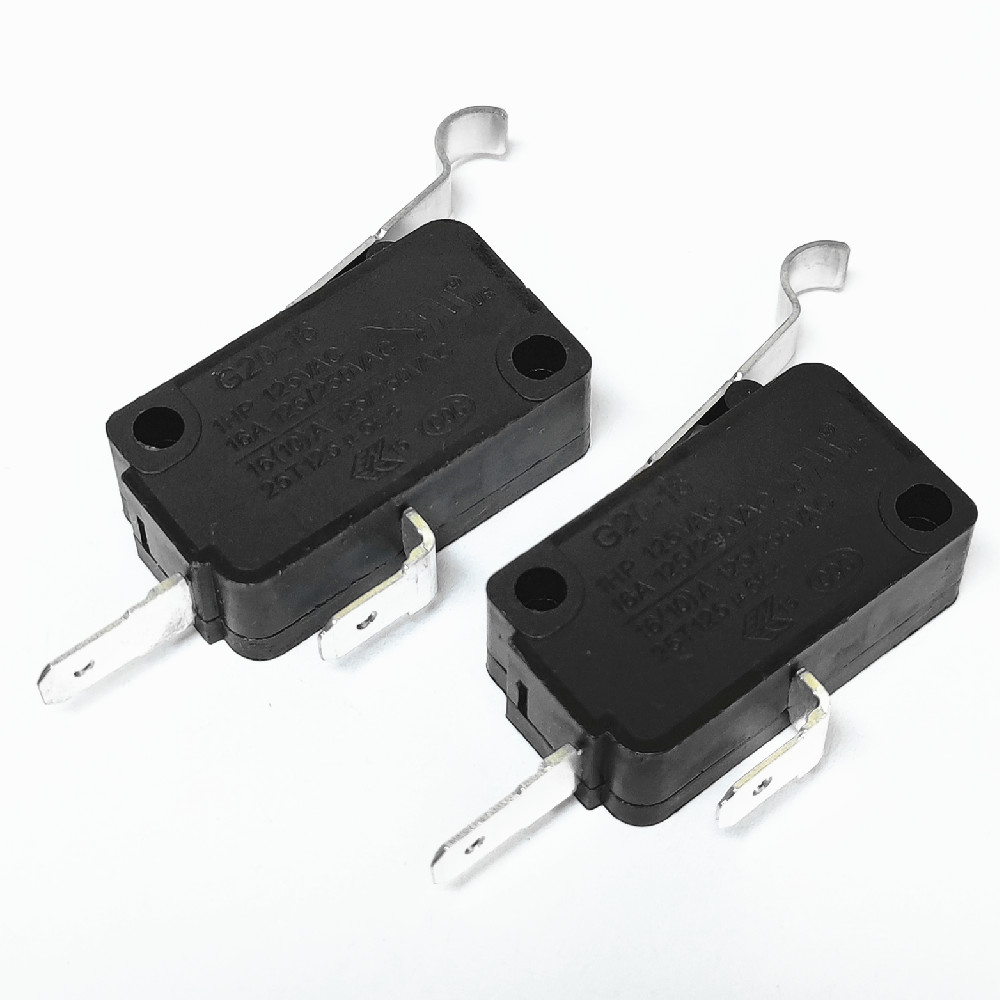

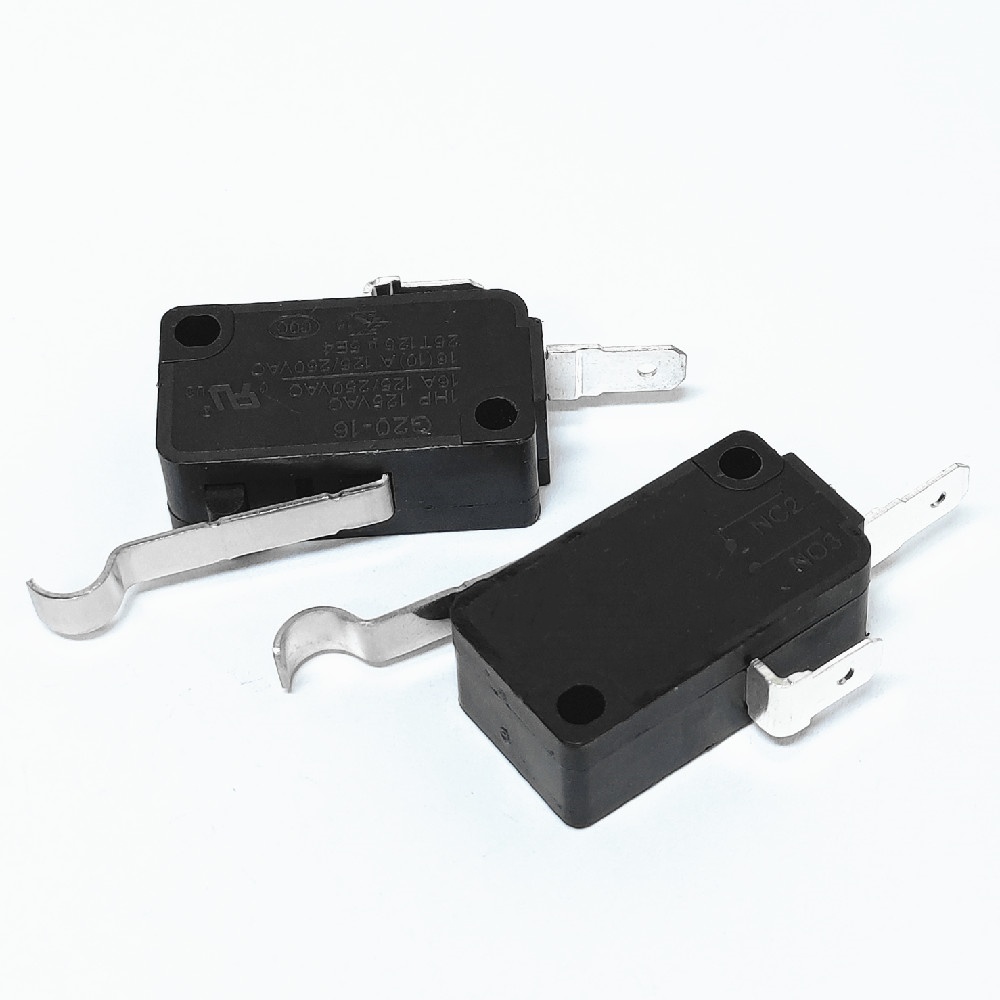

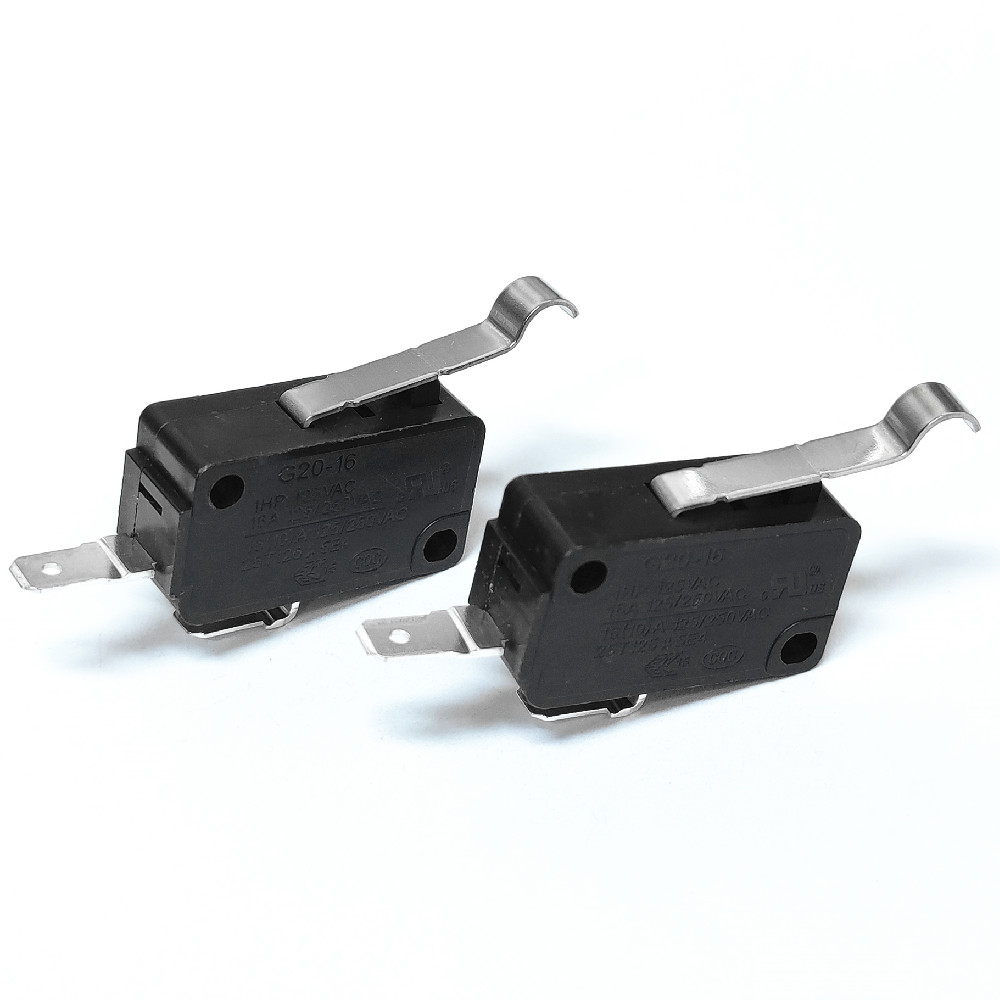

Quick Connect Normally Open Actuator Micro Switch
Part Number: G20-16EN03-70-07
FEATURES
- Long handle
- Different current options
- Available with or without auxiliary actuator
- SPDT, SPNC, or SPNO switch options
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
16A 125/250V AC |
Circuit |
SPST-NO |
Contact Resistance |
≤200mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
70±20gf |
Life Time |
10000 Cycles |
Operating Temperature Range |
-25℃~+85℃ |
Actuator Type |
Lever, Straight |
Mounting Type |
Chassis Mount |
Length |
29mm |
Width |
10.1mm |
Height |
15.9mm |
Packing |
Bag |
ROHS |
Yes |

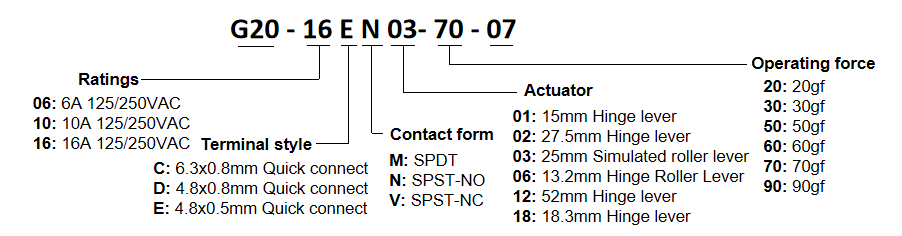

PART NUMBER KEY

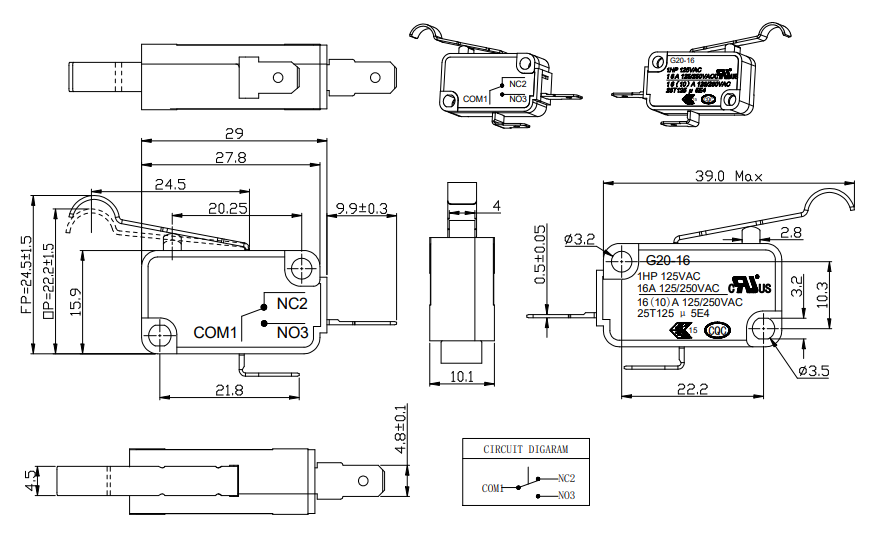

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|

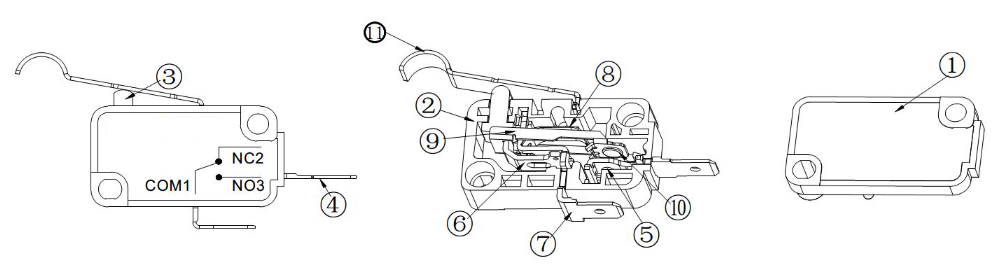

NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Terminal |
Brass |
1 |
D.Ag |
5 |
Contact |
Silver alloy |
1 |
|
6 |
Driver Plate |
Brass |
1 |
D.Ag |
7 |
Terminal |
Brass |
1 |
D.Ag |
8 |
Contact |
Beryllium bronze |
1 |
|
9 |
Blade |
Brass |
1 |
D.Ag |
10 |
Blade |
Silver alloy |
1 |
|
11 |
Press handle |
SUS |
1 |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
