Lever Rice Cooker micro electric switch
Part Number: G20-16CM02-30-1157
The G20-16CM02-30-1157 is a 16 A SPDT snap-action basic switch with a straight lever and chassis mounting, sized for appliance switching such as rice-cooker controls. It carries a 16 A resistive / 10 A inductive rating at 125 / 250 V AC and a 1 HP motor rating, and is rated for 1,000,000 mechanical cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 16 A resistive / 10 A inductive at 125 / 250 V AC, also rated 1 HP for motor loads
- SPDT (COM / NO / NC) snap-action contacts with a straight lever, 30 ± 15 gf operating force
- High 1,000,000-cycle mechanical life for long service
- 1500 V dielectric strength and ≤200 mΩ contact resistance
- UL Recognized component (cURus) and CQC certified, –25 °C to +125 °C range
Applications
SPECIFICATIONS
| Part Number | G20-16CM02-30-1157 |
|---|---|
| Switch Type | Micro switch (snap-action basic switch) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Straight leaf-spring lever (stainless steel) |
| Mounting / Terminal | Chassis mount (2 mounting holes), 3 terminals |
| Body Size | 29 × 10.1 × 15.9 mm |
| Rated Current / Voltage | 16 A resistive, 10 A inductive at 125 / 250 V AC; 1 HP |
| Operating Force (OF) | 30 ± 15 gf |
| Contact Resistance | ≤200 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1500 VAC, 1 min |
| Mechanical Life | 1,000,000 cycles |
| Electrical Life | 10,000 cycles at 16 A 250 V AC |
| Operating Temperature | –25 °C to +125 °C |
| Approvals | UL Recognized component (cURus); CQC certified |
| Housing Material | PBT (30% glass-filled) |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This 16 A lever basic switch suits appliance and light-industrial switching that needs long life and high current: rice-cooker and small-appliance controls, automotive under-hood modules, industrial control panels, and automation. Chassis mounting and a 1,000,000-cycle mechanical life fit designs that switch line-powered loads many times over their service life.

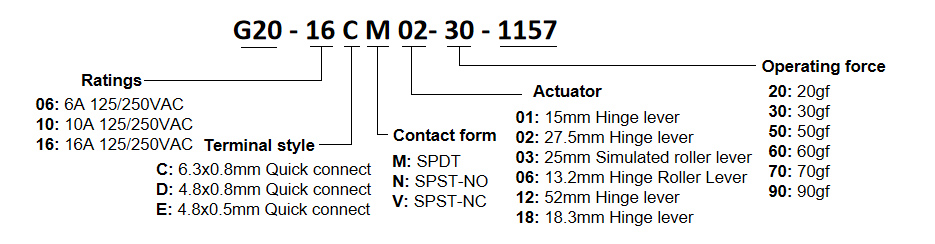

PART NUMBER KEY

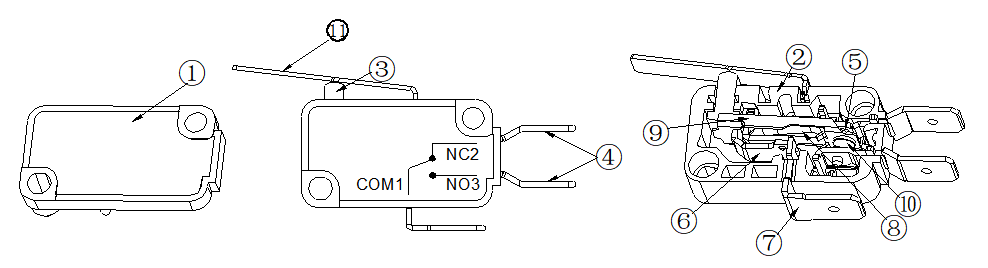

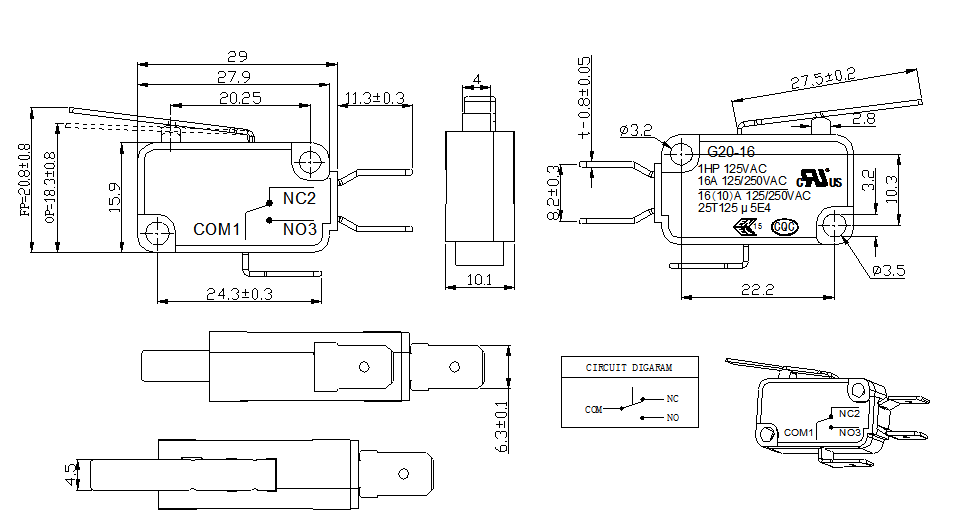

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Terminal |
Brass |
2 |
D.Ag |
5 |
Contact |
Silver alloy |
2 |
|
6 |
Driver Plate |
Brass |
1 |
D.Ag |
7 |
Terminal |
Brass |
1 |
D.Ag |
8 |
Contact |
Beryllium bronze |
1 |
|
9 |
Blade |
Brass |
1 |
D.Ag |
10 |
Blade |
Silver alloy |
1 |
|
11 |
Press handle |
SUS |
1 |
