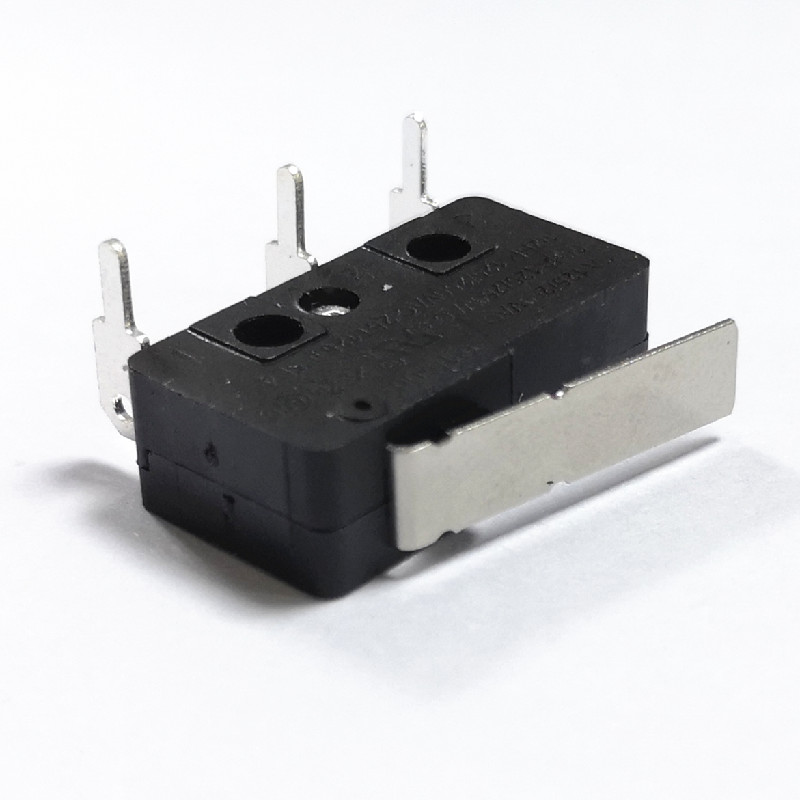

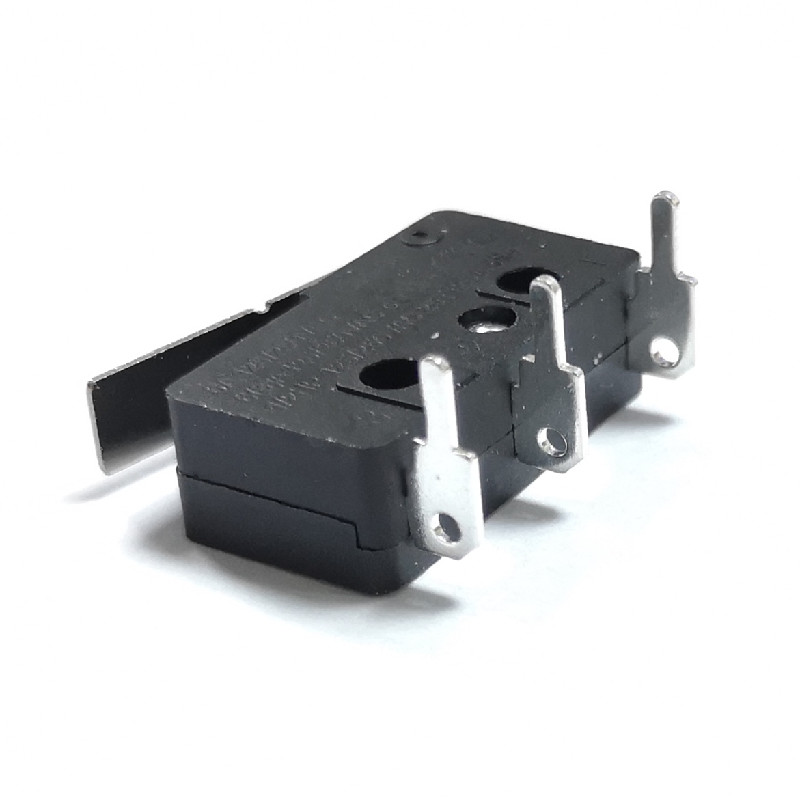

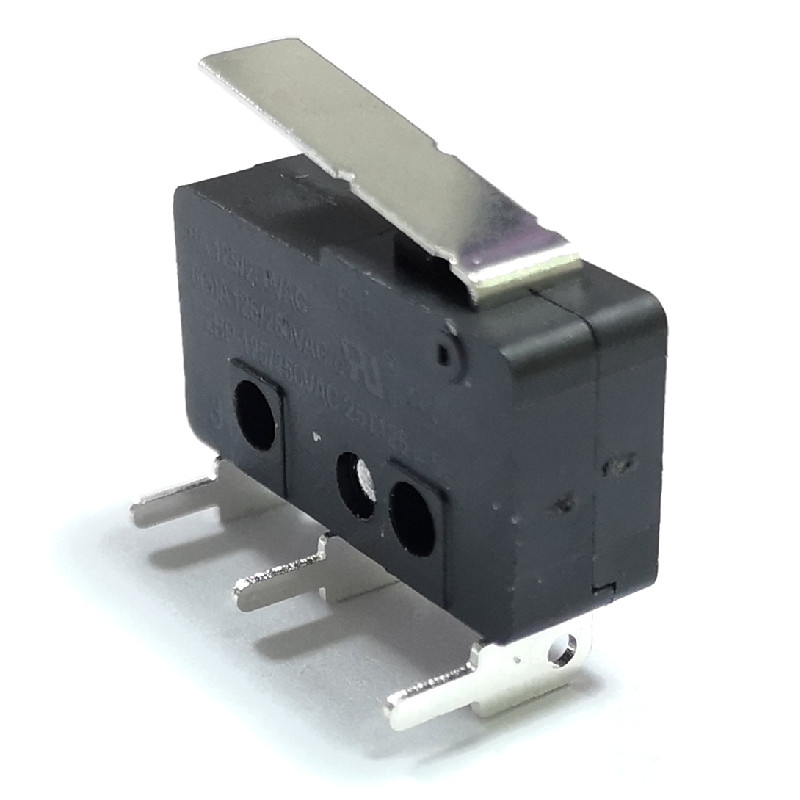

Bend Foot 90 Degrees Button 3 Pin Micro Switch 6a 125v
Part Number: G15-06DM01-40-1021
The G15-06DM01-40-1021 is a 6 A SPDT snap-action micro switch with bend-foot (right-angle) terminals for tight PCB layouts. It carries a 6 A resistive / 3 A inductive rating at 125 / 250 V AC, snaps at a 40 gf operating force, and is rated for 100,000 mechanical cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 6 A resistive / 3 A inductive rated at 125 / 250 V AC, also marked 1/2 HP for motor loads
- SPDT (COM / NO / NC) snap-action contacts, silver alloy, ≤100 mΩ contact resistance
- Bend-foot (right-angle) PCB solder terminals for low-profile mounting in tight layouts
- 40 ± 20 gf operating force, 12.2 mm operating position, 3.2 mm pretravel
- 100,000-cycle mechanical life, wide –25 °C to +125 °C operating range
Applications
SPECIFICATIONS
| Part Number | G15-06DM01-40-1021 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Straight leaf-spring lever (button-style) |
| Mounting / Terminal | Right-angle (bend-foot) PCB solder terminals, 3 pin |
| Body Size | 19.8 × 6.6 × 10 mm |
| Rated Current / Voltage | 6 A resistive, 3 A inductive at 125 / 250 V AC; 1/2 HP |
| Operating Force (OF) | 40 ± 20 gf |
| Return Force (RF) | 10 gf min |
| Operating Position (OP) | 12.2 ± 1.0 mm |
| Pretravel (PT) | 3.2 mm max |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1000 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles at 6 A 250 V AC |
| Operating Temperature | –25 °C to +125 °C |
| Approvals | CQC certified |
| Housing Material | PBT (30% glass-filled), black |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This bend-foot micro switch suits compact appliance and automation assemblies where board space is limited: small home-appliance controls, automotive electronics modules, industrial control boards, and office-equipment mechanisms. The right-angle terminals let the switch sit low against the PCB, and the 6 A resistive rating covers common line-powered switching loads.

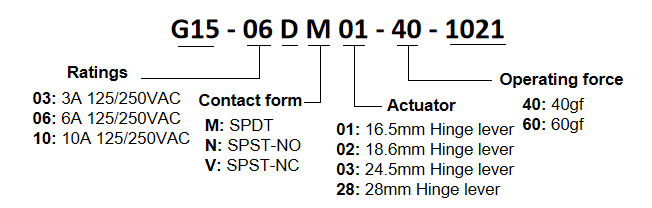

PART NUMBER KEY

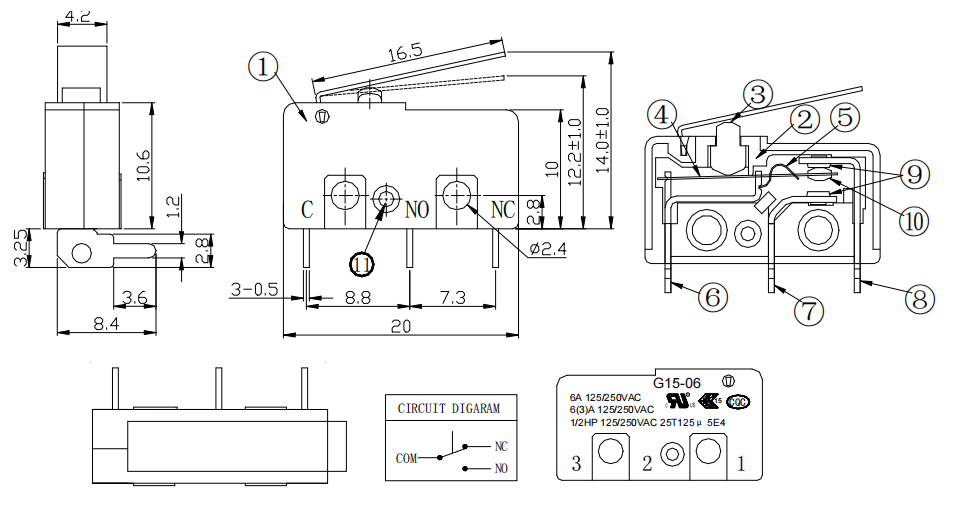

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Blade |
Beryllium bronze |
1 |
|
5 |
Blade |
Beryllium bronze |
1 |
|
6 |
Terminal |
Brass |
1 |
D.Ag |
7 |
NC Terminal |
Brass |
1 |
D.Ag |
8 |
NO Terminal |
Brass |
1 |
D.Ag |
9 |
Contact |
Silver alloy |
2 |
D.Ag |
10 |
Contact |
Silver alloy |
1 |
D.Ag |
11 |
Press handle |
SUS |
1 |
|
12 |
Rivet |
AL |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
