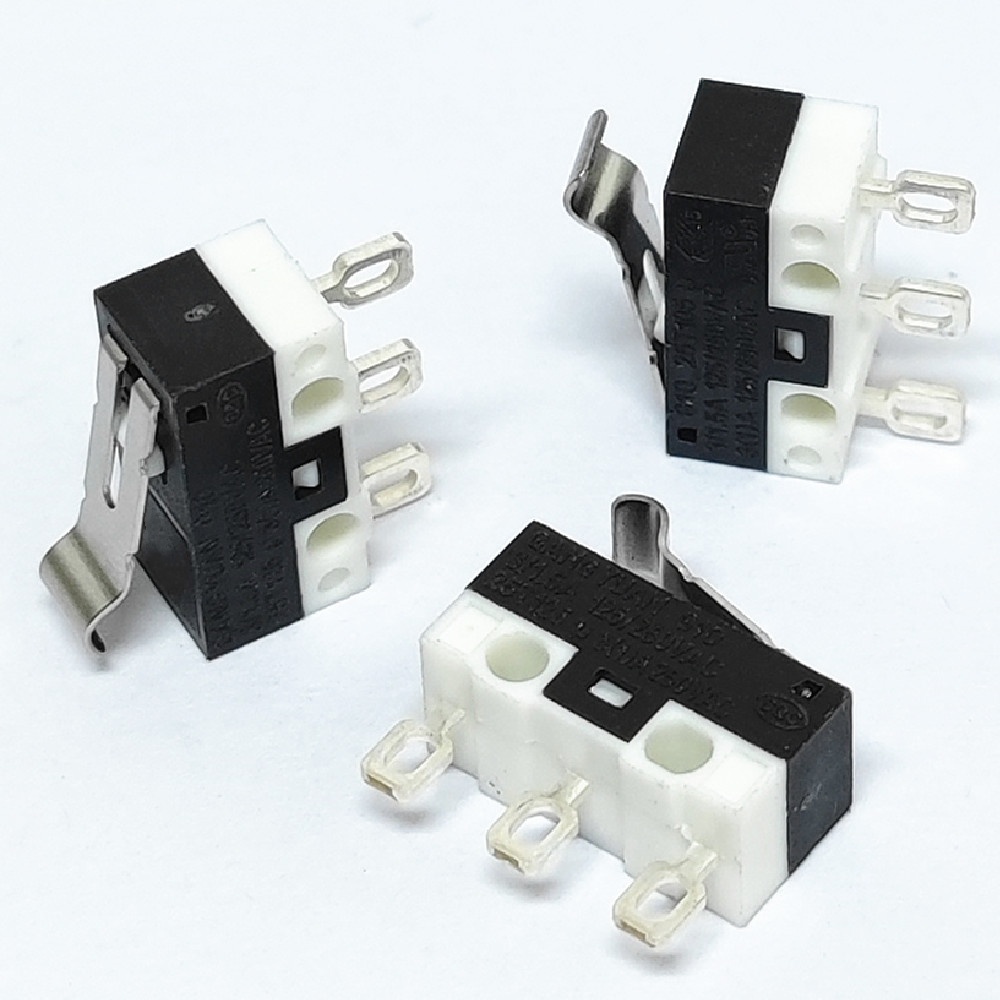

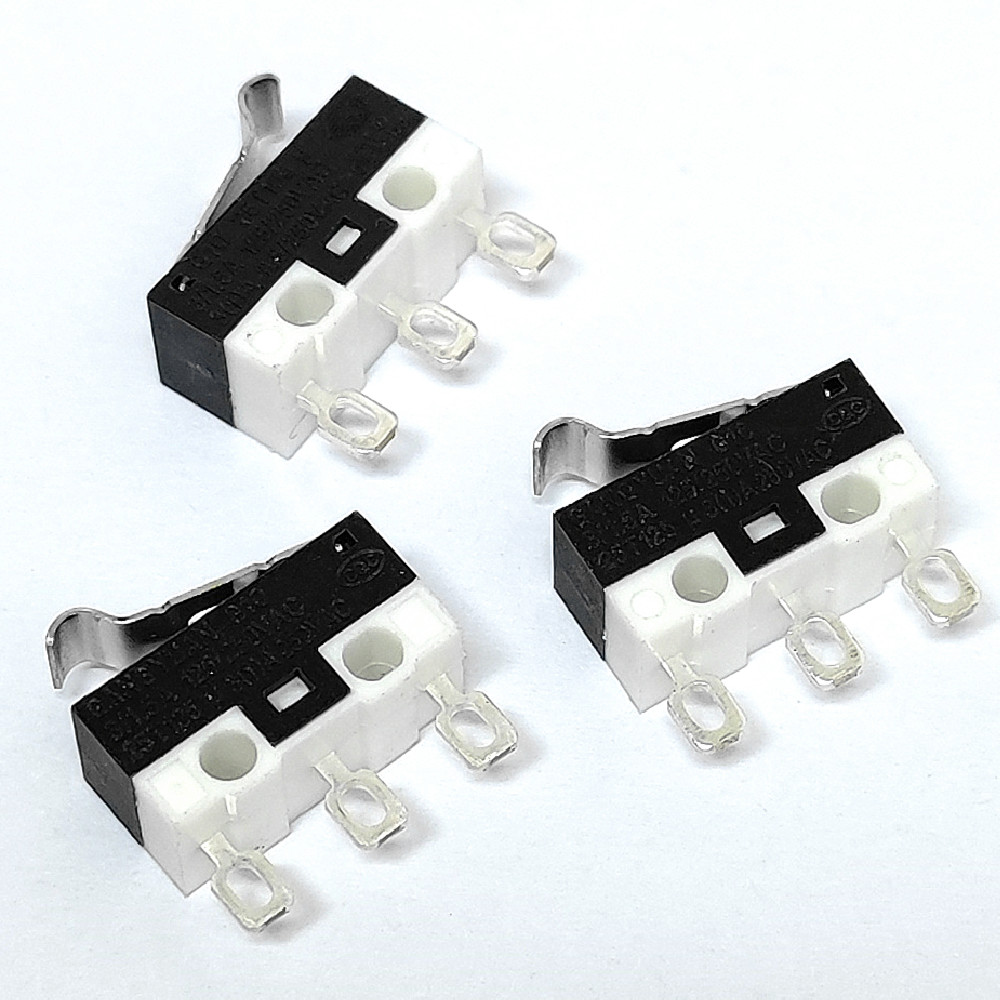

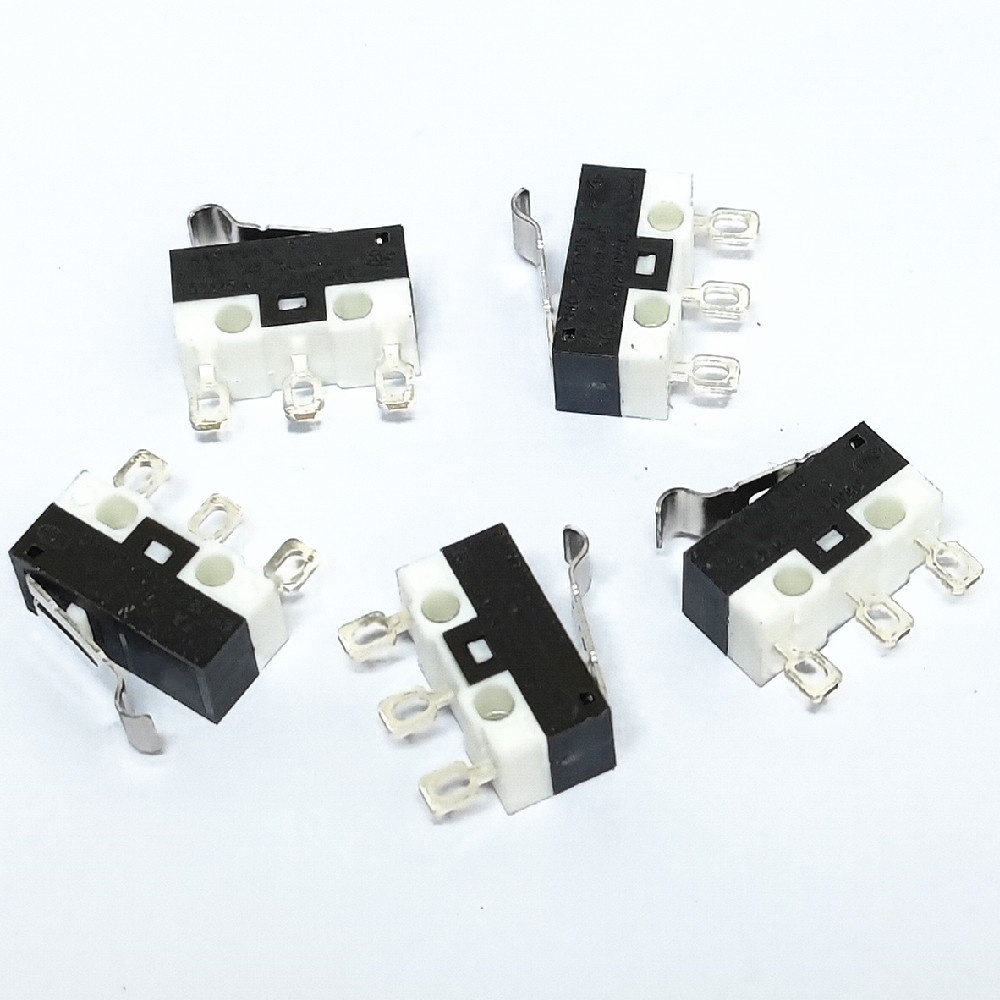

Miniature Snap Action Mini Micro Switch for Mouse
Part Number: G10-1-17NM-60-1147
The G10-1-17NM-60-1147 is a subminiature SPDT snap-action micro switch with a simulated-roller lever actuator, rated 1 A at 125 V AC. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- SPDT snap-action contacts (COM / NO / NC)
- Simulated-roller lever actuator on a 12.8 × 5.8 × 6.6 mm body
- Rated 1 A at 125 V AC, 0.5 A at 250 V AC
- UL recognized and CQC certified
- Mechanical life 100,000 cycles, light ≤60 gf operating force
Applications
SPECIFICATIONS
| Part Number | G10-1-17NM-60-1147 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Simulated-roller lever (stainless steel) |
| Mounting / Terminal | PCB solder pin, 5.08 mm pitch |
| Body Size | 12.8 × 5.8 × 6.6 mm |
| Rated Current / Voltage | 1 A at 125 V AC; 0.5 A at 250 V AC |
| Operating Force (OF) | ≤60 gf |
| Return Force (RF) | 10 gf (min) |
| Operating Position (OP) | 9.5 ±0.8 mm |
| Pretravel (PT) | 2.7 mm (max) |
| Contact Resistance | ≤200 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 500 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles (1 A 125 V AC) |
| Operating Temperature | –25 °C to +85 °C |
| Approvals | UL recognized, CQC certified |
| Housing Material | PBT (30% glass-filled) |
| Contact Material | Silver alloy / beryllium bronze |
| Terminal Material | Brass and T3 copper, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The G10-1-17NM is a simulated-roller lever snap-action switch for smooth actuation in consumer electronics such as gaming mice, and in industrial control equipment. The compact SPDT format also suits home appliances and automotive interior controls.

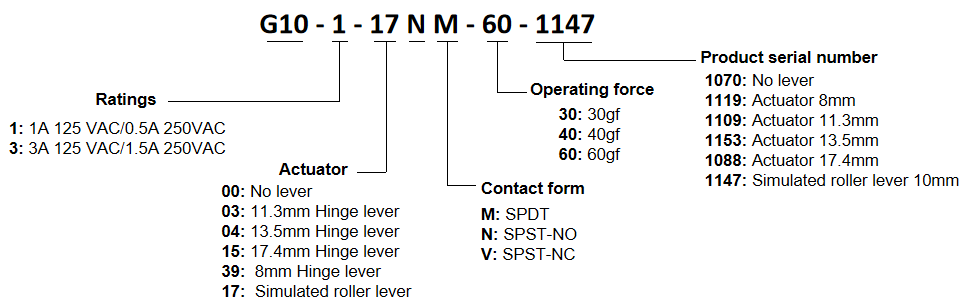

PART NUMBER KEY

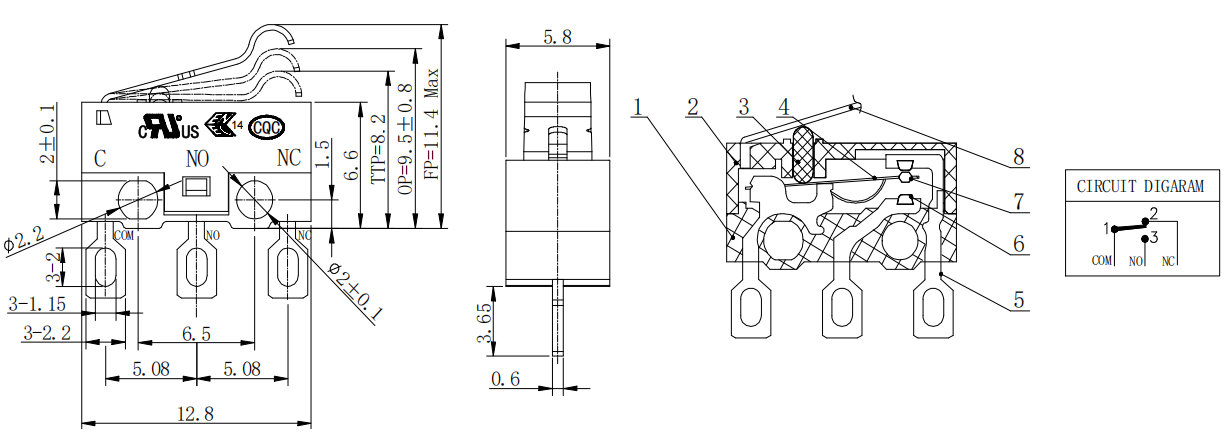

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Base |
PBT 30%GF |
1 |
White |
2 |
Upper cover |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
White |
4 |
Leaf spring |
Beryllium bronze |
1 |
|
5 |
Connecting terminal |
Brass |
1 |
D.Ni D.Ag |
6 |
Terminal silver point |
T3 |
2 |
D.Ni D.Ag |
7 |
Shrapnel Silver Point |
Silver alloy |
1 |
|
8 |
Press handle |
SUS |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
