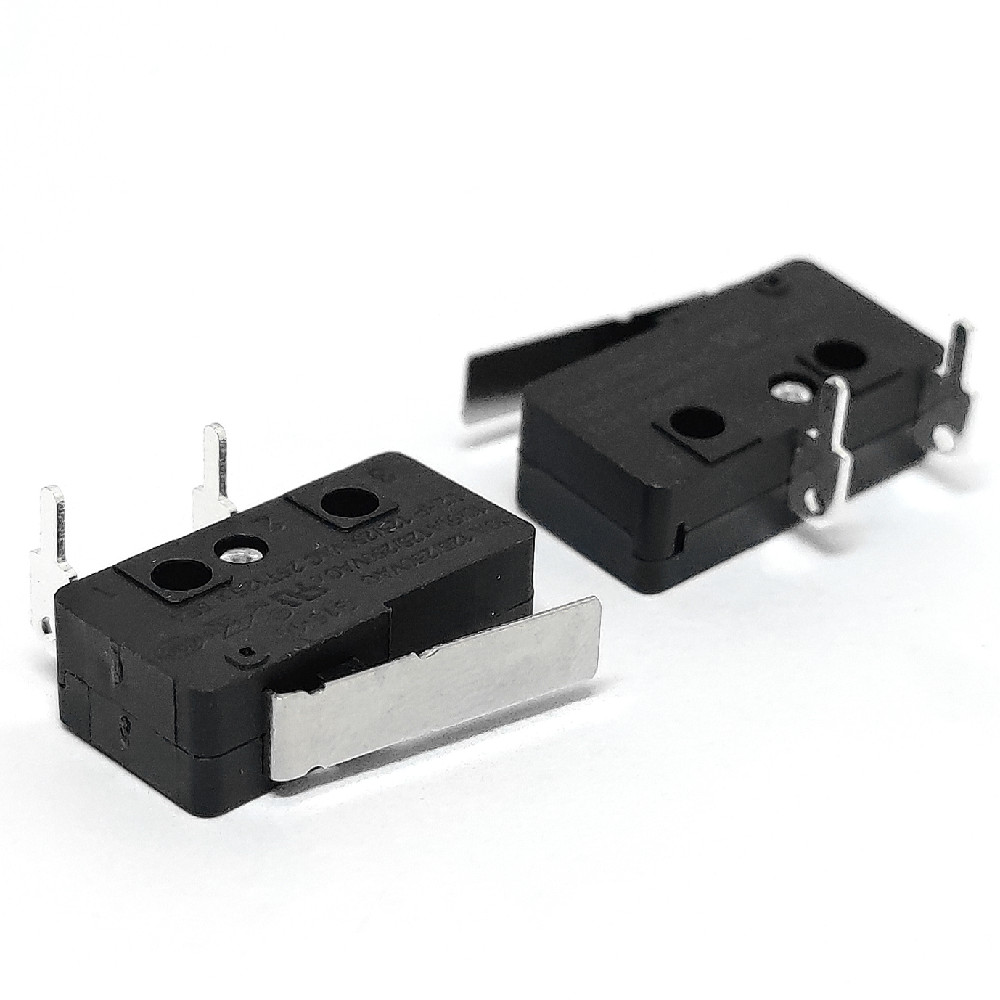

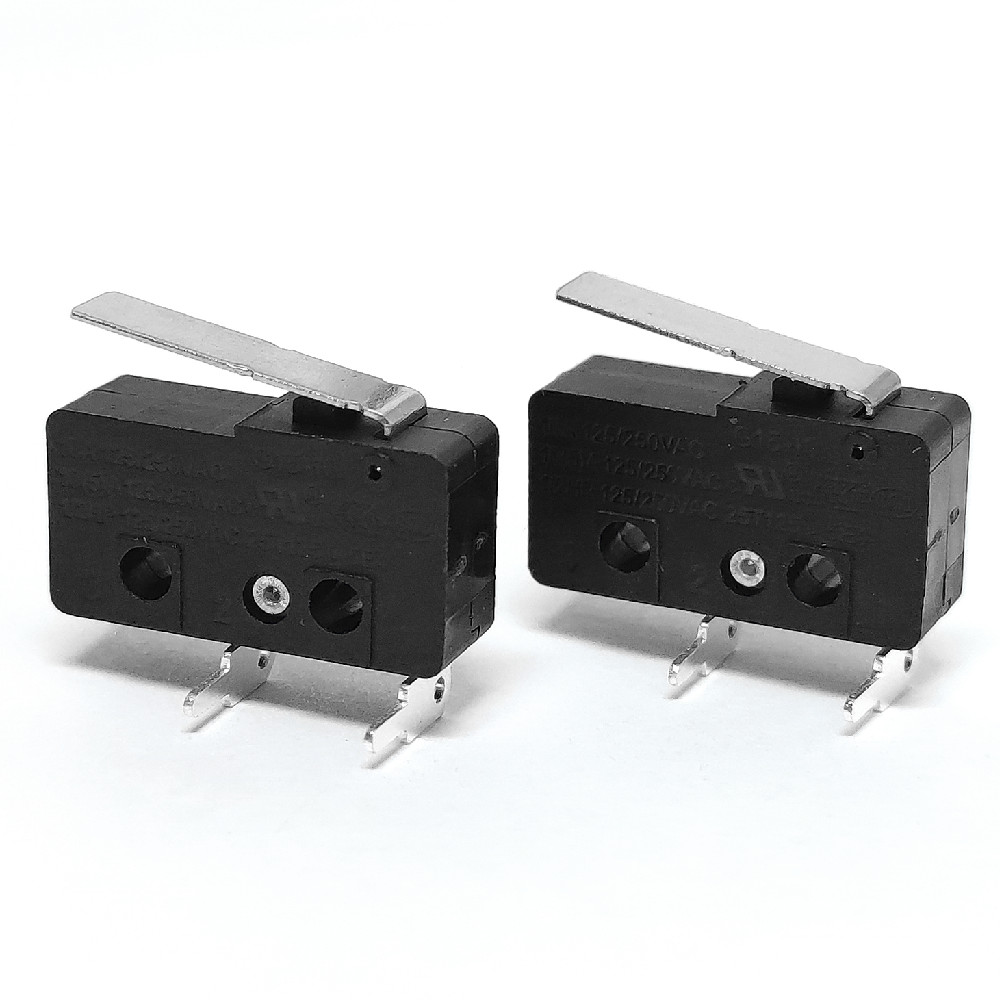

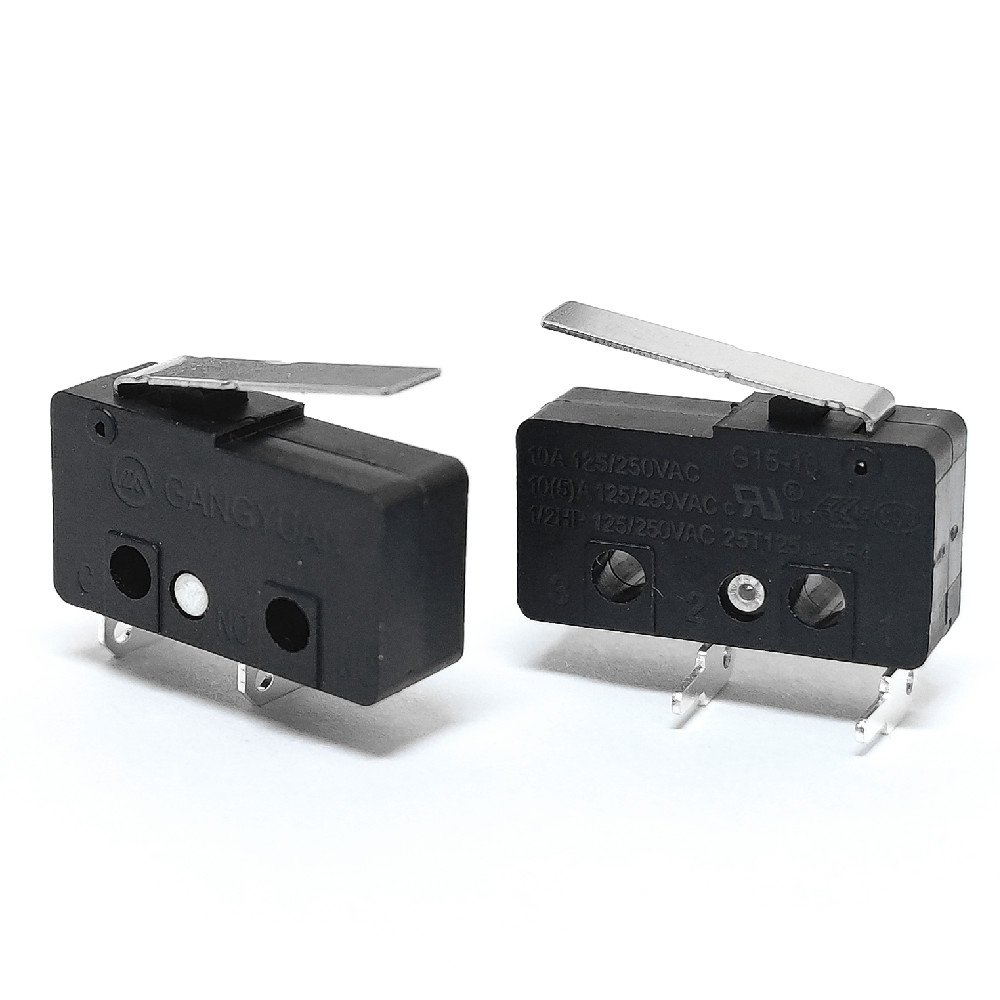

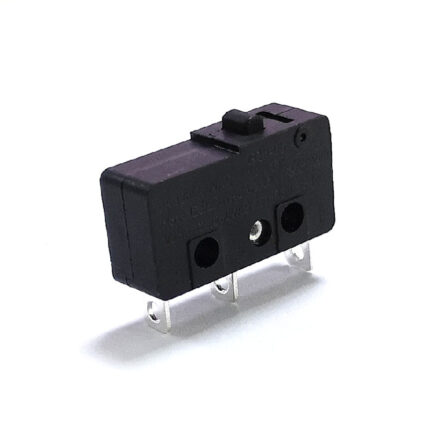

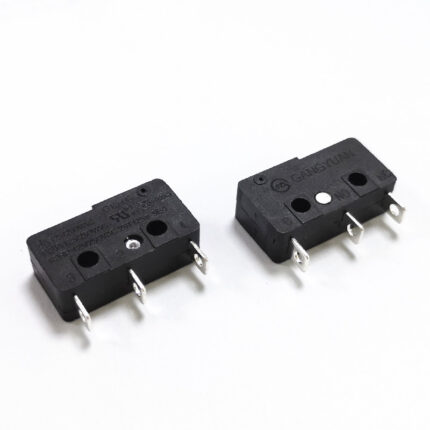

10a 125 250vac micro switch 2 pins
Part Number: G15-10DN01-40-1209
The G15-10DN01-40-1209 is a 10 A SPST-NO snap-action micro switch with two functional PCB terminals (COM and NO). It carries a 10 A resistive / 5 A inductive rating at 125 / 250 V AC, snaps at a 40 gf operating force, and is rated for 100,000 mechanical cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 10 A resistive / 5 A inductive rated at 125 / 250 V AC, also marked 1/2 HP for motor loads
- SPST-NO (COM + NO) snap-action contacts with silver alloy contact material
- Two-terminal PCB solder mounting; the NC position is a non-conducting support tab
- 40 ± 20 gf operating force, 12.2 mm operating position, 3.2 mm pretravel
- 100,000-cycle mechanical life, wide –25 °C to +125 °C operating range
Applications
SPECIFICATIONS
| Part Number | G15-10DN01-40-1209 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPST-NO (COM + NO; NC position is a non-conducting SPCC support terminal) |
| Actuator | Straight leaf-spring lever (button-style) |
| Mounting / Terminal | PCB solder terminals, 2 functional pins (COM + NO) |
| Body Size | 19.8 × 6.6 × 10 mm |
| Rated Current / Voltage | 10 A resistive, 5 A inductive at 125 / 250 V AC; 1/2 HP |
| Operating Force (OF) | 40 ± 20 gf |
| Return Force (RF) | 10 gf min |
| Operating Position (OP) | 12.2 ± 1.0 mm |
| Pretravel (PT) | 3.2 mm max |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1000 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles at 10 A 250 V AC |
| Operating Temperature | –25 °C to +125 °C |
| Approvals | CQC certified |
| Housing Material | PBT (30% glass-filled), black |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated; NC support terminal SPCC, nickel-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This 10 A normally-open micro switch fits line-powered appliance and industrial control circuits that only need a single make contact: home-appliance power switching, automotive accessory modules, industrial control panels, and office-equipment interlocks. The two-terminal layout simplifies wiring where the normally-closed path is not used.

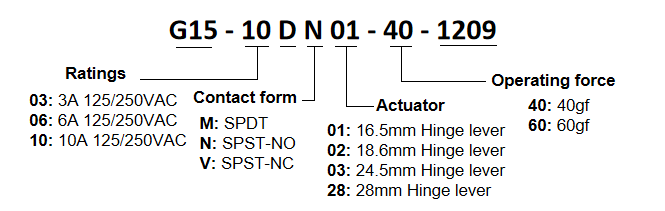

PART NUMBER KEY

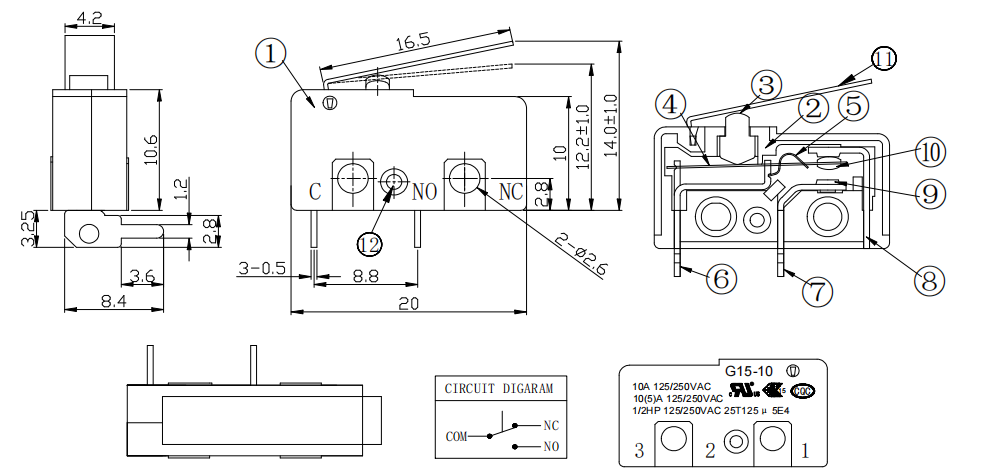

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Blade |
Beryllium bronze |
1 |
|
5 |
Blade |
Beryllium bronze |
1 |
|
6 |
Terminal |
Brass |
1 |
D.Ag |
7 |
NO Terminal |
Brass |
1 |
D.Ag |
8 |
NC Terminal |
SPCC |
1 |
D.Ni |
9 |
Contact |
Silver alloy |
1 |
D.Ag |
10 |
Contact |
Silver alloy |
1 |
D.Ag |
11 |
Press handle |
SUS |
1 |
|
12 |
Rivet |
AL |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
