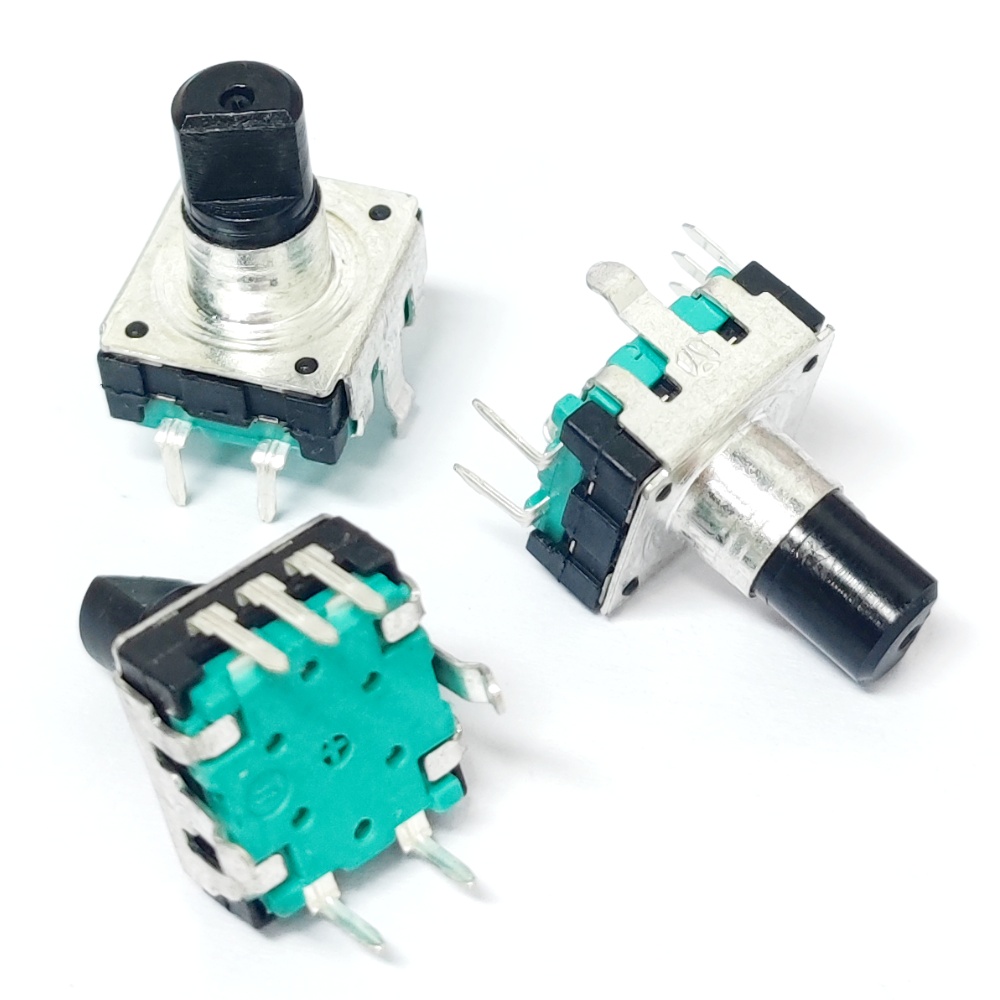

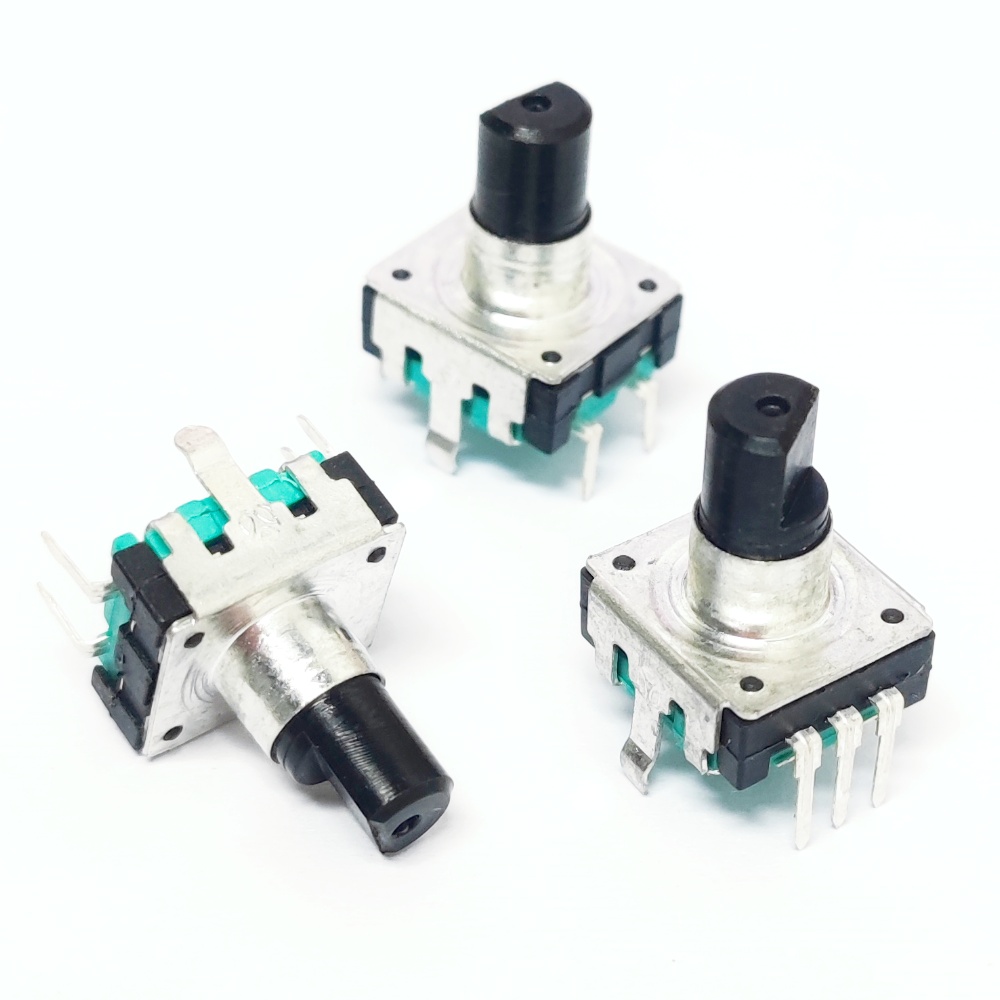

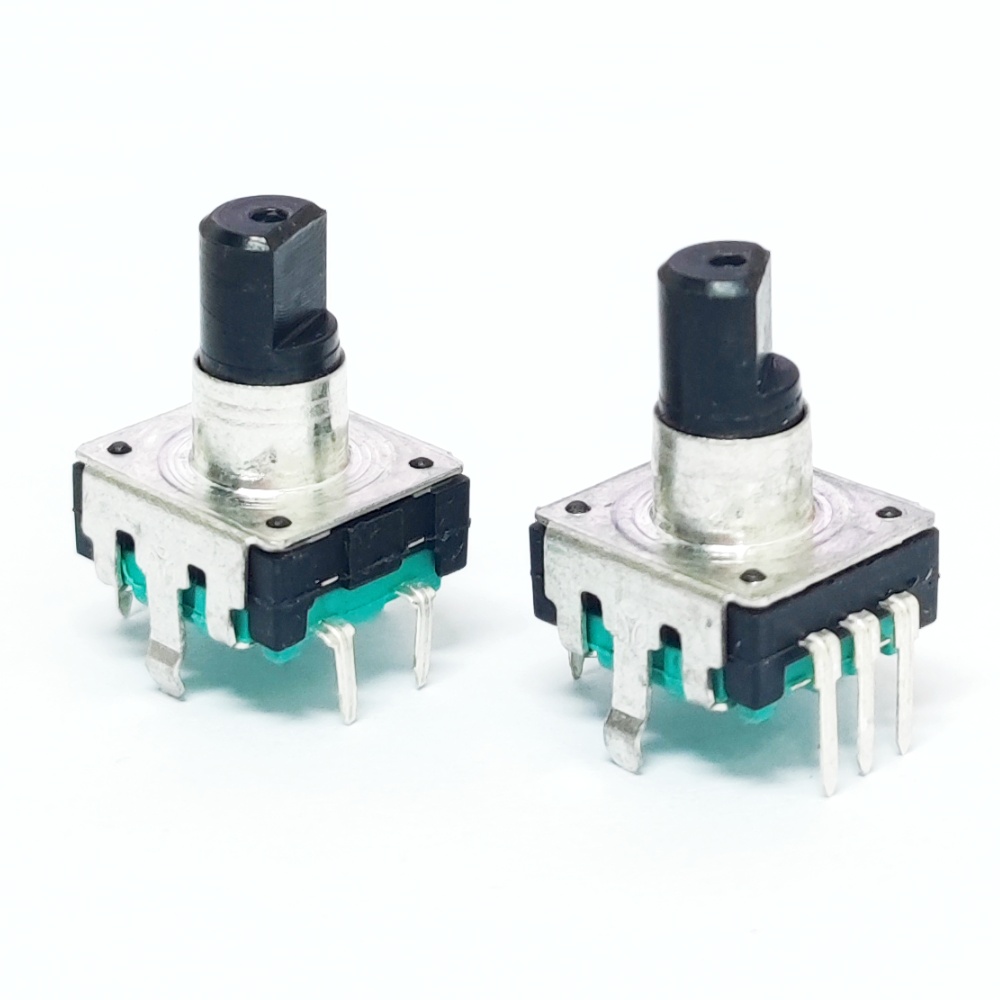

EC12 5 Pin Vertical Switch Rotary Encoder
Part Number: GE1202S-D5-F17.5/5-24P24C-603
FEATURES
- Multiple shaft options
- Momentary push button switch option
- Different resolution and detent options
- Compact design
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC5V |
Resolution |
24 pulses/360° |
Number and position of detent |
24 detents（ step angle: 15°±2°） |
Total ratational angle |
360°（Endless） |
With push button switch |
Yes |
Life Time |
30,000 Cycles |
Operating Temperature Range |
-40±2℃ to +70℃ |
Actuator Type |
Flat shaft |
Mounting Type |
PCB, Through hole |
Length |
12.5mm |
Width |
13.3mm |
Height |
17.5mm |
Packing |
Blister Box |
ROHS |
Yes |

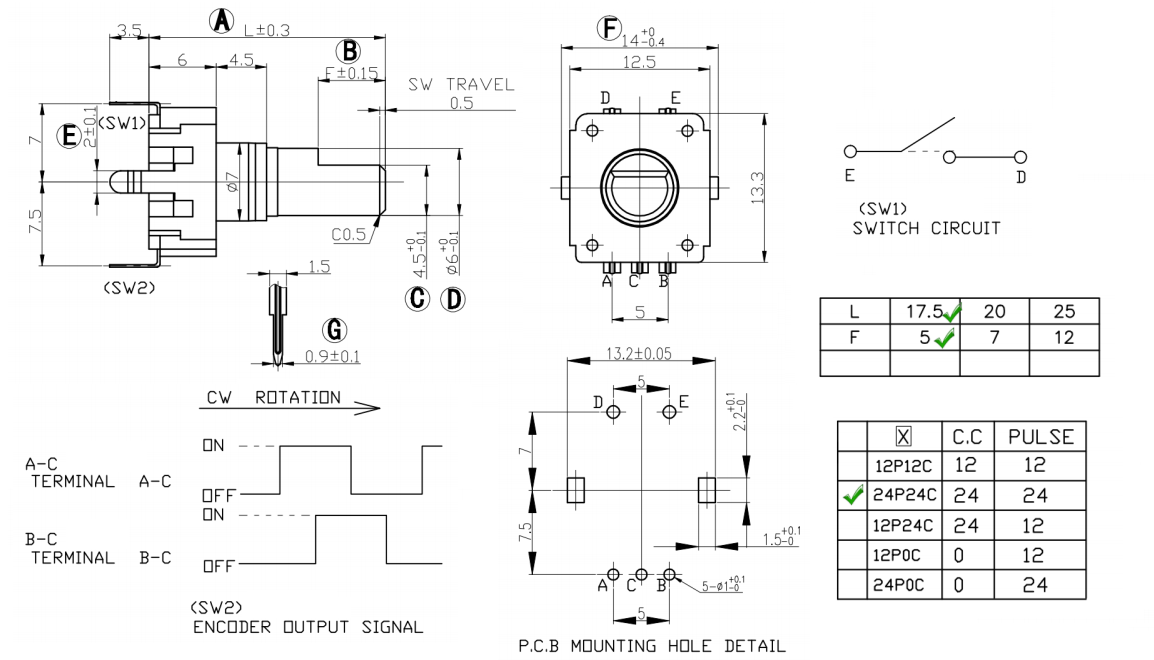

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Bracket |
SPCC |
1 |
|
2 |
Body plastic |
PBT |
1 |
|
3 |
Body plastic |
Copper silver plated |
1 |
|
4 |
Grease |
Grease |
||
5 |
Code disc |
Copper silver plated |
1 |
|
6 |
Code disc plastic |
POM |
1 |
|
7 |
Axis |
PC |
1 |
|
8 |
Contact |
Stainless steel/phosphor bronze |
1 |
|
9 |
Metal dome |
Stainless steel |
1 |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
