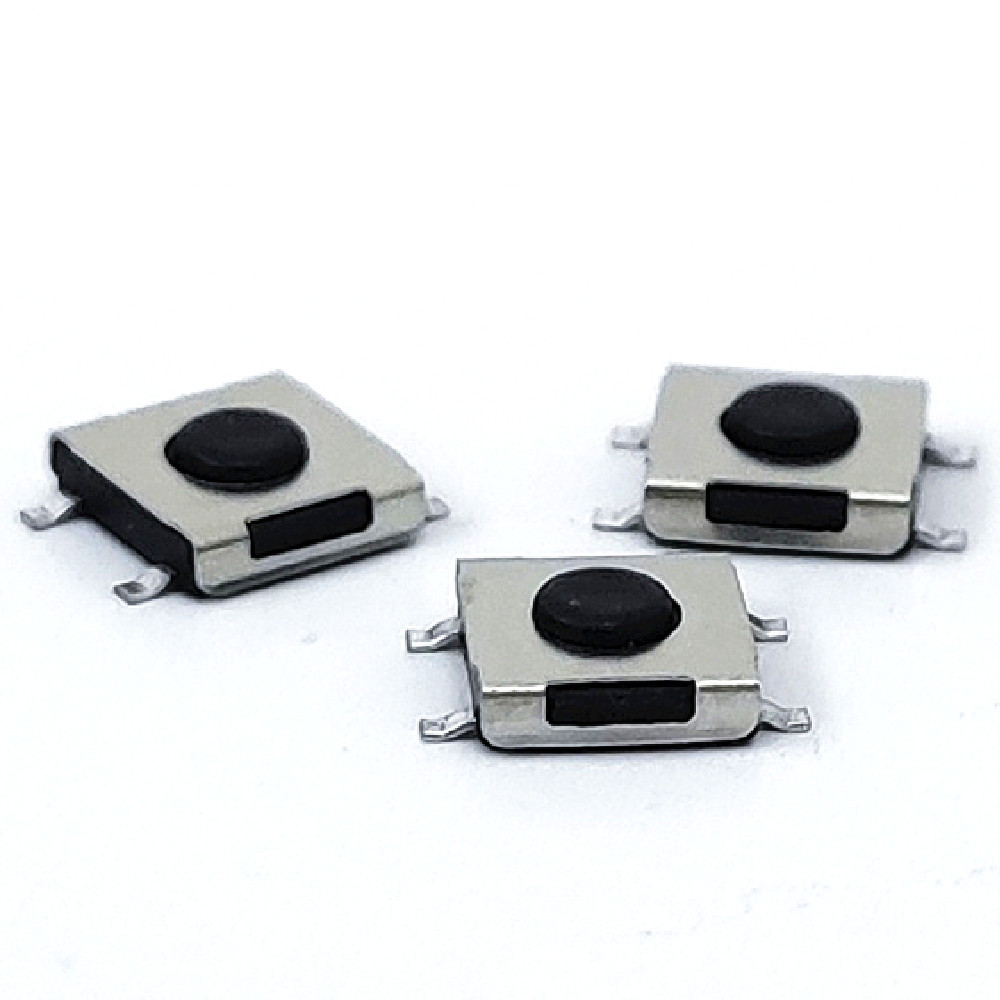

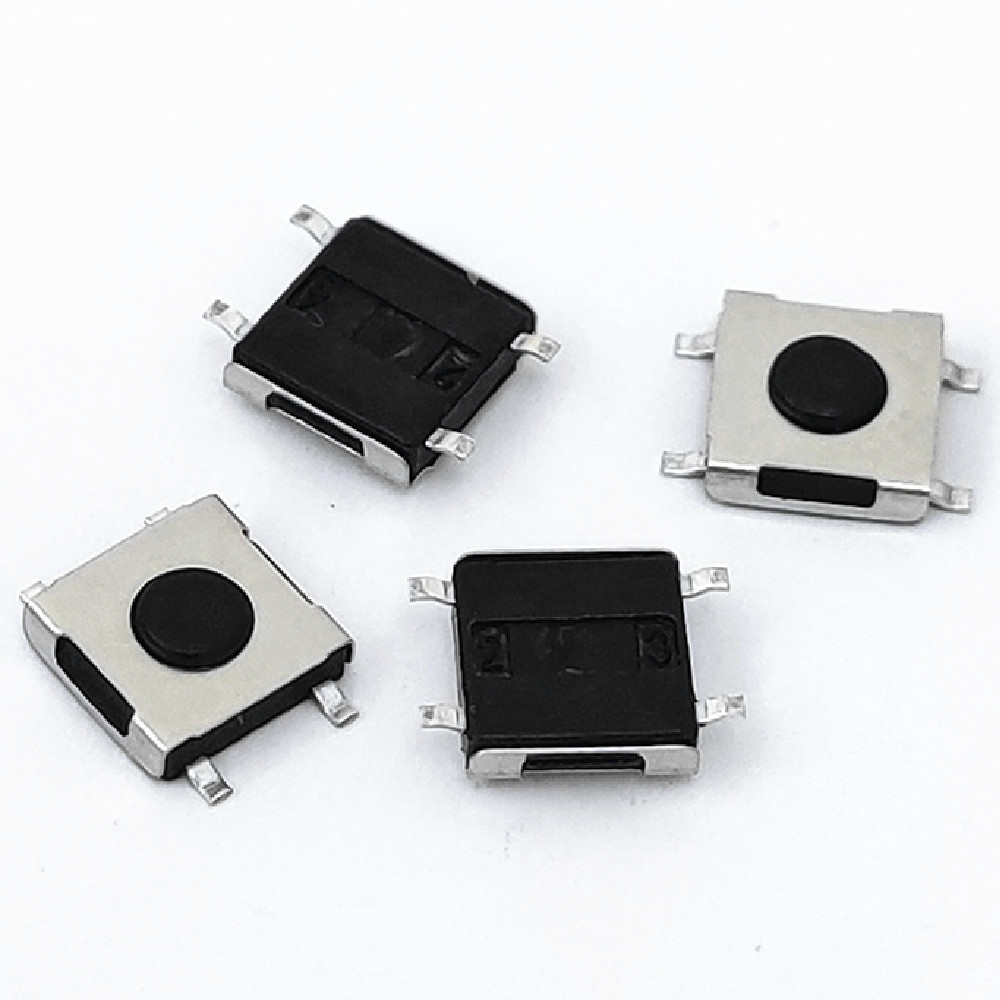

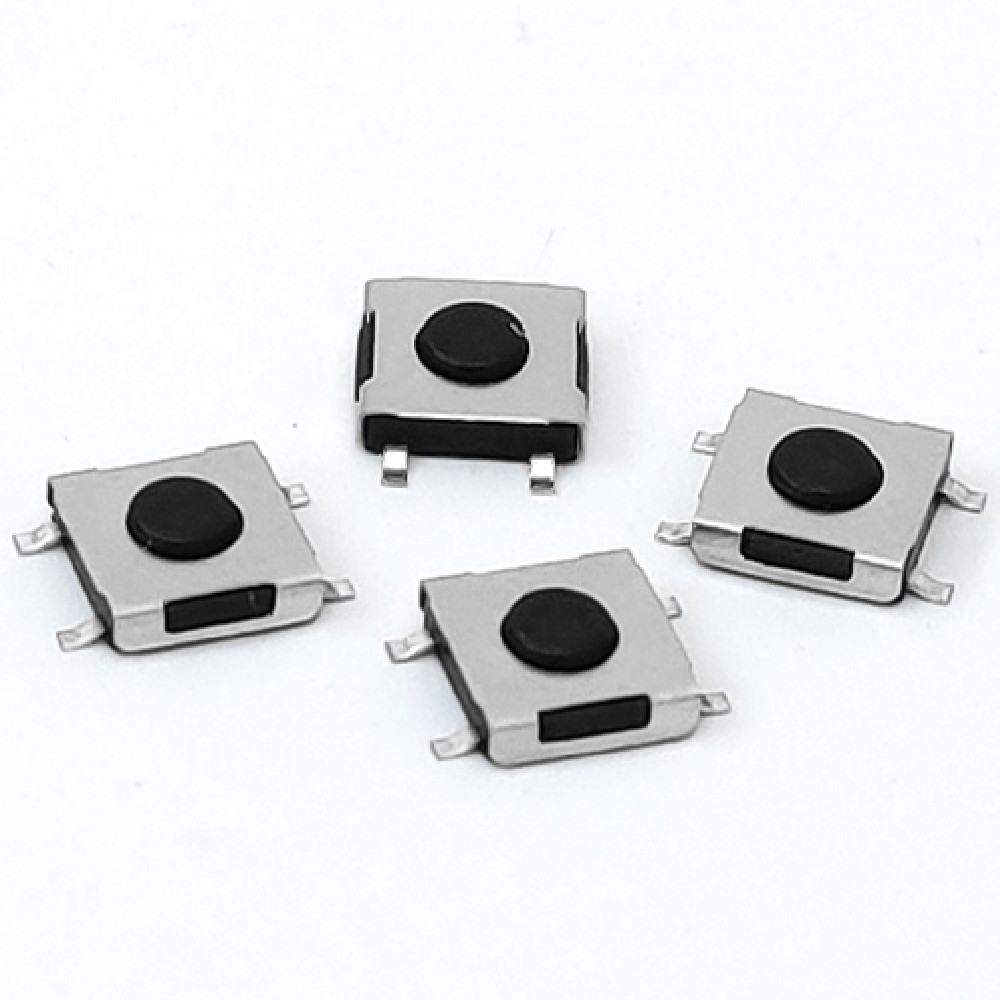

Small 4.5mm Gull wing Tact Switch
Part Number: KAN4544C-0151C0501
FEATURES
- Surface Mount
- Top Actuated
- Choice of actuation force
- Long Life
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC 12V 50mA（Max） DC 1V 10μA （Min） |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
260±50 gf |
Full Travel |
0.25±0.1mm |
Return Force |
20gf Min |
Stem Strength |
5N min |
Operation Life |
500,000 cycles |
Mounting Style |
SMD/SMT |
Length |
4.3mm |
Width |
4.75mm |
Height |
1.5mm |
Packing |
Tape |
ROHS |
Yes |

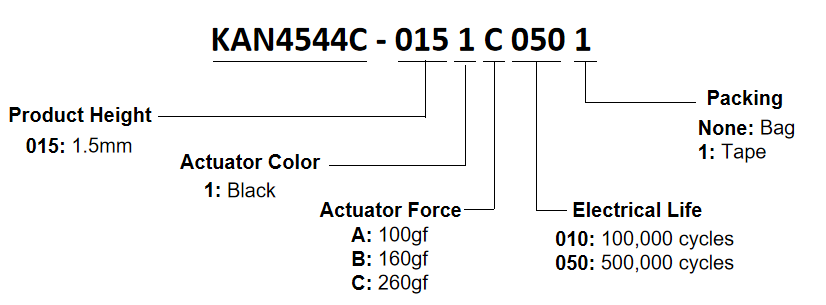

PART NUMBER KEY

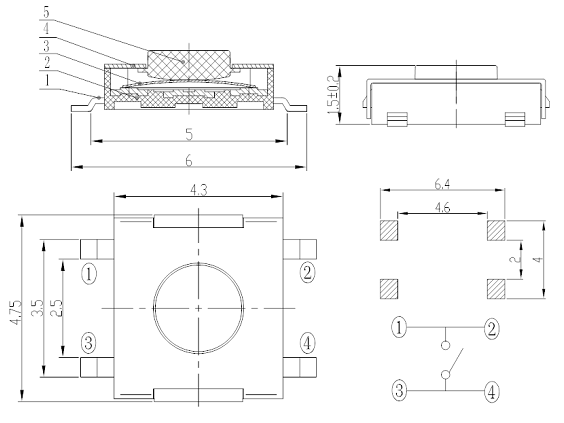

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Phosphor copper |
1 |
Silver Plating |
2 |
Case |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag Plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
FR52 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
1.5 |
| Length (mm) |
4.3 |
| Width (mm) |
4.75 |
