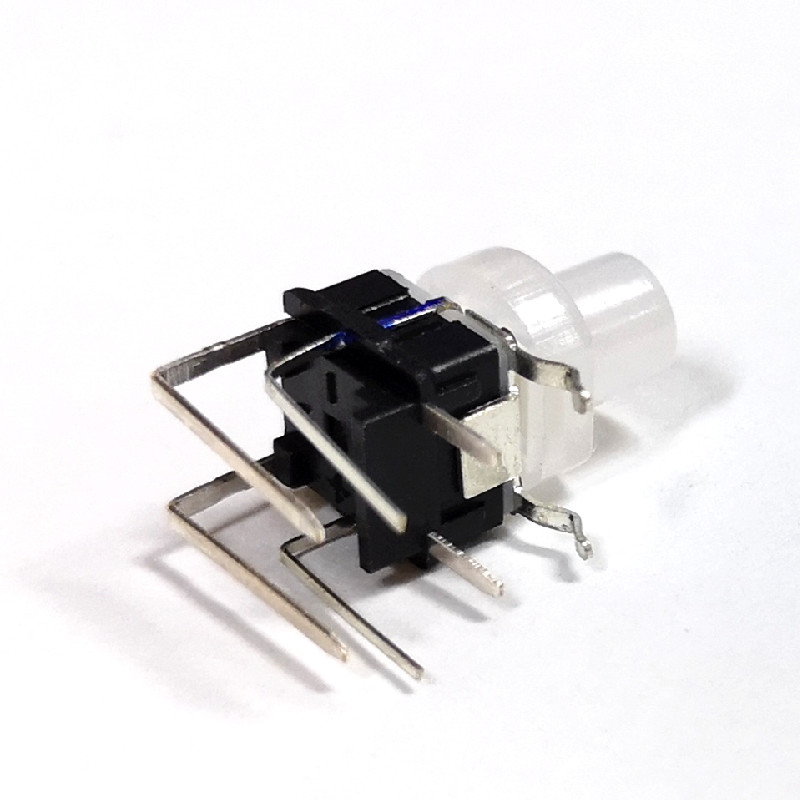

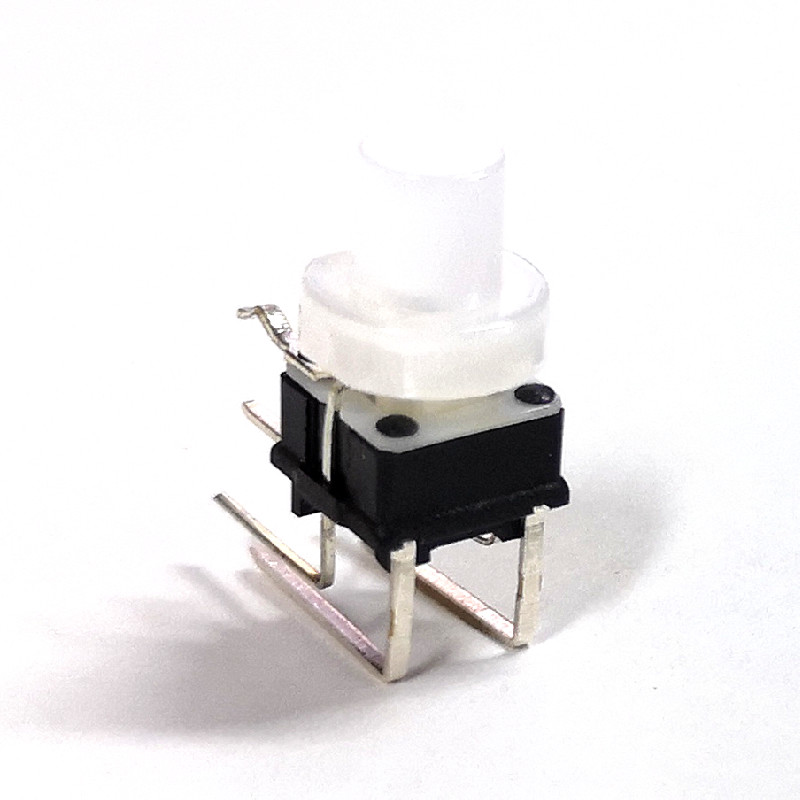

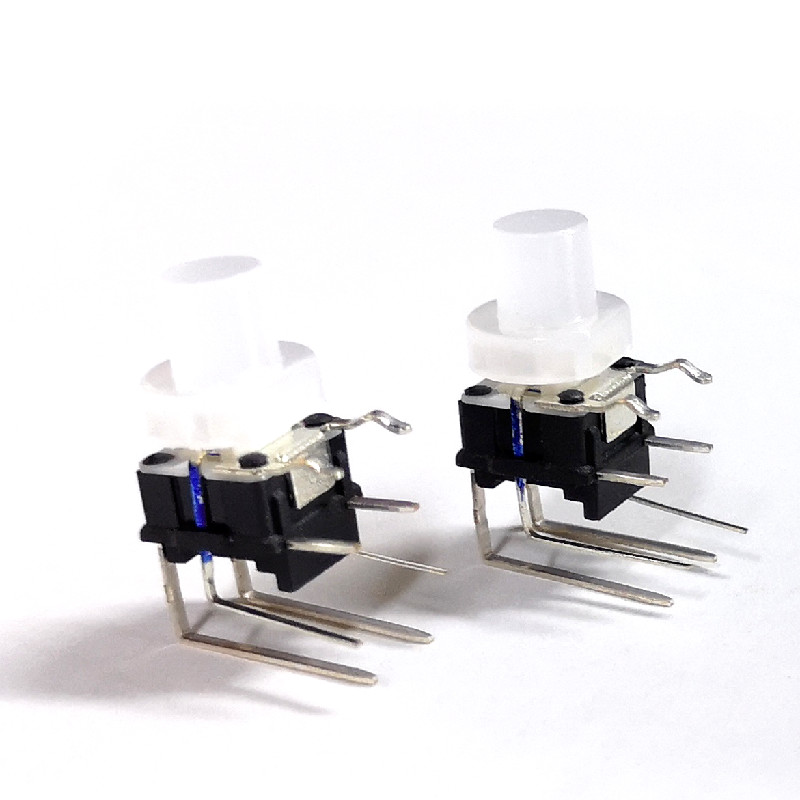

Right Angle Illuminiated Tact Switch With Cap
Part Number: KAN6831-1223C010-83
FEATURES
- Several LED colors
- Long life
- Right angle thru-hole
- Compact Size
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC30V 30mA |
Circuit |
SPST-NO |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
260±70 gf |
Full Travel |
0.25±0.1mm |
Return Force |
20gf Min |
Stem Strength |
20N min |
Operation Life |
100,000 cycles |
Mounting Style |
Through Hole |
Length |
6.8mm |
Width |
6.8mm |
Height |
12.2mm |
LED Color |
Blue |
ROHS |
Yes |

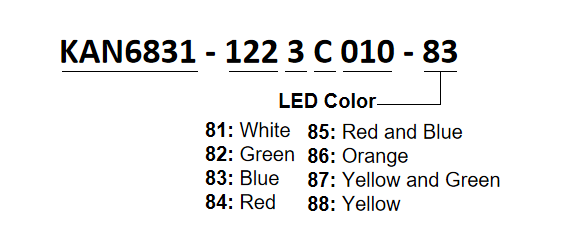

PART NUMBER KEY

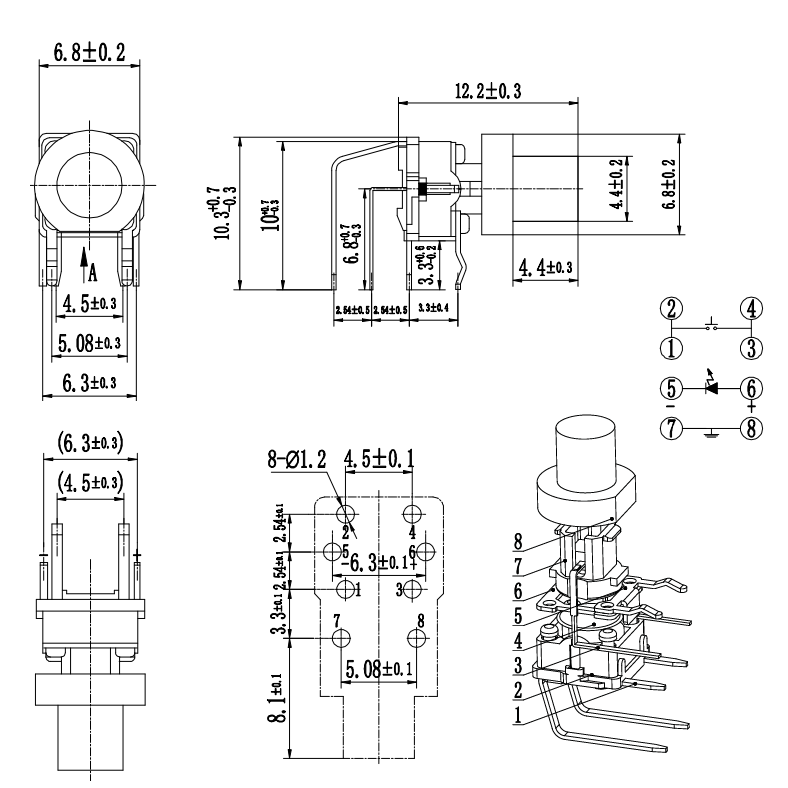

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.3mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
H62 |
1 |
Ag plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
LED |
1 |
Blue |
|
4 |
Contact |
SUS |
1 |
Ag plating |
5 |
Earth Tag |
H62 |
1 |
Ag plating |
6 |
Cover |
PC |
1 |
White |
7 |
Stem |
PA66 |
1 |
White |
8 |
Cap |
PC |
1 |
| Mounting Style |
Through Hole |
|---|---|
| ILLumination |
Yes |
| IP Rating |
No IP Rating |
| Height (mm) |
12 |
| Length (mm) |
6.8 |
| Width (mm) |
6.8 |
