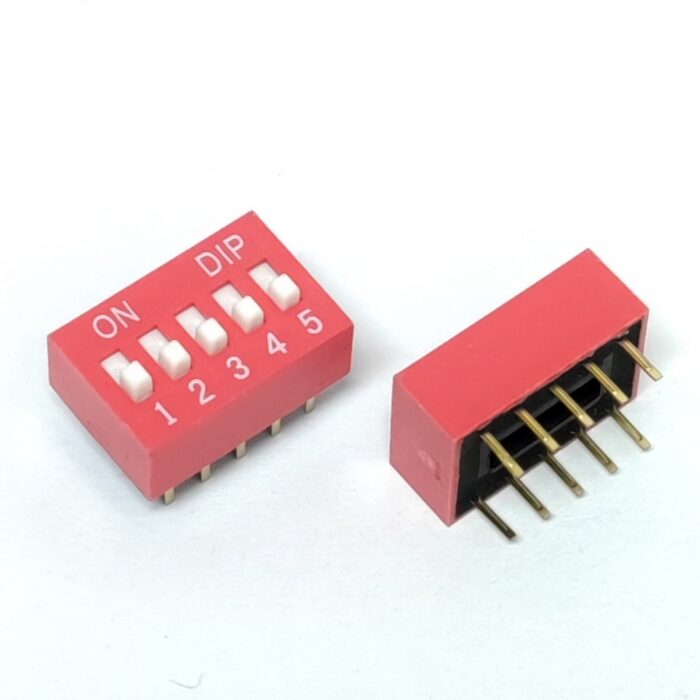

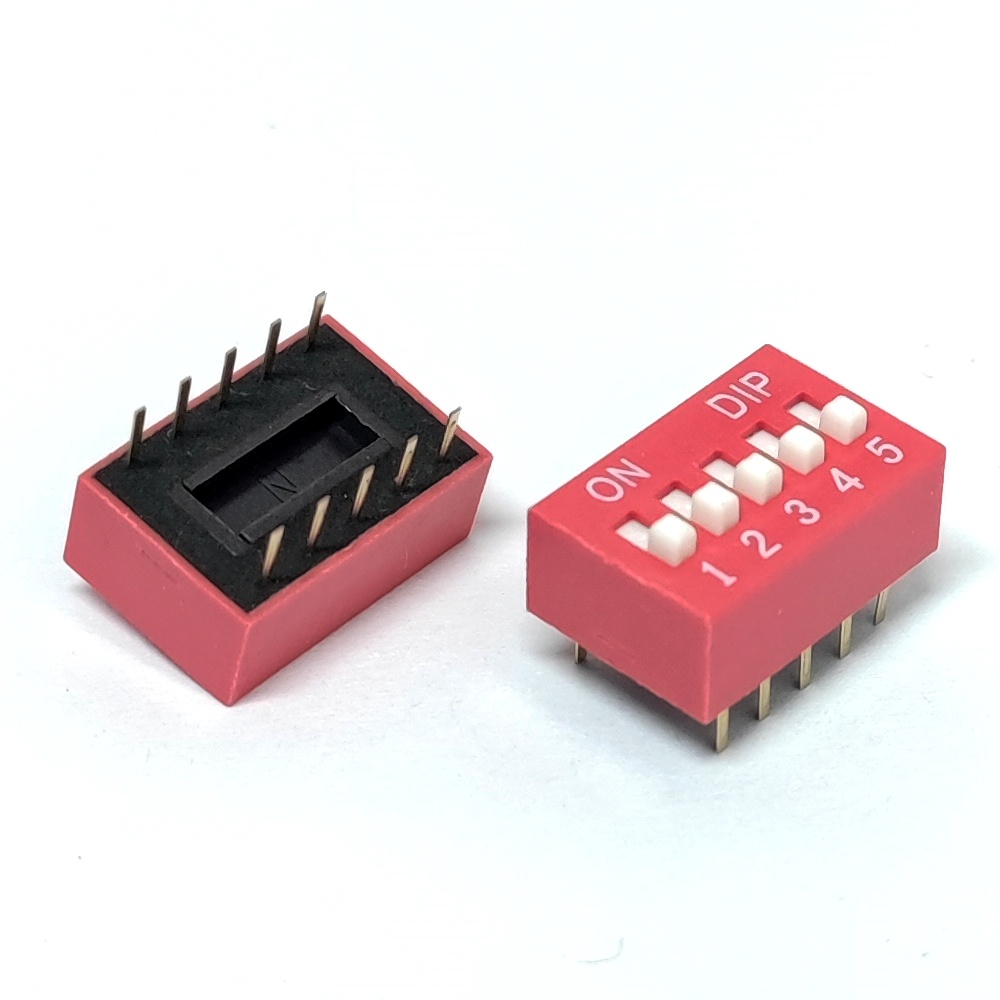

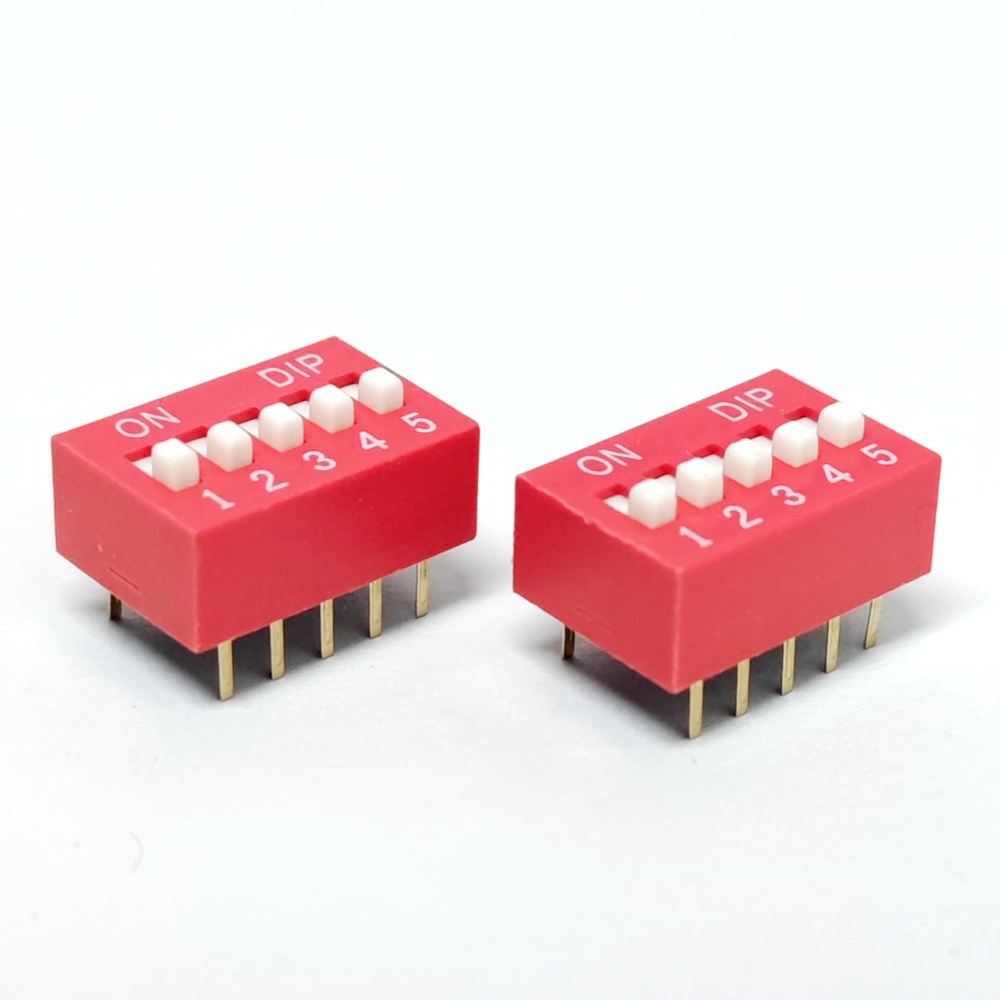

Red Vertical 5 bit SPST Slide Dip Switch
Part Number: GDS05H-R2
FEATURES
- 1~12 pole options
- Raised actuator
- 2.54mm pitch
- Through hole
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
25mA at 24VDC |
Number of Positions |
5 |
Contact Resistance |
100mΩ max |
Insulation Resistance |
100MΩ at 500VDC |
Operating Force |
Max 1000gf |
Life Time |
2,000 cycles |
Operating Temperature Range |
-25℃~+85℃ |
Actuator Type |
Slide (Standard) |
Mounting Type |
Through hole |
Length |
14.26mm |
Width |
9.6mm |
Height |
6.6mm |
Packing |
Tube |
ROHS |
Yes |

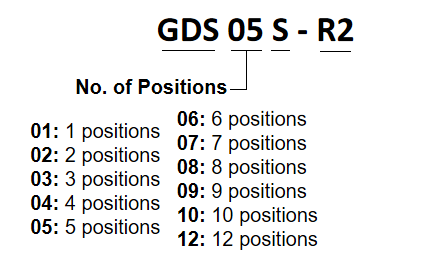

PART NUMBER KEY

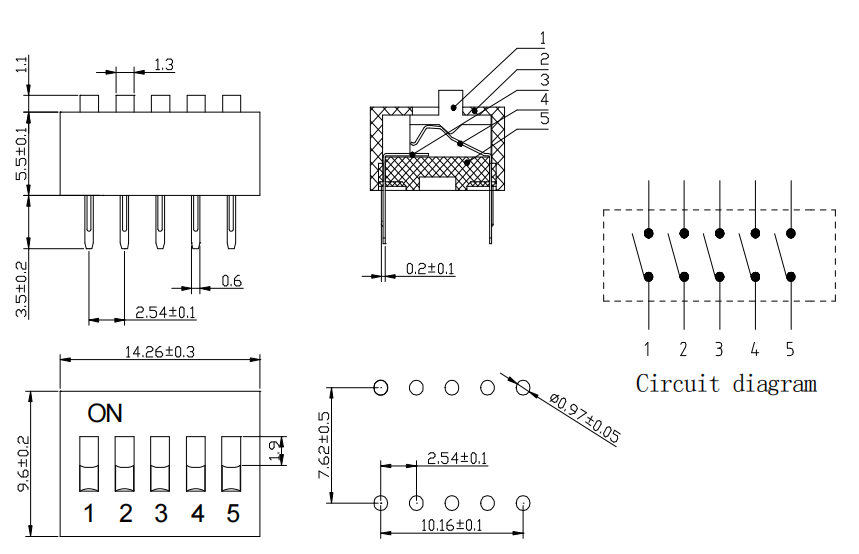

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Stem |
PBT |
5 |
White |
2 |
Cover |
PBT |
1 |
Red |
3 |
Static contact |
Phosphor copper |
5 |
Gold plating |
4 |
Moving contact |
Phosphor copper |
5 |
Gold plating |
5 |
Base |
PBT |
1 |
Black |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
