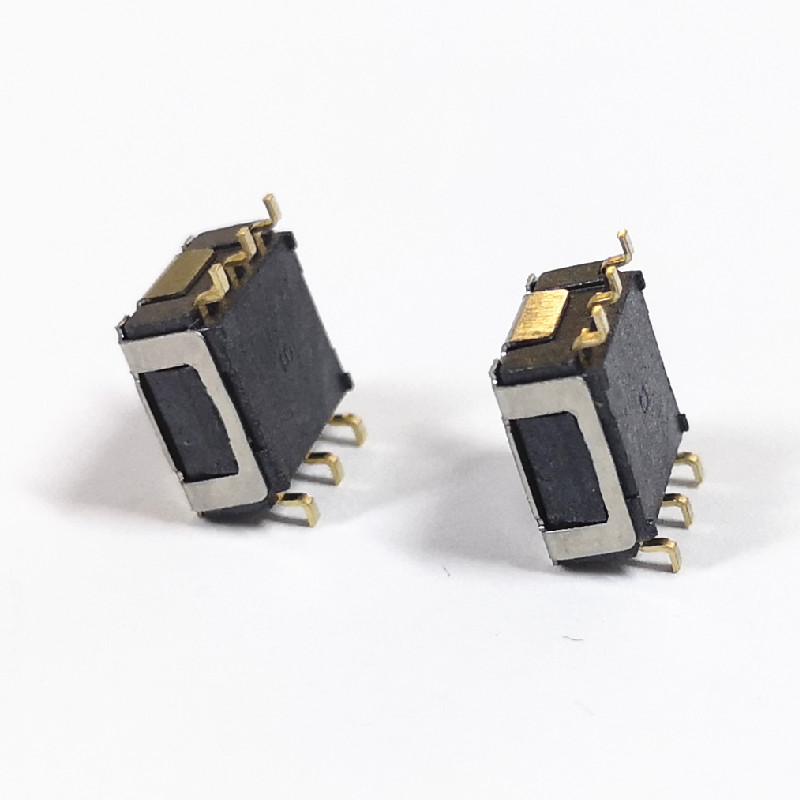

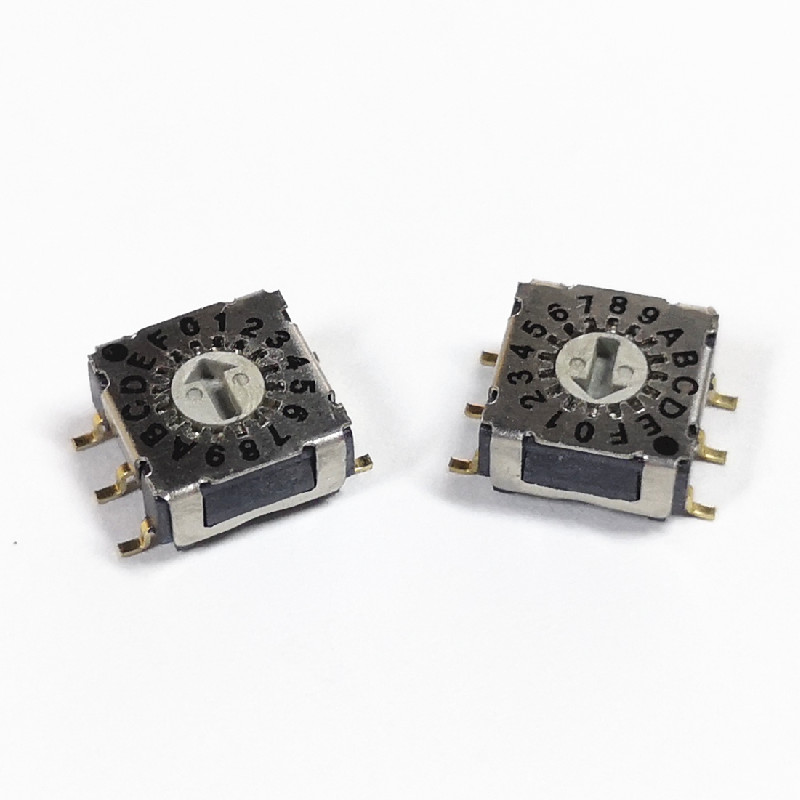

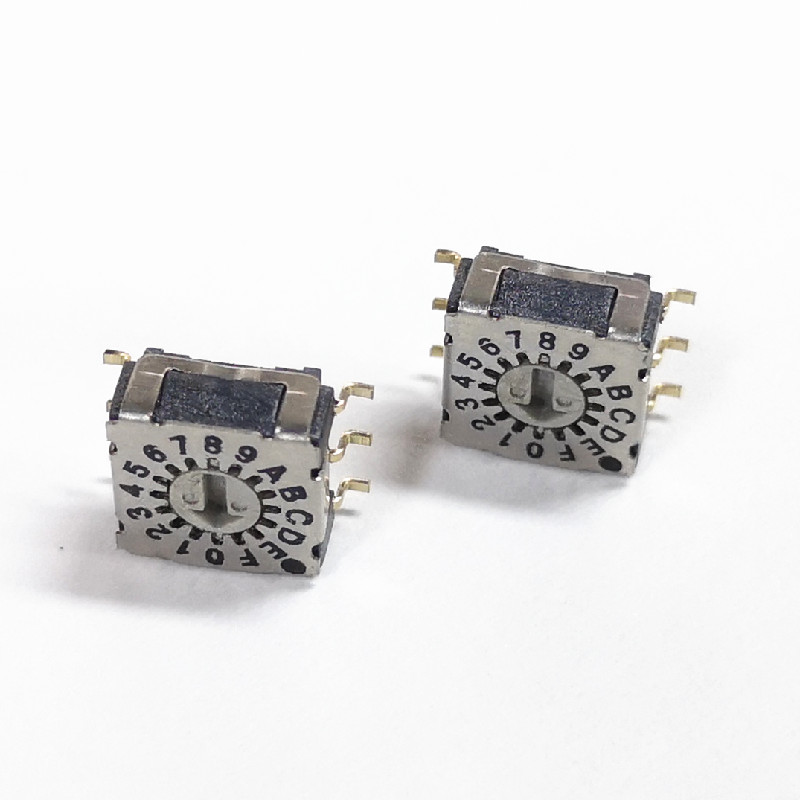

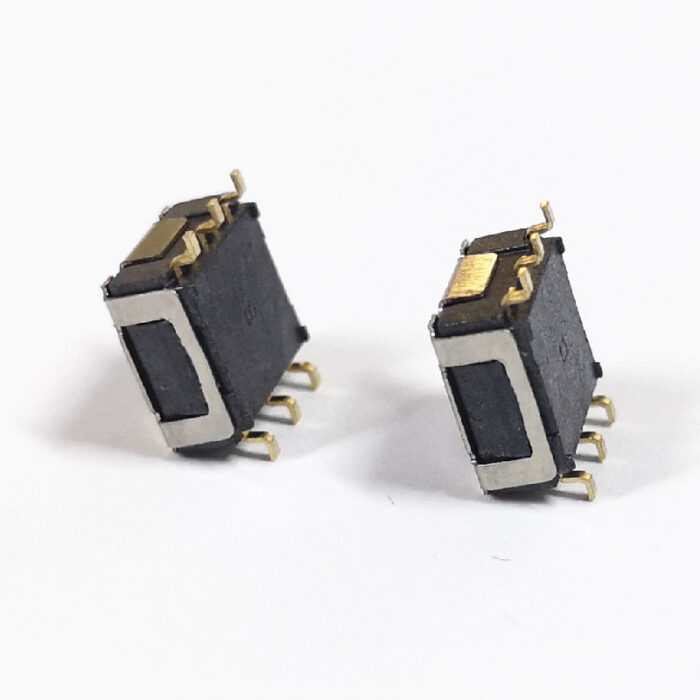

SMD 7.4*7.4mm 16 Position Rotary Dip Switch

Part Number: KBM-16S

The KBM-16S is a 16-position rotary coding DIP switch in a sealed 7.4 × 7.4 mm SMD package, rated 150 mA at 42 V DC switching. It sets circuit addresses by rotary motion, seals to IP66 with a silicone O-ring, and uses gold-plated contacts for reliable low-current signal switching. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.

Key Features

  • 16-position rotary coding, set by screwdriver or spindle
  • Sealed IP66 construction with silicone O-ring
  • Surface-mount 7.4 × 7.4 × 3.85 mm package, reflow solderable
  • Gold-plated phosphor bronze contacts, 80 mΩ max contact resistance
  • 150 mA / 42 V DC switching, 25,000-step operation life

Applications

✓Telecom systems
✓Instruments
✓Address setting
✓Industrial control
Category:
Description

SPECIFICATIONS

Part NumberKBM-16S
Switch TypeRotary coding DIP switch
Number of Positions16
ActuationRotary (screwdriver / spindle slot)
Rated Current (switching)150 mA at 42 V DC
Rated Current (non-switching)400 mA at 42 V DC
Contact Resistance80 mΩ max (initial)
Insulation Resistance≥100 MΩ
Dielectric Strength250 VAC, 1 min
Operating Torque120 ± 30 gf
Operation Life25,000 steps
Operating Temperature–40 °C to +85 °C
SealingIP66
MountingSMD (surface mount, reflow)
Body Size7.4 × 7.4 × 3.85 mm
Contact MaterialPhosphor bronze, gold-plated over nickel
Terminal MaterialPhosphor bronze, gold-plated over nickel
Housing MaterialLCP base and rotor; stainless-steel cover
RoHSCompliant
ComplianceISO 9001 & ISO 14001 certified facility
PackagingTape

Typical Applications

This rotary coding switch sets addresses and configuration codes by turning: telecom line cards, test and measurement instruments, node addressing on control buses, and industrial equipment setup. The IP66 seal and gold-plated contacts suit boards that face dust, washdown, or long service intervals.

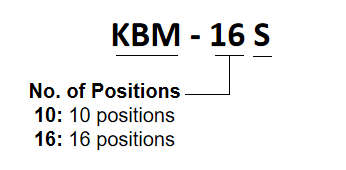

PART NUMBER KEY

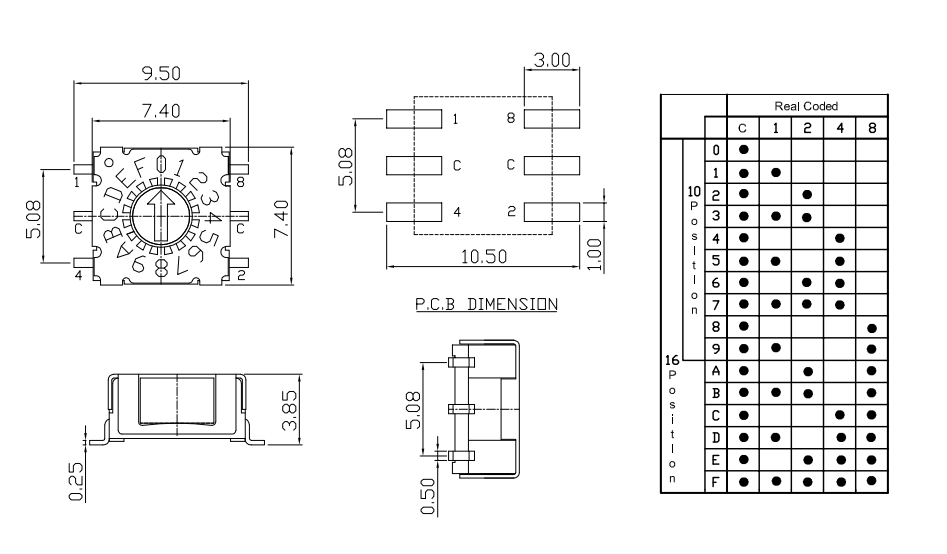

MECHANICAL DRAWING

Units: mm

Unless otherwise specified

NO.

NAME

MATERIAL

QTY.

FINISHING

1

Cover

Stainless steel

1

Print

2

Spring plate

Stainless steel

1

Print

3

Guide plate

Stainless steel

1

4

Contact

Phosphor bronze

1

Au 0.07μm Min

Ni 0.1μm Min

5

Terminal

Phosphor bronze

1

Au 0.07μm Min

Ni 0.3μm Min

6

Rotor

LCP

1

7

Base

LCP

1

8

O-ring

Silicone

1
