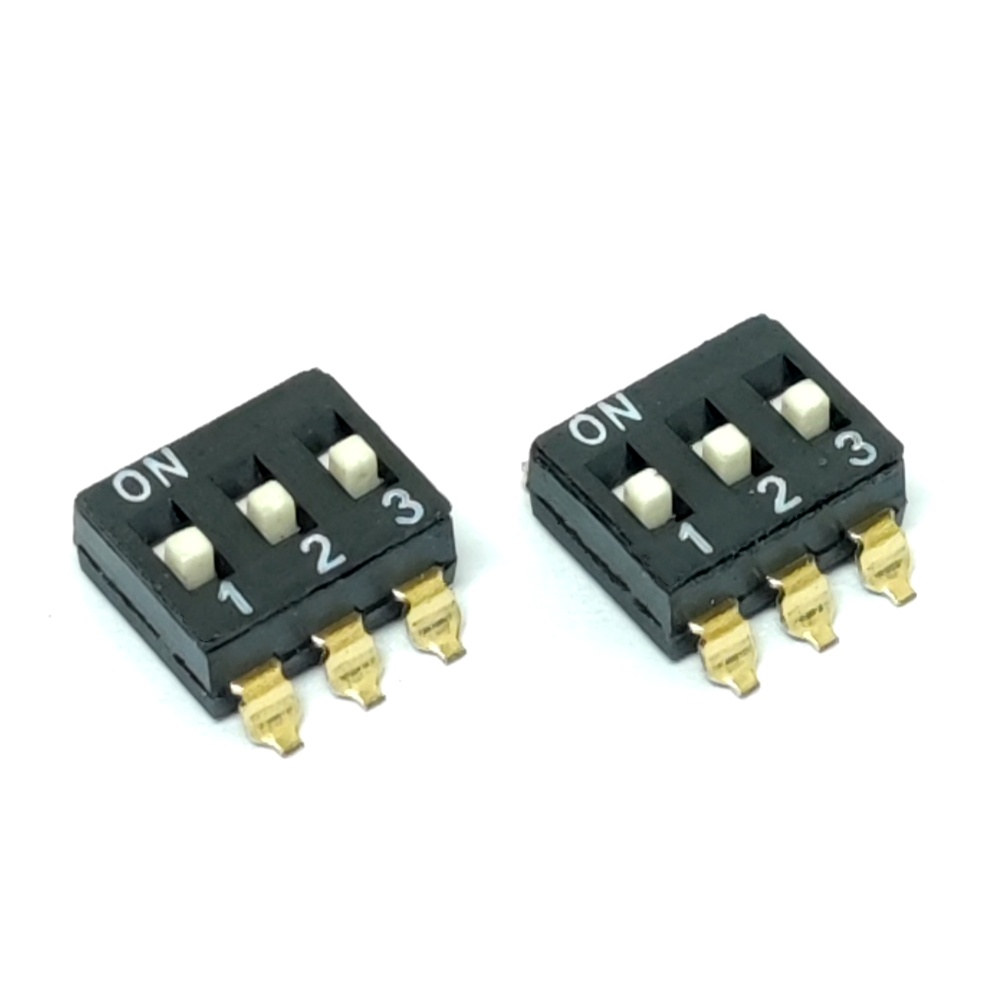

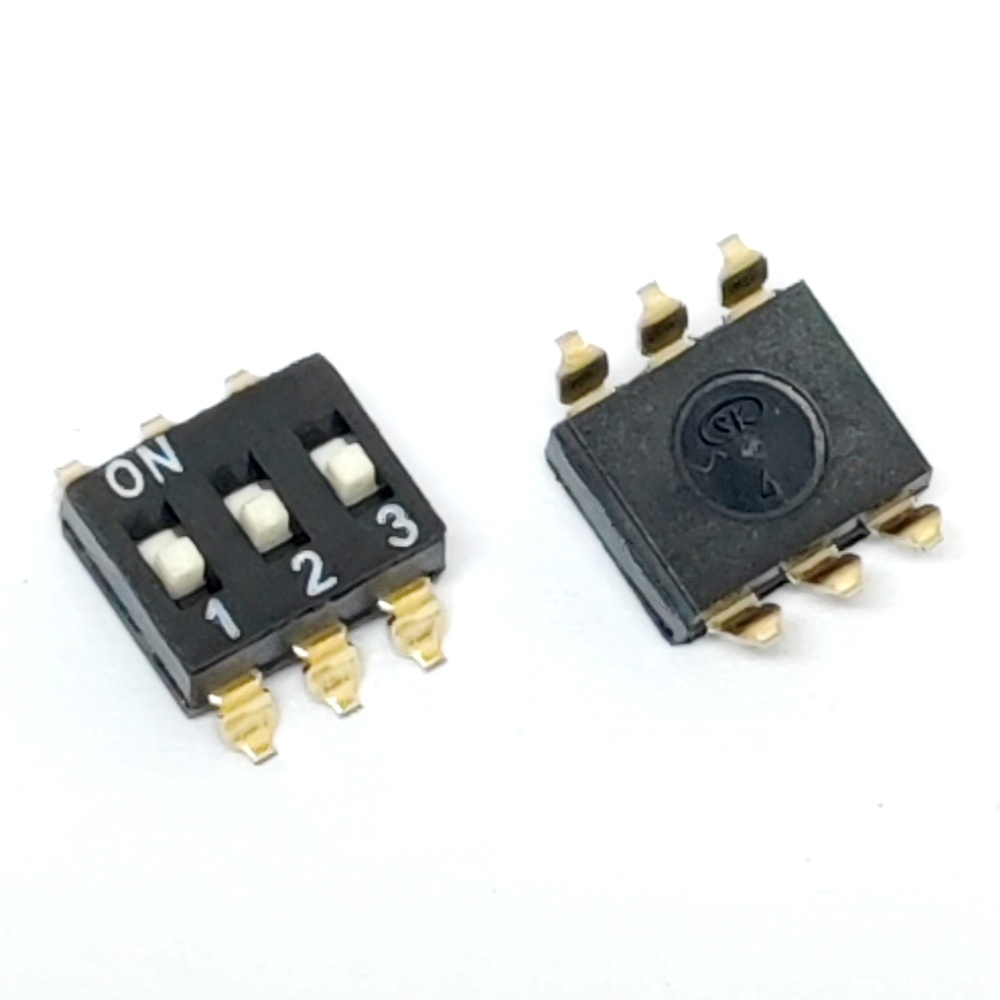

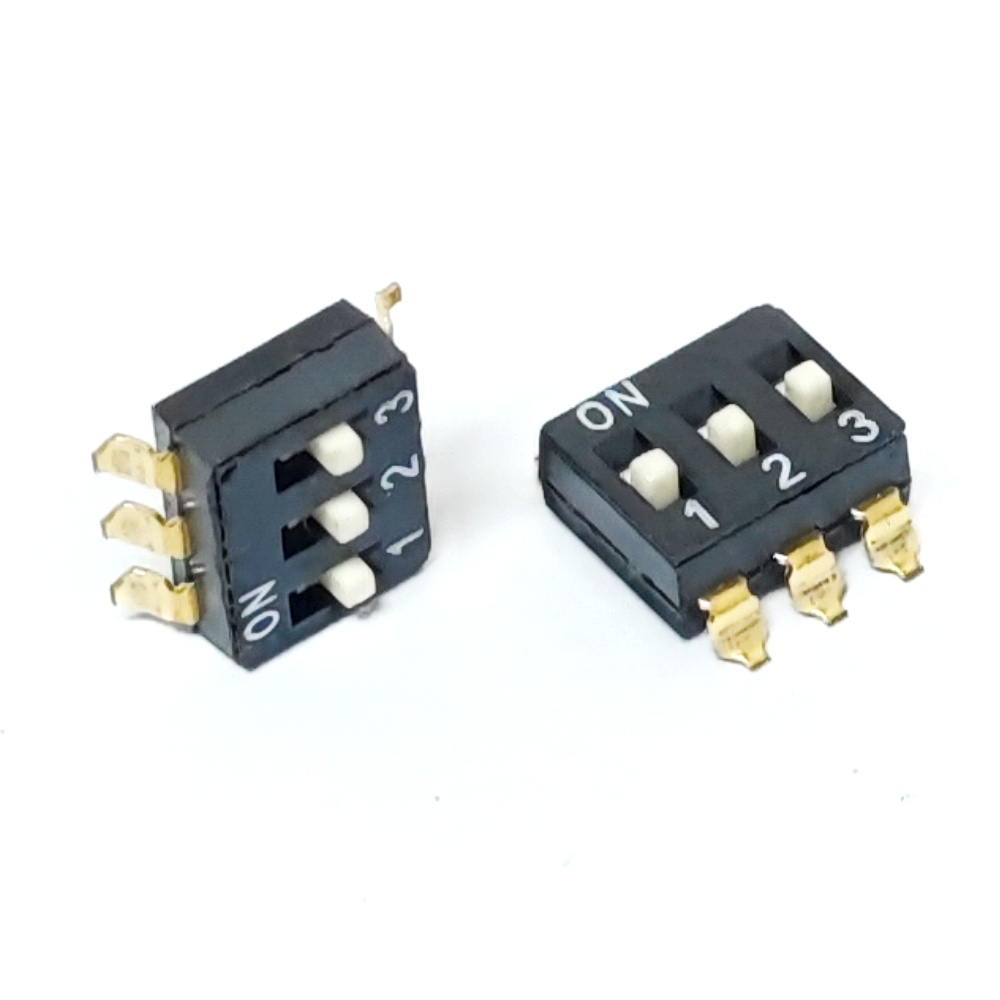

3 Way Slide 2.54mm Pitch SMD Dip Switch
Part Number: BMIC03S-RG-4FR-NK
The BMIC03S-RG-4FR-NK is a 3-circuit slide DIP switch on a 2.54 mm pitch in a low-profile SMD package. Each circuit is SPST, rated 25 mA at 24 V DC switching, with gold-plated contacts for stable low-current switching. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 3 independent SPST circuits, 2.54 mm pitch
- Surface-mount, low-profile 7.62 × 6 × 3.75 mm package
- Gold-plated contacts, ≤100 mΩ contact resistance
- 25 mA / 24 V DC switching, 100 mA / 50 V DC carry rating
- Tactile slide actuation, 1,000-cycle operation life
Applications
SPECIFICATIONS
| Part Number | BMIC03S-RG-4FR-NK |
|---|---|
| Switch Type | DIP switch (slide-actuated) |
| Contact Arrangement | SPST per switch (1 pole 1 throw) |
| Number of Circuits | 3 (3-way) |
| Pitch | 2.54 mm |
| Rated Current (switching) | 25 mA at 24 V DC (10 mA at 50 V DC) |
| Rated Current (non-switching) | 100 mA at 50 V DC |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Switch Capacitance | 5 pF max |
| Operating Force | 1000 gf max |
| Operation Life | 1,000 cycles |
| Operating Temperature | –30 °C to +85 °C |
| Storage Temperature | –40 °C to +85 °C |
| Mounting | SMD (surface mount) |
| Body Size | 7.62 × 6 × 3.75 mm |
| Contact Material | Moving contact phosphor bronze, gold-plated; static contact brass, gold-plated |
| Housing Material | PPS case and cover; PA46 stems |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Tape |
Typical Applications
This 3-way slide DIP switch sets board options by hand: PCB mode and option selection, consumer device configuration, bench test instruments, and small address or ID settings. The 2.54 mm pitch and surface-mount body drop onto standard footprints, and gold-plated contacts hold up under low-current signal loads.

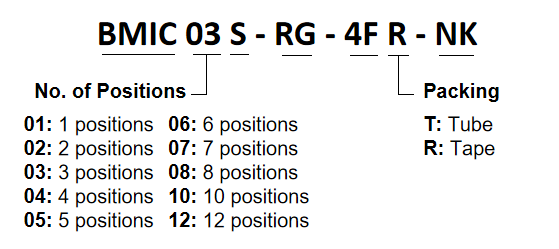

PART NUMBER KEY

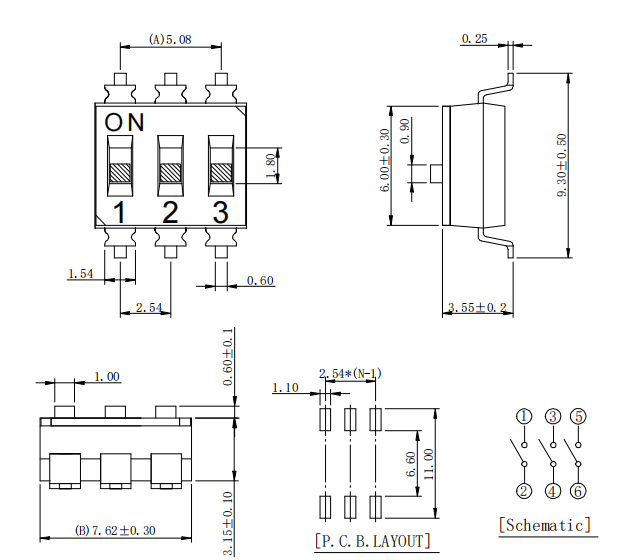

MECHANICAL DRAWING
Units: mm
General tolerance：±0.3mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Static contact |
Brass |
3 |
Gold plating |
2 |
Moving contact |
Phosphor bronze |
3 |
Gold plating |
3 |
Stem |
PA46 |
3 |
White |
4 |
Cover |
PPS |
1 |
Black |
5 |
Base |
PPS |
1 |
Black |
