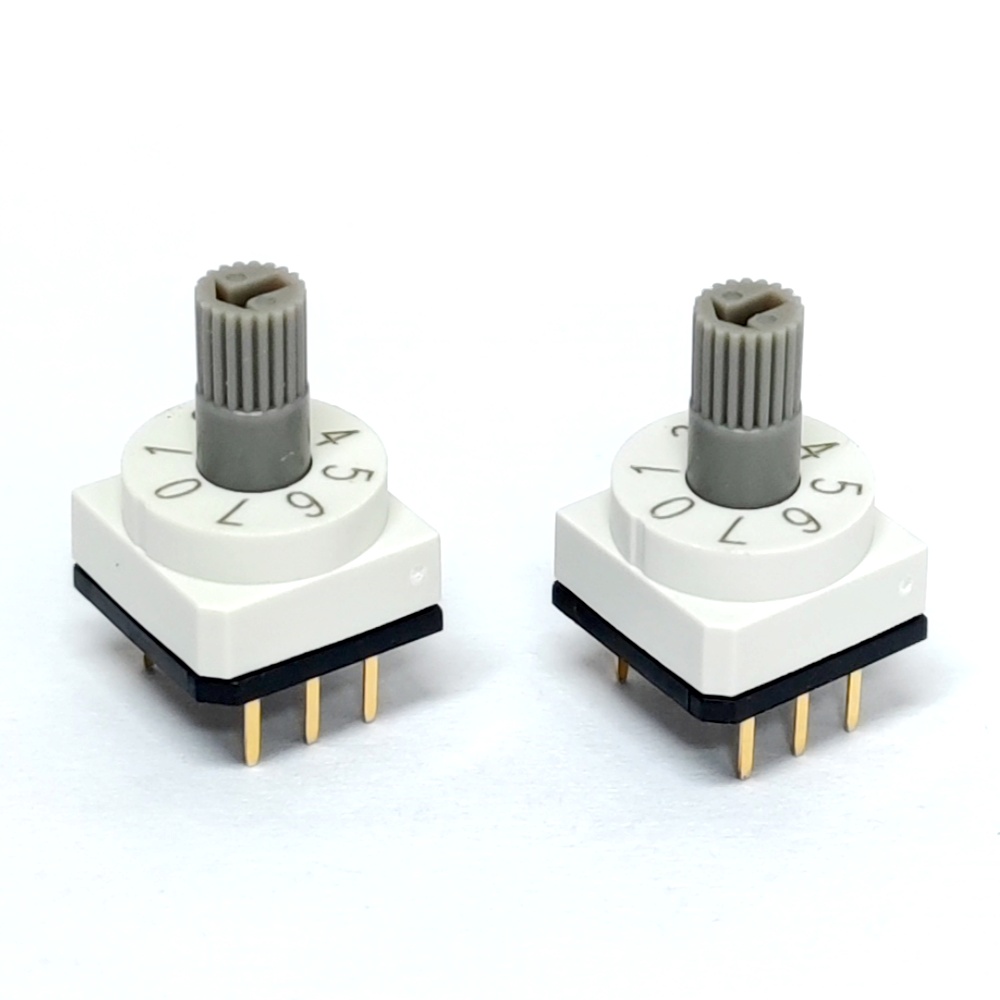

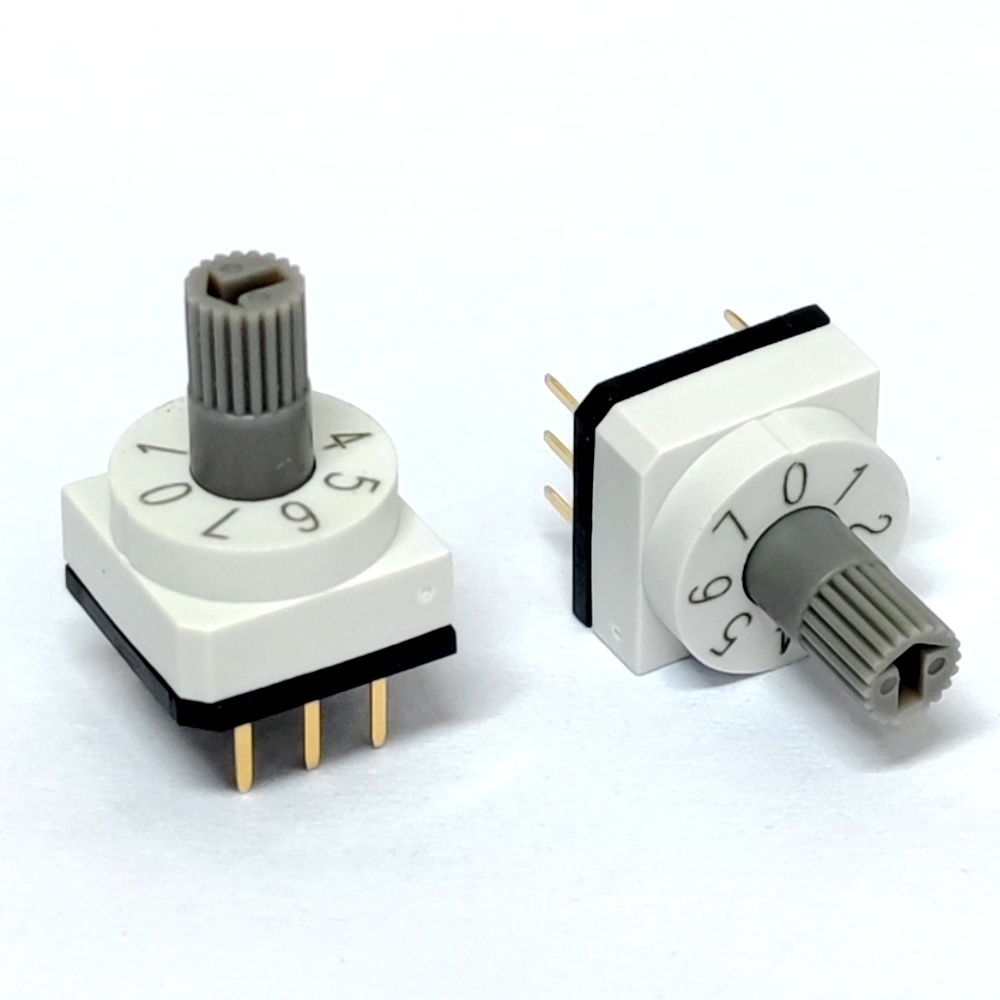

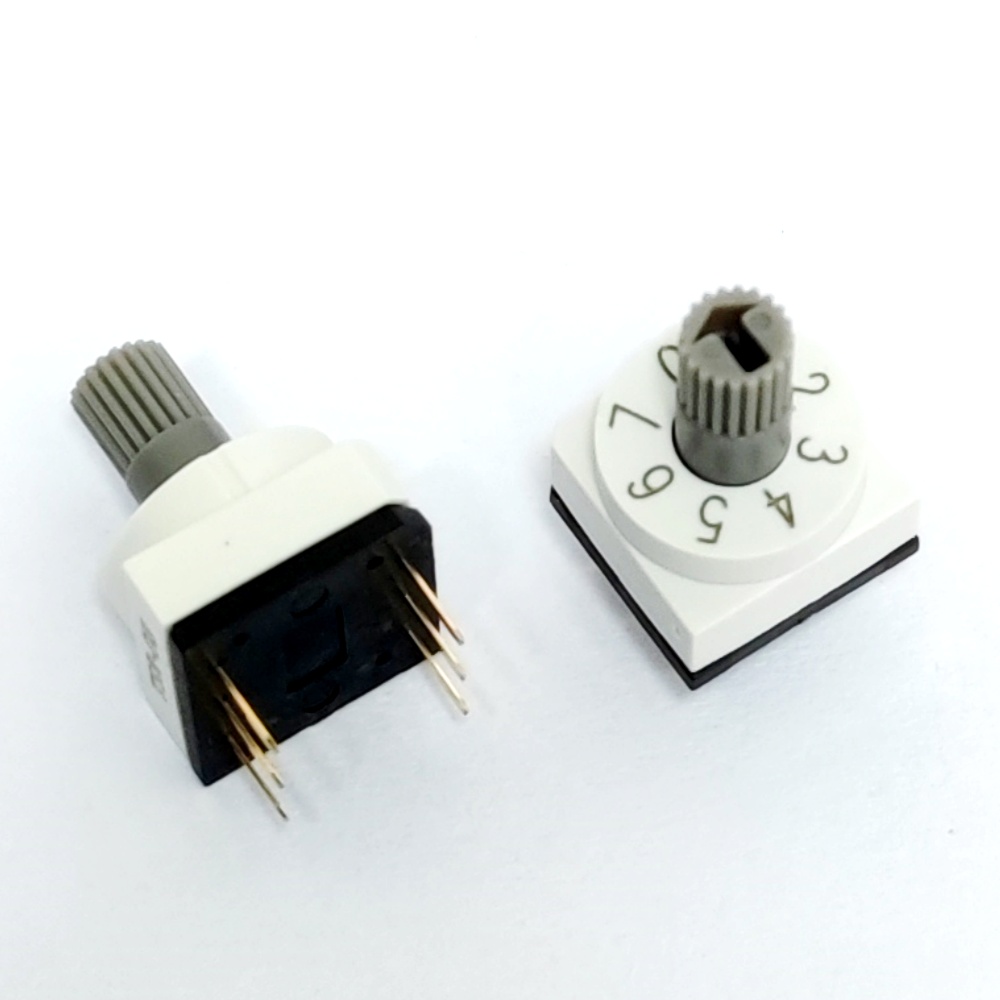

8 Position Raised Actuator Code Rotary Dip Switch
Part Number: KBM05-SR-08-H004
FEATURES
- 4, 8, 10, & 16 positions
- 10mm x 10mm housing
- Through hole vertical, right angle; or surface mount (SMT) design
Description
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
None-Switching: 200mA 42V Switching: 150mA 42V |
Number of Positions |
8 |
Contact Resistance |
80mΩ max.(initial) |
Insulation Resistance |
100MΩ min |
Operating Force |
700gf Max |
Life Time |
10,000 steps |
Operating Temperature Range |
-40℃~+85℃ |
Actuator Type |
Rotary |
Mounting Type |
Through hole |
Length |
10mm |
Width |
10mm |
Height |
13.8mm |
Packing |
Tube |
ROHS |
Yes |

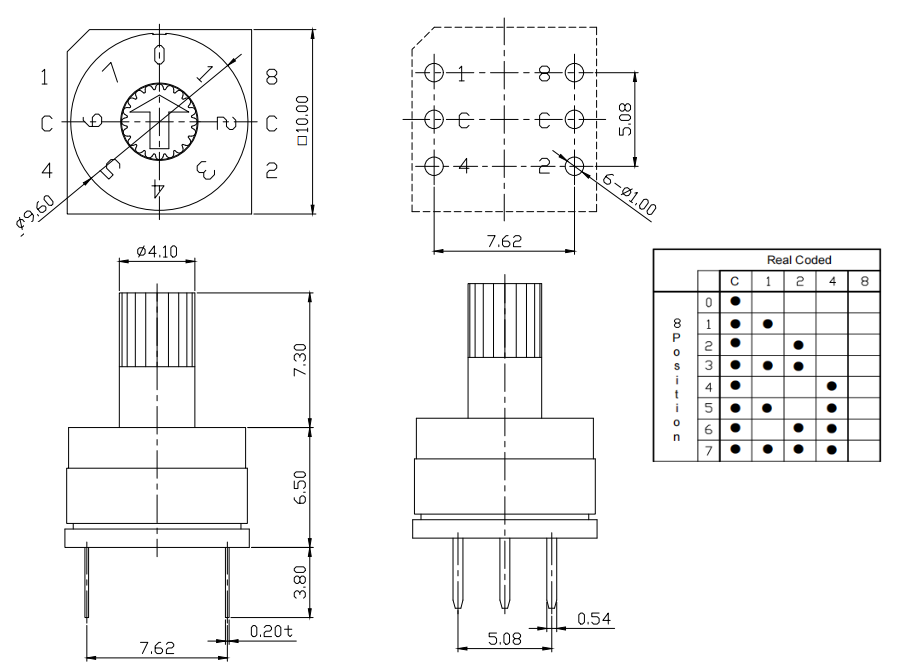

PART NUMBER KEY
All Switches Categories
Additional information
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
