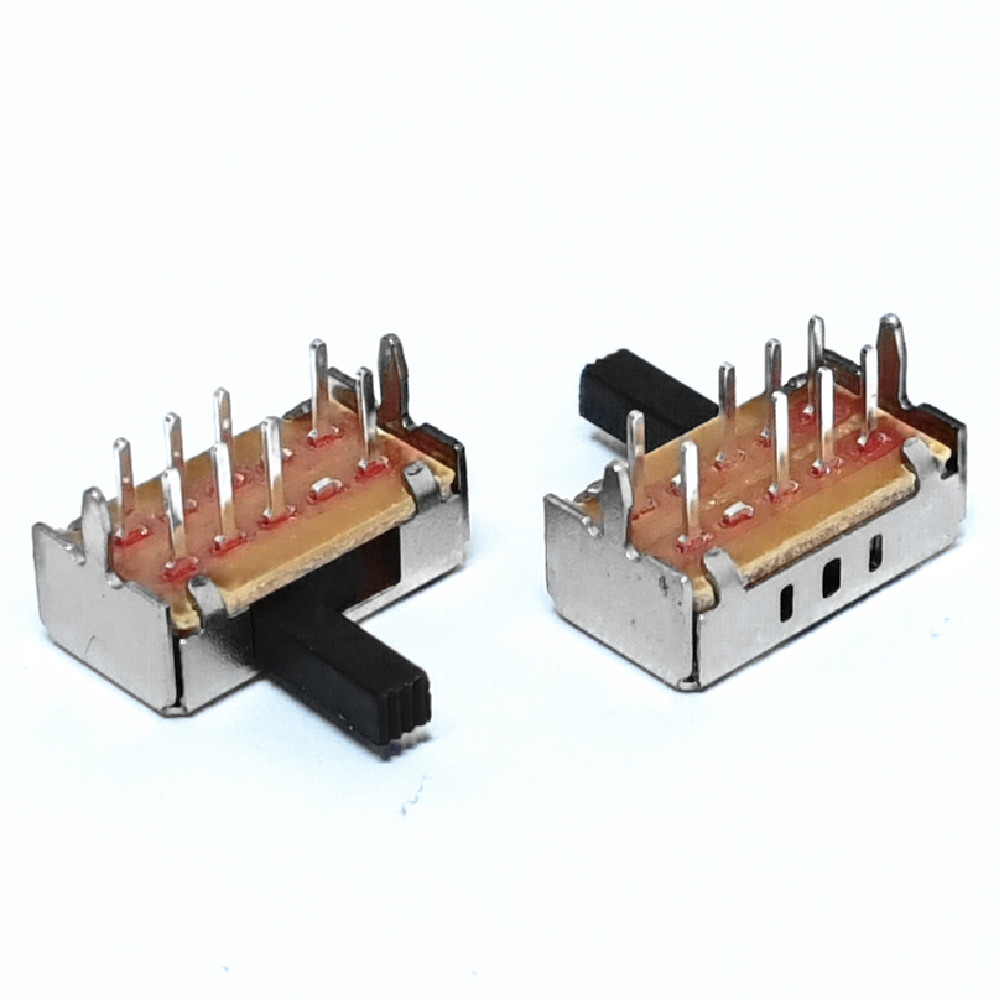

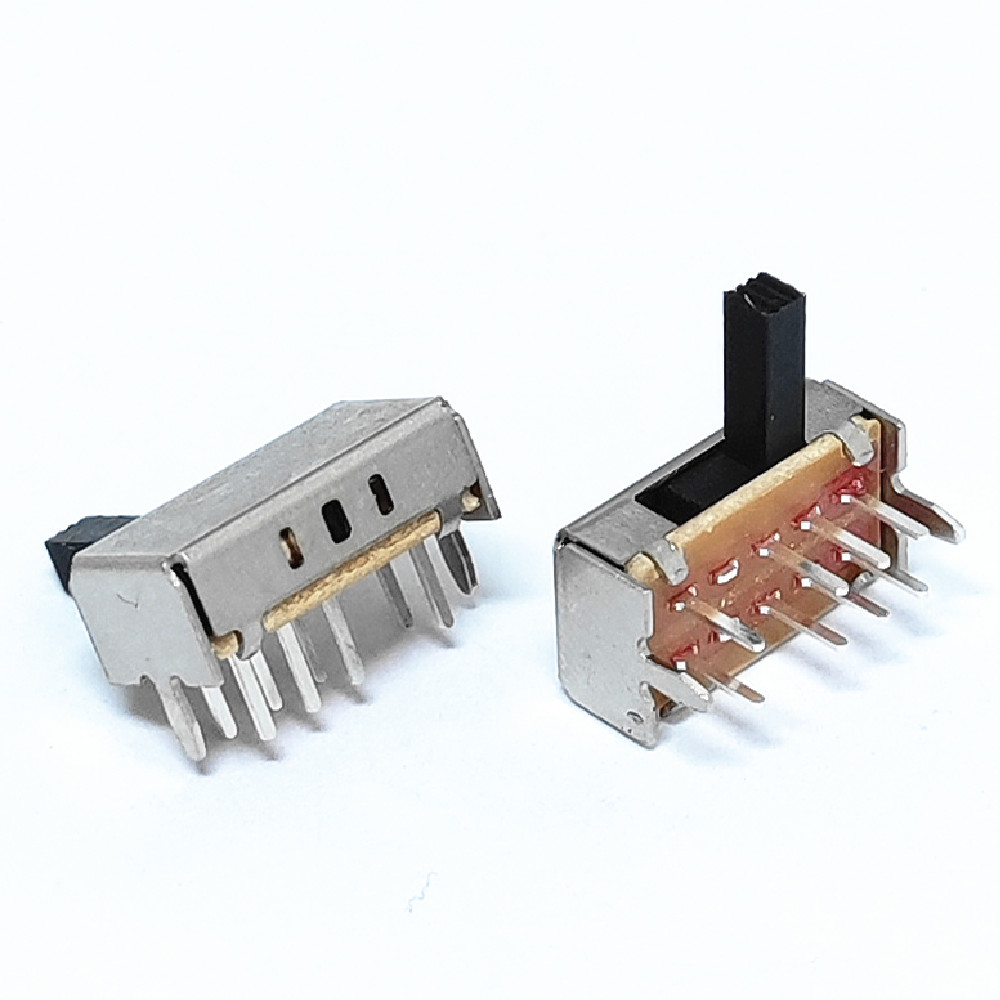

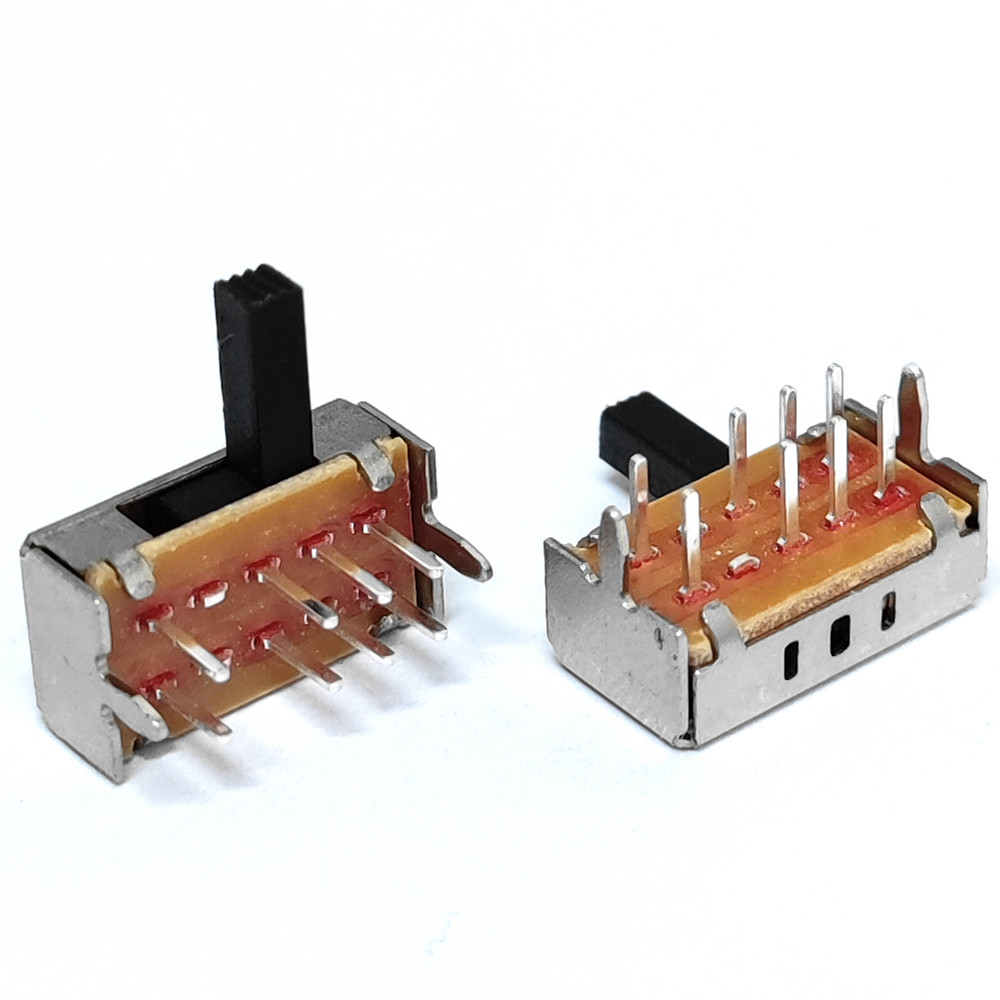

8 Pin 3 Way Slide Switch 90 Degree
Part Number: SK23D07-EG6-D25001
FEATURES
- DP3T
- Right Angle
- Compact design
- Different handle height options
SPECIFICATIONS
|
Parameter |
Description |
|---|---|
Rating |
DC50V 0.3A |
Function |
2P3T |
Contact resistance |
≤100Ω |
Insulation resistance |
≥100MΩ |
Operating force |
250±100gf |
Full travel |
2.0±0.2mm |
Life Time |
10,000 Cycles |
Operating Temperature Range |
-20℃~+70℃ |
Actuator Type |
Standard |
Mounting Type |
Through hole |
Length |
12.6mm |
Width |
4.7mm |
Height |
7mm |
Packing |
Bag |
ROHS |
Yes |

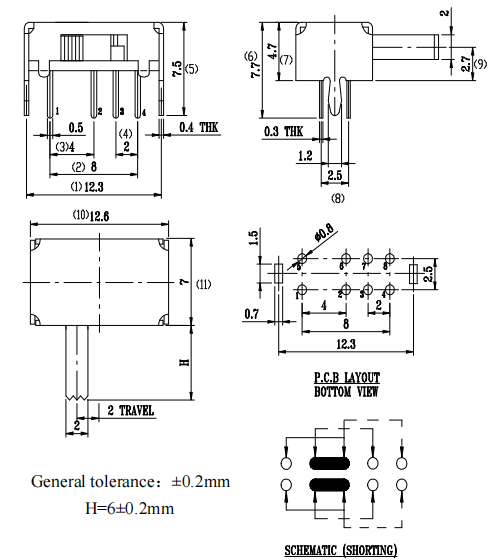

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Knob |
PA66 |
1 |
Black |
2 |
Frame |
Steel strip |
1 |
Ni plating |
3 |
Case |
Phenolic resin |
1 |
Natural |
4 |
Terminal |
Brass strip |
8 |
Ag plating |
5 |
Contact |
PBS C5210R-EH |
2 |
Ag plating |
6 |
Spring |
PBS C5210R-EH |
2 |
Ag plating |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
