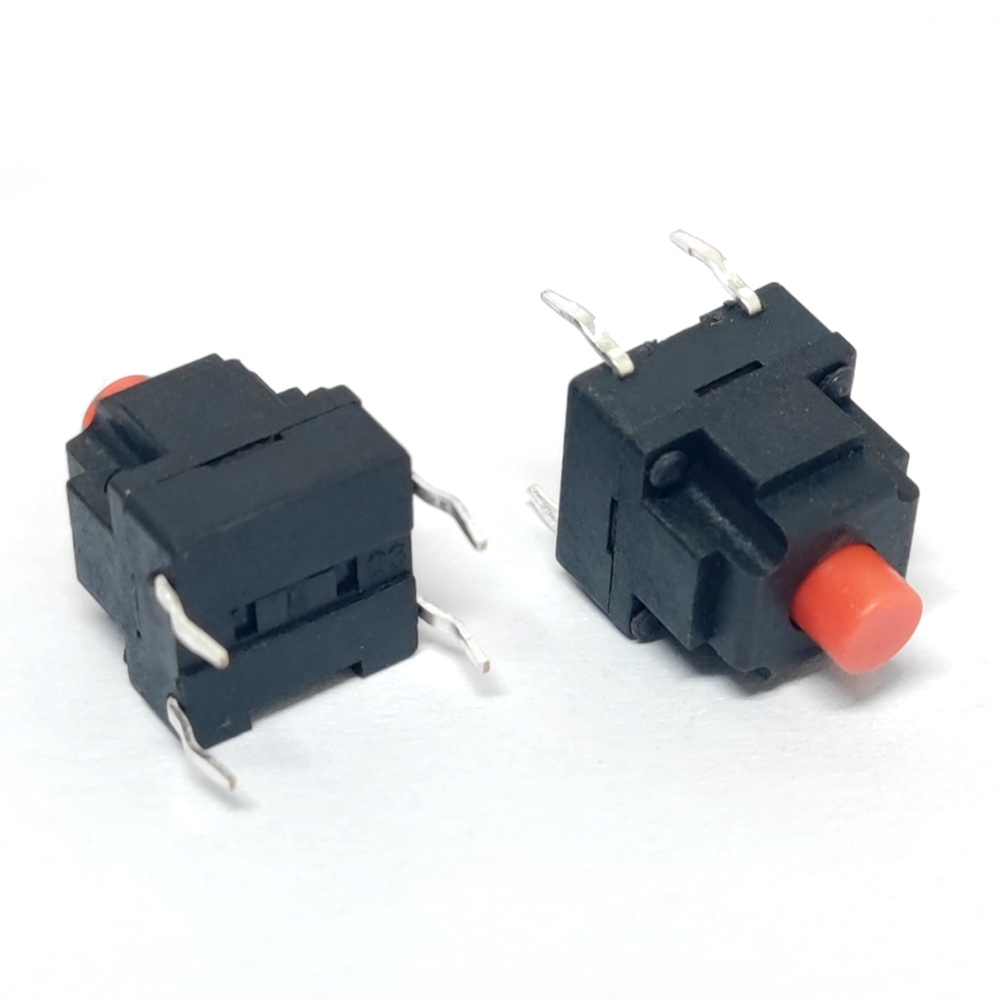

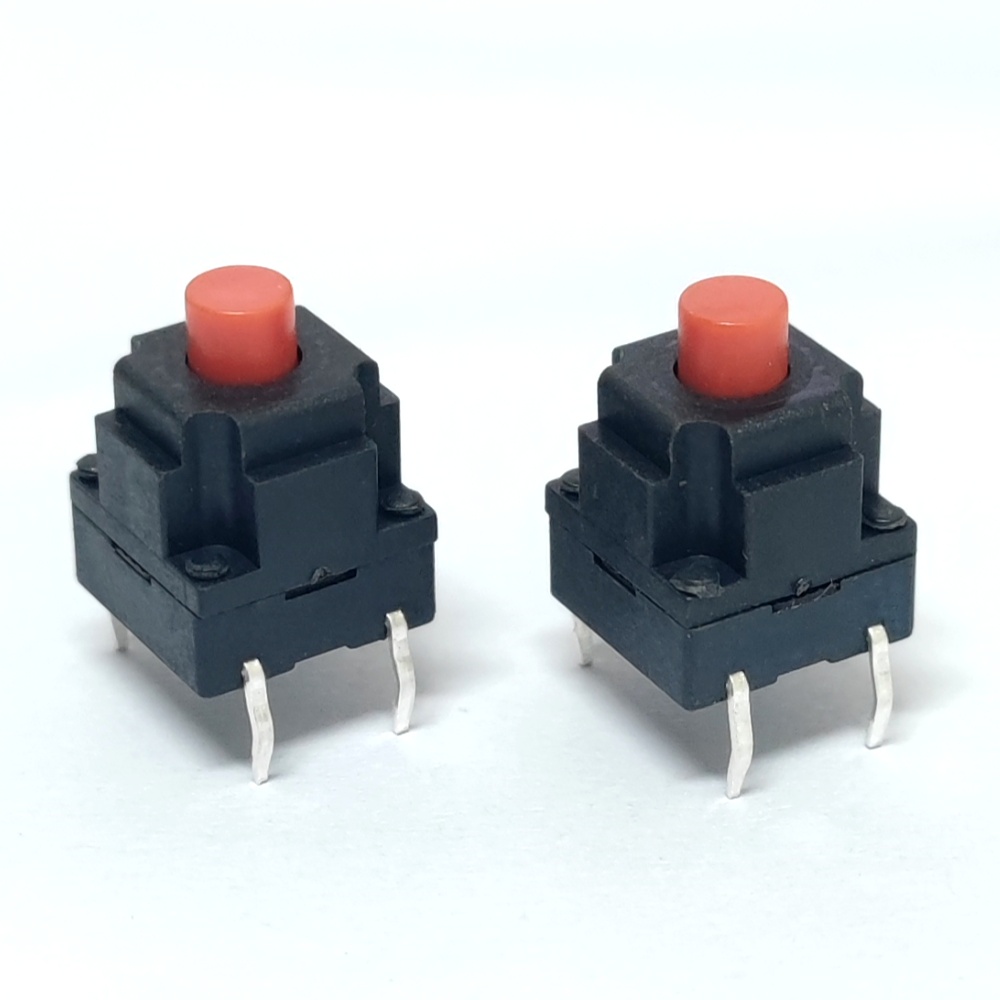

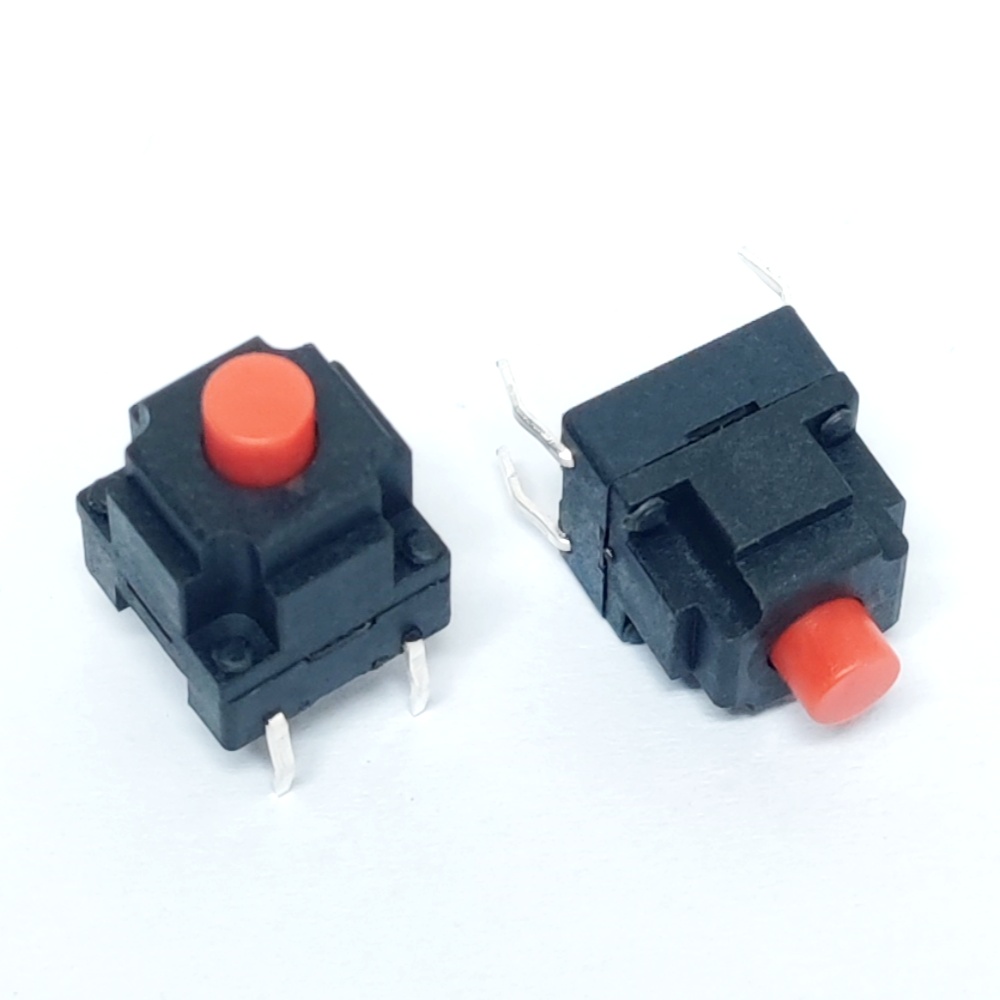

Waterproof Dip Push Button 10mm Tact Switch
Part Number: KAN1016-1302C-C15
The KAN1016-1302C-C15 is a 10 × 10 × 13 mm through-hole push-button tact switch with a top-actuated cap and an IP67 dust- and water-resistant seal. It mounts through-hole on a PCB, delivers crisp tactile feedback at 260 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP67-rated seal verified by 1 m, 30 min immersion testing
- Top-actuated push-button cap with silicone-pad sealing
- 10 × 10 mm footprint, 13 mm height, through-hole (DIP) mounting
- 260 ± 70 gf operating force, 0.30 mm travel for a defined tactile click
- 100,000-cycle rated life, –25 °C to +70 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN1016-1302C-C15 |
|---|---|
| Switch Type | Tactile switch (momentary push-button) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (DIP) |
| IP Rating | IP67 (1 m immersion, 30 min) |
| Body Size | 10.0 × 10.0 × 13.0 mm |
| Operating Force | 260 ± 70 gf |
| Travel | 0.30 ± 0.15 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 2.94 kgf min (≈ 28.8 N) |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –25 °C to +70 °C |
| Storage Temperature | –25 °C to +70 °C |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Copper alloy, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This top-actuated push-button tact switch with IP67 protection suits equipment that faces immersion, spray, or dust: outdoor devices, industrial control panels, automotive controls, and marine equipment. The silicone pad seals the actuator while the through-hole terminals give a strong board anchor.

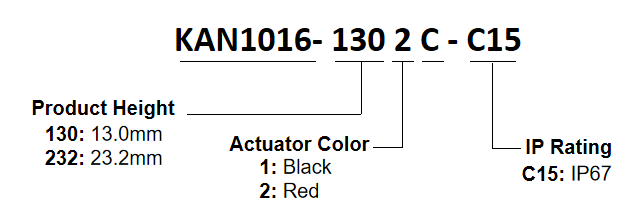

PART NUMBER KEY

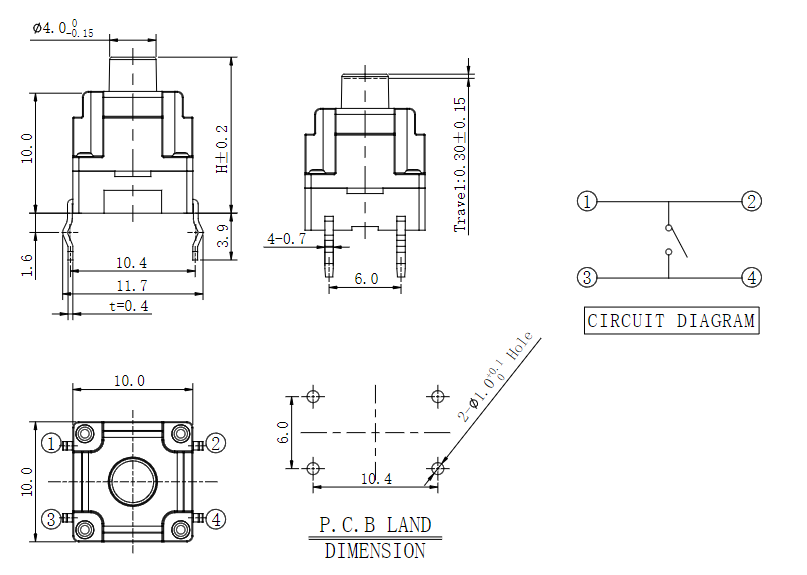

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Copper alloy |
4 |
Ag plating |
2 |
Stroma |
PPA |
1 |
Black |
3 |
Contact plate |
SUS |
1 |
Ag plating |
4 |
Inner stem |
PPA |
1 |
Black |
5 |
Tape |
Polyimide |
1 |
High temperature composite |
6 |
Silicone pad |
Silastic |
1 |
Black |
7 |
Outer stem |
PC |
1 |
Red |
8 |
Cover |
PPA |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
13 |
| Length (mm) |
10 |
| Width (mm) |
10 |
