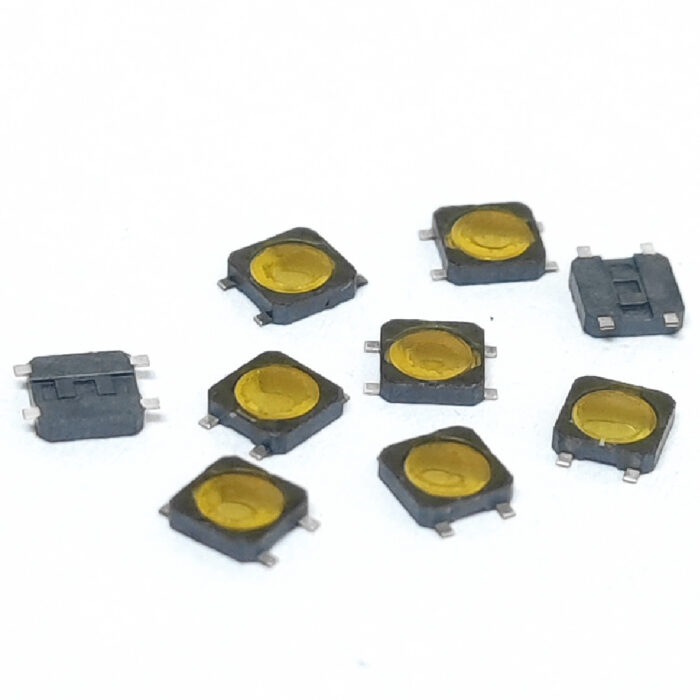

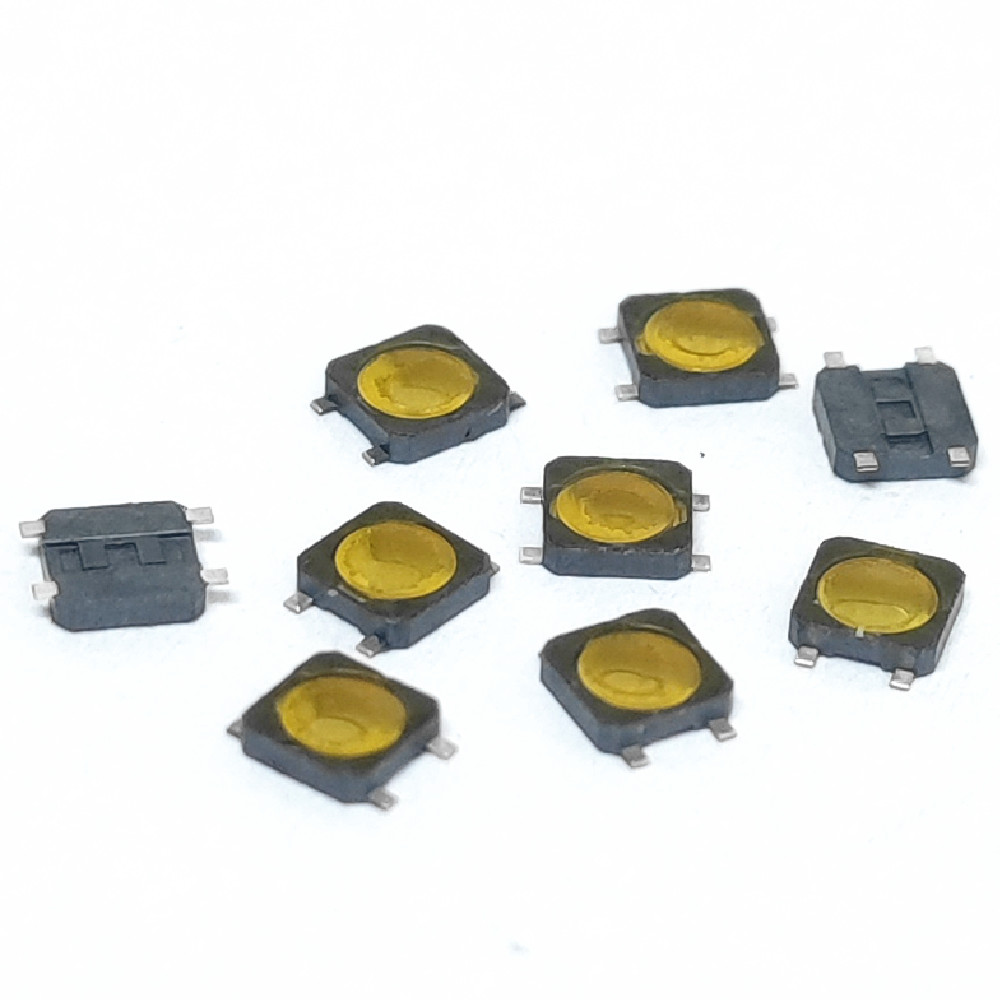

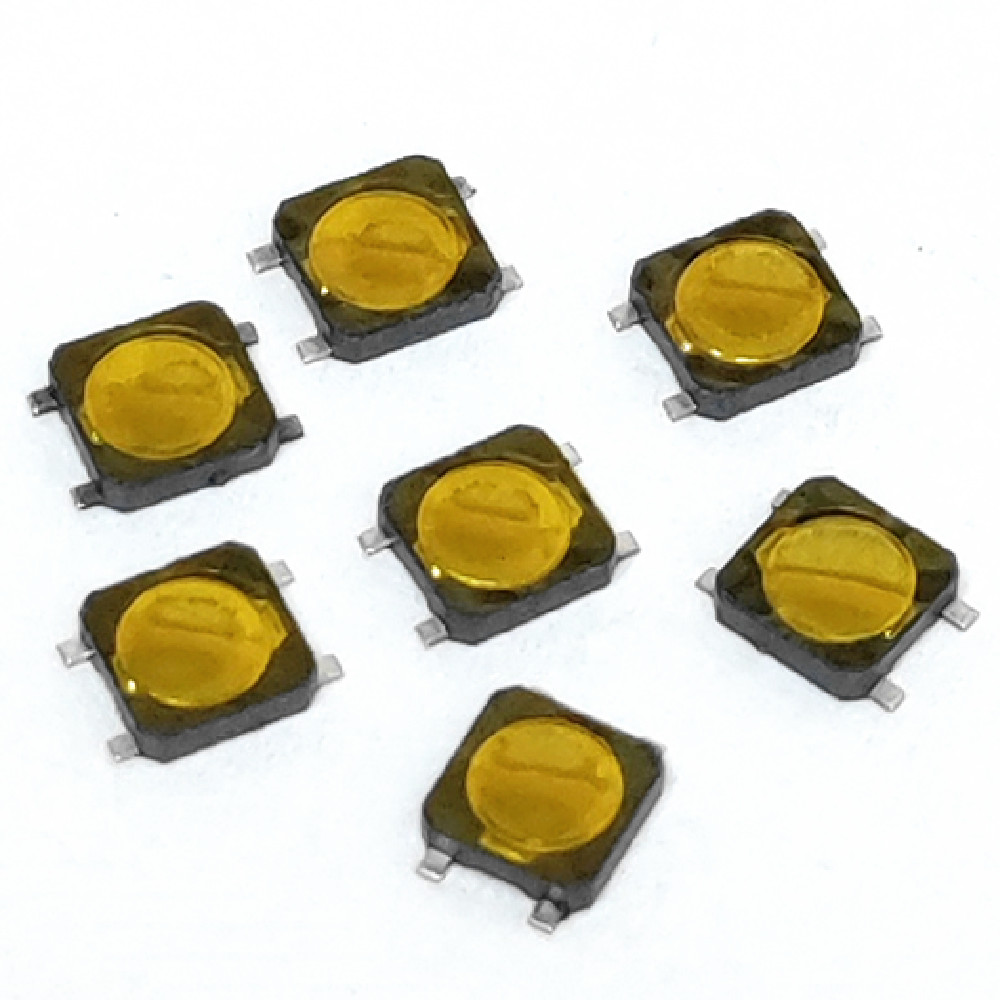

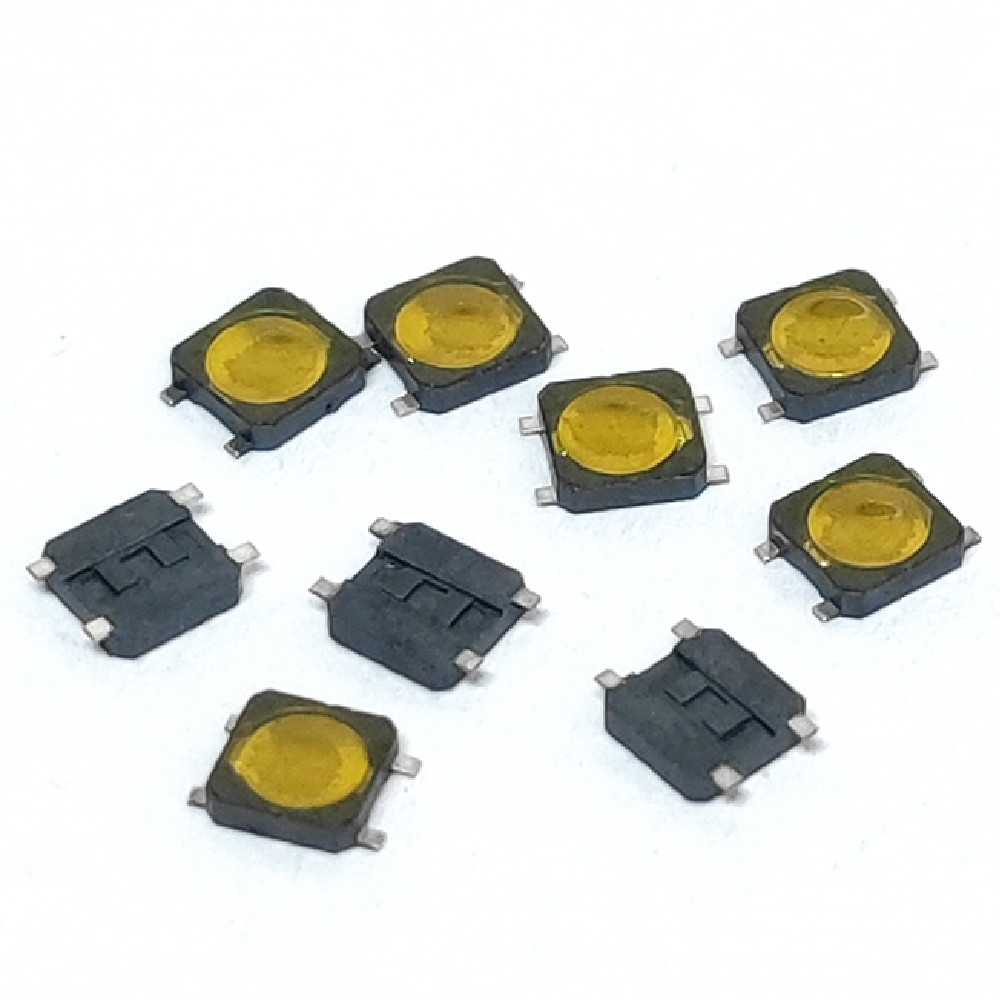

Ultra-small Membrane Mobile Phone Tact Switch
Part Number: KAN0342-00851C010-378
The KAN0342-00851C010-378 is a 3 × 3 × 0.85 mm surface-mount membrane tact switch with an ultra-small footprint and a polyimide film over the contact. It surface-mounts to a PCB, gives a defined key response at 260 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Ultra-small 3 × 3 mm footprint, 0.85 mm low profile
- Polyimide-film membrane over the contact, no protruding stem
- 4-terminal surface-mount for tight mobile-device layouts
- 260 ± 50 gf key response with a short 0.20 mm travel
- 100,000-cycle rated life, –20 °C to +70 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0342-00851C010-378 |
|---|---|
| Switch Type | Tactile switch (membrane, momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), 4-terminal |
| Body Size | 3.0 × 3.0 × 0.85 mm |
| Operating Force | 260 ± 50 gf |
| Travel | 0.20 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 250 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Film | Polyimide |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This ultra-small membrane tact switch fits mobile devices and other space-constrained builds: mobile devices, consumer electronics, wearables, and remote controls. The 0.85 mm profile and polyimide-film membrane give a light, low-travel key press with no protruding stem.

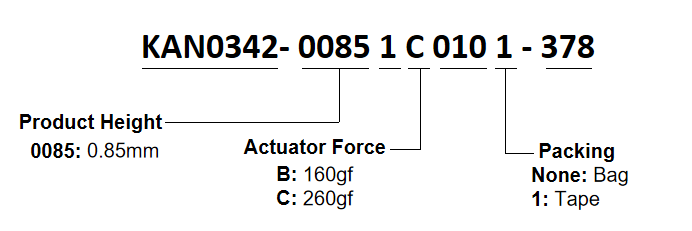

PART NUMBER KEY

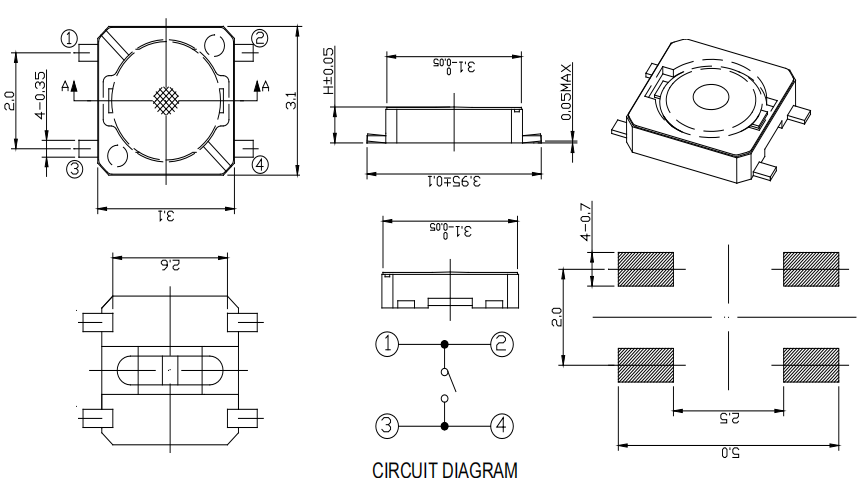

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
4 |
Silver plating |
2 |
Case |
LCP |
1 |
Black |
3 |
Contact |
SUS |
1 |
Silver plating |
4 |
Paster |
Polyimide |
1 |
Yellow |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
0.85 |
| Length (mm) |
3 |
| Width (mm) |
3 |
