Turtle Type Film Button Subminiature Tact Switch
Part Number: KAN0445M-B1-29

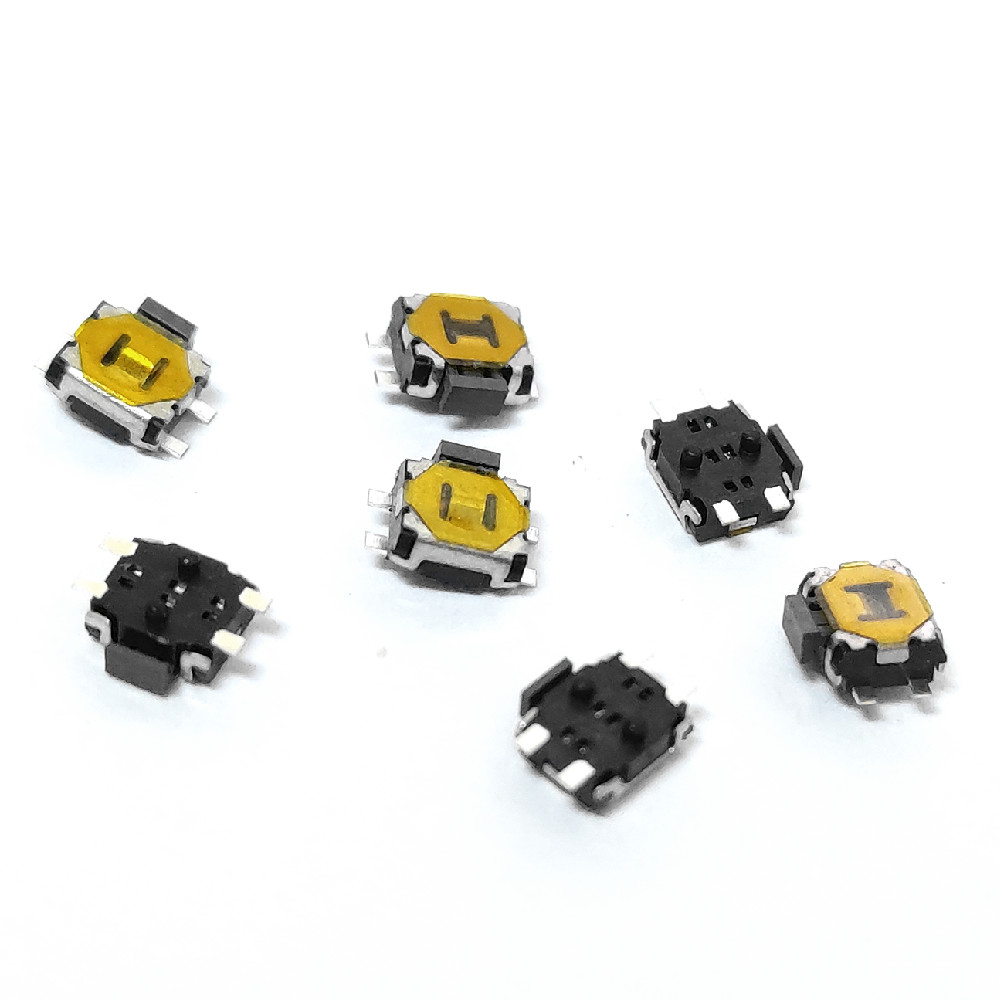

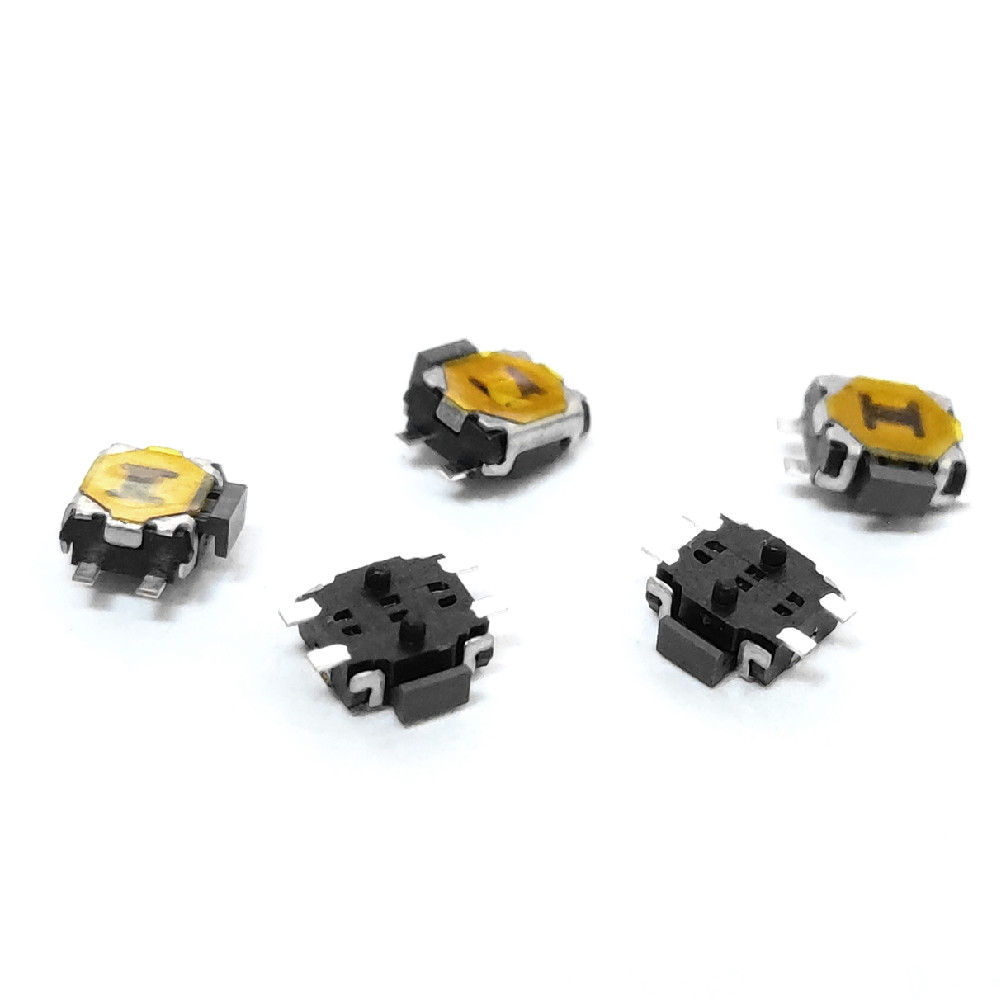

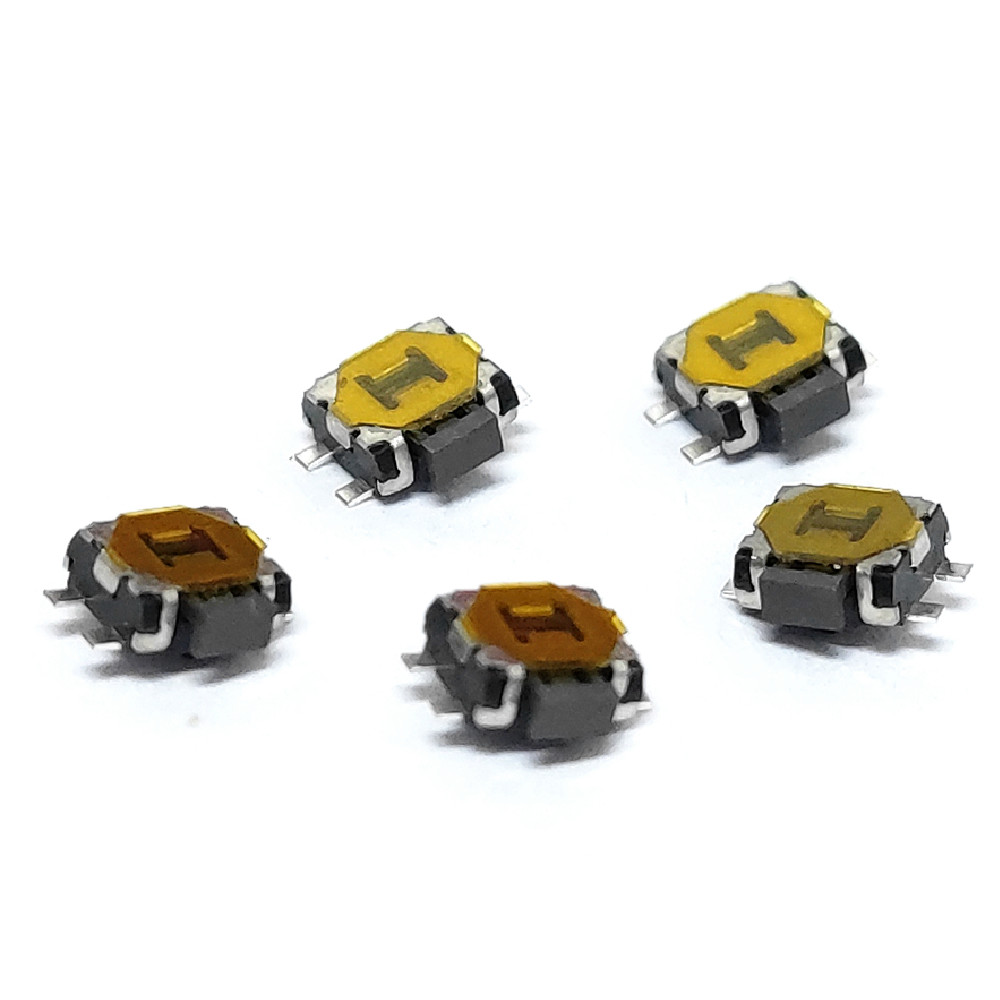

The KAN0445M-B1-29 is a 3.5 × 3 × 1.4 mm surface-mount side-actuated tact switch of the turtle film type. It surface-mounts to a PCB, gives a light press at 160 gf, and is rated for 50,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Side push-button actuation for edge-mounted controls
- Turtle film build with a PPA stem over a polyimide film
- Subminiature 3.5 × 3 mm body, 1.4 mm height, surface-mount
- Light 160 ± 50 gf press with a short 0.20 mm travel
- Mounting-boss option, –25 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0445M-B1-29 |
|---|---|
| Switch Type | Tactile switch (turtle film, side-actuated) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), side-actuated |
| Body Size | 3.5 × 3.0 × 1.4 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.20 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 50,000 cycles |
| Operating Temperature | –25 °C to +80 °C |
| Storage Temperature | –25 °C to +80 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Stem | PPA |
| Film | Polyimide |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This subminiature side-actuated turtle film switch fits the smallest edge-mounted controls: mobile devices, consumer electronics, wearables, and remote controls. The 3.5 × 3 mm footprint and side push-button suit phone-frame side buttons in tight layouts.

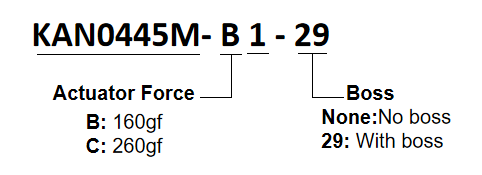

PART NUMBER KEY
MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
LCP |
1 |
Black |
3 |
Contact |
SUS |
1 |
Contact side silver plating |
4 |
Cover |
SUS |
1 |
|
5 |
PI |
PI |
2 |
Yellow |
|
6 |
Stem |
PPA |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
1.4 |
| Length (mm) |
3.5 |
| Width (mm) |
3 |
