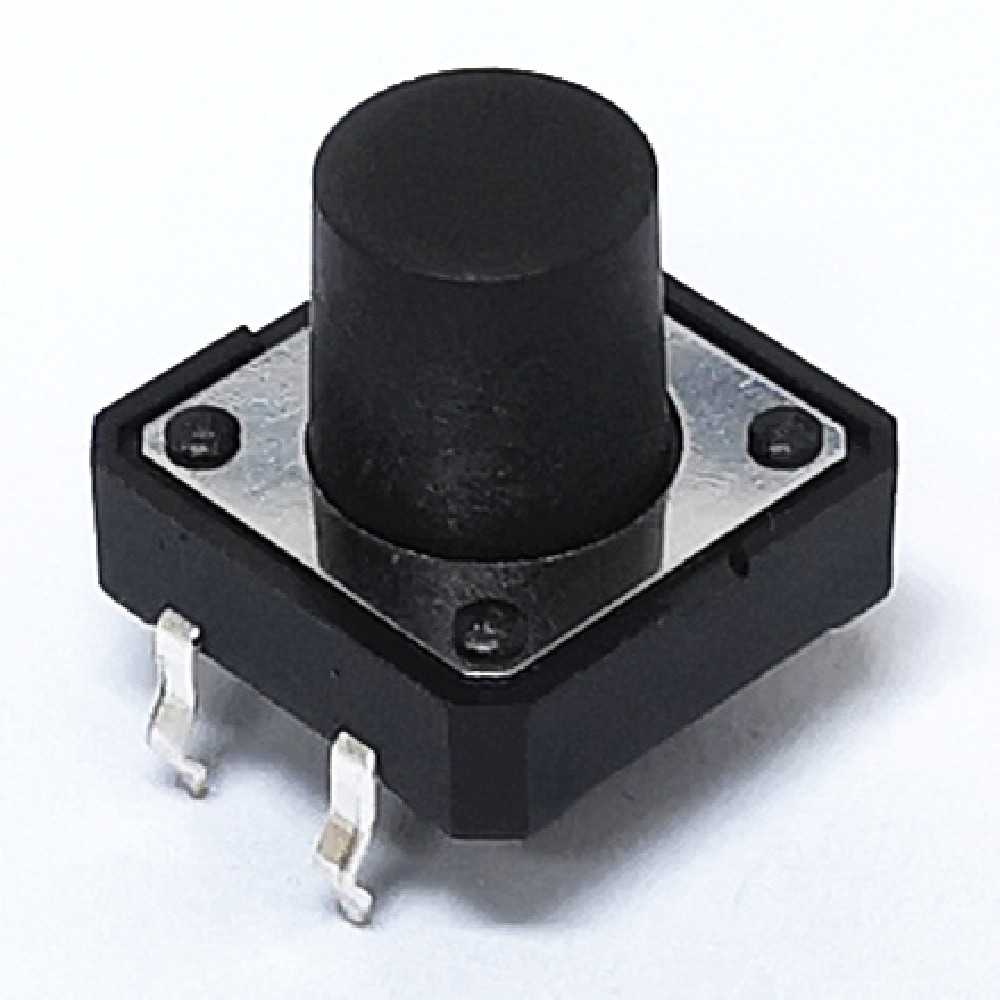

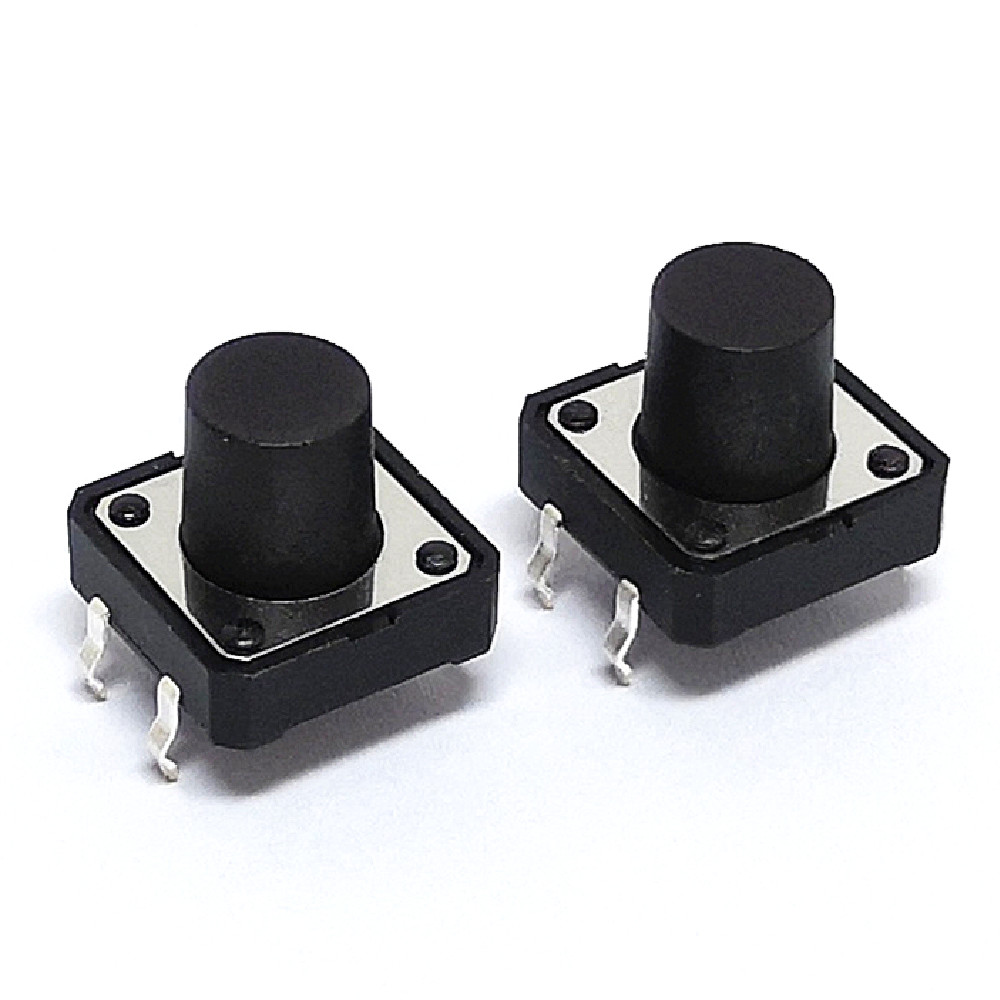

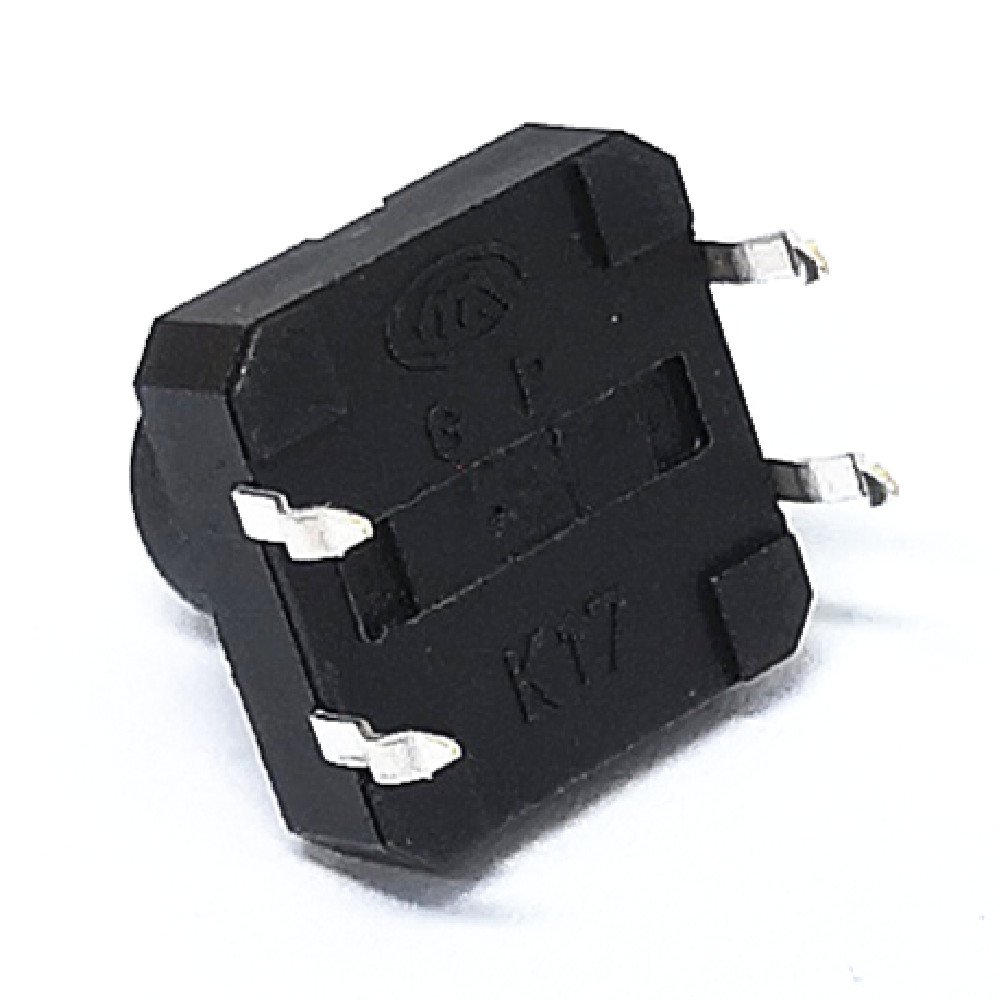

Through Hole Dip 12*12 Tact Switch
Part Number: KAN1211-1101B
The KAN1211-1101B is a 12 × 12 mm through-hole DIP tactile switch with an 11 mm stem and a 160 gf momentary action, rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 12 × 12 mm through-hole DIP body, 11 mm tall stem
- 160 ±50 gf actuation, 0.35 mm travel
- 100,000-cycle rated electrical life
- Stainless-steel (SUS) contacts, silver-plated, ≤100 mΩ contact resistance
- Operating range –30 °C to +80 °C, storage –40 °C to +90 °C
Applications
SPECIFICATIONS
| Part Number | KAN1211-1101B |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (THT/DIP), 4-pin |
| Body Size | 12.0 × 12.0 × 11.0 mm |
| Operating Force | 160 ±50 gf |
| Travel | 0.35 ±0.1 mm |
| Return Force | 20 gf (min) |
| Stop Strength | 30 N |
| Stem Strength | 5 N (min) |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms, on and off |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | Stainless steel (SUS), silver-plated |
| Terminal Material | Brass, silver-plated |
| Stem | PA66 |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The KAN1211 tall-stem DIP switch is built for panel-mount controls in industrial control cabinets and consumer electronics. The 11 mm stem also serves home appliances and communications equipment where the button sits above an enclosure.

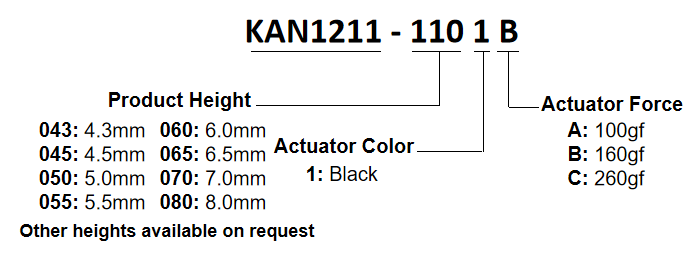

PART NUMBER KEY

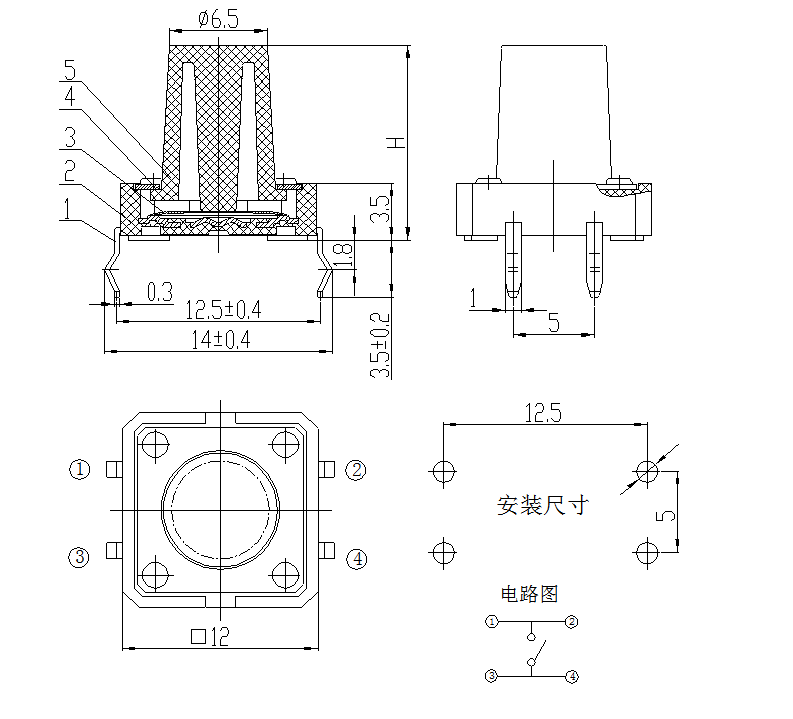

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
Phosphor bronze |
1 |
Contact side silver plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
11 |
| Length (mm) |
12 |
| Width (mm) |
12 |
